Extreme toughness and outrageous 50+ MPH speed separate the SENTON 4X4 3S BLX short course model from rest of the pack. Now command the power of its proven BLX100 brushless system with even more confidence, using the included Spektrum STX2 radio!
Categories
- Overview
- Specs
- Reviews
- Parts & Accessories
- Completion Guide
- Manuals & Support
Introduction
Extreme toughness and outrageous 50+ MPH speed separate the 1/10 SENTON™ 4X4 3S BLX Short Course Truck from rest of the pack. Now command the power of its proven BLX100 brushless system with even more confidence, using the included Spektrum™ STX2® radio!
Features
- Extremely durable — DESIGNED FAST, DESIGNED TOUGH!
- Fast, 50+ mph speeds
- Exciting short course truck realism
- Spektrum™ STX2® 2.4GHz Radio System:
- BLX100 Brushless System
- Easy-access power module
- Easy-access electronics module
- Metal-geared differentials
- Double wishbone front and rear suspension
- Oil-filled shocks with preload spacer clips
- High-speed center driveshaft support
- Built-in servo saver for robust, responsive steering
- Adjustable steel turnbuckles
- Adjustable ride height
- Adjustable body mounts
- Tough multi-spoke black chrome wheels
- Multi-terrain dBoots® Fortress tires
- Wheelie bar
- Waterproof electronics *
- 2-year limited warranty **
- * For details on waterproof standards, please refer to the product instruction manuals
** Please see the product manual for warranty details
Needed to Complete
- 35C 2S or 3S 35C+ LiPo or 6 to 8 Cell NiMH Hardcase Battery with IC5™/EC5™ Connector
- Suitable LiPo or NiMH Balancing Charger
- (4) AA Batteries
- LiPo Charging Bag (recommended)
What's in the Box?
- (1) ARRMA 1/10 SENTON™ 4X4 3S BLX Short Course Truck with:
- (1) Spektrum™ SRX200 2-Channel Waterproof Receiver (installed)
- (1) ADS-7M Waterproof, Metal Gear Servo (installed)
- (1) ARRMA BLX3660 3200Kv Brushless Motor (installed)
- (1) BLX100 ESC 2S/3S with IC5™ connector (installed)
- (1) Spektrum™ STX2 2.4GHz 2-Channel Transmitter
- (1) Product Manual
Overview
The STX2® 2-channel radio that comes with this new version of the SENTON™ 4X4 3S BLX RTR offers many of the same features found in high-end 2.4GHz radio systems —throttle and steering reversing, throttle and steering travel adjust, throttle limiting and more. The radio system also includes an SRX200 2-channel waterproof receiver.
This sophisticated new RC system launches you into terrain-commanding short course excitement, with tough components, awesome 3S BLX power, and high-quality ARRMA® engineering letting you conquer anything that stands in your path. Precision aluminum, tough steel and composite materials all combine to make the SENTON™ 4X4 3S BLX a short course vehicle that's ready for hard-hitting action, right out of the box.
Ingeniously designed power, electronics, and differential modules are simple to access and can be removed from the vehicle quickly for maintenance. They make sure you spend more time bashing and as little as possible in the workshop. The main differential gears have been super-sized with large pitch gears to withstand huge torque. The differential internals feature full-metal straight-cut gears for equally trouble-free operation.
Independent double wishbone suspension and coil-over oil shocks handle everything from fast speed runs to snow and mud chucking. No matter where you choose to bash, you'll remain stable and in control. The shocks are effortless to maintain, yet offer all the performance needed for amazing all-terrain handling.
High-quality dBoots® FORTRESS SC tires on multi-spoke black chrome finish wheels give the SENTON™ 4X4 3S BLX superb bite on a multitude of surfaces. You can tackle any track with confidence. The aggressively styled short course truck body — available in green or orange — looks great in action and even better up-close, where the attention to detail on the decal and body aesthetics really shines.
Spektrum™ STX2® 2.4GHz Radio System
- 2-Channel SRX200 waterproof receiver
- Built-in 3-position throttle limiter
- Extended range and interference-free performance
- Throttle/steering reversing
- Throttle/steering travel adjust
- Throttle limiting
- ADS-7M waterproof, metal gear servo
- Max. Servo Torque @6V: 84 oz-in (6 kg-cm)
- Max. Servo Speed @6V: 0.14 s
BLX100 Brushless System
- BLX3660 3200Kv brushless motor
- BLX100 ESC 2S/3S with IC5™ connector (EC5™ compatible)

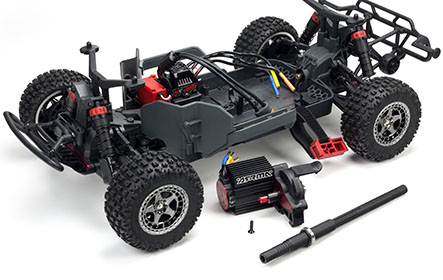

Easy-access Power Module
- Detaches from chassis as a complete unit by removing one screw
- Contains motor, motor plate, slipper clutch assembly and gear cover

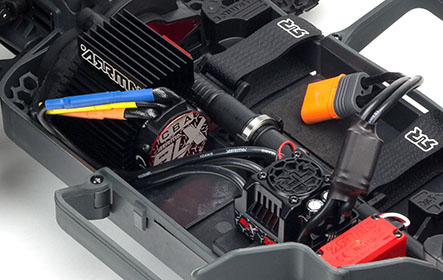

Easy-access Electronics Module
- Two-piece molding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray
- Receiver mounts inside sealed module for protection from dirt and moisture
- ESC screws to the top for easy maintenance and switch access
- Servo mounts on the side for quick servicing

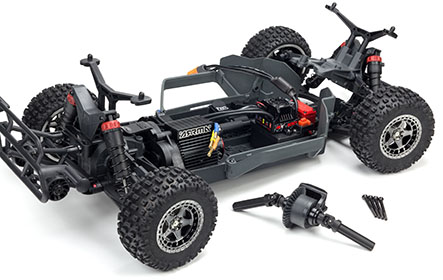

Metal-geared Differentials
- Large pitch gears engineered to handle BLX brushless power
- Internal metal gears chosen for extreme bashing, longevity and reliability
- Easy-access front and rear diff module removal

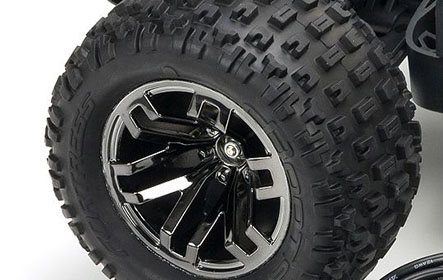

dBoots® FORTRESS SC Multi-terrain Tires
High quality dBoots FORTRESS SC tires coupled with multi-spoke black chrome finish wheels offer superb bite on a multitude of surfaces.
| Approximate Assembly Time: | Less than 1 Hour |
| Ball Bearings: | Transmission |
| Batteries: | 5000mAh+ 35C+ 2-3S LiPo or 6-8 Cell NiMH Hardcase Battery with IC5/EC5 Connector (sold separately) |
| Battery Dimensions: | 5.5 x 2 x 1.9" (140 x 51 x 48mm) with battery mounting blocks in place |
| Body: | Trimmed and printed |
| Bushing Material: | Metal |
| Charger: | Sold separately |
| Chassis: | Molded composite |
| Completion Level: | Ready-To-Run |
| Differential: | Oil-filled, metal gears |
| Drivetrain: | 4WD Shaft Drive |
| Final Drive Ratio: | 8.12:1 |
| Front Shock Spring Rate: | 82gf/mm |
| Gear Pitch: | 0.8 Module |
| Ground Clearance: | 1.26" (32mm) |
| Height: | 8.19" (208mm) |
| Internal Gear Ratio: | 2.85:1 |
| Length: | 21.97" (558mm) |
| Max Battery Dimensions: | 6.50 x 2 x 1.9" (165 x 51 x 48mm) with battery mounting blocks removed |
| Motor Size: | 12T 3660 3200Kv |
| Motor Type: | Non-sensored brushless |
| Pinion: | 20T |
| Radio: | Spektrum STX2 2-channel |
| Rear Shock Spring Rate: | 62gf/mm |
| Servos: | ADS-7M waterproof metal gear high torque steering servo |
| Shock Type: | Coil over oil-filled, composite body |
| Size/Scale: | 1/10 |
| Speed Control: | 100A w/IC5 connector, 2-3S capable |
| Spur Gear: | 57T |
| Suspension: | Independent |
| Tire Diameter: | 4.33" (110mm) |
| Tire Tread: | dBoots Fortress SC |
| Vehicle Type: | Short Course Truck |
| Water-Resistant: | Yes |
| Weight: | 6.05 lb (2.75 kg) |
| Wheel Diameter: | 2.2 / 3.0" (56 / 76mm) |
| Wheel Hex Size: | 14mm Hex |
| Wheel Type: | Short Course |
| Wheelbase: | 12.87" (327mm) |
| Width: | 11.73" (298mm) |
