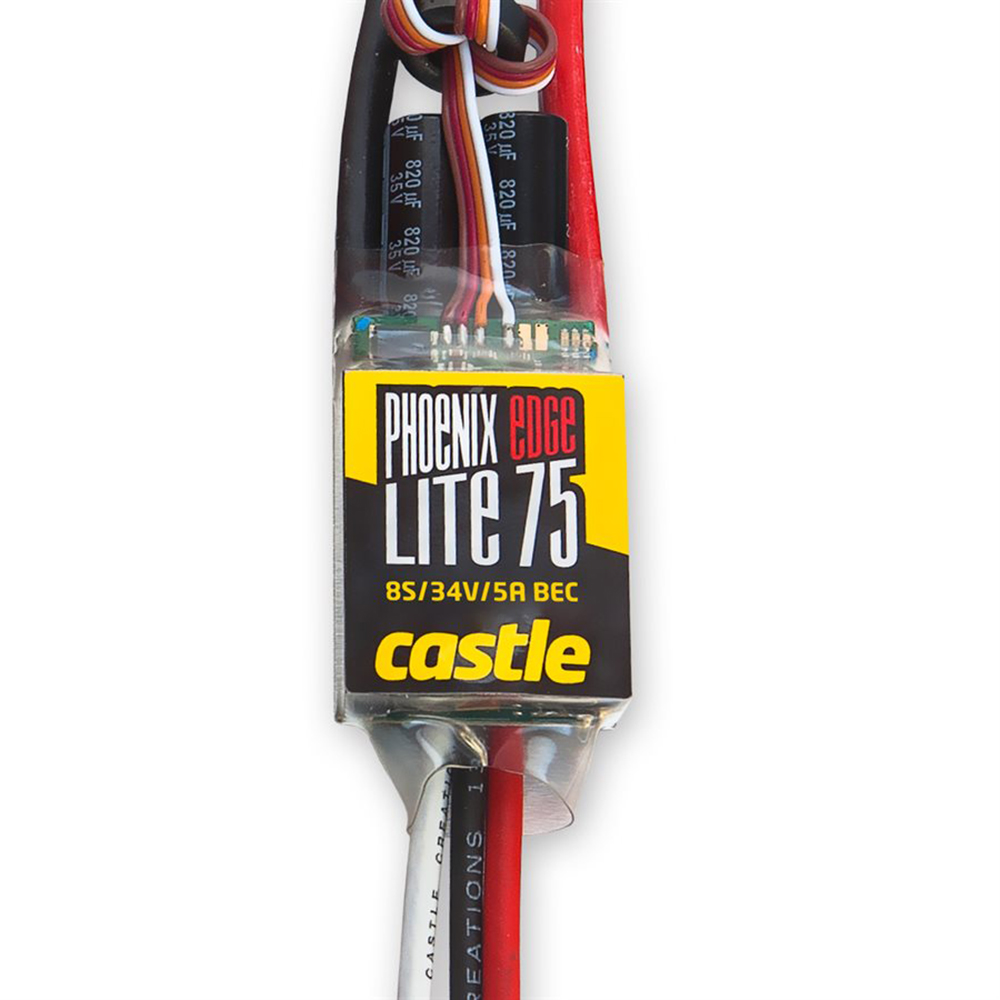

Phoenix Edge Lite 75, 34V 75-Amp ESC w/ 5-Amp BEC

Item No. CSE010011200
$102.95
Free financing available through Easy Pay
Earn points on this item
In Stock
Selected Store

Product Details

Key Features
  • Ideal for 450 class helis and .25-.35 fixed wing aircraft
  • Profiles can be custom designed on a PC with the Castle Link PC programming software (software not included, can be downloaded for free from Castle's website, voucher is included for free Castle Link Programmer)
  • User programmable white auxiliary wire can be used for governor gain input adjustments, serve as an audible beacon after a crash, act as an RPM output for 3 axis gyros that support RPM sensors, and used as an ESC or receiver arming lock
  • One year limited warranty through Castle Creations beginning at date of purchase
In The Box
  • Phoenix Edge Lite 75 Amp ESC with Instruction Sheet
  • Voucher for free Castle Link Programmer
Needed to Complete
  • Battery and motor connectors of modeler's choice
Phoenix Edge Lite 75, 34V 75-Amp ESC w/ 5-Amp BEC

Phoenix Edge Series ESCs are the next evolution in speed controller technology. The white user-programmable auxiliary wire can be used for features such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an “unexpected landing”, acting as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock (coupon for free Arming Lockout Key included), or as a receiver arming lock. Combined with data logging, access to Castle’s industry leading software functions, and USB programming capability via Castle Link USB adapter (coupon included) or the Castle Link iOS App and a B-LINK Bluetooth Adapter, Phoenix Edge offers unparalleled versatility.

Phoenix Edge Lite controllers offer all the amazing features and functionality as the regular Edge series with a reduced size and weight.

Product Specifications

BEC Continous Current 5 amp peak
BEC Voltage 5.0-8.4V, user selectable
Connector Type Open Ends
Input Voltage 2S-8S LiPo
Part Type Electronics
Product Height 0.8 in (21.4mm)
Product Weight 2.9 oz (81g) with wires
Product Width 1.2 in (30.5mm)
Programmable Yes
