Product Details

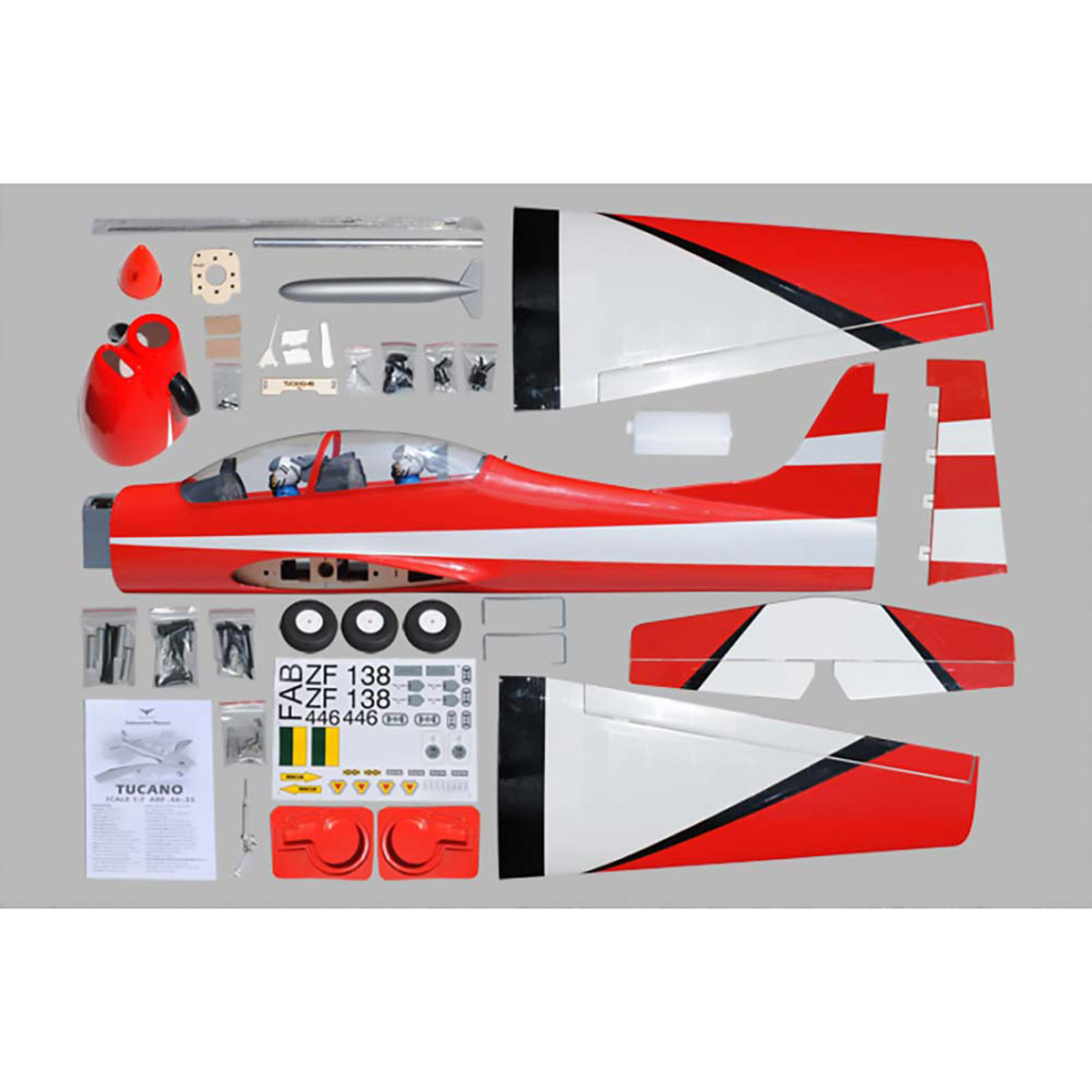

In The Box
Tucano .46-.55 GP EP ARF
Pre-built wing
fuselage and tail assemblies
wheels
cowl
engine mount
fuel tank
hardware package
two pilot busts
foam rubber
decal sheet
landing gear
aluminum wing tube
Product manual
Needed to Complete
For glow power; Engine: .46 - .55 cu in (7.5 - 9.0 cc) 2-stroke, or .52 cu in (8.5cc) 4-stroke Muffler: Standard muffler supplied with engine-cowl must be cut Servos: 5 standard size (2-aileron, 1-throttle, 1-rudder, 1-elevator) Y-Harness: One, for aileron servos Extensions: Two 6" (152mm) for aileron servos Propeller: 11x6
For electric power; Brushless Motor: Great Planes Rimfire .46 42-60-800, GPMG4725 ESC: 60A Propeller: 12x8 or 13x6.5 LiPo Battery 4S (14.8V) 30C, at least 4000mAh Servos: Four, 42 oz/in torque minimum (2-ailerons, 1-elevator, 1-rudder)
For glow and electric power; Radio: 4-channel Servo Extension: One 6" (152mm) for ailerons Y-Harness: One for aileron servos Misc. Items: 2" (51mm) spinner, 1/4" foam rubber padding, building and field equipment Servo Extension: One 6" (152mm) for ailerons Y-Harness: One for aileron servos Misc. Items: 1/4" foam rubber padding, propeller, building and field equipment
