Discontinued
|
This Item is No Longer Available
Super EZ RTF 1220mm V4 with Floats and Reflex
Item No.
FMS -
FMM122RX
Selected Store
Introduction
Built upon the successful SuperEZ V3, FMS has completely upgraded the SuperEZ V4 with digital 9g servos to ensure pinpoint precision and bulletproof reliability. The addition of attractive purple accents to the color scheme make the SuperEZ V4 a head-turner at every field! Like the Super EZ V2 and V3, the V4 can be installed with floats! Allowing for water and snow operations.
Overview
FMS has always dedicated its engineering efforts towards making aircrafts suitable for every skill level. The SuperEZ has always been a perfect beginner-friendly sport aircraft. Using a large, high-winged design constructed out of lightweight EPO foam, the SuperEZ has an ultra-low wing loading and stable flight characteristics giving beginner pilots great handling even at slow speeds.
An improved brushless power system and propeller gives the aircraft ample power while still maintaining 10-15 minute flight times. A high strength, lightweight metal landing gear set absorbs even the hardest landings. For easy transportation, the SuperEZ is designed with a quick-release mechanism that can release the wing in a matter of seconds.
Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft

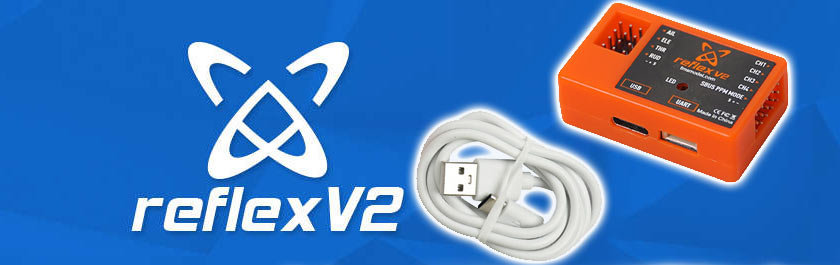

The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!
Reflex Functions
Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.
Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.
Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!
Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.
Reflex V2 Overview
Â
Software Installation
Â
Features
- Traditional 4-channel control
- Glue-free construction—can be assembled in as little as 5-minutes
- Strong, one-piece wing with quick-release hardware
- Installed brushless power system provides a high power-to-weight
- Durable, lightweight metal landing gear with large wheels
- 10+ minute flight times with recommended battery
- Water-proof micro servos provide lightweight all-weather operations
- New fuselage and one-piece horizontal stabilizer*
- New spinner prevents vibration
- Optional-use float set with servo-operated water rudder included
- Lightweight and durable EPO construction
- Includes transmitter, LiPo battery and charger
Product Specs
Minimum Required Radio
Speed Control
Wing Area
Charger
Receiver
Approximate Flight Time
Material
LiPo Compatibility
CG (Center of Gravity)
Completion Level
Propeller Size
Recommended Motor Battery
Connector Type
Motor Size
Product Length
Power Type
Skill Level
Wingspan
Video Overview
Get Info From Communities
FAQ
The difference is the completion level. RX is Ready To Fly, it includes the transmitter, receiver and charger. The PX (Plug N Play) does not include these items.
Product Details
In The Box
- (1) FMS Super EZ V3, 1220mm
- (1) Brushless 3136, 1200Kv Outrunner Motor (installed)
- (1) Brushless 20A ESC (installed)
- (4) 9-gram, Micro Servos
- (1) Full-range, 4+ Channel Transmitter & Receiver
- (1) 3S 11.1V 1300mAh 25C LiPo Battery
- (1) Optional-use Floats; Single Water-rudder w/servo
- (1) Product Manual
Needed to Complete
- Nothing! Everything needed to fly is in the box.
