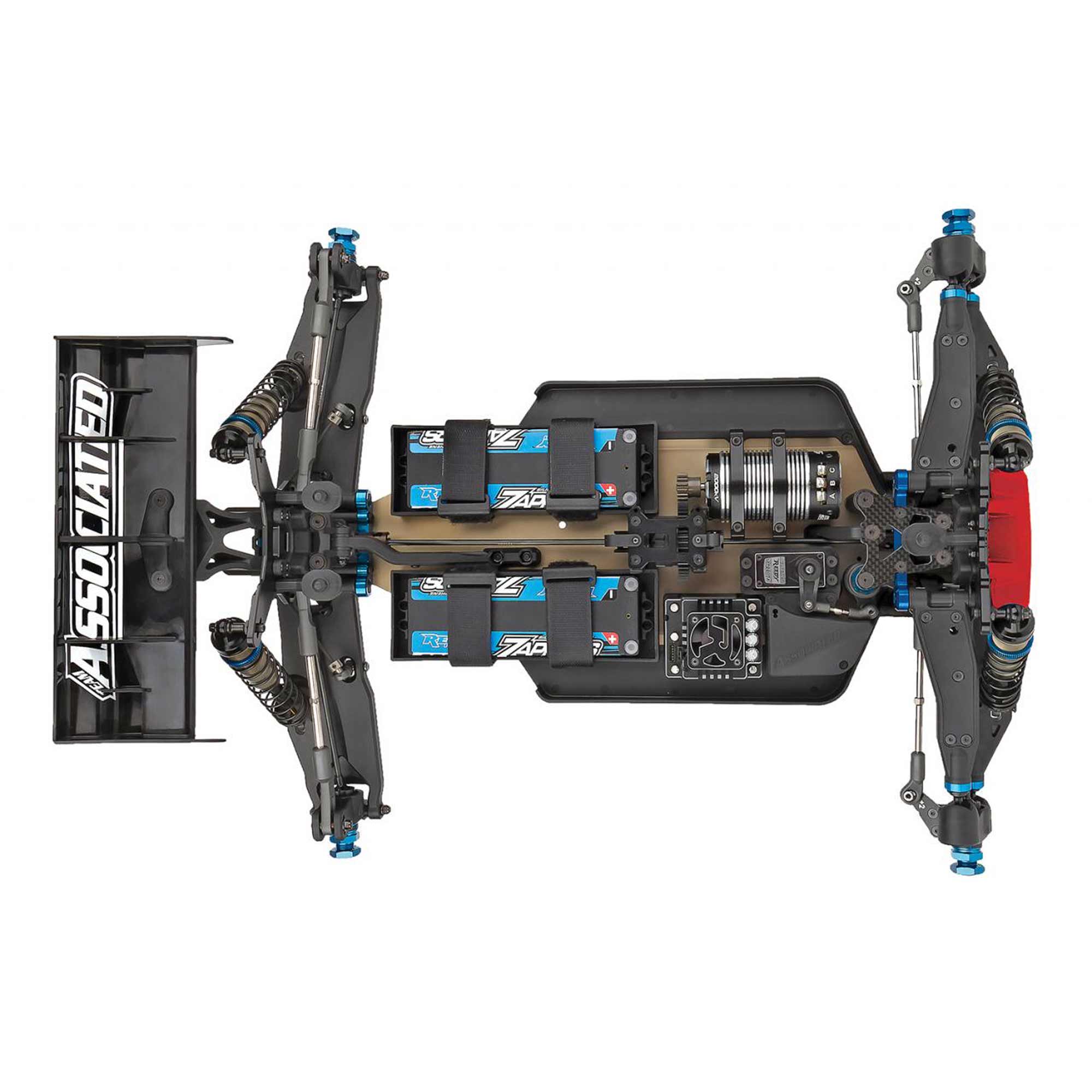

1/8 RC48T4e 4x4 Electric Buggy Team Kit

Item No.
Team Associated - ASC80948
$685.99
In Stock
Brand Logo
4.5 out of 5 Customer Rating

1/8 RC48T4e 4x4 Electric Buggy Team Kit

Item No.
Team Associated - ASC80948
$685.99
1:8 scale off road racing is one of the hobby's most challenging disciplines; it requires a high standard and demands attention to detail...
  • New Chassis Layout
  • Innovative Front-End Geometry
  • New Front Shock Tower Design With Updated Suspension Geometry
  • Front And Rear Center Dogbone Driveshafts
  • New Rear Wing Mount Has Adjustable Wing Angle Shims

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Transmitters and Receivers

I do not need to purchase this item.

DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
ASC80948
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
SPM5025
In Stock
$399.99
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
ASC80948
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
SPM5120
In Stock
$199.99
DX5 Rugged 5-Channel DSMR Transmitter with SR515
ASC80948
DX5 Rugged 5-Channel DSMR Transmitter with SR515
SPM5200
Not Available
$279.99
0 of 1 Selected
Motors and ESCs

I do not need to purchase this item.

1/8 Mamba Monster X Brushless ESC / 1512-2650Kv Sensored Motor Combo
ASC80948
1/8 Mamba Monster X Brushless ESC / 1512-2650Kv Sensored Motor Combo
CSE010014504
In Stock
$299.95
1/8 Mamba Monster X Brushless ESC / 1512-1800Kv Sensored Motor Combo
ASC80948
1/8 Mamba Monster X Brushless ESC / 1512-1800Kv Sensored Motor Combo
CSE010014505
In Stock
$299.95
1/8 RX8 Gen3 BL ESC 4030 T8 Gen3 BL Motor 2650kv Combo
ASC80948
1/8 RX8 Gen3 BL ESC 4030 T8 Gen3 BL Motor 2650kv Combo
TEKTT2330
Back Order
$319.99
1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 2050kv
ASC80948
1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 2050kv
TEKTT2331
In Stock
$319.99
1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 1900kv
ASC80948
1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 1900kv
TEKTT2332
In Stock
$319.99
1/8 RX8 Gen3 BL ESC 4030 T8 Gen3 BL Motor 1700kv Combo
ASC80948
1/8 RX8 Gen3 BL ESC 4030 T8 Gen3 BL Motor 1700kv Combo
TEKTT2333
Next Shipment April 2024
$319.99
0 of 1 Selected
Batteries

I do not need to purchase this item.

7.6V 6400mAh 2S 90C Zappers SG5 Shorty LiHV
ASC80948
7.6V 6400mAh 2S 90C Zappers SG5 Shorty LiHV
ASC27382
In Stock
$90.99
7.6V 4800mAh 2S 90C Zappers SG5 LP Shorty LiHV
ASC80948
7.6V 4800mAh 2S 90C Zappers SG5 LP Shorty LiHV
ASC27384
In Stock
$78.99
7.4V 3000mAh 30C 2S Wolfpack Shorty LiPo Battery: T-plug
ASC80948
7.4V 3000mAh 30C 2S Wolfpack Shorty LiPo Battery: T-plug
ASC758
Next Shipment March 2024
$30.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC80948
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC27203
In Stock
$187.99
Imars III PRO 10A Smart Balance RC Battery Charger
ASC80948
Imars III PRO 10A Smart Balance RC Battery Charger
GEA100WMPRO
Next Shipment March 2024
$59.99
RDX1 Mini AC Charger
ASC80948
RDX1 Mini AC Charger
HRC44295
In Stock
$46.99
RDX2 Mini AC Balance Charger
ASC80948
RDX2 Mini AC Balance Charger
HRC44299
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
ASC80948
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
HRC44301
In Stock
$149.99
S2200 G2 AC 2x200W Smart Charger
ASC80948
S2200 G2 AC 2x200W Smart Charger
SPMXC2010
In Stock
$279.99
S1400 G2 AC 1x400W Smart Charger
ASC80948
S1400 G2 AC 1x400W Smart Charger
SPMXC2040
In Stock
$249.99
0 of 1 Selected
Servos

I do not need to purchase this item.

D646WP Standard Digital High Torque Waterproof Metal Gear Servo
ASC80948
D646WP Standard Digital High Torque Waterproof Metal Gear Servo
HRC36646
In Stock
$54.99
D956WP Standard Digital High Torque Waterproof Steel Gear Servo
ASC80948
D956WP Standard Digital High Torque Waterproof Steel Gear Servo
HRC36956
In Stock
$109.99
S6245 Low Profile Digital High Speed High Torque Surface Servo
ASC80948
S6245 Low Profile Digital High Speed High Torque Surface Servo
SPMSS6245
In Stock
$129.99
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
ASC80948
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
SPMSS6260
In Stock
$119.99
0 of 1 Selected
Product $685.99
Add Ons
Estimated Total: $685.99

1/8 RC48T4e 4x4 Electric Buggy Team Kit

Item No.
Team Associated - ASC80948
4.5 out of 5 Customer Rating
Product $685.99
Add Ons
Estimated Total: $685.99
RC Club points earned on this item shown at checkout.
Selected Store

Product Details

icon-box
In The Box
  • (1) RC48T4e Team Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 1/8 Electronic Speed Control
  • (1) 1/8 Motor
  • (1) 4S Shorty Battery (or (2) 2S Shorty Batteries)
  • (1) Battery Charger
  • (1) Pinion Gear
  • (1) 1/8 Truggy Body
  • (4) 1/8 Truggy Wheels and Tires
1/8 RC48T4e 4x4 Electric Buggy Team Kit

PUSHING THE BOUNDARIES

The latest development to come from Associated Electrics' Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

RC8T4e Team Kit Features

  • New chassis layout featuring two saddle pack-style battery configurations. Both configurations include a centrally mounted center differential and in-line center driveshafts for superior drivetrain efficiency and equalized chassis balance
  • Four battery configurations to choose from:
    • Two 2S shorty LiPo batteries for lowest CG and exceptional weight bias
    • Two full size “saddle pack” LiPo batteries for lowest CG and exceptional weight bias
    • One 4S shorty LiPo battery for simplified setup and more centralized weight bias
    • One full size LiPo battery for simplified setup and more centralized weight bias
  • Innovative front-end geometry with new 8° steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions.
  • New gearboxes are specific to front and rear with larger bearing sizes resulting in longer life of ring and pinion gears:
    • Front gearbox is a 3.5° inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration
    • Rear gearbox is a 0° pinion gear angle and a center mounted rear chassis brace
  • New front shock tower design with updated suspension geometry and body mount positions for all styles of truck bodies
  • Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability
  • Front upper suspension arm updated to have bushing insert for improved fitment and performance
  • New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear-end drivetrain parts
  • There are three different chassis flex options using two chassis hole mounting locations and an optional turnbuckle ball for flex in more degrees of freedom
  • New +2 mm and +4 mm shock rod ends for finer adjustment of droop and up-travel settings
  • New 35.5 mm front and 44.5 mm rear shock shafts for improved dampening
  • New rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning options
  • +2° steering block arm
  • V3 differentials with 46T ring and 10T pinion gears for improved gear ratios
  • RC8T3.2 split center diff mounts with aluminum center top plate
  • 16mm shocks equipped with improved material locking spring cups and rod ends, V2 springs, “stiff” style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars
  • RC8B3.2 narrow C and D arm mounts
  • New rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
  • The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear lip height for increased downforce, and increased strength in various areas to reduce bending fatigue

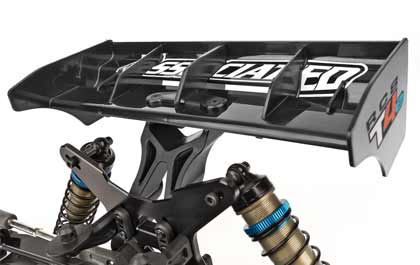

Rear Wing
Rear Wing

Wing has verticle fins and a trailer rear lip for increased straight-line and down-force

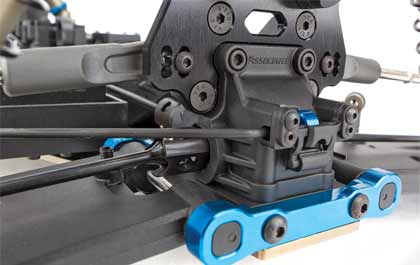

Chassis Brace
Chassis Brace

New Rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue

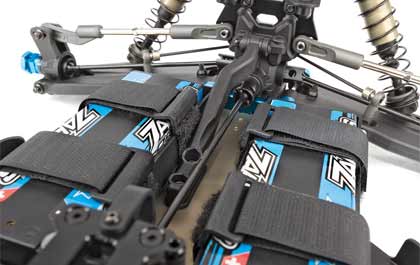

Battery Configuration
Battery Configuration

Chassis layout featuring saddle pack-style battery configurations: Two 2S shorty or one 4S shorty

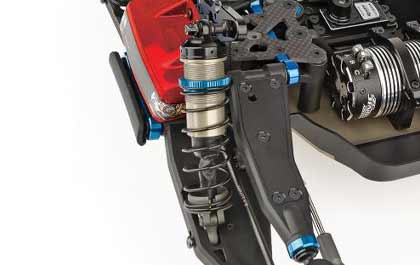

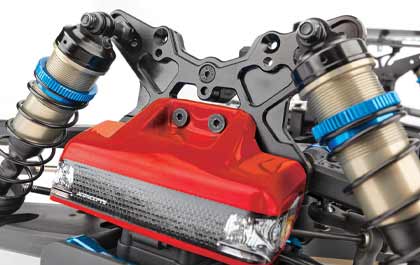

Front Shock Tower
Front Shock Tower

New front shock tower design and body mount positions for all styles of truck bodies



16mm Shocks
16mm Shocks

16mm shocks equiped with improved material locking spring cups and rod ends

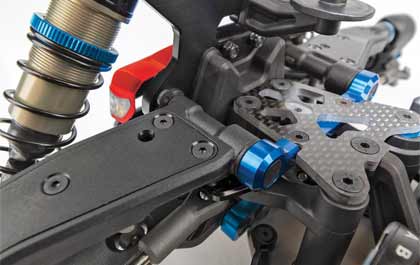

Upper Suspension Arms
Upper Suspension Arms

Front upper suspension arms updated to have bushing insert for improved fit and performance

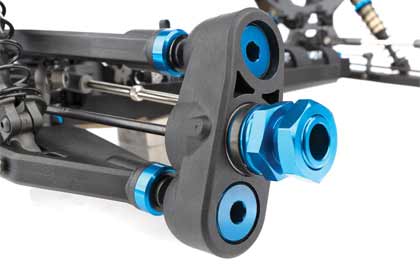

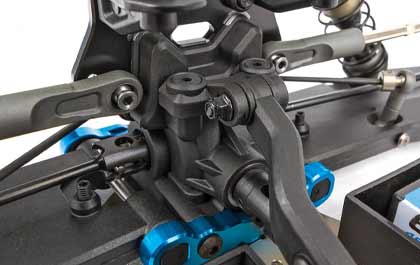

Front-End Geometry
Front-End Geometry

Innovative front-end geometry with new 8" steering blocks

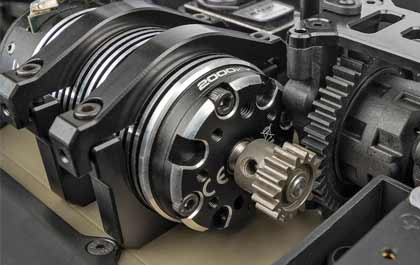

Clamping Motor Mount
Clamping Motor Mount

New two-peice clamping motor mounts make for easy and secure gear mesh adjustments



FEATURE_TITLE

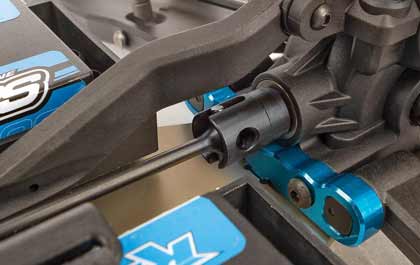

Dogbone Driveshafts

Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability



Gearbox
Gearbox

New front and rear gearbox designs are engineered for better drivetrain efficiency

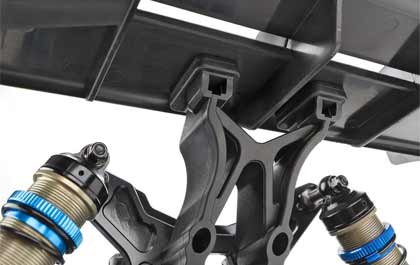

Wing Mount
Wing Mount

Wing mount features adjustable wing angle shims, strength improvements, and aerodynamic strength



Product Specifications

Completion Level Kit
Drivetrain 4WD
Battery Sold Separately
Product Length 22.05" (560 mm)
Speed Control Sold Separately
Scale 1/8
Vehicle Type Truggy
Radio Sold Separately
Charger Sold Separately
Receiver Sold Separately
Power Type Electric
Servos Sold Separately
