- High-spec power system: 3136-1200Kv motor, Predator 20A ESC, 11.1V 1300mAh 25C battery
- Two landing gear types included - tricycle and floats!
- High strength, lightweight metal landing gear for all-terrain operations.
- Screw-together and twist-lock assembly, completed in 3-10 minutes
- 10-15 minute flight times
- One piece horizontal stabilizer for precise flight characteristics
- Nothing! All you need to begin having fun with the Ranger 1220mm Electric Plane is included.
- (1) Ranger 1220mm Electric Plane with:
- (1) 4 Channel Receiver (installed)
- (5) 9g Servos (installed)
- (1) Predator 20A ESC (installed)
- (1) 3136-1200Kv motor (installed)
- (1) 4 Channel Transmitter
- (1) 3 Cell 11.1V 1300mAh 25C LiPo Battery
- (1) LiPo Battery Charger
- (1) High Strength Metal Landing Gear
- (1) Float Set with Integrated Rudder
- (1) Product Manual

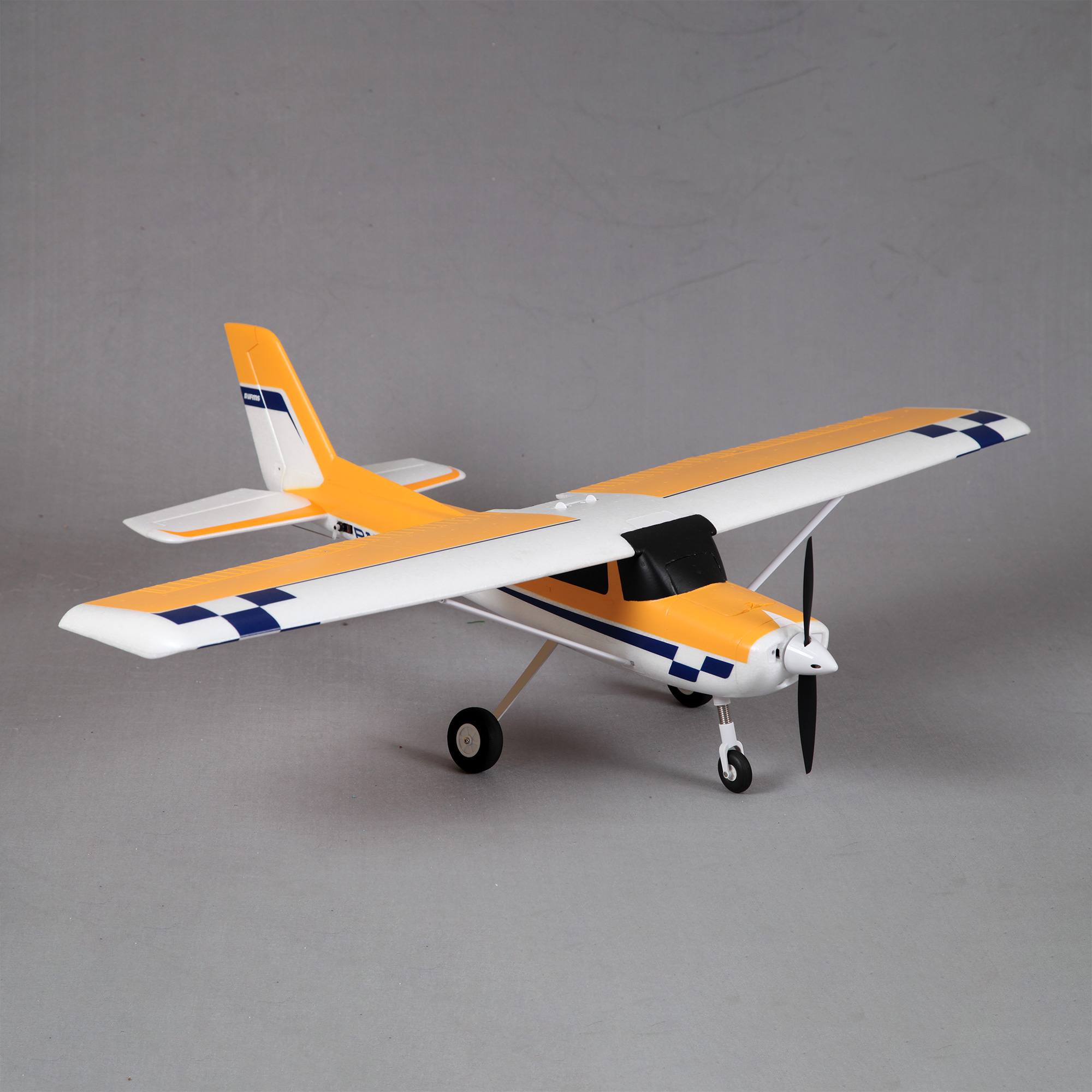

As the newest member of the FMS multi-purpose aircraft lineup, the 1220mm Ranger retains all of the fantastic features that pilots have come to expect from FMS- stable flight characteristics, easy to assemble airframe and realistic, general-aviation inspired design.
Built with ultralight EPO foam, the large, high-winged airframe configuration gives the Ranger low wing-loading and extraordinary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength tricycle landing gear makes ground handling a breeze.
A great aircraft is nothing without a great, dependable power system- FMS has equipped the ranger with a 3136-1200Kv outrunner motor with 20A Predator ESC, which allows the ranger to climb almost vertically on demand!
In the box, the Ranger comes with two sets of landing gears- a high-strength metal landing gear for ground operations and a pair of floats with an integrated rudder for water operations.
Designed with a yellow and white high-visibility color scheme, the ranger can always be easily orientated even in gloomy, overcast weather.
Like the Super-EZ and the Kingfisher, the Ranger is designed with ease of assembly in mind. Requiring only 6 (wheeled landing gear) or 10 (floats) screws to completely assemble, the longest wait time is the time it takes to charge the battery!
|Approximate Assembly Time||Less than 1 Hour|
|Approximate Flight Time||10-15 minutes|
|CG (Center of Gravity)||50-60mm(From Leading Edge)|
|Landing Gear||Optional landing gear is included|
|Minimum Required Radio||4-Channel system (included)|
|Product Length||37.3 in (947mm)|
|Propeller Size||10 x 5|
|Recommended Motor Battery||11.1V 3S 1300mAh 25C LiPo (included)|
|Servos||5 x 9g Servo|
|Trim Scheme Colors||Yellow and White|
|Wing Area||393.7 in sq (25.4dm sq)|
|Wing Loading||0.11oz/in sq (39.4g/dm sq)|
|Wingspan||48 in (1220mm)|
