Needed to Complete
  • Full-range, 5+ channel transmitter
  • Full-range, 5+ channel receiver
  • 2200mAh 3S LiPo flight battery (KXSB0015 recommended)
  • Compatible LiPo charger
What's in the box?
  • (1) FMS Kingfisher 1400mm PNP
  • (1) User Manual

Overview

Following the popularity of the FMS Super EZ V2, FMS is thrilled to offer a multi-role trainer—the 1400mm Kingfisher. With simple assembly, ease of control and stability, plus great performance, the Kingfisher is ideal for beginners.

With the beginner pilot in mind, FMS’ Kingfisher is the ultimate user-friendly plane. Assembly is easy with convenient bolt-on wings and stabilizer, plus a quick-release battery cover and supporting struts. Everything self-aligns and fits only one way so chance of assembly errors is as low as possible. By far the coolest part about the Kingfisher is its versatility. With three sets of landing gear included, the Kingfisher can handle any field type at just about any location. The oversize wheel set is provided for grass fields and gravel roads. The float set includes an simple setup so that flying from water is easy, even if you’ve never done it before. Finally, the skis provided make it possible to even fly in frigid conditions from snow. Cool upgrades are also available for the Kingfisher such as an electric towing hook for banners and gliders. Plus, the model is features an FPV equipment bay making it FPV ready. DO NOT miss this revolutionary multipurpose trainer. The Kingfish is ONE plane with virtually endless potential.

Key Features

  • Screw-together construction—no glue required
  • Two-piece, plug-in wings and quick-release struts
  • Functional Flaps
  • Carbon-fiber wing joiner tubes
  • Lightweight and durable EPO construction
  • Powerful brushless 3536, 850Kv outrunner motor
  • Predator 40A brushless ESC
  • Long flying times of 10–15 minutes
  • Giant wheels for operation from grass and rough surfaces
  • Skis for operation from ice and packed snow

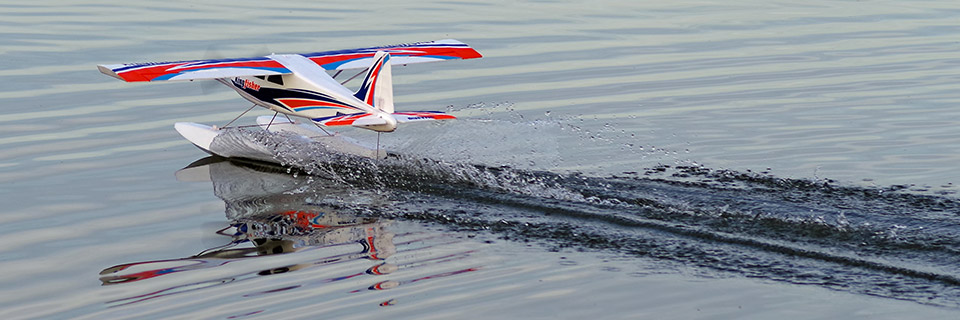

  • Float set and a water rudder for seaplane conversion
  • Convenient top hatch
  • Optional tow-hook release
  • FPV Ready with optional-use battery hatch

Product Specs

Speed Control
Included
Wing Area
451 sq in (29.1 dm2)
Receiver
Sold Separately
Power Type
Electric
Wingspan
55.12" (1400 mm)
Motor Size
Brushless 3536, 850Kv Outrunner
Product Length
36.02" (915 mm)
CG (Center of Gravity)
60mm (from leading edge, at the root)
Completion Level
Plug-N-Play
Propeller Size
11 x 7
Recommended Motor Battery
3S 11.1V 2200mAh 30C LiPo (sold separately)
Approximate Assembly Time
Less than 1 Hour
Approximate Flight Time
10-15 minutes
Flaps
Yes
Material
EPO

Video Overview

FAQ

Yes, they will.

FMS recommends only 3S, we do not have any information on using 4S. 4S operation may require changing the propeller and/or ESC.

FMS models sold in the US do not include Reflex stabilization.
