iX12 12-Channel DSMX Transmitter Only
iX12 12-Channel DSMX Transmitter Only
In The Box
- (1) Spektrum iX12 Transmitter
- (1) 6000mAh Li-Ion Transmitter Battery Pack (Installed)
- (1) USB Power Supply and Cable
- (1) Quick Start Guide
- (1) iX12 Neck Strap
- (1) Sticker Set
Needed to Complete
- (1) Spektrum™ DSMX®/DSM2® Compatible Receiver
SIMPLY "TAP" INTO IT
The Spektrum™ iX12 radio is an intelligent 12-channel transmitter matched with a powerful combination of features and next-level connectivity. Groundbreaking yet comfortably familiar, RC pilots of all aircraft types can use the iX12 to out fly everything in its class.

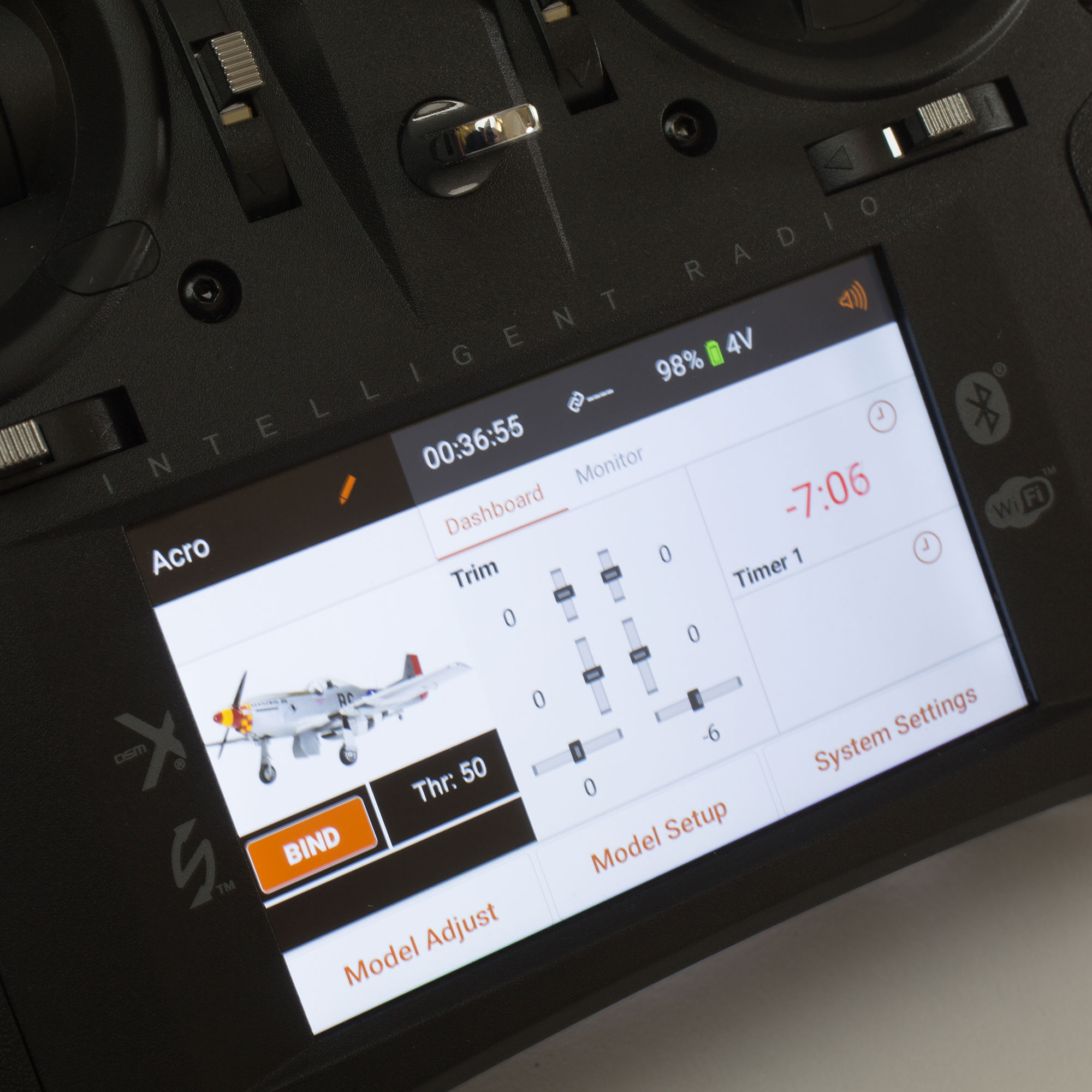

TOUCHSCREEN WITH ANDROID-POWERED INTERFACE
Literally "tap" into the iX12's programming. Its 4-inch, full-color, easy-to-read monitor delivers crisp, clear detail that includes state-of-the-art touchscreen technology so that navigation is simple. And, because the interface is a fully functional Android system with a dedicated quad-core processor, it will work with an evolving list of apps from the Google Play store.
3RD PARTY APPS
DUAL RATE AND EXPO
When connected to Wi-Fi, the iX12 gets even smarter. Spektrum AirWare™ Touch app update-alerts are automatic, plus you can download model setups and add third-party apps. Listen to music on Spotify or Pandora directly from your radio or even update your Facebook status just before you fly.
The iX12 can connect with just about any Bluetooth device. Use wireless earbuds to hear voice alerts privately, or pair a set of speakers and listen to music. A wide range of other devises uses are possible including file sharing, photo sharing and more.
MICRO USB CONNECTIVITY
Hook up to your flight-control board and use their apps to adjust settings directly from the iX12—no laptop required. The integrated micro USB port conveniently allows you to charge its internal Li-Ion battery with a common Micro USB cable and power source. Other accessory devices can be recognized too, including your PC or laptop
Long-time Spektrum users will feel right at home the first time they pick up the iX12. That’s because it’s Spektrum AirWare™ Touch app is derived from the familiar Spektrum AirWare firmware used today. The big, color touchscreen features an Android interface that simply makes menu navigation and model setup even easier than before.
LONG RANGE RF MODULE SUPPORT
Go further with the iX12 when you explore what the integrated auxiliary serial port has to offer. It’s a next-level link that lets you accessorize the iX12 transmitter with a compatible long range RF system (adapter, SPMA3090 required) such as Team Black Sheep Crossfire protocol technology (sold separately) that gives you low latency performance and secondary frequency convenience.
PROGRAMMABLE VOICE AND AUDIO ALERTS
Keep tabs on important information without ever taking your eyes off what you are flying. The iX12 programmable voice alert system can call out what flight mode you have chosen or report telemetry info on demand. If an alarm goes off, you won't have to look at the display to see what's happening. The iX12 can tell you.
Text-to-speech means that you can create any voice alert by just typing in the words, it can even take *.WAV files so you can have virtually any sound imaginable. In addition to a built-in speaker, the iX12 has a headphone jack that allows you to monitor voice alerts, and/or listen to your favorite song during flight, using earbuds so you don't bother other pilots. You can also use its Bluetooth support to connect with wireless earbuds or your phone.
Based on popular team-pilot recommendations and customer feedback, the iX12 has been persistently engineered to have the most optimized feel possible. The weight distribution and ergonomics of the iX12 have been optimized to fit a wide range of pilot needs. The result is a sense of balance, comfort and functionality that perfectly complement the speed and precision of DSMX® technology.
KEY iX12 ERGONOMIC FEATURES:
- Comfortable, non-slip rubber grips
- Smooth, quad-bearing gimbals with front-access adjustments
- Adjustable stick length and travel range
- User-adjustable mode configurations (1, 2, 3 or 4)
- User-adjustable switch assignments and pushbutton power on/off
- State-of-the-art touchscreen technology
WIRELESS TRAINER LINK
The exclusive functionality of the Spektrum wireless trainer link gives iX12 users the ability to wirelessly link up with other Spektrum transmitters and specially-equipped Spektrum FPV headsets. It’s hassle-free. Once bound to another transmitter or component, ModelMatch™ technology will allow the iX12 to re-link without having to go through the bind process again.
WITH WIRELESS TRAINER LINK, YOU CAN:
- Wirelessly 'buddy box' with another DSMX®/DSM2® transmitter when teaching someone to fly
- Assign gimbal functions to a second 'camera' transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot
- Link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change camera video frequencies
Access to tension, ratchet and travel adjustments for each gimbal is conveniently through the front - no disassembly required. There’s nothing to it. Even mode conversion adjustments are accessible. To create the perfect feel, just lift off the rubber access cover and make a simple adjustment.
- Up/Down Travel Limiter
- Left/Right Gimbal Stick Tension
- Up/Down Resistance
- Up/Down Ratchet
- Up/Down Gimbal Stick Tension
- Gimbal Centering Screw
Gimbal Access Points:
The evolutionary iX12 radio functions a lot like smartphone. When booted for the first time, you practically never have to turn it off—just put it to sleep. Tap the power button for easy-to-use options that allow the system to instantly boot and present options that extend battery use between charges. You have full control of when the RF system broadcasts, when the Android system is active when the screen is on. Additionally, the Spektrum LED indicator light always gives you a clear sign of sleep, broadcast and charging status.
The Spektrum™ iX12 features a class leading model memory storage capacity. Pilots are able to store 250 models straight to the radio, and even more on to an SD card. The enormous capacity of the iX12's on-board Model Memory means you can be confident that your whole fleet can all be conveniently stored all on one radio. And with the security of Spektrum Model Match Technology, there are no worries of accidently flying a model with the wrong settings. Simply choose the model you want to fly, power up the aircraft, and let your Spektrum iX12 do the rest.
Not only is the iX12 the ultimate in control, it’s the ultimate tool you can use to make sure your prized aircraft is in perfect condition. Built-in telemetry can give you real-time data on critical information like your model's battery voltage, signal quality, motor temperature and more.* Using the voice alert system, you can program the iX12 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch.
*Model must be equipped with a telemetry-enabled receiver and any required sensors.
The iX12 can share model setups with any Spektrum G2 transmitter with Spektrum AirWare firmware. Transfer model setup data from an ‘old’ transmitter to your new iX12 or share models with almost any other Spektrum G2 user.
The iX12 can share model setups with any of these Spektrum transmitters:
- DX6 G2
- DX6 G3
- DX7 G2
- DX8 G2
- DX9 (All)
- DX18 G2
- DX18 Stealth Edition
|Frame Rate||11/22 Ms|
|Modes||User Selectable Mode 1-4|
|Rate Positions||3 POS|
|Transmitter (Tx) Battery Type||3.7V 1S 6000 mAh Lithium Ion Battery|
|SD Card/Airware Capable||Yes|
