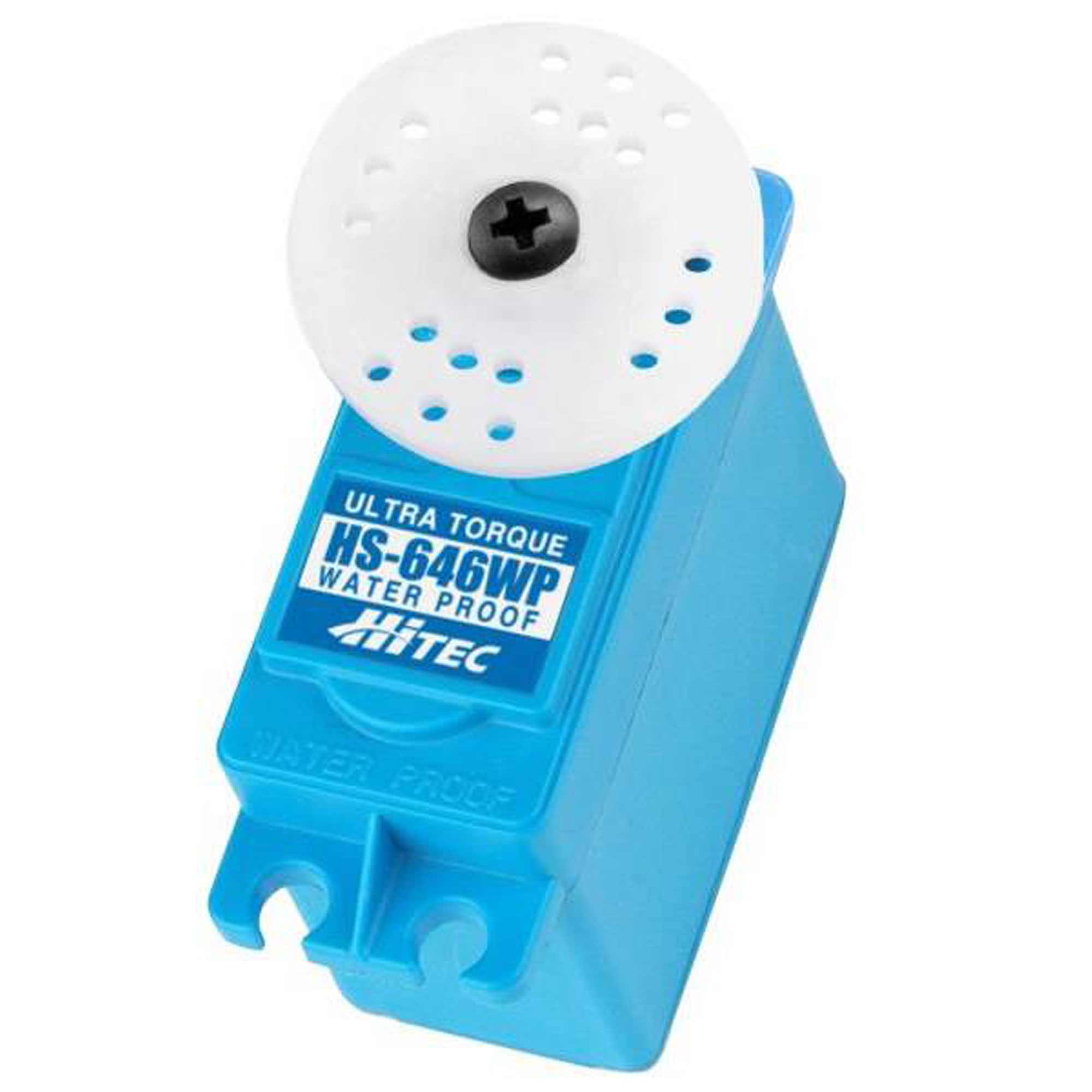

HS-646WP Standard Digital Waterproof Metal Gear Servo

Item No.
Hitec RCD Inc. - HRC32646W
$49.99
HS-646WP Standard Digital Waterproof Metal Gear Servo
HS-646WP Standard Digital Waterproof Metal Gear Servo
HS-646WP Standard Digital Waterproof Metal Gear Servo
HS-646WP Standard Digital Waterproof Metal Gear Servo
HS-646WP Standard Digital Waterproof Metal Gear Servo
In Stock
Brand Logo
5 out of 5 Customer Rating

HS-646WP Standard Digital Waterproof Metal Gear Servo

Item No.
Hitec RCD Inc. - HRC32646W
$49.99
Hitec's waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, these analog waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the HS-646WP will dependably keep your mind at ease.
  • Speed: @4.8V .20sec/60' / @6.0V .17sec/60'
  • Torque: @4.8V 133.32oz/in / @6.0V 161.09oz/in
  • Industry's First IP67-Rated Waterproof Case
  • Strong Three-Pole Ferrite Motor
  • Metal Gear Train with MP First Gear
  • Dual Ball Bearing-Supported Output Shaft
  • 7.4v 2-Cell LiPo Capability
  • Programmable Circuitry
Product $49.99
Add Ons
Estimated Total: $49.99

HS-646WP Standard Digital Waterproof Metal Gear Servo

Item No.
Hitec RCD Inc. - HRC32646W
5 out of 5 Customer Rating
Product $49.99
Add Ons
Estimated Total: $49.99
RC Club points earned on this item shown at checkout. ⓘ
Selected Store
The link to HS-646WP Standard Digital Waterproof Metal Gear Servo has been copied

Product Details

icon-box
In The Box
  • (1) HS-646WP Standard Digital Waterproof Metal Gear Servo
HS-646WP Standard Digital Waterproof Metal Gear Servo
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Current Draw Stall 2,200 mA
Motor Type Brushed
Servo Operating Voltage 6.0 - 7.4V (HV)
Maximum Servo Torque 133oz/in @ 6.0V, 161oz/in @ 7.4V
Deadband 4µs
Input Voltage 6.0V ~ 7.4V
Product Height 1.57" (40 mm)
Servo Type Digital
Connector Type Universal
Maximum Servo Speed 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V
Product Length 1.65" (42 mm)
Application Sport Aircraft, Cars, Boats
Product Weight 2.12oz (60.0g)
Spline Count 24 - Tooth
Water-Resistant Yes
Current Draw Idle 8 mA
Product Width 0.83" (21 mm)
Programmable No
Servo Size Category Standard
