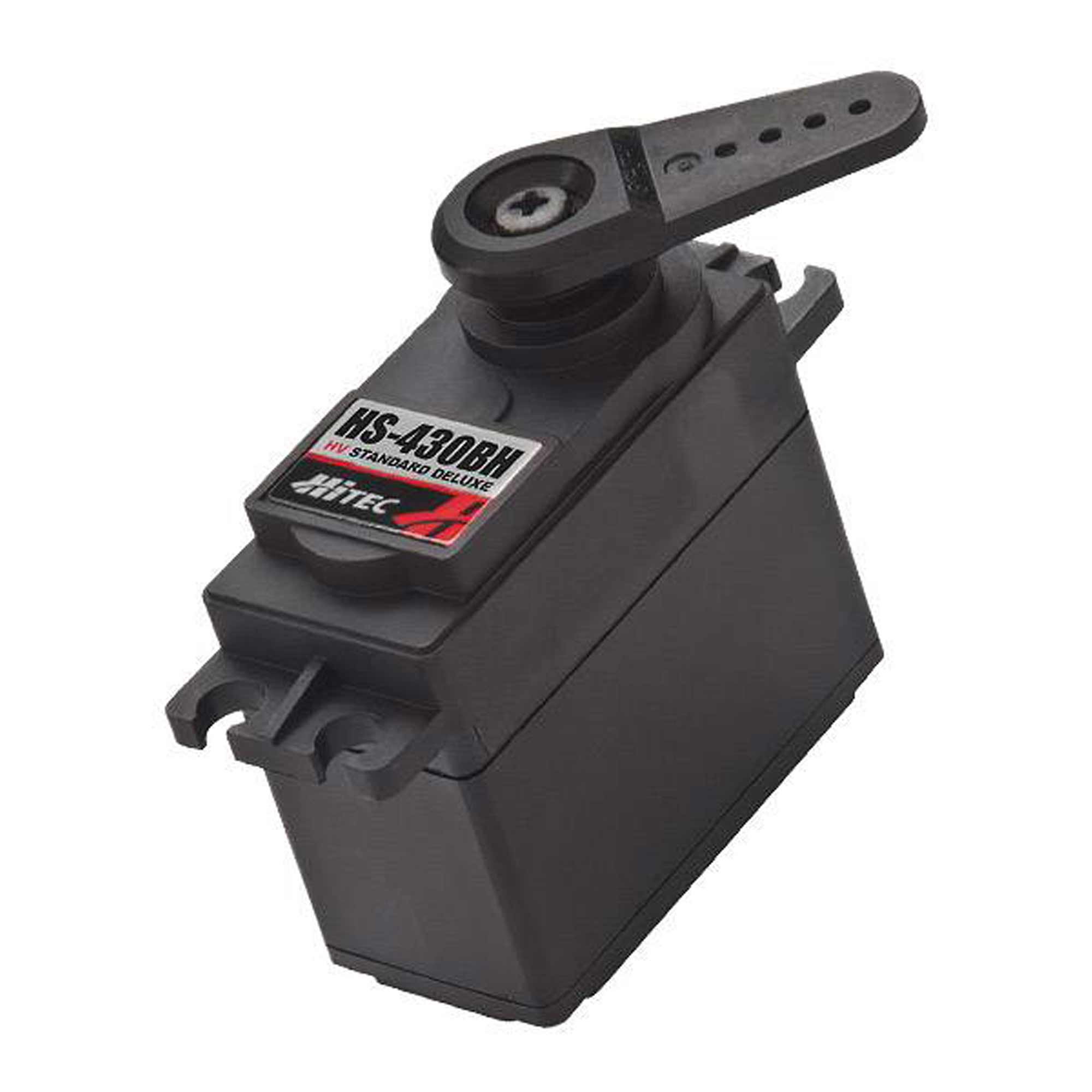

HS-430BH Standard Analog HV Deluxe Servo
Item No.
HRC31430S

HS-430BH Standard Analog HV Deluxe Servo
Item No.
HRC31430S
$15.99
Earn points on this item
ⓘ
Selected Store
Product Details
Key Features
- For .20-.60 size airplanes, all electric and glow powered 30 class helicopters, and steering and throttle in cars, trucks and boats
- 6-cell NiMH and 2-cell LiPo compatible
- Dual ball bearing equipped
- Direct potentiometer drive
- Size: 1.59 x 0.77 x 1.44" (40.6 x 19.8 x 36.6mm)
In The Box
- HS-430BH Standard Analog HV Deluxe Servo
- 0.92" (23.5mm) Round Horn
- 1.2" (30mm) 4-Point Horn
- 1.7" (43mm) 4-Point Horn
- 1.2" (32mm) Double Arm Horn
- 1.2 (30.5mm) Single Arm Horn
- Mounting Hardware
Needed to Complete
- Installing in model and connecting linkage
Quick Links
Product Specifications
Specs
Application | 50-64oz sport planes, 2M+ sailplanes, 50-64 oz scale aircraft, 1M sailboats, 1:10 scale power boats |
Bearing | Single |
Bushing Or Bearing | Bearing |
Current Draw Idle | 8 mA |
Current Draw Stall | 850mA |
Deadband | Width, 8 ?s |
Gear Type | Plastic |
Maximum Servo Speed | 0.100-0.149 sec |
Maximum Servo Torque | 40-99 oz-in |
Motor Type | 3-pole ferrite |
Product Height | 1.44 in (36.6mm) |
Product Length | 1.59 in (40.6mm) |
Product Weight | 1.60 oz (45.5g) |
Product Width | 0.77 in (19.8mm) |
Programmable | No |
Servo Operating Voltage | 6.0 - 7.4V (HV) |
Servo Size Category | Standard |
Servo Type | Analog |
Speed | 0.16 sec/60 deg @ 6.0V; 0.14 sec/60 deg @ 7.4V |
