GT60 60cc 2-Cycle Gas Engine with Ignition Module

Item No. OSMG1560
GT60 60cc 2-Cycle Gas Engine with Ignition Module
GT60 60cc 2-Cycle Gas Engine with Ignition Module
GT60 60cc 2-Cycle Gas Engine with Ignition Module
Brand Logo
4.5 out of 5 Customer Rating

GT60 60cc 2-Cycle Gas Engine with Ignition Module

Item No. OSMG1560
$699.99 Price reduced from $1,199.99 to
In Stock
Selected Store
The link to GT60 60cc 2-Cycle Gas Engine with Ignition Module has been copied

Product Details

Quick Links
Manuals & Support

MORE POWER for 50 cc class aircraft

The GT60 is everything 50 cc fliers want in a gasoline engine — durable, efficient, easy to operate and high performance. A liner-less cylinder makes the engine light, makes it cool faster and gives better exhaust-scavenging characteristics. Plus, its throttle times make the GT60 the choice for 3D flying, delivering power when you need it.


O.S. Two Year Limited Warranty
  • Quick-starting IG-02 electric ignition system uses 4-6 cell NiCds/NiMHs or 2-cell LiPos.
  • Rear-mounted Walbro® carburetor is custom-designed for the GT60.
  • Connecting rod features needle roller bearings at both ends.
  • Angled spark plug allows easy installation in tight spaces.
  • Recommended prop sizes: 22x8, 22x10, 23x8, 24x8, 24x10.

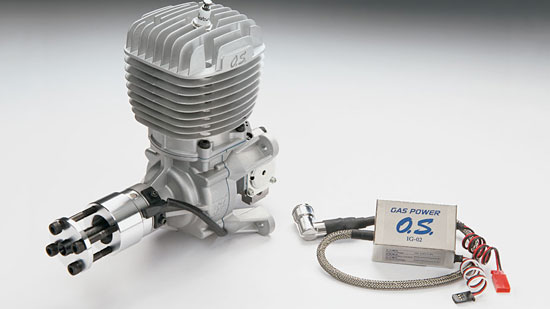

O.S. GT60 Gas w/Muffler - electronic ignition
Includes electronic ignition module and CM-6 spark plug.

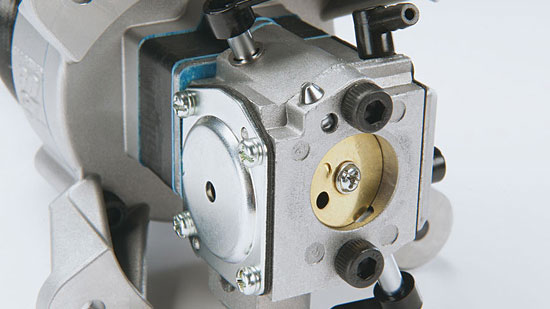

O.S. GT60 Gas w/Muffler - rear-mounted carb
Pilots prefer a rear-mounted carb — and O.S. designers listened. The carb is custom-designed by Walbro specifically for the GT60.

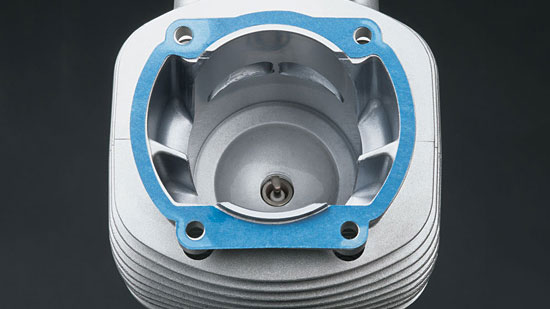

O.S. GT60 Gas w/Muffler - liner-less cylinder
The GT60's liner-less cylinder head lowers weight, improves cooling, and contributes to increased scavenging efficiency.

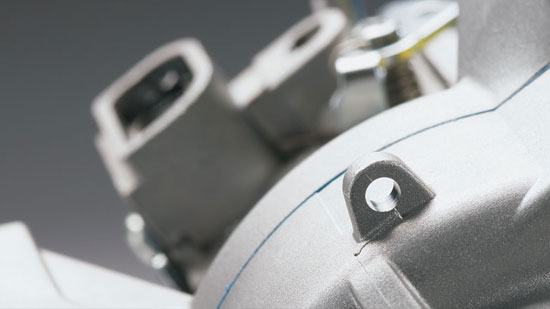

O.S. GT60 Gas w/Muffler - choke rod guide
A choke rod guide has been integrated into the crankcase for effortless set-up.

Product Specifications

Specs

Cylinder Type Linerless
Displacement 3.66 cu in (59.91 cc)
Engine (Only) Weight 49.38 oz (1,400 g)
Power Type Gas
HP 6.00 hp @ 7,000 rpm
Ignition Weight 3.7 oz (105 g)
Muffler Weight 6.3 oz (178 g)
Plug Type CM6 Spark Plug
Product Height 6.9 in (175mm) lower mounting tab to top of cylinder head
Product Length 6.5 in (166.4mm) from carb to drive hub
Product Width 3.8 in (97.6mm) at mounting tabs
Prop Range 22 x 10 - 24 x 10
Recommended Fuel Break-in 30:1, 50:1 gas/oil ratio after break-in
RPM Range 1,600 - 8,000 rpm
Stroke 1.55 in (39.4mm)
Total Weight 3.71 lbs (1683 g)
Cylinders Single
Bore 1.73 in (44.0mm)
Carb Type Walbro reed valve
