Fusion 270 Kit ARF

Item No.
Blade - BLH5360
$319.99
Discontinued | This Item is No Longer Available
Brand Logo
3.1 out of 5 Customer Rating

Fusion 270 Kit ARF

Item No.
Blade - BLH5360

Product Details

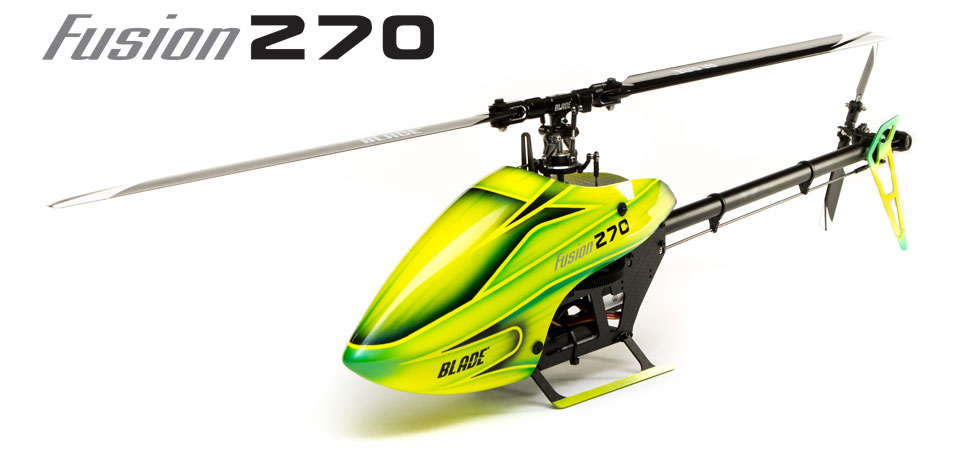

Blade Fusion 270 ARF

The Blade® Fusion™ 270 ARF helicopter begins a new era of high-end Blade products, with all the features, style, and performance intermediate through advanced pilots demand. This powerhouse features a lightweight and strong carbon fiber frame and landing gear, black anodized aluminum components, and an all-new, high-torque 4S optimized power system (motor & esc included). With the helical main gear and the durable belt driven tail design, there is nothing stopping you from trying the most aggressive maneuvers imaginable. You can even practice flying this heli in the RealFlight simulator! The ARF version comes with a pre-built airframe, and is ready to accept your favorite sub-micro servos and flybarless system.

Video Overview

Needed to Complete
  • (1) 6+ Channel Transmitter
  • (1) Receiver
  • (4) Sub-micro Servos
  • (1) Flybarless System
  • (1) 4S 1300 mAh Battery
  • (1) Compatible Charger
What's in the box?
  • (1) Fusion 270 ARF Helicopter
  • (1) Carbon Fiber Main and Tail Blades
  • (1) 45A ESC with Built in Governor
  • (1) 2950Kv Brushless Outrunner Motor
  • (1) User Manual
Blade Fusion 270 ARF

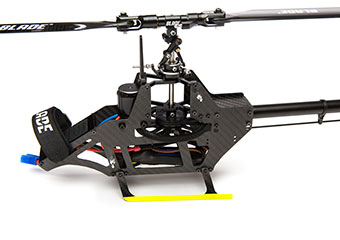

ARF (Almost Ready to Fly)

Fully built airframe ready to accept your favorite servos, flybarless system and receiver.

ARF (Almost Ready to Fly)
Carbon Fiber & Anodized Aluminum Construction

Stylish black anodized head, swashplate, servo block, and blade grips give a high-end finish that stands out from the pack. Rigid carbon fiber and aluminum frame construction features carbon fiber landing gear for a new stance that is light and durable. (servos, receiver and flybarless system not included)

Carbon Fiber & Anodized Aluminum Construction

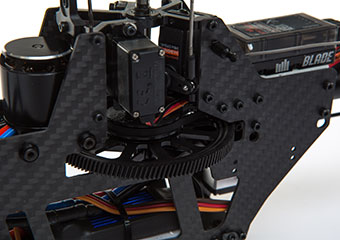

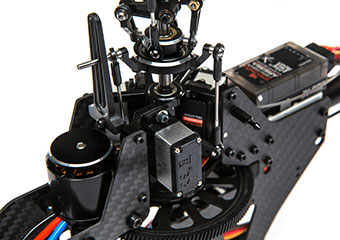

Optimized Servo Geometry

Proven optimized servo geometry provides exceptional response and control, while improving servo efficiency and minimizing mechanical loss to the swashplate. (servos, receiver and flybarless system not included)

Optimized Servo Geometry

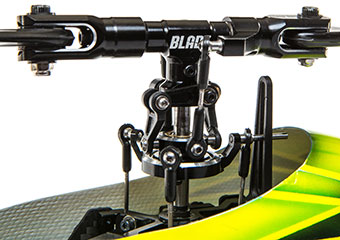

Oversized Mechanics

Triple ball-bearing support offers the oversized main shaft, spindle and blade grip components the ability to deliver the precision of Blade optimized servo geometry even under heavy flight loads.

Oversized Mechanics
Belt-driven Tail

A robust belt driven tail design provides rock solid tail performance and control, while minimizing collateral gear damage in a crash.

Belt-driven Tail

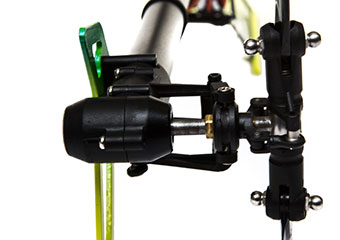

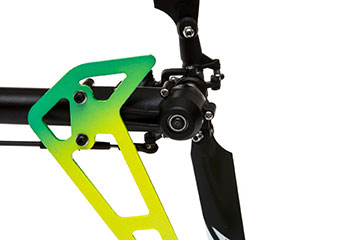

Tail Case Assembly

Newly designed tail case and new metal pulley tail shaft with larger bearings reduces vibrations and adds durability and support.

New Tail Case Assembly

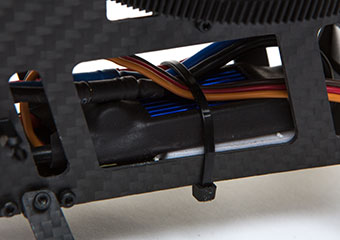

45A ESC with Governor

The all new, 45A brushless ESC with built in governor provides reliable performance tuned for a 4S power system.

New ESC

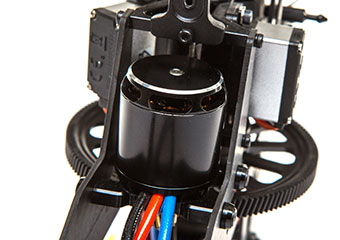

Redefined Power System

Optimized power system utilizes common 4S 1300mAh batteries to drive a top-mounted 2950Kv brushless motor. (servos, receiver and flybarless system not included)

Redefined Power System

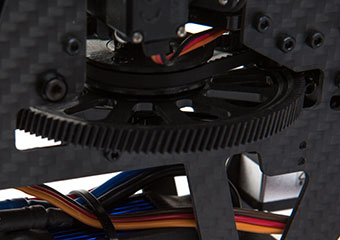

Helical Main Gear

Low wear and quiet main gear provides consistent power and rotation in a more durable design.

Helical Main Gear

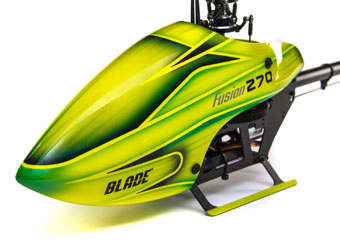

High Visibility

Newly designed fiberglass canopy features a bright trim scheme and matching vertical fin for unsurpassed visibility.

High Visibility

Blade Fusion 270 ARF

Product Specifications

Canopy/Body Material Fiberglass
Battery 1300mAh 14.8V 30C Li-Po (Sold Separately)
Main Frame Material Carbon
Product Length 560mm
Approximate Flight Time 6 minutes
Completion Level Almost Ready-To-Fly
Main Blade Material Carbon
Main Rotor Diameter 615mm
Product Height 190m
Tail Blade Material Plastic
Tail Rotor Blade Length 60mm
Pinion 12 tooth
Tail Drive Belt Drive
Main Motor Type Brushless
Main Rotor Head Type Collective Pitch (CCPM) Flybarless
Product Width 115mm
Tail Rotor Diameter 162mm
Type Helicopter
Skill Level Level 3
Swashplate Type 120 degree CCPM
Channels 6
Main Rotor Blade Length 260mm-280mm
