  • Ideal for Arrma Roller Kits and 1/5 Scale Bashers and Monster Trucks Running 3-8S LiPo Batteries
  • Low Cog 4-Pole Motor Design
  • Alloy Steel 8mm Output Shaft

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Speed Controls

I do not need to purchase this item.

Firma 160A Brushless Smart ESC, 3S-8S
SPMXSM2600
Firma 160A Brushless Smart ESC, 3S-8S
SPMXSE1160
In Stock
$219.99
0 of 1 Selected
Connectors

I do not need to purchase this item.

Connector: Gold Bullet Set, 6.5mm (3)
SPMXSM2600
Connector: Gold Bullet Set, 6.5mm (3)
DYNC0091
In Stock
$6.99
Connector: Gold Bullet Set, 6.5mm (10)
SPMXSM2600
Connector: Gold Bullet Set, 6.5mm (10)
DYNC0092
In Stock
$18.99
0 of 1 Selected
Product $209.99
Add Ons
Estimated Total: $209.99

Firma 800Kv 4-pole Brushless Motor

Item No.
Spektrum SMART - SPMXSM2600
4.9 out of 5 Customer Rating
Product $209.99
Add Ons
Estimated Total: $209.99
Earn points on this item ⓘ
Selected Store
The link to Firma 800Kv 4-pole Brushless Motor has been copied

Product Details

icon-box
In The Box
  • Firma 800Kv 4-Pole Brushless Motor
icon-how-to
Needed to Complete
  • 160A ESC
Firma 800Kv 4-pole Brushless Motor
Quick Links
icon-pdf-download Manuals & Support

Overview

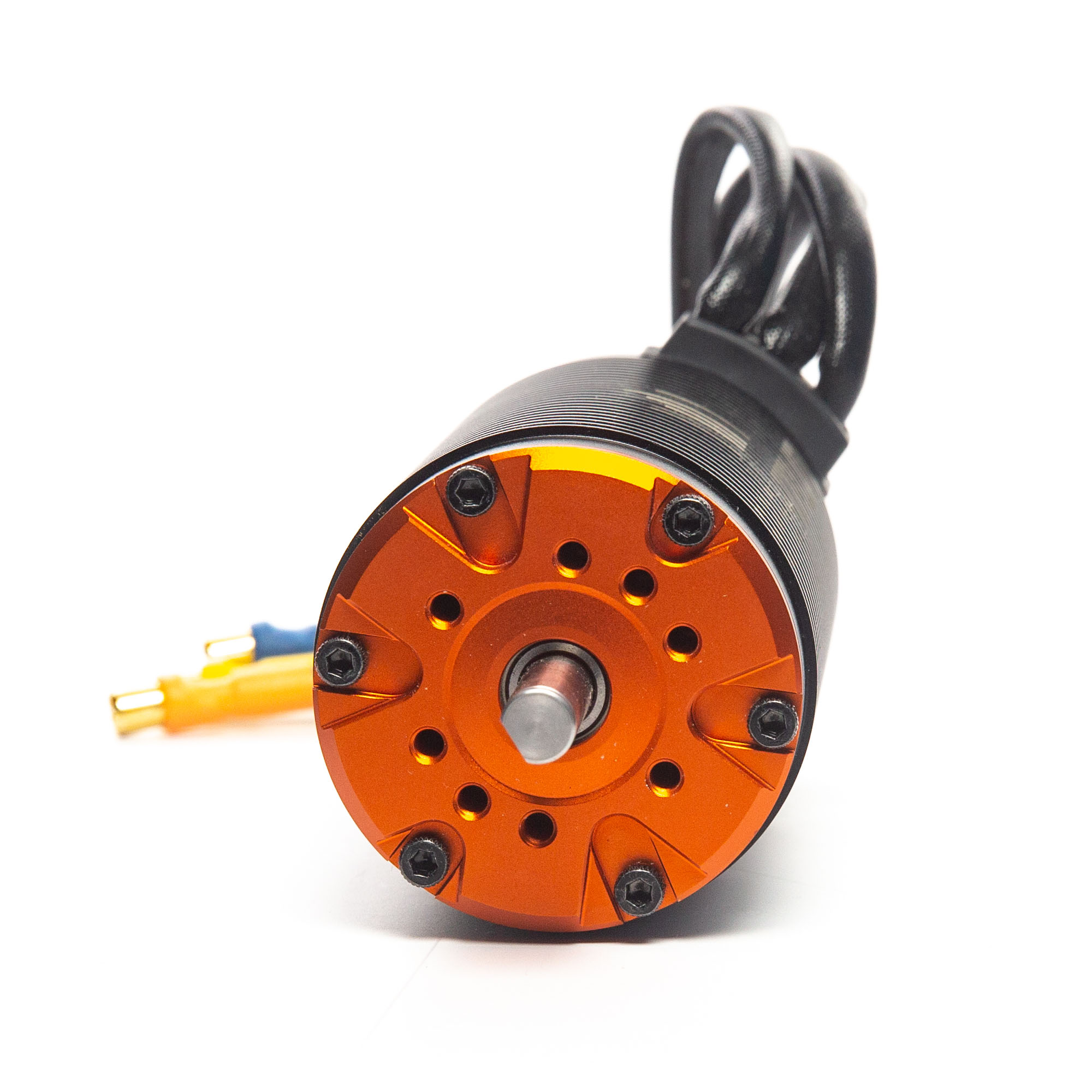

The Firma 800Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

  • Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
  • High efficiency design
  • 8S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
  • Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Product Specifications

Connector Type 6.5mm Bullet
Efficiency 87%
Motor Class 1/5 Scale
Motor Size 5611
Product Length 4.4" (112 mm)
Adjustable Timing No
Integrated ESC No
Input Voltage 11.1 - 29.6V (3 - 8S)
Kv Rating 750-999Kv
Motor Output Lead 6.5
Recommended Speed Control Spektrum Firma 160A Brushless Smart
RPM/Volt (Kv) 12,475 / 15V
Sensor Type Sensordless
Shaft Length 0.867" (22 mm)
Application Arrma Roller Kits
Number of Poles 4
Product Weight 39.86oz (1130g)
Resistance .0049 ohms
Shaft Diameter 0.3" (8 mm)
Constant Wattage 3000W or more
Maximum Continuous Current 110A
Motor Design Inrunner
Connector Wire Length 7.48" (190 mm)
Outer Diameter 2.2" (56 mm)
Bushing Or Bearing Bearing
