Firma 2800Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3002
$139.99
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
Firma 2800Kv Brushless Sensored Crawler Motor
In Stock
Brand Logo
4.6 out of 5 Customer Rating

Firma 2800Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3002
$139.99
  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect for high speed off-road applications such as rock bouncers and rock racers
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
  • 3.5mm Gold Plated Bullet Connectors
Product $139.99
Add Ons
Estimated Total: $139.99

Firma 2800Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3002
4.6 out of 5 Customer Rating
Product $139.99
Add Ons
Estimated Total: $139.99
Earn points on this item ⓘ
Selected Store
The link to Firma 2800Kv Brushless Sensored Crawler Motor has been copied

Product Details

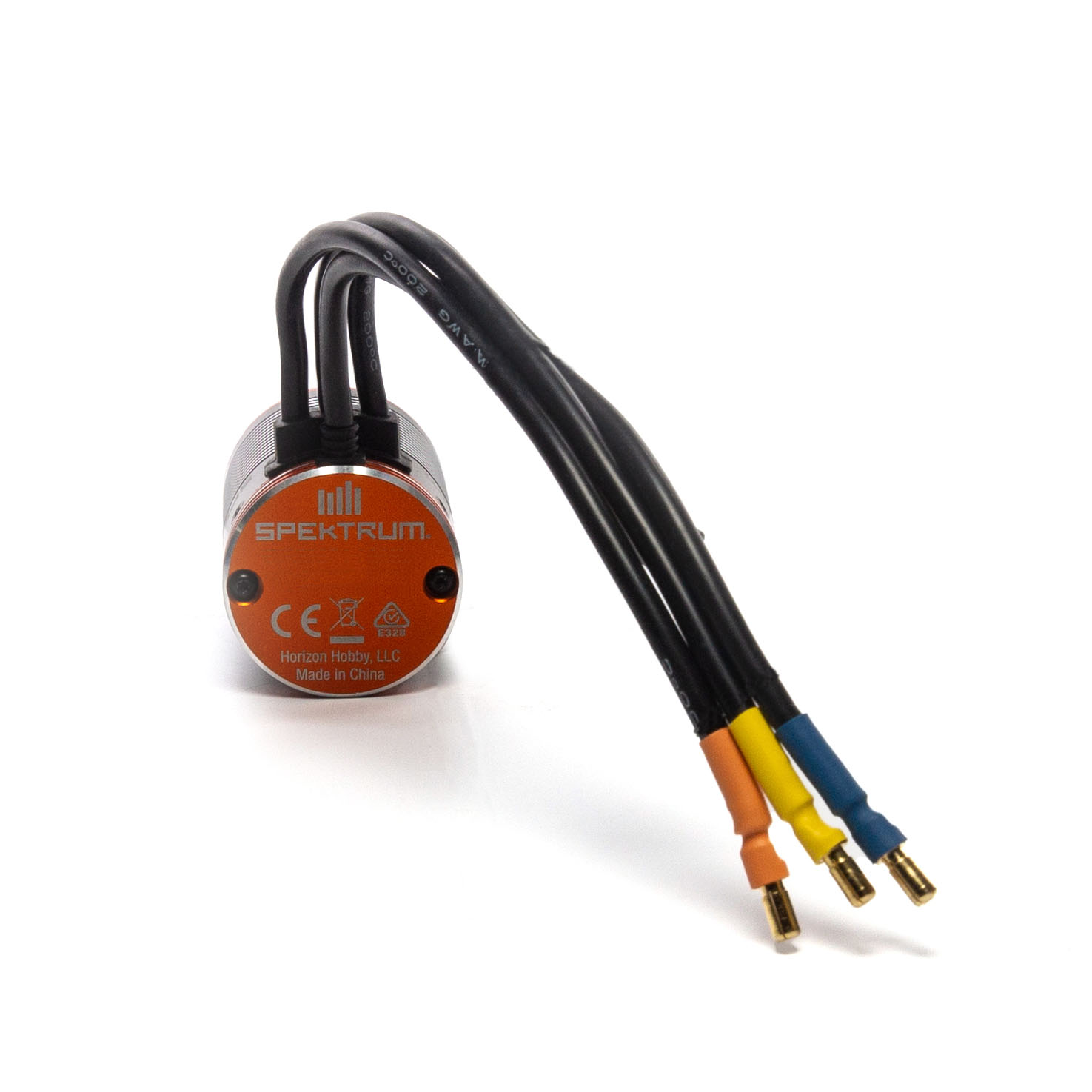

Firma 2800Kv Brushless Sensored Crawler Motor
Quick Links
icon-pdf-download Manuals & Support

Overview

The Firma 2800Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The

Features

  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect for high speed off-road applications such as rock bouncers and rock racers
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
  • 3.5mm gold plated bullet connectors
  • Waterproof sensor wire with locking plug and gasket
  • High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Product Specifications

Connector Type 3.5mm Bullet
Motor Class 1/10 Scale
Motor Size 540-2800Kv Brushless Sensored
Product Length 2.27" (58 mm)
Input Voltage 7.4 - 11.1V
Kv Rating 2500-2999Kv
Motor Output Lead 3.5mm
Product Application Crawling, Surface
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv) 2800Kv
Sensored Yes
Sensor Type Sensored FOC
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles 4
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Integrated ESC No
Outer Diameter 1.42" (36 mm)
Bushing Or Bearing Bearing
Forward Yes
Reverse Yes
Constant Wattage 500-749W
Maximum Continuous Current 50A
Motor Type Brushless
