In Stock
Brand Logo
3.5 out of 5 Customer Rating

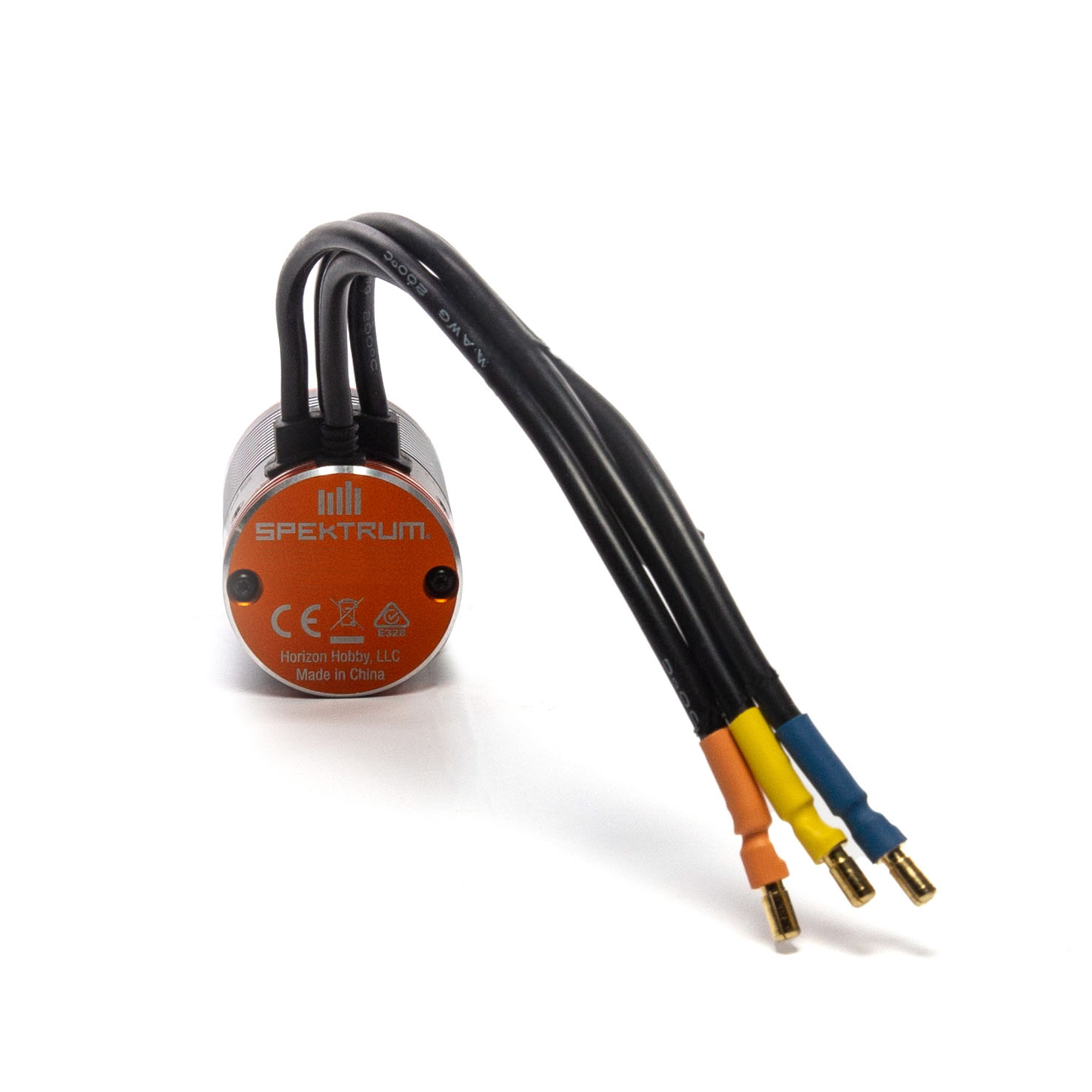

Firma 2100Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3001
$129.99
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
Firma 2100Kv Brushless Sensored Crawler Motor
In Stock
Brand Logo
3.5 out of 5 Customer Rating

Firma 2100Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3001
$129.99
  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect balance of speed and torque, great for trail and scale crawling applications
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
  • 3.5mm Gold Plated Bullet Connectors
Product $129.99
Add Ons
Estimated Total: $129.99

Firma 2100Kv Brushless Sensored Crawler Motor

Item No.
Spektrum SMART - SPMXSM3001
3.5 out of 5 Customer Rating
Product $129.99
Add Ons
Estimated Total: $129.99
Earn points on this item ⓘ
Selected Store
The link to Firma 2100Kv Brushless Sensored Crawler Motor has been copied

Product Details

Firma 2100Kv Brushless Sensored Crawler Motor
Quick Links
icon-pdf-download Manuals & Support

Overview

The Firma 2100Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.

Features

  • Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
  • Perfect balance of speed and torque, great for trail and scale crawling applications
  • High-quality 4-pole sintered rotor
  • Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
  • 3.5mm gold plated bullet connectors
  • Waterproof sensor wire with locking plug and gasket
  • High-quality construction with precision ball bearings and hardened steel 1/8" shaft

Product Specifications

Integrated ESC No
Bushing Or Bearing Bearing
Forward Yes
Reverse Yes
Application 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
Number of Poles 4
Shaft Diameter 0.125" (3 mm)
Water-Resistant Yes
Input Voltage 7.4 - 11.1V
Kv Rating 2000-2499Kv
Motor Output Lead 3.5
Product Application Crawling, Surface
Recommended Speed Control Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
RPM/Volt (Kv) 2100Kv
Sensored Yes
Sensor Type Sensored FOC
Connector Type 3.5mm Bullet
Motor Class 1/10 Scale
Motor Size 540-2100Kv Brushless Sensored
Product Length 2.27" (58 mm)
Outer Diameter 1.42" (36 mm)
Constant Wattage 250-499W
Maximum Continuous Current 38A
Motor Type Brushless
