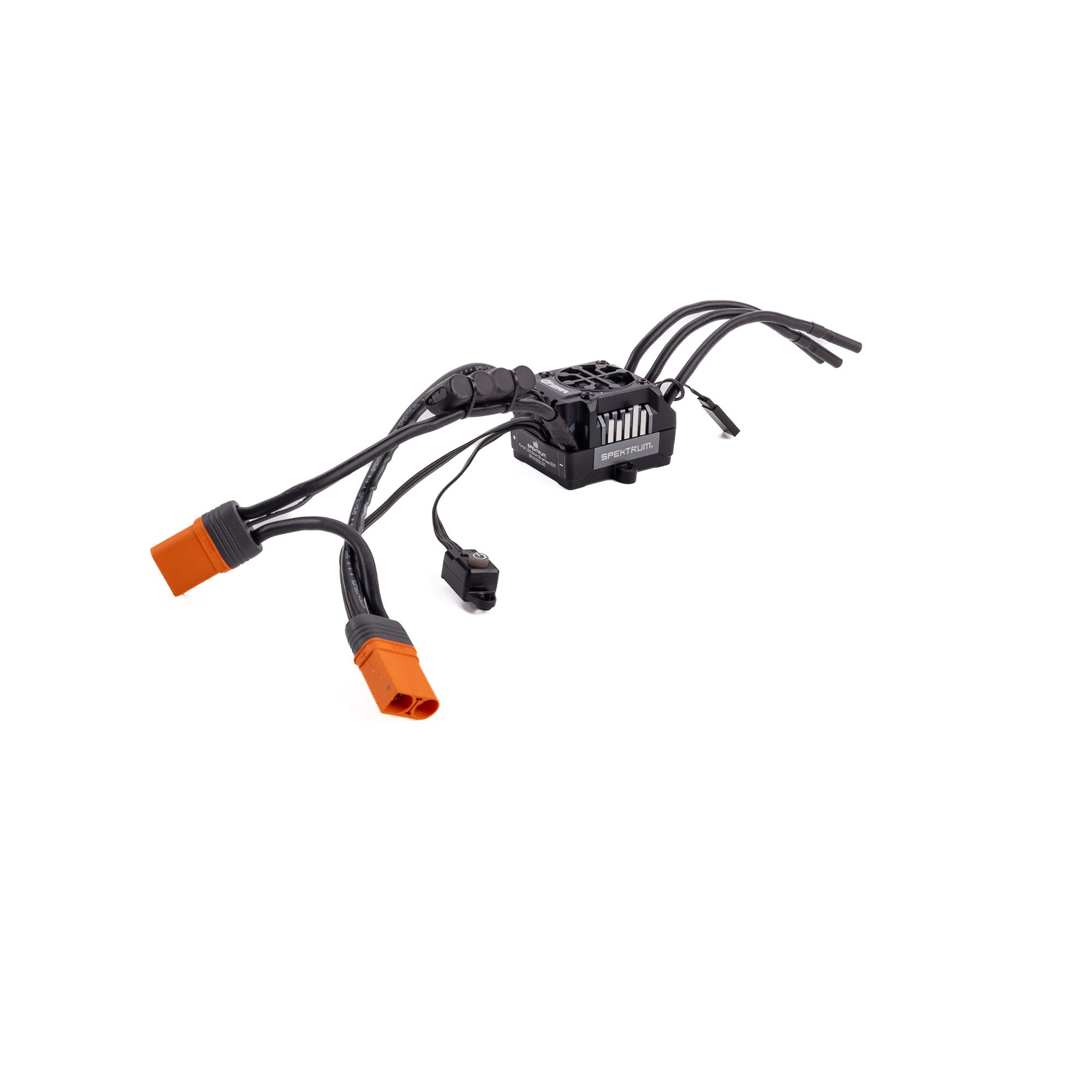

Firma 150A Brushless Smart ESC V2, 3S - 6S: Dual IC5

Item No.
Spektrum SMART - SPMXSE2150
$159.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Programming Boxes

I do not need to purchase this item.

Smart ESC Programming Update Box: Avian and Firma
SPMXSE2150
Smart ESC Programming Update Box: Avian and Firma
SPMXCA200
In Stock
$29.99
0 of 1 Selected
Product $159.99
Add Ons
Estimated Total: $159.99
Estimated Total: $159.99
Selected Store

Product Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See compatibility chart for more information.
  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming
  • Ready to install — no soldering required

Product Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty
WATERPROOF
WATERPROOF

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.



EC3™/EC5™ BACKWARDS COMPATIBLE
EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.



ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY
SMART TECHNOLOGY BATTERY DATA
SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!



MULTIPLE PROGRAMMING OPTIONS
MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.




FAST, POWERFUL M4 PROCESSOR
FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.



Product Specs

BEC
Yes
Connector Type
IC5
ESC Type
Brushless
Product Length
2.3" (58mm)
Application
Surface
Auto Cutoff
Yes
BEC Continous Current
4
Low-Voltage Cutoff Programmable
Yes
Output Connector
4mm Bullet
Overload Protection
Yes
Product Weight
8.4oz (238g)
Brakes
Yes
Programmable
Yes
Programming Options
Button, Programming Box, Smartlink App, On Screen Text Gen
BEC Voltage
6V
Input Voltage
3S - 6LiPo
Motor Output Lead
6.5mm
Product Application
Surface
Product Height
1.5" (38.5mm)
Forward
Yes
Reverse
Yes
Amperage
120A or larger
BEC Type
Linear
Max Input Voltage
22.2V
Maximum Burst Current
950A
Maximum Continuous Current
150A
Battery Input Lead
IC5
Product Width
1.9" (47.5mm) without tabs, 2.3" (59.5mm) with tabs
Technology
Smart

Compatibility

No results for your given fitment filters

Video Overview

Product Details

icon-box
In The Box
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum Smart Sticker Sheet
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Spektrum™ Surface Receiver
  • (1) Spektrum Smart Technology LiPo Battery
  • (1) Spektrum Transmitter
