Firma 1400Kv Brushless Sensored Crawler Motor
Item No.
Spektrum SMART -
SPMXSM3000
$127.99
In Stock
Firma 1400Kv Brushless Sensored Crawler Motor
Item No.
Spektrum SMART -
SPMXSM3000
$127.99
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for low speed, high torque applications such as competition crawlers
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs precise signals indicated by rotor position.
- 3.5mm Gold Plated Bullet Connectors
Complete your product
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
I do not need to purchase this item.
SPMXSM3000
Firma 60A Sensored Brushless Smart Crawler ESC
SPMXSE1060
In Stock
$159.99
Firma 1400Kv Brushless Sensored Crawler Motor
Item No.
Spektrum SMART -
SPMXSM3000
Product
$127.99
Add Ons
Estimated Total:
$127.99
RC Club points earned on this item shown at checkout.
ⓘ
Selected Store
Product Details
Quick Links
Manuals & SupportOverview

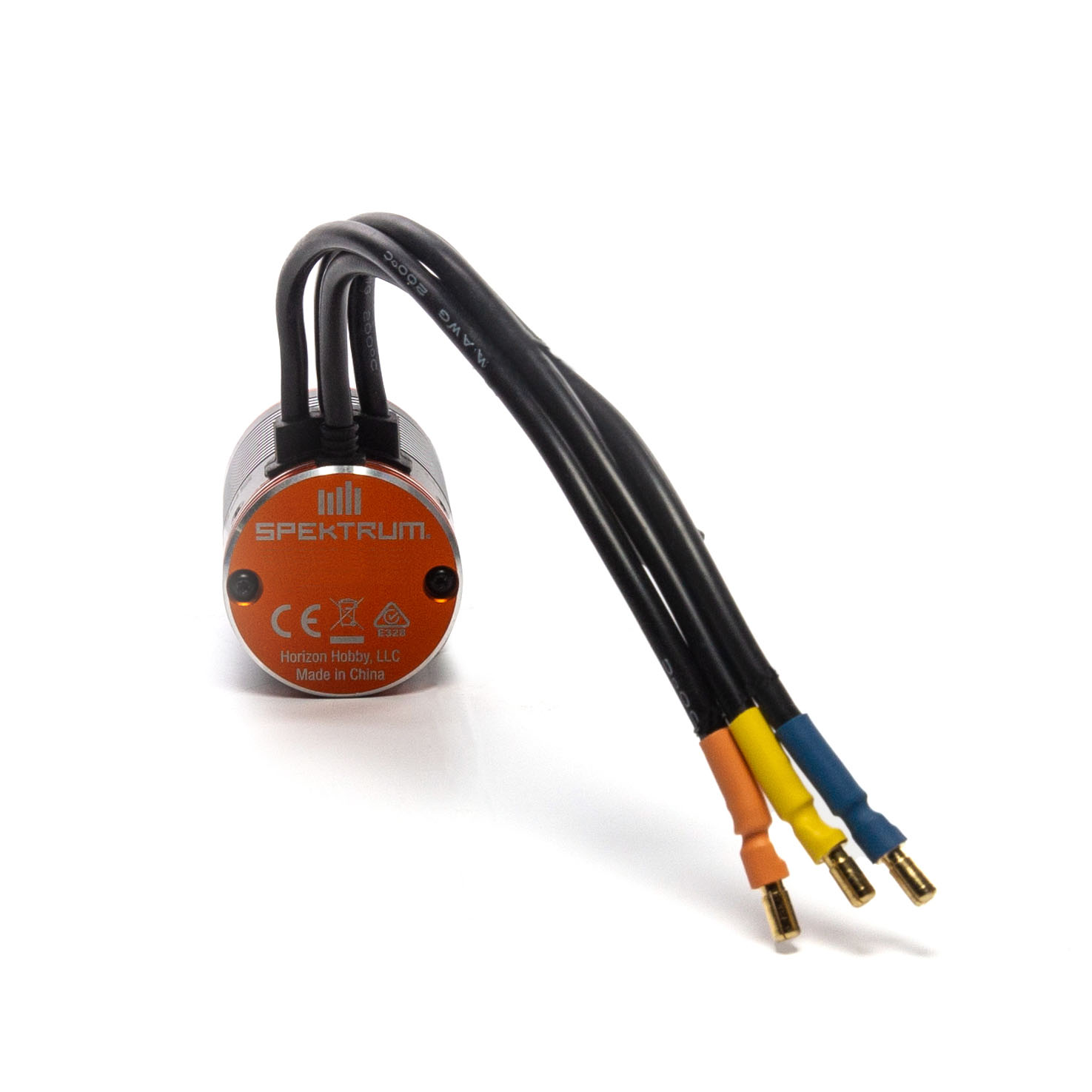

The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.
Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for low speed, high torque applications such as competition crawlers
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 3.5mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Product Specifications
| Integrated ESC | No |
| Constant Wattage | 250-499W |
| Maximum Continuous Current | 25A |
| Motor Type | Brushless |
| Outer Diameter | 1.42" (36 mm) |
| Input Voltage | 7.4 - 11.1V |
| Kv Rating | 1250-1499Kv |
| Motor Output Lead | 3.5 |
| Connector Type | 3.5mm Bullet |
| Motor Class | 1/10 Scale |
| Motor Size | 540-1400Kv Sensored Brushless |
| Product Length | 2.27" (58 mm) |
| Product Application | Crawling, Surface |
| Recommended Speed Control | Spektrum Firma 60A Sensored Brushless Smart Crawler ESC |
| RPM/Volt (Kv) | 1400Kv |
| Sensored | Yes |
| Sensor Type | Sensored FOC |
| Application | 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power |
| Number of Poles | 4 |
| Shaft Diameter | 0.125" (3 mm) |
| Water-Resistant | Yes |
| Bushing Or Bearing | Bearing |
| Forward | Yes |
| Reverse | Yes |
