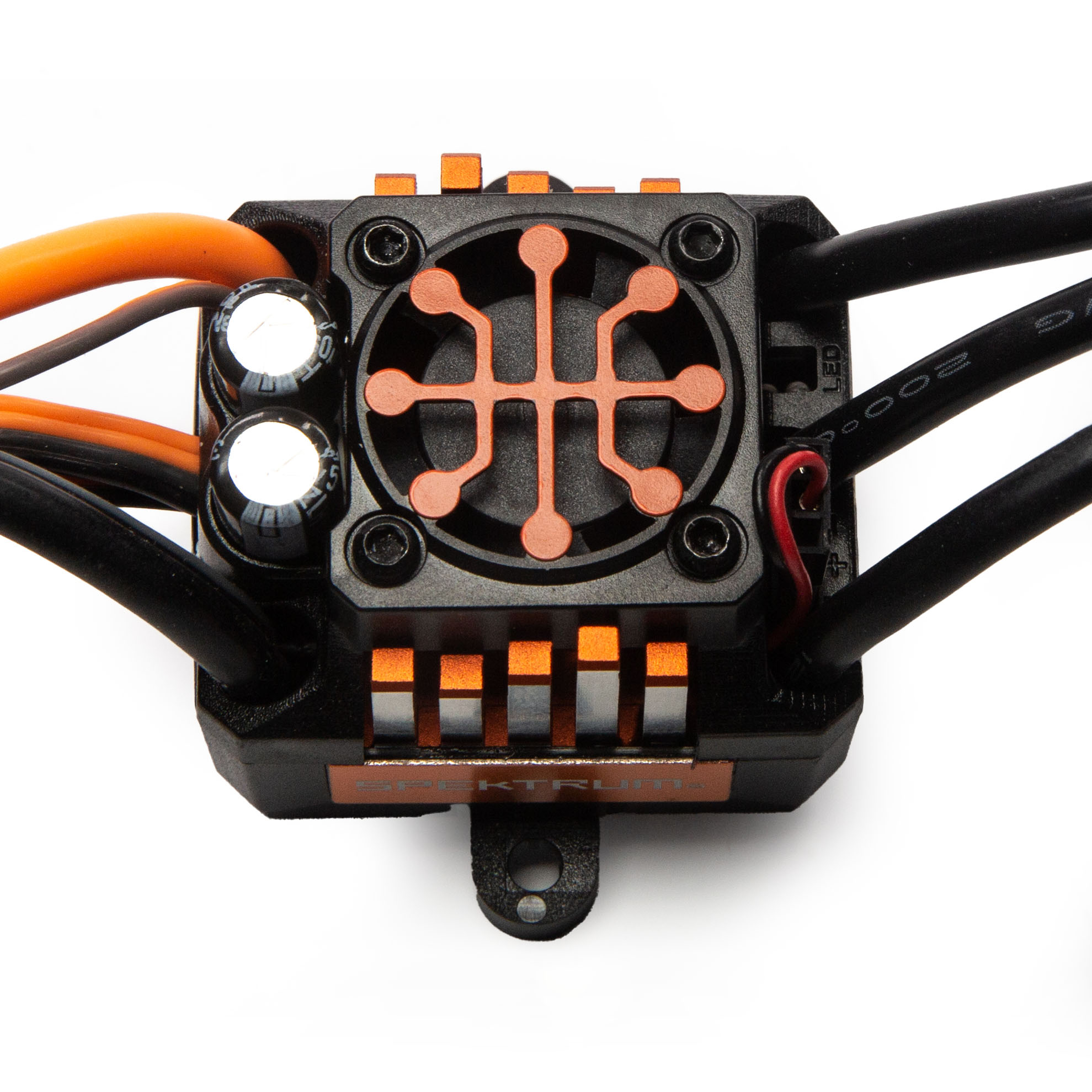

Firma 120A Brushless Smart ESC, 3S-4S
Item No.
Spektrum SMART -
SPMXSE1120
$119.99
In Stock
Firma 120A Brushless Smart ESC, 3S-4S
Item No.
Spektrum SMART -
SPMXSE1120
$119.99
Spektrum Firma 120A Smart ESC for surface vehicles is waterproof and delivers power and intelligence all-in-one. Without additional sensors or modules, they feed battery and ESC telemetry data straight to your radio in real time, all over one connection.
Complete your product
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
I do not need to purchase this item.
SPMXSE1120
Smart ESC Programming Update Box: Avian and Firma
SPMXCA200
In Stock
$29.99
I do not need to purchase this item.
SPMXSE1120
14.8V 5000mAh 4S 100C Smart Hardcase LiPo Battery: IC5
SPMX50004S100H5
In Stock
$109.99
SPMXSE1120
14.8V 5000mAh 4S 30C Smart LiPo Hardcase LiPo Battery: IC5
SPMX50004S30H5
In Stock
$89.99
SPMXSE1120
14.8V 5000mAh 4S 50C Smart Hardcase LiPo Battery: IC5
SPMX50004S50H5
In Stock
$79.99
0
of 1 Selected
I do not need to purchase this item.
SPMXSE1120
Firma 3150Kv Brushless Motor, 4mm Bullet
SPMXSM1000
In Stock
$59.99
SPMXSE1120
Firma 3300Kv Brushless Motor
SPMXSM1300
In Stock
$44.99
SPMXSE1120
Firma 4000Kv Brushless Motor
SPMXSM1400
In Stock
$44.99
SPMXSE1120
Firma 1900Kv Brushless Motor
SPMXSM1600
In Stock
$104.99
SPMXSE1120
Firma 1900Kv 4-Pole Brushless Motor
SPMXSM2200
In Stock
$68.99
0
of 1 Selected
Firma 120A Brushless Smart ESC, 3S-4S
Item No.
Spektrum SMART -
SPMXSE1120
Product
$119.99
Add Ons
Estimated Total:
$119.99
RC Club points earned on this item shown at checkout.
ⓘ
Selected Store
Product Details
Quick Links
Manuals & SupportProduct Features
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrumâ„¢ engineers, in partnership with the industry's leading ESC manufacturer
- Ideal for 1/8th scale surface applications running on 4s Lipo setups
- High current adjustable BEC (6v or 7.4v @ 4 Amps)
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant ICâ„¢ connectors, backwards compatible with ECâ„¢ connectors
- Limited 1-year warranty
Product Overview
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
Needed to Complete
- Spektrumâ„¢ Surface Receiver
- Spektrum Smart Technology LiPo Battery
- Spektrum Transmitter
What's in the Box?
- (1) Spektrumâ„¢ Firmaâ„¢ Smart ESC
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
Video Overview
Â
WATERPROOF
The all-weather, waterproof design of Spektrumâ„¢ Firmaâ„¢ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.
Â
EC3â„¢/EC5â„¢ BACKWARDS COMPATIBLE
Firmaâ„¢ ESCs feature ICâ„¢ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC3â„¢ or IC5â„¢ connector-equipped Spektrumâ„¢ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.
Â
ONE-WIRE TELEMETRY
No need to connect multiple wires, sensors, modules, and links. With Firmaâ„¢ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including RPM, voltage, temperature, balance, capacity, and speed.*
*See compatibility chart for more information.Â
SMART TECHNOLOGY BATTERY DATA
When used with a Spektrumâ„¢ Smart LiPo battery, your Firmaâ„¢ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery percentage, individual cell voltage and more!
Â
MULTIPLE PROGRAMMING OPTIONS
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firmaâ„¢ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
Â
Â
FAST, POWERFUL M4 PROCESSOR
The Firmaâ„¢ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
Â
Product Specifications
| Brakes | Yes |
| Programmable | Yes |
| Programming Options | Button, Programming Box, Smartlink App, On Screen Text Gen |
| Battery Input Lead | IC5 |
| Product Width | 1.53" (39 mm) |
| Technology | Smart |
| Connector Type | IC5, 4mm Bullet |
| ESC Type | Brushless |
| Product Length | 1.7" (43 mm) |
| Reverse | Yes |
| Application | Surface |
| Auto Cutoff | Yes |
| BEC Continous Current | 4 |
| Low-Voltage Cutoff Programmable | Yes |
| Output Connector | 4mm Bullet |
| Overload Protection | Yes |
| Product Weight | 5.4 oz (153g) |
| Water-Resistant | Yes |
| Maximum Burst Current | 830A |
| Maximum Continuous Current | 120A |
| Amperage | 120A or larger |
| Max Input Voltage | 14.8V |
| BEC | Yes |
| BEC Voltage | 6 and 7V selectable |
| Drive Type | Forward/Brake/Reverse |
| Input Voltage | 11.1V to 14.8V (3S – 4S LiPo, 8-12 cell NiMH) |
| Motor Output Lead | 4mm |
| Product Application | Surface |
| Product Height | 1.33" (34 mm) |
| Time Delay Brake | Yes |
