Firma 1100Kv 4-pole Brushless Motor

Item No.
Spektrum SMART - SPMXSM2500
$154.99
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
Firma 1100Kv 4-pole Brushless Motor
In Stock
Brand Logo
3.8 out of 5 Customer Rating

Firma 1100Kv 4-pole Brushless Motor

Item No.
Spektrum SMART - SPMXSM2500
$154.99
  • 8S LiPo Compatible
  • Ideal for Arrma Roller Kits and 1/5 scale Bashers and Monster Trucks Using a 3-8S LiPo Setup
  • Alloy Steel 8mm Output Shaft

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Connectors

I do not need to purchase this item.

Connector: Gold Bullet Set, 6.5mm (3)
SPMXSM2500
Connector: Gold Bullet Set, 6.5mm (3)
DYNC0091
In Stock
$6.99
Connector: Gold Bullet Set, 6.5mm (10)
SPMXSM2500
Connector: Gold Bullet Set, 6.5mm (10)
DYNC0092
In Stock
$18.99
0 of 1 Selected
Smart ESCs

I do not need to purchase this item.

Firma 160A Brushless Smart ESC, 3S-8S
SPMXSM2500
Firma 160A Brushless Smart ESC, 3S-8S
SPMXSE1160
In Stock
$219.99
0 of 1 Selected
Product $154.99
Add Ons
Estimated Total: $154.99

Firma 1100Kv 4-pole Brushless Motor

Item No.
Spektrum SMART - SPMXSM2500
3.8 out of 5 Customer Rating
Product $154.99
Add Ons
Estimated Total: $154.99
Earn points on this item ⓘ
Selected Store
The link to Firma 1100Kv 4-pole Brushless Motor has been copied

Product Details

icon-box
In The Box
  • Firm 1100Kv 4-Pole Brushless Motor
icon-how-to
Needed to Complete
  • 160A ESC
Firma 1100Kv 4-pole Brushless Motor
Quick Links
icon-pdf-download Manuals & Support

Overview

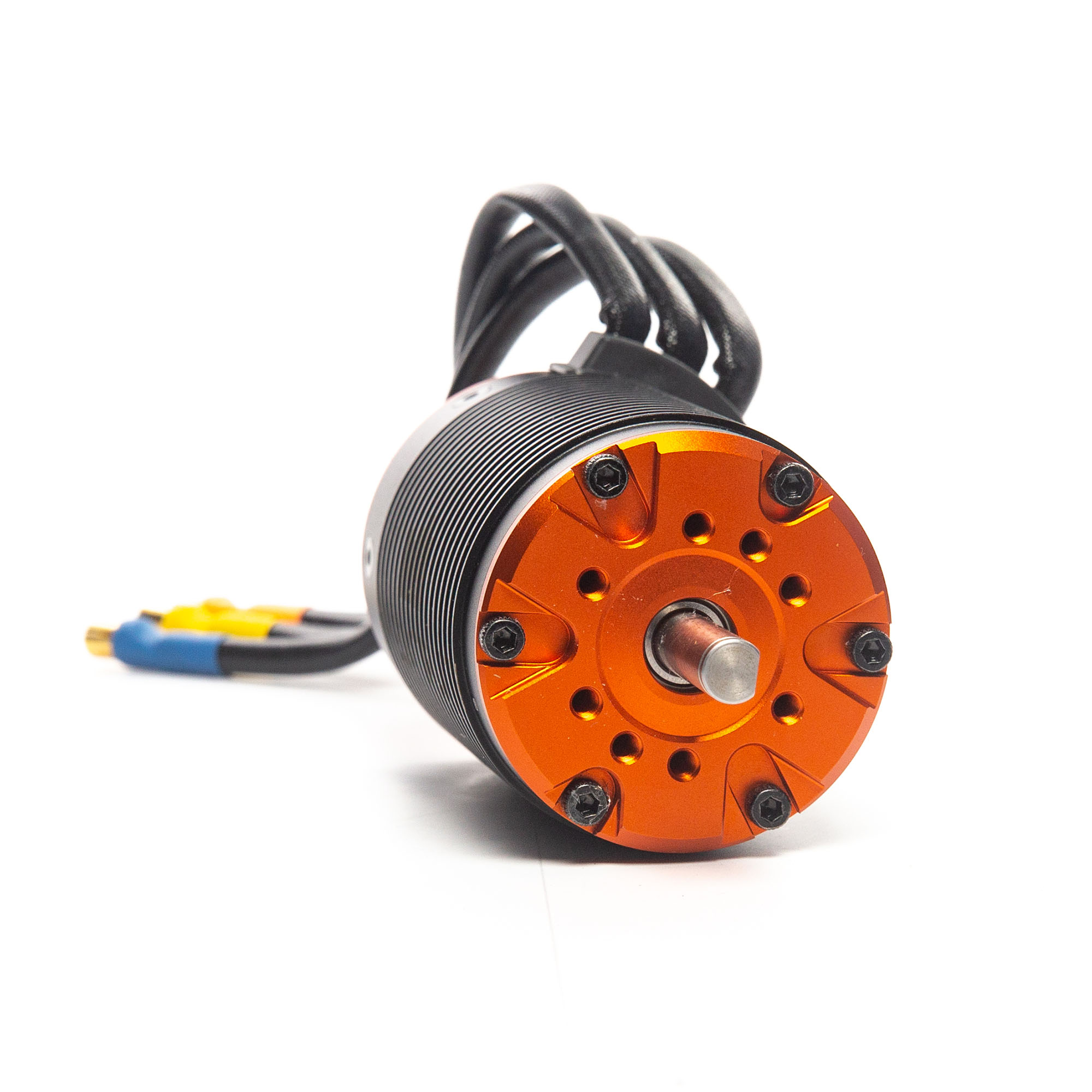

The Firma 1100Kv brushless motor is a perfect option for Arrma Roller kits and 1/5 scale bashers and monster trucks with a 3-8S LiPo setup. Featuring a low cog 4-pole design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 160 Smart ESC.

Features

  • Perfect upgrade for 1/5 scale bashers and monster trucks running on 3-8S LiPo batteries.
  • High efficiency design
  • 8S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft
  • Safe-D Shaft provides a c-clip locking point for preventing pinion gear slip

Product Specifications

Application Arrma Roller Kits, and 1/5 scale Basher and Monster Trucks
Number of Poles 4
Output 7900W
Product Weight 31.5oz (893g)
Resistance .0041 ohms
Shaft Diameter 0.315" (8 mm)
Bushing Or Bearing Bearing
Connector Wire Length 7.48" (190 mm)
Outer Diameter 2.2" (56 mm)
Maximum Continuous Current 95A
Motor Type Brushless
Connector Type 6.5mm Bullet
Efficiency 86%
Motor Class 1/5 Scale
Motor Size 5687
Product Length 3.4" (86 mm)
Constant Wattage 3000W or more
Input Voltage 11.1 - 29.6V (3 - 8S)
Kv Rating 10000-1249Kv
Motor Output Lead 6.5
Recommended Speed Control Spektrum Firma 160A Brushless Smart
RPM/Volt (Kv) 16,500/15V
Sensored No
Sensor Type Sensordless
Shaft Length 0.87" (22 mm)
Motor Design Inrunner
Adjustable Timing No
Integrated ESC No
