In Stock

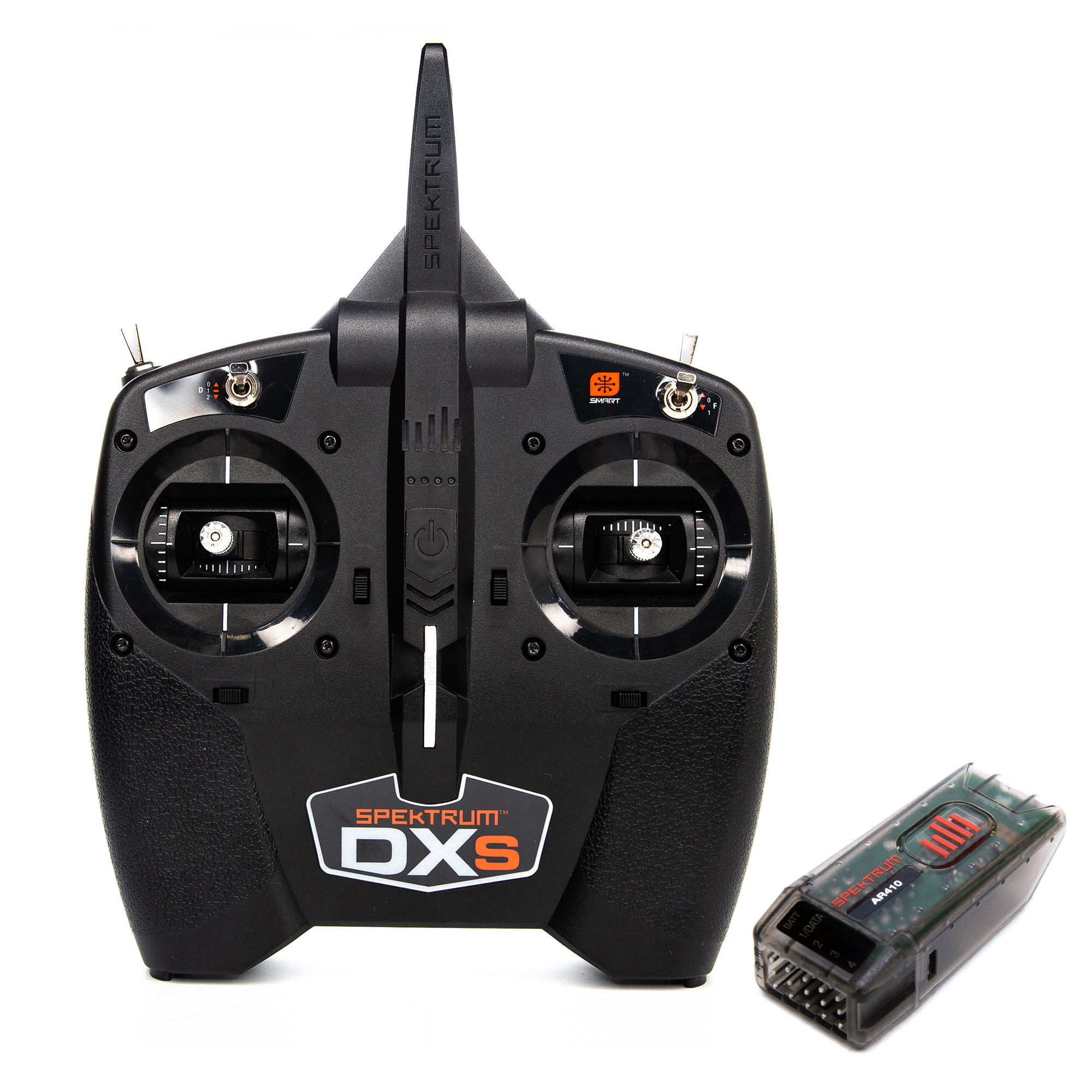

DXS Transmitter with AR410 Receiver

Item No.
Spektrum - SPM1010
$149.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
AA Batteries

I do not need to purchase this item.

1.2V 2100mAh AA NiMH Batteries (4)
SPM1010
1.2V 2100mAh AA NiMH Batteries (4)
SPM9527
In Stock
$14.99
0 of 1 Selected
Neck Straps

I do not need to purchase this item.

Neck Strap
SPM1010
Neck Strap
SPMP610
In Stock
$15.99
0 of 1 Selected
Product $149.99
Add Ons
Estimated Total: $149.99
Estimated Total: $149.99
Selected Store

Overview

For any RC flight enthusiast looking to strike the perfect balance between economy and innovative, high-end features, the 7-channel Spektrum DXS radio and AR410 4-channel receiver combine to create the ideal system. It offers full range control, secure DSMX® interference resistance, advanced telemetry capabilities, and proven transmitter ergonomics for fatigue-free flying. The simplified setup of the DXS also gets you into the air faster, with less time needed for preparation and programming.

Features

  • Spektrum DXS system includes transmitter plus full-range, 4-channel AR410 DSMX®/DSM2® compatible air receiver
  • Supports Spektrum Smart Technology for Smart ESC and Smart LiPo battery telemetry
  • Transmitter LEDs display Smart LiPo flight battery status for easy voltage monitoring — an industry first!
  • Proven ergonomic design is optimized for comfort and precise, fatigue-free control
  • Offers wireless trainer system capability with optional SRXL2 DSMX® Remote Receiver (available separately)
  • Registration and updates are possible through a PC with optional USB Programming Cable (available separately)
  • Transmitter comes configured to provide the benefits of SAFE® technology with compatible SAFE-equipped receivers
  • DXS transmitter and AR410 receiver are both fully compatible with other Spektrum DSMX® systems
  • DXS is also available as transmitter-only, requiring a compatible receiver
DSMX<sup>®</sup> TECHNOLOGY

DSMX® TECHNOLOGY

The DXS transmitter is built around proven Spektrum DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX transmitters provide on-channel interference protection that's second to none.



ERGONOMIC DESIGN

ERGONOMIC DESIGN

Weight distribution, switch placement and trim switch positions have been optimized for comfort and fatigue-free control. An integrated handle and neck strap hook are included for easy carrying. Ports are provided in the rear battery compartment for using optional wireless trainer and data port. The SRXL2 DSMX® Remote Receiver (available separately) is required for wireless trainer support. Registration and firmware updating are possible from your PC by downloading the software from the DXS product page at SpektrumRC.com and using the USB Programming Cable (available separately).



AR410 4-CHANNEL SPORT RECEIVER

AR410 4-CHANNEL SPORT RECEIVER

The Spektrum AR410 is a full-range, 4-channel sport air receiver with DSMX®/DSM2® compatibility and a compact footprint that's streamlined to fit in a wide range of models. The AR410 features an internal antenna design for durability and easy installations while maintaining superior full-range performance. In addition, the AR410 offers fly-by range telemetry that includes flight log and receiver battery pack voltage data. Access to telemetry is automatic when used with any telemetry-capable Spektrum transmitter.



FLIGHT PACK VOLTAGE MONITOR

FLIGHT PACK VOLTAGE MONITOR

Get essential flight battery status information at a glance from the DXS transmitter when using it with Smart Avian ESCs and Smart LiPo batteries (sold separately). Four green LEDs on the front of the transmitter communicate the flight battery voltage level. In normal operation with a Smart ESC and Smart battery, only one of the LEDs will glow if the battery is low. Two illuminate to indicate a half-charged battery, three light if the battery is between half and full charge, and all four shine when the flight battery is fully charged.



Product Specs

Frame Rate
22ms
Modulation
DSMX
Telemetry
Yes
Programmable
Yes
Technology
SAFE
Type
Aircraft radio system
Band
2.4GHz
Completion Level
Transmitter and Reciever
Resolution
2048
Bind Method
Bind Button
Range
Full
Modes
Mode 2
Rate Positions
2
Application
Aircraft
Transmitter (Tx) Battery Type
4 AA alkaline
Water-Resistant
No
Channels
7

Compatibility

No results for your given fitment filters

Trim Programming

Stick Modes

FAQ

Yes you can use it as a wireless student radio when paired with a compatible Spektrum transmitter (DX6e and above G2 radios, NX, iX series) as instructor. It can also be used as an instructor transmitter by adding the optional SPM9747 DSMX SRXL2 Remote Receiver. This will allow you to use a Spektrum DSM2/DSMX transmitter as the student radio

Yes, the DXS is able to control all four channels. Check your throttle cut switch as that may be inhibiting your throttle.

The NX6 (master) only requires the DXS transmitter (slave) to buddy box. The NX6 will bind to both your plane&#x27;s receiver and the DXS when in trainer mode (buddy box).

This transmitter will bind to DSM2/DSMX receivers.

Product Details

icon-box
In The Box
  • (1) Spektrum™ DXS 7-channel DSMX® Radio Transmitter
  • (1) USB Serial Adapter
  • (1) Spektrum AR410 DSMX® Full-Range 4-Channel Receiver
  • (1) USB Serial Adapter (Spektrum USB Programmer not included)
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (4) AA Alkaline Transmitter Batteries
DXS Transmitter with AR410 Receiver
