BetaFlight F3 Flight Controller with PDB

Item No. SPMFC3207
Discontinued
Brand Logo
5 out of 5 Customer Rating

BetaFlight F3 Flight Controller with PDB

Item No. SPMFC3207
This Item is No Longer Available
Selected Store

Product Details

Overview

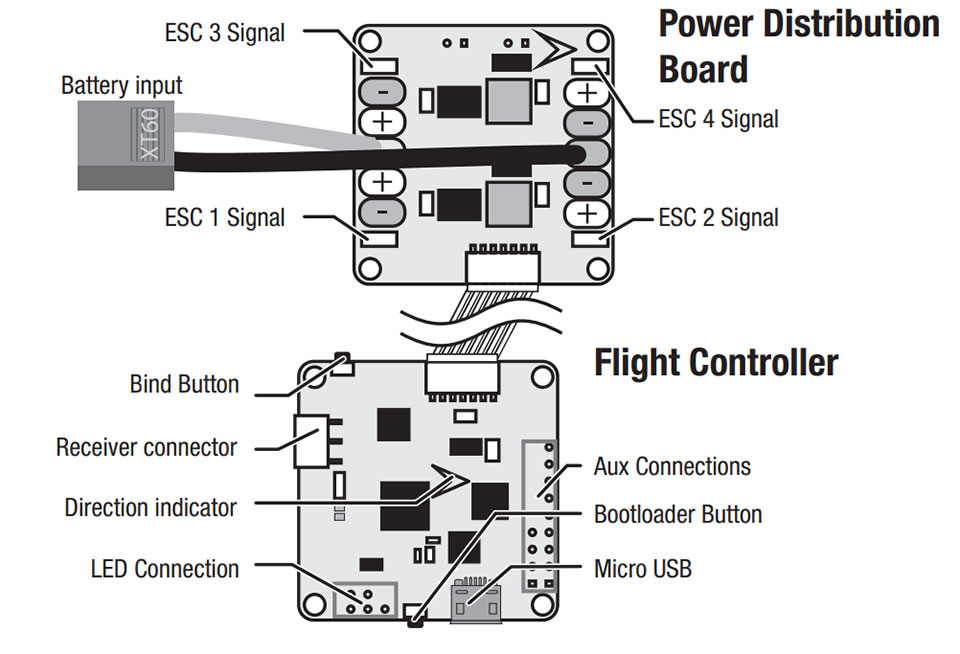

Clean up your next mini quad build with the SPMFC3207. Based on the reliable STM32F3 Racing chipset, this Flight controller Combo incorporates a simple to use PDB that the builder can wire all ESC wires and have easy access to 3 amps of clean, regulated 12v and 5v pads for powering accessories. And with just a single connection from PDB to the FC, repairing your downed aircraft is easy and accessible.

The Flight controller features BetaFlight 3.1 preinstalled and has updates available on the BetaFlight Configurator found here.

The FC3207 flight controller comes ready out of the box to be used with the Spektrum 4649T receiver for Battery voltage and RSSI telemetry feedback. Also there is a easy to access Bind Button, making binding your Spektrum receivers quick and easy.



Spektrum FC3207 Flight Controller

Product Specifications

Specs

Application Requires Soldering
Input Voltage 7-18 Volts
Mounting Dimensions 30.5 x 30.5mm
Product Length 36mm
Product Weight 19g
Product Width 36mm
