Backorder | Next Shipment September 2024

BAE Hawk Red Arrow 80mm EDF Jet PNP

Item No.
FMS - FMM099P2
$419.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Chargers

I do not need to purchase this item.

LiPo Charge Protection Bag, Large
FMM099P2
LiPo Charge Protection Bag, Large
DYN1405
In Stock
$16.99
0 of 1 Selected
Transmitters

I do not need to purchase this item.

NX10 10-Channel DSMX Transmitter Only
FMM099P2
NX10 10-Channel DSMX Transmitter Only
SPMR10100
In Stock
$549.99
DX8e 8-Channel DSMX Transmitter Only
FMM099P2
DX8e 8-Channel DSMX Transmitter Only
SPMR8105
Not Available
$329.99
NX8 8-Channel DSMX Transmitter Only
FMM099P2
NX8 8-Channel DSMX Transmitter Only
SPMR8200
In Stock
$399.99
0 of 1 Selected
Batteries

I do not need to purchase this item.

Adapter: XT90 Battery / EC5 Device
FMM099P2
Adapter: XT90 Battery / EC5 Device
DYNC0173
In Stock
$10.99
22.2V 4000mAh 6S 30C Smart LiPo Battery, IC5
FMM099P2
22.2V 4000mAh 6S 30C Smart LiPo Battery, IC5
SPMX40006S30
In Stock
$99.99
22.2V 4000mAh 6S 50C Smart LiPo Battery: IC5
FMM099P2
22.2V 4000mAh 6S 50C Smart LiPo Battery: IC5
SPMX40006S50
In Stock
$119.99
0 of 1 Selected
Product $419.99
Add Ons
Estimated Total: $419.99
Estimated Total: $419.99
Selected Store

Overview

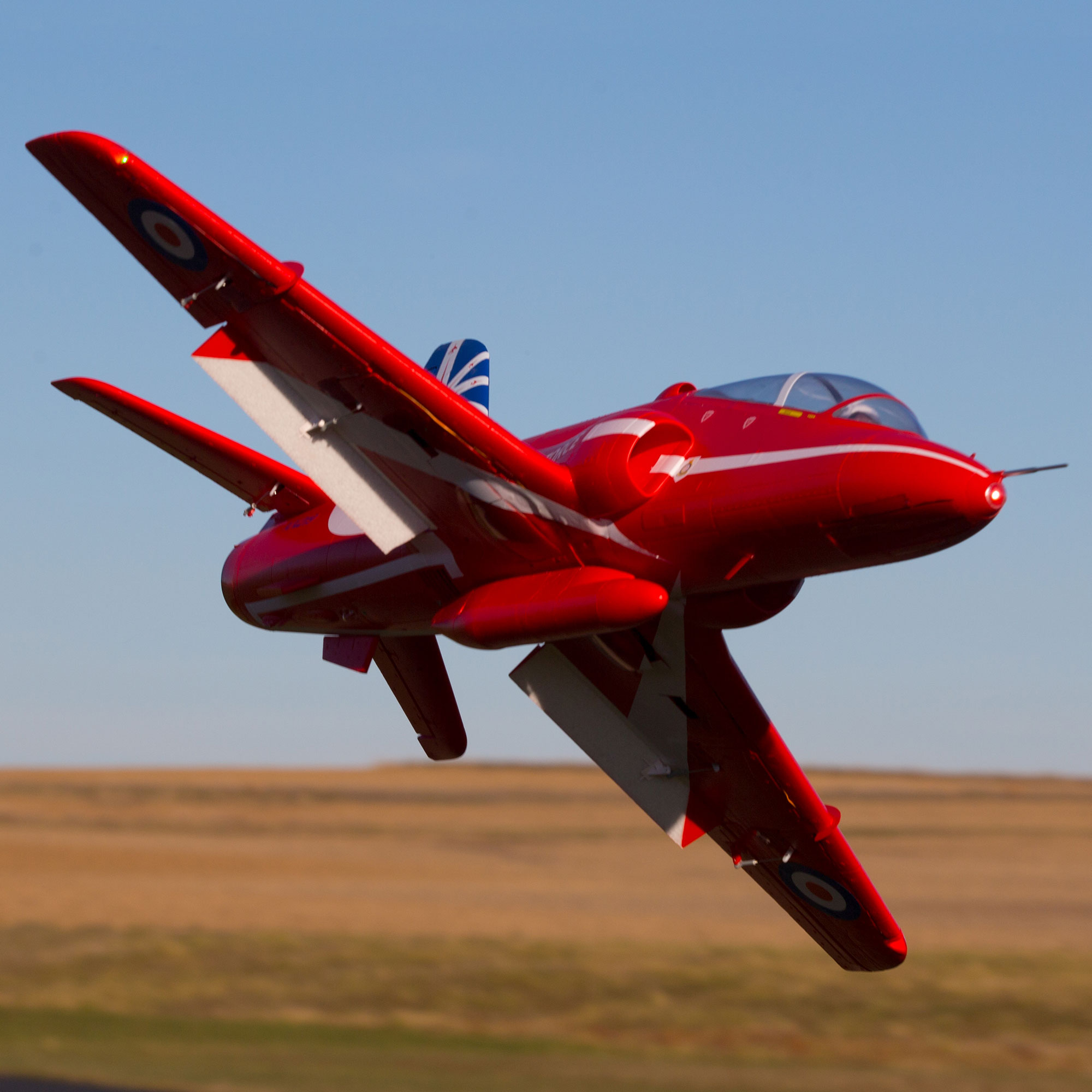

FMS has created a brilliant replica of the BAE Hawk for the popular 80mm EDF class. Beautifully finished in red and white trim, the outline of the BAE Systems marvel is unmistakable with detail that features a well-appointed cockpit, an array of intake scoops, antenna, bright LED lighting, scale sub-fins and a removable ferry tank. The remarkable undercarriage includes reliable electric retracts with durable metal CNC-construction, shock-absorbing actuation with scissor linkages—all neatly concealed with automatic gear door enclosures. The flight controls are full-featured including functional flaps that help you make takeoffs shorter and landings as slow as possible. All seven control surfaces plus the nose wheel are individually linked with a dedicated metal-gear micro servo. Precision ball-link equipped linkages for initial setup and easy flight trimming. The FMS 80mm BAE Hawk features a rigid one-piece wing that easily bolts to the fuselage, as do the horizontal stabilizers—no glue is required which makes basic assembly super-fast. Lightweight EPO foam construction means you can count on a high-level of durability, intricate surface detail and a light wing loading that translates naturally into incredible flight performance. The water-based paint minimizes blistering from sun and provides a vibrant appearance. The power system utilizes a powerful 80mm 12-blade EDF system driven by a 3270-size, 1930Kv brushless motor and 100A ESC combination for tremendous acceleration and speed when coupled with your high-C, 6S LiPo battery.

  • CNC Machined Metal Shock Absorbing Retracts
  • 12 Blade 80mm EDF Sound for an Enhanced Jet Experience
  • LED Lights
  • Functional Flaps and Steerable Nose Wheel
  • Detailed Cockpit with Pilot Figure

Features

  • Easy six-screw bolt-together assembly-no glue required
  • 80mm EDF with a brushless 3270-size, 1930Kv inrunner motor
  • High-quality Predator 100A ESC with 8A BEC
  • Durable all-metal shock absorbing electric retracts
  • 12-blade EDF sound delivers an enhanced jet experience
  • 6-Channel control with functional flaps and steerable nose wheel
  • Metal-gear servos provide precision and reliability
  • Removable one-piece wing with optional ferry tank
  • New ball-style control horns and linkages for greater precision
  • Brilliant LED lighting system installed
  • Vivid trim scheme with environmentally friendly water-based paint

Product Specs

Charger
Sold Separately
Receiver
Sold Separately
Power Type
Electric
Servos
Included
Trim Scheme Colors
Red, white and blue
Wingspan
41" (1041 mm)
Battery
Sold Separately
Motor Size
3270
CG (Center of Gravity)
3.3 - 3.7" (85 - 95mm) back from leading edge of wing with battery installed
Completion Level
Plug-N-Play
Recommended Motor Battery
6S 22.2V 4000mAh 35C LiPo with XT90 connector
Fan Size
80mm EDF
Speed Control
Included
Wing Area
318.68 sq in (2056 sq dm)
Flaps
Yes
Material
EPO
Retracts
Included
Minimum Required Radio
6-channel
Radio
Sold Separately
Product Weight
5.5lbs (2500g)
Wing Loading
0.28 oz sq/in

Product Details

icon-box
In The Box
  • (1) FMS BAE Hawk Red Arrow 80mm EDF PNP
  • (1) 3270-size, 1930Kv Brushless Motor
  • (1) 100A ESC
  • (1) 80mm 12-blade EDF System
  • (8) 13g Analog Metal Gear Servos
  • (1) User Manual
icon-how-to
Needed to Complete
  • Full-range 6+ Channel Transmitter and Receiver
  • 4400mAh 6S 22.2V 45+C LiPo Battery with EC5™ Connector
  • LiPo Battery Charger and Charging Bag
