In Stock

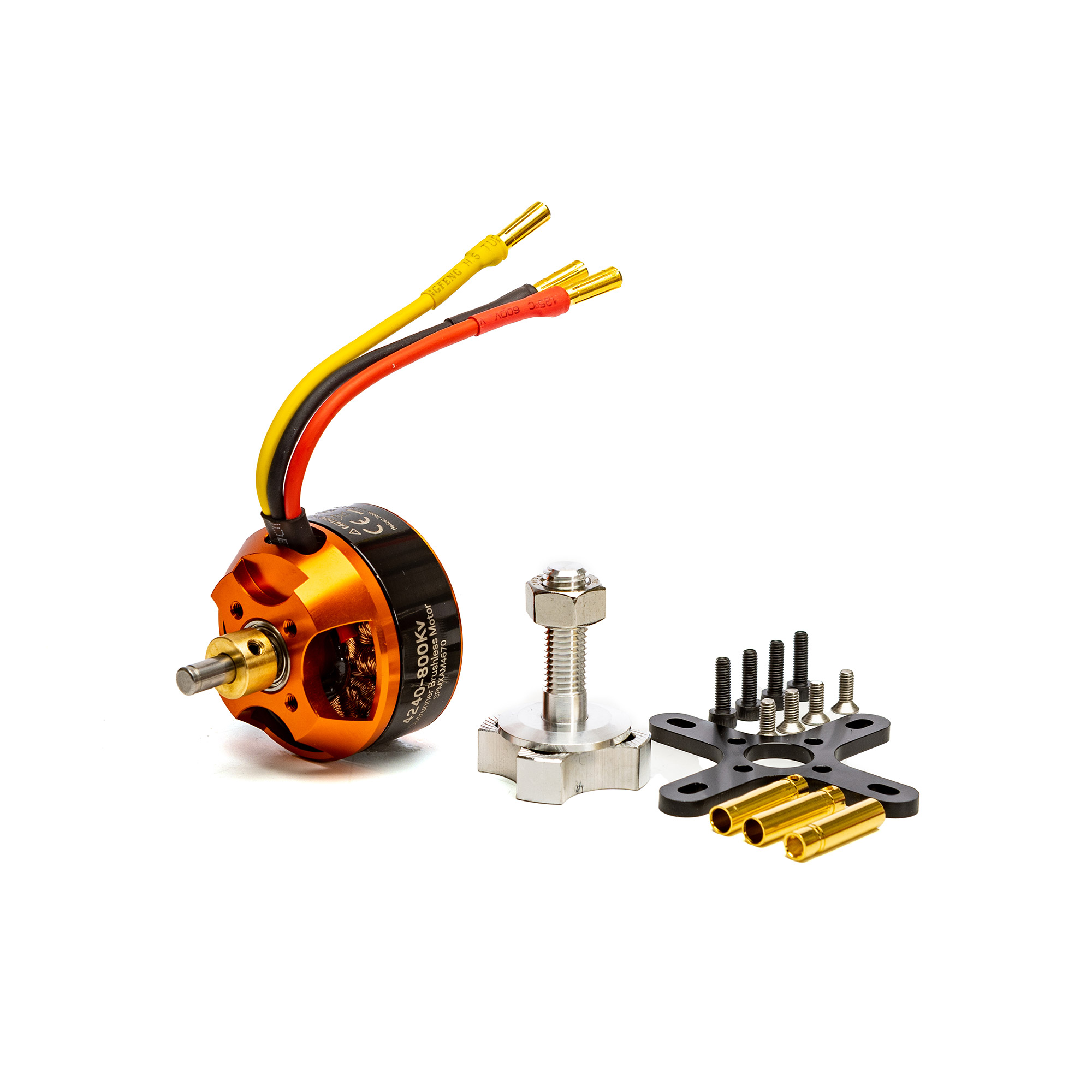

Avian 4240-800kV Outrunner Brushless Motor

Item No.
Spektrum SMART - SPMXAM4670
$79.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Speed Controls

I do not need to purchase this item.

Avian 45 Amp Brushless Smart ESC, 3S-6S
SPMXAM4670
Avian 45 Amp Brushless Smart ESC, 3S-6S
SPMXAE1045
In Stock
$59.99
0 of 1 Selected
Propellers

I do not need to purchase this item.

Electric Propeller, 11 x 10E
SPMXAM4670
Electric Propeller, 11 x 10E
APC11010E
In Stock
$4.17
Electric Propeller, 11 x 8.5E
SPMXAM4670
Electric Propeller, 11 x 8.5E
APC11085E
In Stock
$4.17
Thin Electric Propeller, 12 x 6E
SPMXAM4670
Thin Electric Propeller, 12 x 6E
APC12060E
In Stock
$4.87
0 of 1 Selected
Product $79.99
Add Ons
Estimated Total: $79.99
Estimated Total: $79.99
Selected Store

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models

The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Key Benefits

  • Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
  • Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
  • Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features

  • Lightweight design
  • Powerful and durable Rare-Earth Neodymium magnets
  • 14-pole stator for smooth and precise propulsion
  • Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
  • Perfect match for the Spektrum Smart Avian 45 amp ESC
  • Perfect electric conversion upgrade for .28 size glow combustion power systems

Important Specs

  • Recommended Voltage Range – 11.1-18.5V / 3-5S LiPo
  • Recommended Propeller Range – 10x5 to 13x8 Electric Propeller
  • Recommended Model Flying weight – 3D 1769g (3.9 lbs) - Sport 3583g (7.9 lbs)
  • Max Wattage – 740w

Product Specs

Maximum Burst Current
740W
Maximum Continuous Current
592W
Motor Type
Brushless
Voltage
11.1-18.5v (3-5S LiPo)
Application
Sport airplanes up to 7.9lbs (3583g) and 3D airplanes up to 3.9lbs (1769g)
Number of Poles
14
Product Weight
4.4oz (125g)
Recommended Prop Range
10x5 to 13x8 Electric Prop
Shaft Diameter
0.19" (5 mm)
Outer Diameter
1.67" (42 mm)
Recommended Speed Control
Spektrum Smart Avian 45 amp ESC
RPM/Volt (Kv)
800Kv
Connector Type
3.5mm Bullet
Motor Size
4240
Product Length
1.59" (40 mm)
