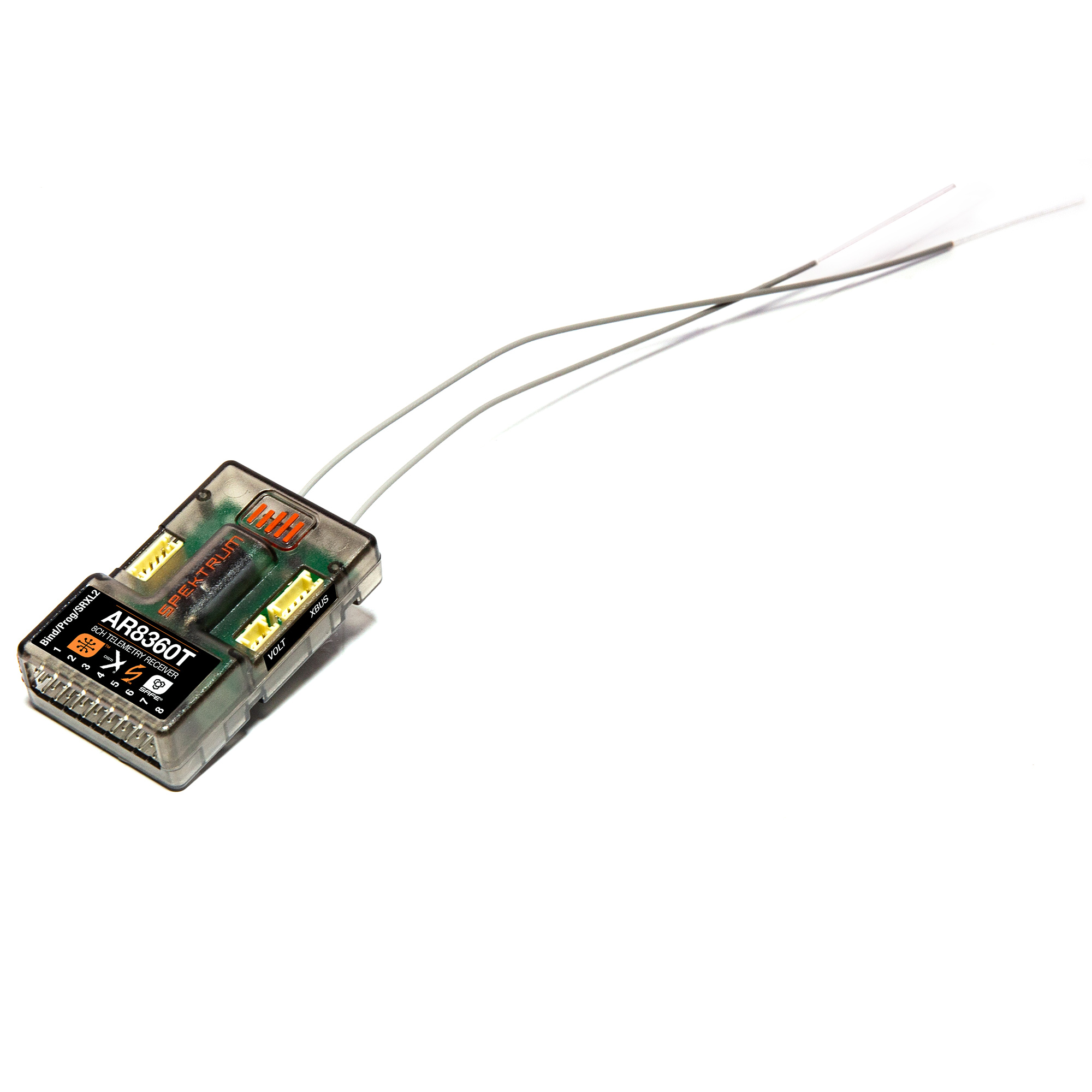

AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
Item No.
Spektrum -
SPMAR8360T
$129.99
Need To Complete
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
I do not need to purchase this item.
I do not need to purchase this item.
SPMAR8360T
12" Aircraft Telemetry Extension
SPMA9551
In Stock
$12.99
SPMAR8360T
24" Aircraft Telemetry Extension
SPMA9552
In Stock
$13.99
0
of 1 Selected
I do not need to purchase this item.
SPMAR8360T
SRXL2 DSMX Remote Serial Telemetry Receiver
SPM4651T
In Stock
$45.99
SPMAR8360T
SRXL2 DSMX Remote Receiver
SPM9747
In Stock
$39.99
SPMAR8360T
Transmitter/Receiver Programming Cable: USB Interface
SPMA3065
In Stock
$24.99
0
of 1 Selected
Estimated Total:
$129.99
Selected Store
Overview
The Spektrum AR8360T 8 Channel AS3X/SAFE Telemetry Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR8360T is a full range 8 channel receiver with built in AS3X stabilization, which counters the effects of wind, turbulence and torque using a 3-axis MEMS gyro and exclusive flight control software tuned by expert RC pilots. There is no delay in control response or limit on control throws. You'll simply feel like you're flying an expertly tuned model that does exactly what you want
The AR8360T features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. It also features an SRXL2 port for an SRXL2 Remote Receiver (SPM9747 or SPM4751T), available separately, to add additional RF path redundancy. An SRXL2/Bind/Program/Batt servo header is available to connect smart devices, program and update the receiver, bind with a traditional bind plug, or connect a battery. The AR8360T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe™ technology and Hold Last as well as preset failsafe types set through forward programming.
Please Note: The DX7S and DX8 Gen 1 Spektrum Transmitters will not display Altitude or Variometer telemetry with the AR8360T receiver.Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, Non-computer transmitters
*Please note – Using this receiver in turbine powered aircraft models is not recommended
- Compatible with all Spektrum™ DSM2 and DSMX transmitters
- Built in AS3X Stabilization System with SAFE flight envelope protection
- Compact footprint fits most parkflyer size, sport class and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
- Bind button allows for easy binding and eliminates the use of bind plug
Features
- Compatible with all Spektrum™ DSM2 and DSMX transmitters
- Built in AS3X Stabilization System with SAFE flight envelope protection
- AS3X and SAFE set up through forward programming directly from your Spektrum transmitter*
- Compact footprint fits most parkflyer size, sport class and giant scale models
- Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
- Bind button allows for easy binding and eliminates the use of bind plug
- Two external antennas will ensure secure RF coverage from all angles of the aircraft
- Additional RF path redundancy with an additional SRXL2 Remote Receiver (sold separately)
- Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.
- End pin output pins for easy and compact installation
- Forward Programming capable for setting individual failsafe parameters per channel and more
AS3X® TECHNOLOGY (3-AXIS STABILIZATION)
Exclusive Spektrum™ AS3X® technology enhances flight stability by countering the effects of wind, turbulence, and other outside forces to help your aircraft fly smoothly and with precision. You'll feel like you're piloting an expertly tuned model that performs exactly as you want.
FORWARD PROGRAMMING
You can configure the AR8360T receiver wirelessly, directly from any compatible Spektrum™ transmitter, through the Forward Programming menu. No separate computer or mobile device is needed for setup and adjustments.
SAFE® TECHNOLOGY
SAFE® (Sensor Assisted Flight Envelope) technology flight modes help pilots avoid over-controlling their models. SAFE uses AS3X to deliver normal flight performance, but with limited bank and pitch angles to prevent the aircraft from getting in extreme attitudes.
SAFE® PANIC RECOVERY
Sometimes called a bailout mode, Panic is a SAFE Stabilization mode that can return an airplane to level flight from any attitude. It is usually assigned to a momentary button.
SMART TELEMETRY
To enjoy the full benefits of Smart™ technology, use the AR8360T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time. For more information on Smart Technology please visit our Spektrum Smart Technology page.
INTEGRATED BAROMETER
The Spektrum™ AR8360T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data without the need to purchase additional sensor modules.
Product Specs
Band
Input Voltage
Product Application
Product Height
Channels
Integrated Variometer
Modulation
Telemetry
Bind Method
Range
Telemetry Range
Antenna Length
Product Width
Remote Receiver Ports
Technology
Resolution
Serial Out
Application
Failsafe
Product Weight
Forward Programming
Product Length
Compatibility
E-flite - EFL12550
E-flite - EFL15750
ParkZone - PKZ1950
E-flite - EFL17750
Spektrum - SPMSA3040
Spektrum - SPMR6650
Spektrum - SPMR8100
Spektrum - SPMR10110
No results for your given fitment filters
AR637T Setup Series
Get Info From Communities
FAQ
The orientation of the receiver will be at your discretion based on your specific setup and preferences. A compatible transmitter can be used to program the receiver and adjust the gyro orientation through Forward Programming. Forward Programming allows you to fine-tune settings and customize the gyro orientation according to your needs.
Yes absolutely. No problem using any Spektrum receivers in EDF models.
The following receivers work well in Turbine applications (in 10/14/20 channel setups respectively): SPMAR10400T, SPMAR14400T, and SPMAR20400T.
Yes it does. Though note that the receiver is not typically the limiting factor for mixing, you only need that enough channels are available. The transmitter would be the main consideration for mixing.
Yes it does, though it is not a receiver setting. When you set the aircraft type in the transmitter, the receiver will apply stabilization to the appropriate surfaces (once AS3X is programmed).
Product Details
In The Box
- (1) AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
- (1) Product Manual
Needed to Complete
- (1) Spektrum Telemetry Capable Transmitter
