In Stock
Brand Logo
4.3 out of 5 Customer Rating

A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo

Item No.
Spektrum - SPMSA6330
$79.99
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
In Stock
Brand Logo
4.3 out of 5 Customer Rating

A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo

Item No.
Spektrum - SPMSA6330
$79.99
The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft.
  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Durable and long lasting brushless motor
  • Dual bearing supported drive train helps maximize smooth operation
  • Over Current and Temperature protection
Product $79.99
Add Ons
Estimated Total: $79.99

A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo

Item No.
Spektrum - SPMSA6330
4.3 out of 5 Customer Rating
Product $79.99
Add Ons
Estimated Total: $79.99
RC Club points earned on this item shown at checkout. ⓘ
Selected Store
The link to A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo has been copied

Product Details

A6330 Digital HV Brushless High Torque High Speed Metal Gear Aircraft Servo
Quick Links

Features

  • Brushless motor provides long lasting durability and impressive power and speed
  • High Voltage (HV) capable (6.0-8.4v input range)
  • Outstanding torque and speed in a standard servo size (248 oz-in and .10 sec/60° @8.4v)
  • Durable and long lasting brushless motor
  • Low wear and tightly meshed all metal gear train
  • Dual bearing supported drive train helps maximize smooth operation
  • Aluminum center servo case helps keep operating temperatures low
  • Soft start helps prevent component and airframe damage during un-intentional initializations
  • Over Current and Temperature protection
  • Helpful initialization start tone lets pilot know when the servo is ready
  • Integrated servo failsafe holds last known position if signal is lost and power is maintained
  • Frequency : 50-400hz

Overview

The Spektrum A6330 high-torque, high-speed brushless servo delivers amazing performance for a wide range of vehicles and aircraft. High-Voltage (HV) capable, the A6330 can produce an impressive 248 oz-in of torque (17.8kg) and a remarkable 0.10 sec/60 degree transit speed with 8.4V input. The Low-wear, all metal gear drive train is powered by a long-lasting brushless motor and supported with dual ball bearings for smooth operation. A strong metal case adds durability and enhanced heat dissipation.

Other features include: integrated servo failsafe, over-current and over-temperature protection, long 18 inch (457mm) lead for easy installation, initialization start tone to indicate servo readiness, and soft start to prevent damage during unintended initializations. Like all Spektrum 6300 Series servos, the A6330 delivers reliability, consistency and performance that are second to none.

Product Specifications

Application Airplane
Overload Protection Yes
Product Weight 2.25oz (71g)
Spline Count 23 - Tooth
Water-Resistant No
Maximum Servo Torque 126.6 oz-in (9.11 kg-cm) @ 6.0V; 178 oz-in (12.82 kg-cm) @ 7.4V; 248 oz-in (17.86 kg-cm) @ 8.4V
Input Voltage 6 - 8.4V
Product Application Air

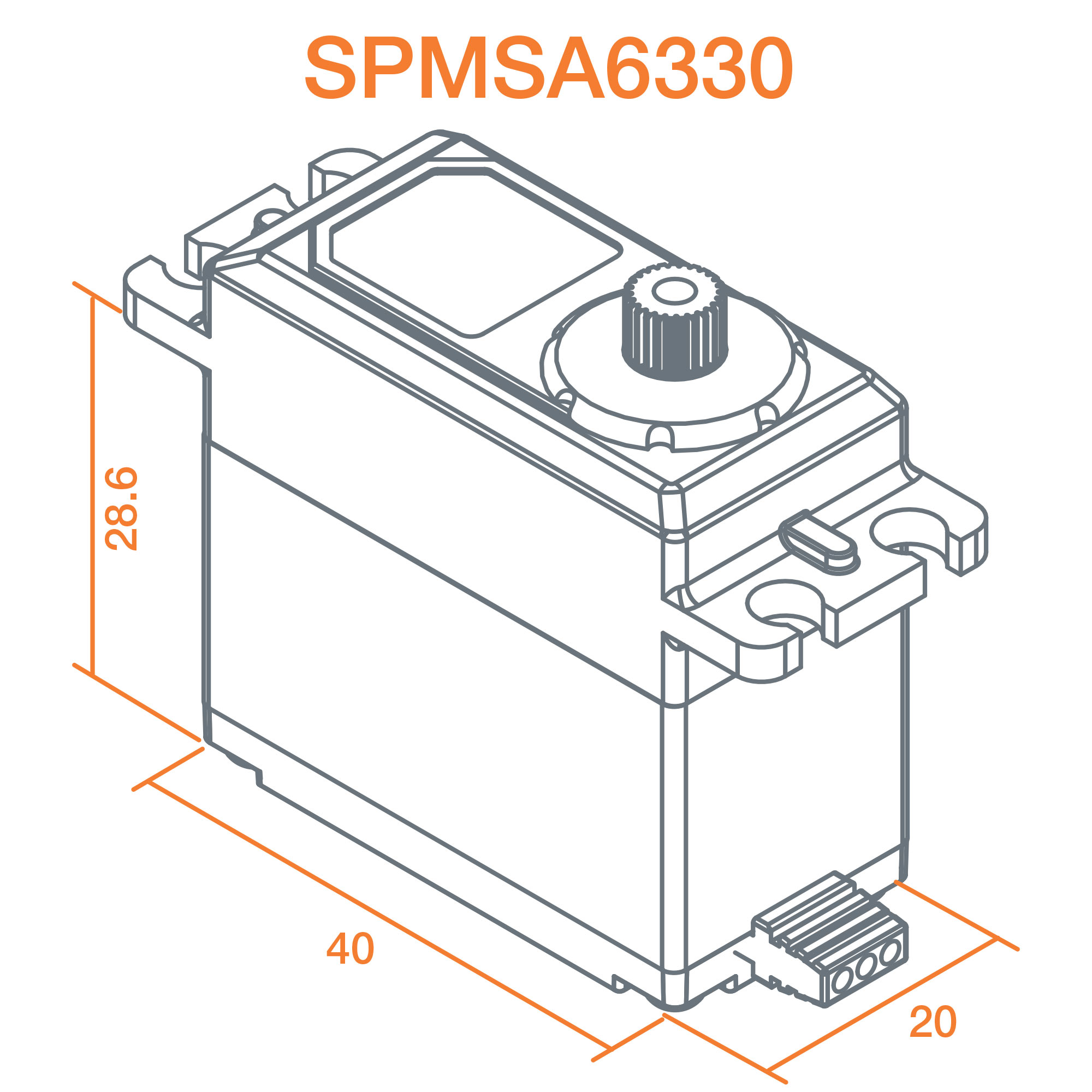

Product Height 1.56" (40 mm)
Servo Type Digital
Product Width 0.79" (20 mm)
Connector Type Universal
Maximum Servo Speed 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Product Length 1.58" (40 mm)
Rotation Range 120 degree
Motor Type Brushless
Servo Operating Voltage 6.0 - 8.4V (HV)
Bearing Dual Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 22 AWG
Programmable No
Servo Size Category Standard
