50SX-H Hyper Ringed .50 Helicopter Engine
Out of Stock | Not Available

50SX-H Hyper Ringed .50 Helicopter Engine

Item No.
OS Engines - OSMG1951
Write a Review
$311.16
RC Club points earned on this item shown at checkout.
Product $311.16
Add Ons
Estimated Total: $311.16
Estimated Total: $311.16
The link to 50SX-H Hyper Ringed .50 Helicopter Engine has been copied
Selected Store

A "Hyper" engine for hyper heli performance!

The 50SX-H Ringed Hyper is ideal for 50-class helis, with improved combustion efficiency for super-stable hovering and aerobatics.
O.S. Two Year Limited Warranty
  • For over-the-top flying excitement, the 50SX-H Ringed Hyper engine is the clear favorite!
  • Actually mounts in the same space as a .30-size application.
  • The 60LH carburetor features 1.5mm more bore, to increase overall power.

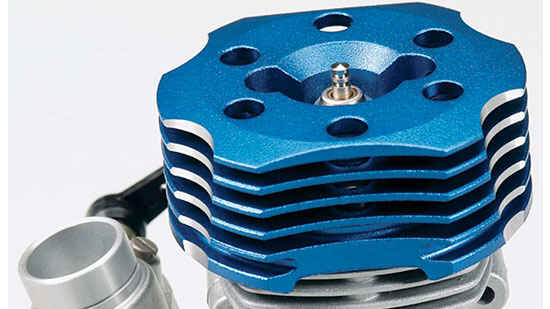

O.S. 50SX-H Ringed Hyper Heli - heat sink head
Besides good looks and excellent cooling, the 50SX-H Ringed Hyper engine's machined blue alumite heat sink head also boosts combustion efficiency for more power stability.

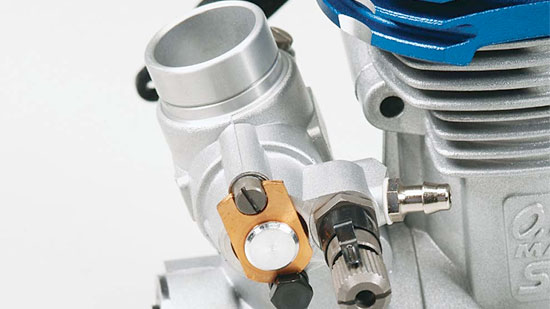

O.S. 50SX-H Ringed Hyper Heli - carburetor
The Hyper version weighs less than the 50SX-H, but delivers more horsepower for higher rotor speeds.
  • Ideal for use in any 50 class helicopter
  • Head design offers improved combustion efficiency for stable hovering and aerobatic flight
  • Large 0.39" (10mm) diameter carburetor intake for greater running stability
  • Two year limited warranty

Product Specs

Bore
0.866 in (22mm)
Crankshaft Threads
UNF1/4-28
Crankshaft Type
Threaded
Cylinders
Single
Displacement
0.49 cu in (8.17 cc)
Engine (Only) Weight
14.33 oz (406 g)
Plug Type
O.S. #8
Power Type
Glow
Product Height
3.6 in (92.3 mm) bottom of crankcase to top of cylinder head
Product Length
3.4" (85.7mm) from backplate to front bearing
Product Weight
14.33oz (405.4g)
Product Width
2.0 in (52 mm) at mounting tabs
RPM Range
2,000 - 20,000 rpm
Stroke
0.847 in (21.51 mm)

Compatibility

No results for your given fitment filters

Product Details

icon-box
In The Box
  • One O.S. Max .50 SX-H Helicopter Engine with Hyper Cooling Head
  • 60LH carburetor
  • decal sheet
  • #8 glow plug
  • instruction manual
icon-how-to
Needed to Complete
  • 10% to 30% nitro Fuel with at least 18% lubricant (Helicopter Mix)
  • Starting equipment
