The Castle 1717 motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. This motor is a blast from the past with the added benefit of sensored capabilities!
  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
  • High-Strength, High-Temperature Grade Neodymium Sintered Magnets

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Speed Controls

I do not need to purchase this item.

1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
CSE060008200
1/6 Mamba Monster X 8S 33.6V Waterproof ESC 8A Peak BEC
CSE010016500
In Stock
$214.95
0 of 1 Selected
Product $209.95
Add Ons
Estimated Total: $209.95

4-Pole Sensored Brushless Motor, 1717-1260Kv

Item No.
Castle Creations - CSE060008200
4.8 out of 5 Customer Rating
Product $209.95
Add Ons
Estimated Total: $209.95
RC Club points earned on this item shown at checkout.
Selected Store

Product Details

icon-box
In The Box
  • (1) 1717 4-Pole Sensored Brushless Motor
icon-how-to
Needed to Complete
  • (1) 1/6 or 1/8 Brushless Electronic Speed Control

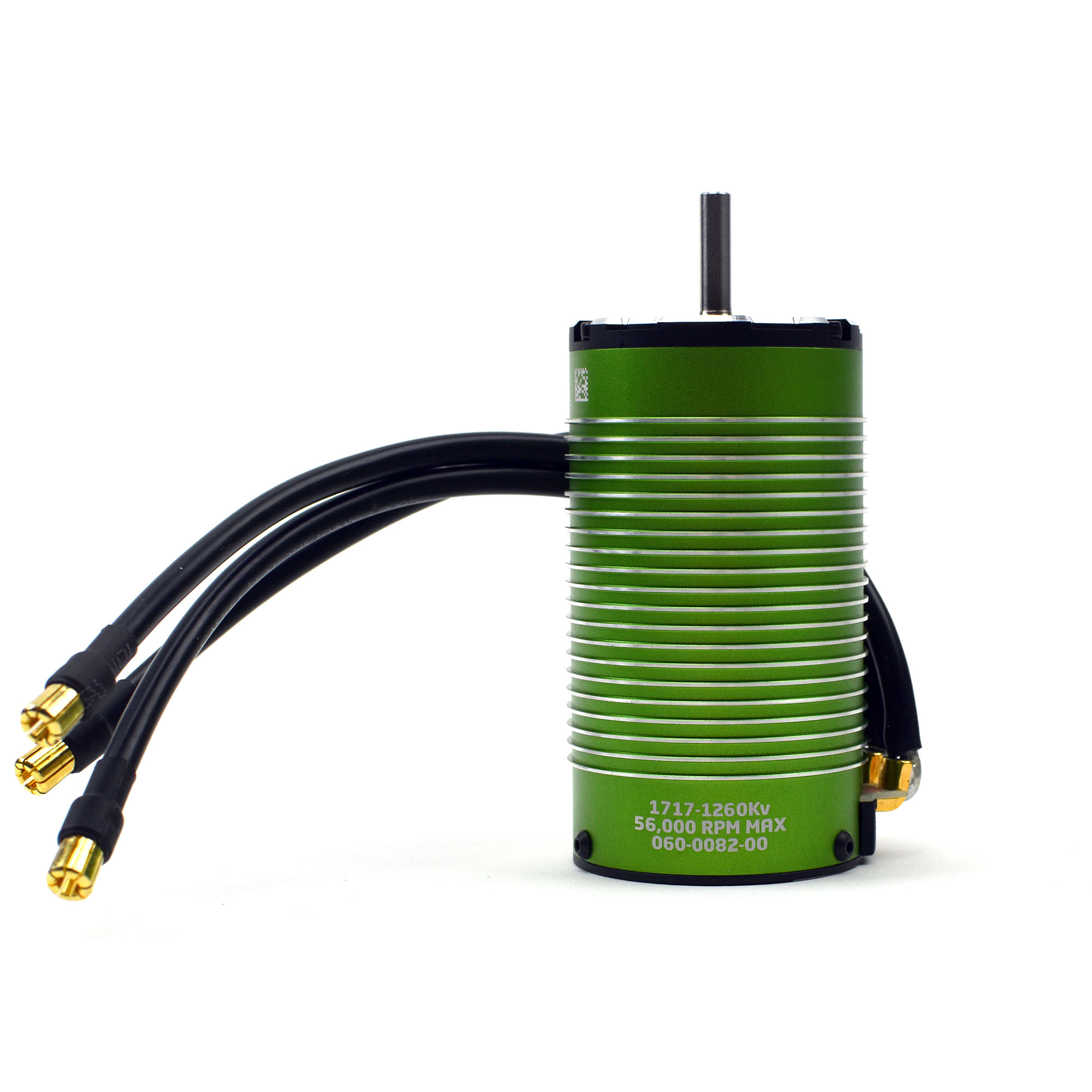

4-Pole Sensored Brushless Motor, 1717-1260Kv

Introduction

It is the perfect upgrade for any 1/6th scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles.

Features

  • Running modes include SmartSense Sensored and an ultra-efficient Sensorless mode.
  • High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
  • Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
  • Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
  • Updated modern and sleek design; looks as cool as it performs.
  • Improved 4-pole 12-slot design boasts exceptional effieciency and produces less heat.
  • Quietsense technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times.
  • Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even higher precision and more efficient startups.
  • Optimized design eliminates the need for mechanical timing adjustments. The sensor alignment method delivers uniform timing and torque in both directions, automatically.
  • Updated modern and sleek design; looks as cool as it performs.

Highest Efficiency

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the highest efficiency possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

Taking Overpowering Seriously

Castle engineers always add a little something extra in their designs that takes your performance to the next level. We have not skimped here. Many customers have utilized our industry leading software functionality that Castle Link offers. When paired with a Castle Creations sensor supported ESC, you can unlock advanced tuning capabilities that Castle Link provides specifically for sensored motors.

Smartsense uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. When running, a motor must transition between different load points and a different timing advance is required for optimal efficiency at all load points. Using mechanical timing adjustments alone, you can only target one driving condition, such as higher start power or higher top end speed. This sacrifices performance and efficiency during the other driving phases. Electronic timing in Smartsense will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled HYBRID between smooth sensored startups and high-efficiency sensorless drive.

With a Castle sensored ESC and sensored motor you will have the ultimate power plant for your vehicle. Users will experience precise throttle control, buttery smooth starts, peak performance and efficiency throughout the full throttle range. You will feel the power and longer run times that a world-class motor produces.

It’s not magic… it’s SMARTSENSE.

Product Specifications

Motor Design Inrunner
Adjustable Timing Yes
Voltage 7.4 - 33.6V
Motor Type Brushless
Connector Type 6.5mm Bullet
Product Length 3.35" (85 mm)
Product Weight 21.08oz (597.6g) with wires
Shaft Diameter 0.196" (5 mm)
Water-Resistant Yes
Outer Diameter 1.87" (47 mm)
Input Voltage 3-8S LiPo
Recommended Speed Control Castle Creations Mamba Monster X 8S 33.6V
RPM/Volt (Kv) 56,000/1260Kv
Application 1/6 scale vehicles weighing up to 20lbs runnning up to 8S LiPo, Upgrade for heavier 1/8 scale, and lighter 1/6 scale vehicles
Number of Poles 4
