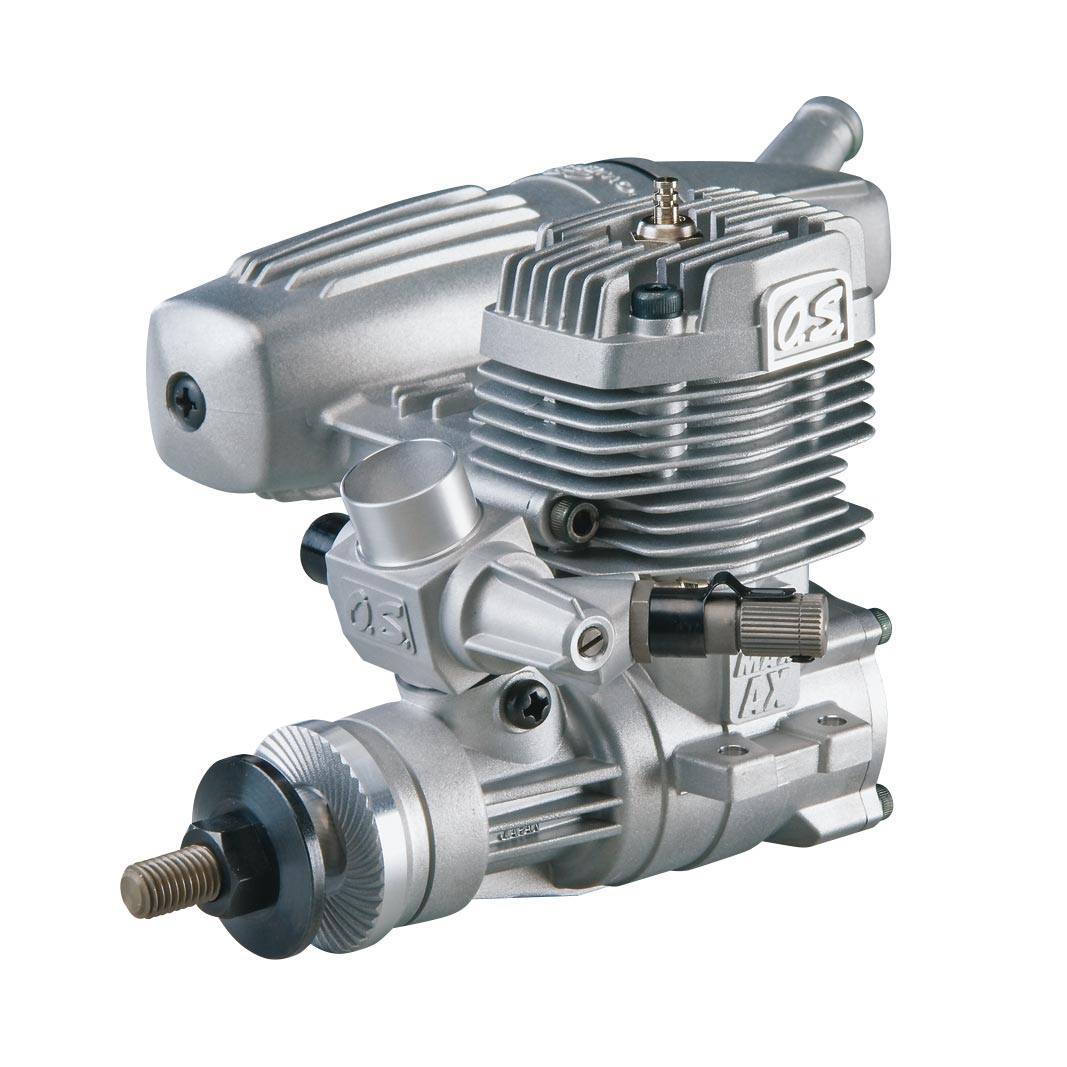

35AX ABL .35 Airplane Glow Engine with Muffler

Item No. OSMG0545
35AX ABL .35 Airplane Glow Engine with Muffler
Brand Logo
3.7 out of 5 Customer Rating

35AX ABL .35 Airplane Glow Engine with Muffler

Item No. OSMG0545
$219.99
Free financing available through Easy Pay ⓘ
Earn points on this item ⓘ
In Stock
Selected Store
The link to 35AX ABL .35 Airplane Glow Engine with Muffler has been copied

Product Details

Key Features
  • Same mounting dimensions as the O.S. .32SX and .25FX
  • Weighs only 0.35oz (10g) more than the .32SX
  • Advanced Bi-Metallic Liner. This process uses a double layer of plating material rather than one thick layer. This helps the metal to bond to the cylinder and is more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression, longer life.
  • Newly designed E-3080 Power Box muffler generates mild and pleasant sound and is constructed with an O-ring between the front and rear body to prevent oil leaking and is fully positionable
  • 21K carburetor with needle valve angled toward rear of engine for safer adjustments
  • Ball bearing-supported crankshaft
In The Box
  • One O.S. Max .35AX ABL BB model airplane engine with muffler
  • #8 Glow plug
  • Two 3x28mm cap head muffler screws
  • needle valve extension cable
  • warranty sheet
  • decal sheet
  • product manual
35AX ABL .35 Airplane Glow Engine with Muffler
Quick Links
Manuals & Support

Big power in a small AX engine!

All of the features that make AX Series the choice of more and more modelers: Distinctive 5-sided heat sink head design for better cooling, diagonally-mounted needle that makes adjustments much safer, and dual-layer durability of ABL (Advanced Bimetallic Liner) construction.


O.S. Engines two year limited warranty
  • Produces exceptional output for popular-sized planes.
  • The same mounting dimensions as the 32SX and 25FX engines.
  • The included E-3080 muffler effectively dampens noise and is fully positionable.

Product Specifications

Manufacturer # 13100
Benchmark Prop 10x6 break in
Bore 0.795" (20.2mm)
Crankshaft Threads UNF1/4-28
Crankshaft Type Threaded
Cylinders Single
Displacement 0.352 cu in (5.77 cc)
Engine (Only) Weight 9.88 oz (280 g) w/o muffler
Power Type Glow
HP 0.9PS @ 11,000 RPM
Muffler Type 2-piece aluminum
Muffler Weight 2.93 oz (83 g)
Oil Type & Content At least 18% synthetic lubricant
Plug Type O.S. #8
Product Height 2.4" (61.5mm) bottom of mounting tab to top of cylinder head
Product Length 3.0" (75.5mm) from back plate to front of drive hub
Product Width 1.8" (45mm) at mounting tabs
Prop Range 10x6 - 12x6
RPM Range 2,500 - 13,000
Stroke 0.709" (18mm)
