1/8 LST 3XL-E 4WD Monster Truck Brushless RTR with AVC

Item No.
Losi - LOS04015
Selected Store

Are you ready for this? More speed, more power, extreme durability-the Losi® LST 3XL-E™ takes the LST platform to the next level. Hit the terrain at speeds of up to 50+ MPH* on 6S power. Whether you're on dirt or pavement, this basher will not disappoint. You'll have control at all times thanks to the AVC® system. And when it comes to taking abuse, the 3XL-E doesn't flinch-this isn't a monster truck that gets intimidated easily. Bottom line, if you loved the LST XXL-2 E, you will be obsessed with the 3XL-E.

*50+ mph speeds can be achieved with optional gearing.

Needed to Complete
  • 2 x 7.4 5000mAh 2S 50C or 11.1V 5000mAh 3S 50C Hardcase LiPo Battery with EC5â„¢ connector
  • Balance Charger capable of charging a 2 to 3 cell LiPo with an EC5 connector
What's in the box?
  • (1) Losi LST 3XL-Eâ„¢
  • (1) Spektrumâ„¢ DX2E ACTIVEâ„¢ 2.4GHz Transmitter with AVC
  • (1) Spektrum 6-Channel DSMR® AVC Surface Receiver
  • (1) Spektrum 1/6th Scale Waterproof Digital Servo
  • (1) Dynamite® Fuzeâ„¢ 150A Sensorless Brushless Waterproof 3S-6S ESC
  • (1) Dynamite Fuze 1/8 4P Brushless Motor 2200Kv
  • (4) AA Batteries
  • (1) User Manual

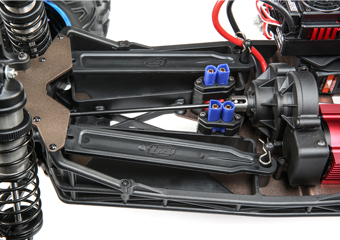

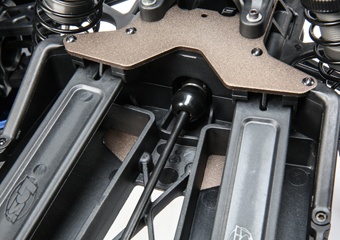

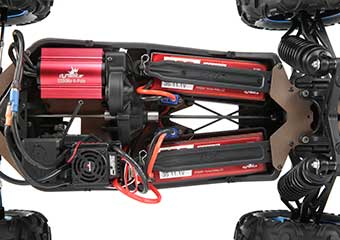

Chassis and Side Rails

Low center of gravity molded chassis lowers the batteries to provide increased durability, stability and performance.

Chassis and Side Rails

LSD Center Differential

Unlike most monster trucks, the 3XL-E uses a center differential that ensures a proportional delivery of power to all parts of the vehicle, regardless of conditions. It lets the truck accelerate and stay balanced on any terrain.

LSD Center Differential

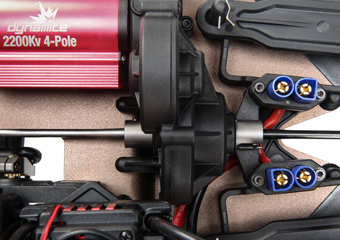

Center Drive Shafts

A spring retaining coupler helps keep the drive pin in place.

Center Drive Shafts

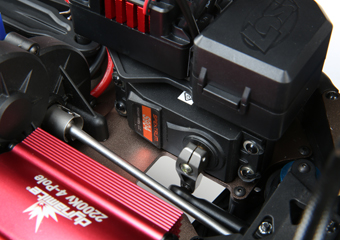

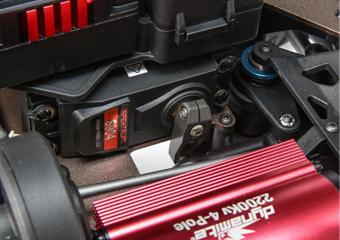

Large Scale Servo

The Spektrum S904 1/6 Scale WP Digital Servo is a larger, stronger servo for worry-free steering performance.

Large Scale Servo

Servo Saver

The adjustable servo saver is designed to work with large-scale servos.

Servo Saver

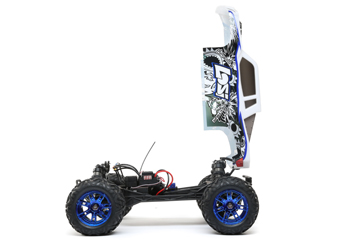

Flip Top Body Mount

Removable flip top body mount provides easy access for battery changes and maintenance.

Flip Top Body Mount

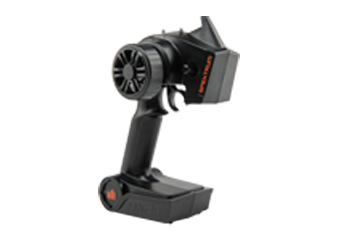

Spektrum DX2E ACTIVE radio system with AVC

Reliable Spektrum radio and the security of Active Vehicle Control. Truck includes SPMSRS6000 receiver with steering priority. You'll never under steer when AVC is activated.

Spektrum DX2E ACTIVE radio system with AVC

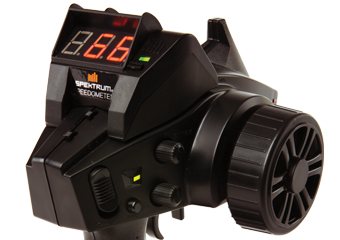

Speedometer Option

The Spektrum DX2E ACTIVE with telemetry lets you measure actual speed via an optional speedometer that plugs into the DX2E ACTIVE.

Speedometer Option

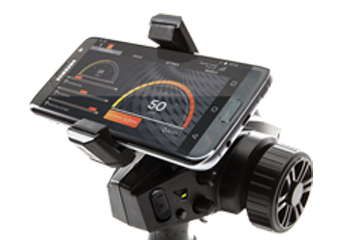

Spektrum Dashboard Mobile APP

The Spektrum Dashboard Mobile application allows you to view everything from speed, motor or engine temperature, battery voltage and more. Simply snap in the mobile device mount and attach the Spektrum Bluetooth module and view real-time telemetry data like never before.

Spektrum Dashboard Mobile APP

Full-Throttle Freedom of AVC Technology

When you're ready to let the brushless motor off the chain, don't hold back. The receiver's built-in AVC (Active Vehicle Control) system will work behind the scenes, making hundreds of tiny throttle and steering adjustments per second, so more of the motor's power is translated into ballistic speed and acceleration instead of just flying dirt. An AVC adjustment knob on the included DX2E ACTIVE transmitter lets you adjust how much traction control the system provides. You can even turn it off.

Full-Throttle Freedom of AVC Technology

Waterproof Components

All components are waterproof so you can run the vehicle in wet conditions.

Waterproof Components

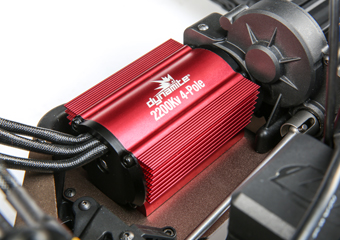

Dynamite® Electronics

The Dynamite® Fuze™ 150A Brushless ESC and Fuze 1/8 4-Pole Brushless 2200Kv Motor run on 4S or 6S power, providing speeds of up to 50+ MPH. Integrated motor cooling fins provide cool temps for longer run times and enhanced performance.

Dynamite<sup>®</sup> Electronics

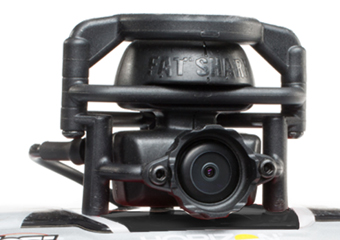

Optional Spektrum FPV Mount

Run in wet conditions with waterproof components.

Optional Spektrum FPV Mount

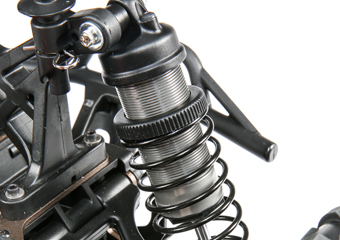

Large Shaft Shocks

Large 5mm diameter shock shafts provide increased durability.

Large Shaft Shocks

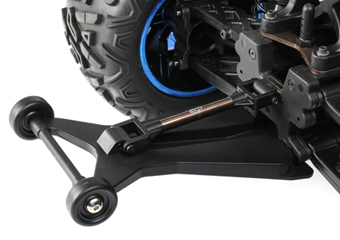

Optional Wheelie Bar Included

Optional wheelie bar included in the box.

Optional Wheelie Bar Included

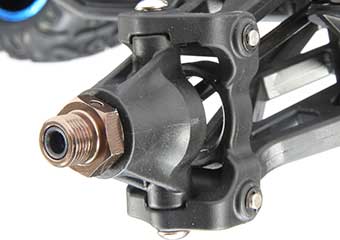

17MM Wheel Hexes

Standard 17mm wheel hexes allow for more wheel choices.

17MM Wheel Hexes

Product Specs

Approximate Assembly Time
No assembly required
Ball Bearings
Complete
Battery
2 ? 2S or 3S 50C+ LiPo battery with EC5 connector (Sold Separately)
Body
3XL-E Truck, Flip Top Mount
Brakes
Electronic with Speed Control
Charger
Sold Separately
Chassis
Molded Composite, with 6061 T6 Aluminum Mid Chassis Plate
Completion Level
Ready-To-Run
Differential
Bevel Gear, Sealed
Drivetrain
4WD
Final Drive Ratio
22.30:1
Gear Pitch
1.0 Module
Ground Clearance
3.75 in (95.3mm)
Inner Tire / Outer Wheel Diameter
4.1 in (104.1mm)
Internal Gear Ratio
8.27:1
Motor Size
2200Kv Integrated Motor Mount
Outer Diameter
7.0 inches (177.8mm)
Pinion
20T
Power Type
Electric
Product Height
10.75 in (273.1mm)
Product Length
23.0 in without wheelie bar (584.2mm)
Product Weight
15.5 lbs (7.0kg)
Product Width
18.5 in (469.9mm)
Radio
DX2E ACTIVE
Scale
1/8
Servos
S904 1/6 Scale WP Digital
Shock Type
Oil-Filled, Coil-Over Springs
Speed Control
150A Sensorless BL Waterproof
Spur Gear
54T
Suspension
Independent
Tire Tread
Off-Road Pin
Vehicle Type
Monster Truck
Water-Resistant
Yes
Wheel Hex Size
17mm
Wheel Width
4.0 in (101.6mm)
Wheelbase
15.9 in (403.9mm)
