In Stock

1/8 Inferno MP10e 4WD Electric Buggy Kit

Name: 1/8 Inferno MP10e 4WD Electric Buggy Kit
Brand: Kyosho
SKU: KYO34110
Price: 519.99 USD
Availability: InStock

Kyosho - KYO34110

$519.99

In Stock

1/8 Inferno MP10e 4WD Electric Buggy Kit

Kyosho - KYO34110

$519.99

Suspension Geometry Optimized To Extract The Best Tire Performance
Batteries Securely Fixed With Hook And Loop Band
Aluminum Cylinder Cases Deliver Superior Heat Dissipation
Hard Anodized Aluminum Main Chassis
Specially Designed Receiver Box And ESC Mount

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

I do not need to purchase this item.

1/8 Mamba Monster 2 Waterproof ESC/2650Kv Sensored Brushless Motor Combo: 6.5mm Bullet

CSE010010804

In Stock

$264.95

1/8 Mamba Monster X ESC/1515-2200KV Sensored Brushless Motor Combo: 6.5mm Bullet

CSE010014503

In Stock

$299.95

1/8 Mamba Monster X Brushless ESC / 1512-2650Kv Sensored Motor Combo

CSE010014504

In Stock

$299.95

1/8 Mamba X Waterproof ESC/1515-2200Kv E-Buggy EditionX Sensored Brushless Motor Combo: 4mm Bullet

CSE010015505

In Stock

$284.95

1/8 Mamba X Waterproof ESC/1512-1800Kv E-Buggy EditionX Sensored Brushless Motor Combo: 4mm Bullet

CSE010015506

In Stock

$284.95

1/8 RX8 Gen3 BL ESC 4030 T8 Gen3 BL Motor 2650kv Combo

TEKTT2330

In Stock

$319.99

1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 2050kv

TEKTT2331

In Stock

$319.99

1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 2250kv

TEKTT2335

In Stock

$329.99

1/8 RX8 Gen3 ESC/T8 Gen3 Brushless Motor Combo, 2000kv

TEKTT2336

In Stock

$329.99

0 of 1 Selected

I do not need to purchase this item.

DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver

SPM5025

In Stock

$399.99

DX5C Smart 5-Channel Transmitter Combo with SR315 Receiver

SPM5115C

Next Shipment April 2023

$184.99

DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver

SPM5120

In Stock

$219.99

DX5 Rugged 5-Channel DSMR Transmitter with SR515

SPM5200

In Stock

$279.99

0 of 1 Selected

I do not need to purchase this item.

7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug

ASC751

In Stock

$49.49

7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug

ASC752

Next Shipment April 2023

$64.79

7.4V 4000mAh, 2S 60C LiPo, Deans

GEA40002S60D8

Next Shipment April 2023

$35.99

7.4V 5200 Capacity 2S Voltage 35C LiPo, Deans

GEA52002S35D

Next Shipment April 2023

$38.99

7.4V 5200 Capacity 2S Voltage 35C LiPo, EC3

GEA52002S35E3

In Stock

$38.99

7.4V 5200mAh 35C 2S HardCase LiPo Battery: EC3, Deans, XT60

GEA52002S35T3

Next Shipment April 2023

$40.99

7.4V 5200 Capacity 2S Voltage 35C Rate XT60

GEA52002S35X6

Next Shipment April 2023

$38.99

7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans

GEA53002S60D21

In Stock

$45.99

7.4V 5300mAh 60C 2S HardCase LiPo Battery: EC3, Deans

GEA53002S60T3

Next Shipment April 2023

$48.99

7.4V 5000 mAh 2S 100C LiPo, Hard Case, Deans

GEA5K2S100D24

Next Shipment April 2023

$49.99

11.1V 4500mAh 3S 35C WolfPack LiPo Battery

ASC755

In Stock

$100.79

11.1V 15000mAh 3S 100C LiPo: EC5

GEA15K3S100E5

In Stock

$139.99

11.1V 6800mAh 3S 120C LiPo Battery: EC5

GEA3S680012E5

Next Shipment March 2023

$67.49

11.1V 5300mAh 3S 60C LiPo Battery: Deans

GEA53003S60D

In Stock

$69.99

11.1V 5300mAh 3S 60C LiPo Battery: EC5

GEA53003S60E5

In Stock

$69.99

11.1V 5300mAh 3S 60C LiPo: XT90

GEA53003S60X9

In Stock

$70.99

11.1V 8000mAh 3S 100C Lipo: EC5

GEA8K3S100E5

Next Shipment April 2023

$79.99

0 of 2 Selected

I do not need to purchase this item.

Reedy 1416-C2L Dual AC/DC Comp Balance Charger

ASC27203

In Stock

$187.99

Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity

DYNC3016

In Stock

$149.99

Imars III PRO 10A Smart Balance RC Battery Charger

GEA100WMPRO

In Stock

$59.99

RDX1 Mini AC Charger

HRC44295

In Stock

$46.99

RDX2 Mini AC Balance Charger

HRC44299

In Stock

$84.99

RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger

HRC44301

In Stock

$184.99

KX80 80W AC/DC Charger

ONXC4101

In Stock

$59.99

S2100 G2 2x100W AC Smart Charger

SPMXC2000

In Stock

$179.99

0 of 1 Selected

I do not need to purchase this item.

HS-646WP Standard Digital Waterproof Metal Gear Servo

HRC32646W

In Stock

$49.99

HS-5565MH Standard Digital HV High Speed Metal Gear Servo

HRC35565S

Next Shipment March 2023

$72.99

HS-5585MH Standard Digital HV High Torque Metal Gear Servo

HRC35585S

Next Shipment March 2023

$72.99

D646WP Standard Digital High Torque Waterproof Metal Gear Servo

HRC36646

In Stock

$54.99

D954SW Standard Digital High Torque Steel Gear Servo

HRC36954

In Stock

$99.99

D955TW Standard Digital Monster Torque Titanium Gear Servo

HRC36955

In Stock

$114.99

D956WP Standard Digital High Torque Waterproof Steel Gear Servo

HRC36956

Next Shipment March 2023

$109.99

HS-7950TH High-Voltage Mega Torque Servo: Universal

HRC37950S

Next Shipment March 2023

$112.99

HS-7955TG High Resolution High Torque Servo: Universal

HRC37955S

Next Shipment April 2023

$99.99

422HD V2 Digital Metal Gear Waterproof Programmable Servo, Black

SEHREEFS65

In Stock

$104.99

300 Alacritous Servo, Programmable

SEHREEFS74

In Stock

$129.99

S6230 Standard Digital High Torque Metal Gear Surface Servo

SPMSS6230

In Stock

$89.99

S6245 Standard Digital High Speed High Torque Surface Servo

SPMSS6245

Next Shipment February 2023

$129.99

S6250 Standard Digital HV High Torque Metal Gear Waterproof Surface Servo

SPMSS6250

In Stock

$119.99

S6260 Standard Digital HV High Speed Metal Gear Surface Servo

SPMSS6260

In Stock

$119.99

0 of 1 Selected

Product $519.99

Estimated Total: $519.99

1/8 Inferno MP10e 4WD Electric Buggy Kit

Kyosho - KYO34110

Product $519.99

Estimated Total: $519.99

Earn points on this item ⓘ

Product Details

In The Box

(1) Inferno MP10e 4WD Electric Buggy Kit
(1) Clear Body
(1) Decal Sheet
(1) Window Mask Sheet
(1) Product Manual

Needed to Complete

(1) 2+ Channel Radio System
(1) Standard-Size Steering Servo
(1) Brushless Electronic Speed Control
(1) Brushless Motor
(1) Battery Charger
(4) Wheels and Tires
(2) 7.4V - 11.1V Batteries

1/8 Inferno MP10e 4WD Electric Buggy Kit

Quick Links

Introduction

With eight titles at the IFMAR (International Federation of Model Auto Racing) 1/8 scale engine racing buggy World Championships, the Inferno series boasts an unrivaled record of success. Based on the most advanced MP10 model, an electric power unit has transformed this machine to create the new MP10e! Evolution of electric motor and battery technology has delivered speed comparable with engine (GP) models so 1/8 electric racing buggies have become a competition class around the world. The quiet simplicity of electric power opens up more opportunity to enjoy high-performance 1/8 buggy performance. As various manufacturers adapted 1/8 models for competition, Kyosho optimized the weight distribution to enhance the MP10e far beyond the performance of the MP9e Evo. Boasting the performance and reliability of the MP10’s proven suspension and drive system, the MP10e features a specially designed main chassis that provides optimal chassis flex and sure-footed grip with an aerodynamic body designed for this electric model to deliver easy handling at high-speed. The motor mount is compatible with various size motors and supports the left-right distribution of the battery weight. Specially designed receiver box and ESC mount deliver improved maintenance efficiency. For the sharpest racing edge, the enhanced performance of the MP10e will be your first choice in a racing weapon.

Features

New layout design arranges the batteries on both sides of the chassis with the motor mounted on the front midship
Toughness and reliability combine with suspension geometry optimized to extract the best tire performance
Batteries mounted on left and right sides are securely fixed with hook and loop band
Oil shocks with precision aluminum cylinder cases deliver superior heat dissipation and are included as standard

High durability hard anodized aluminum main chassis
Center bulkhead features an integrated orthodox slide motor mount
Specially designed receiver box and ESC mount deliver improved maintenance efficiency

Inforno MP10e

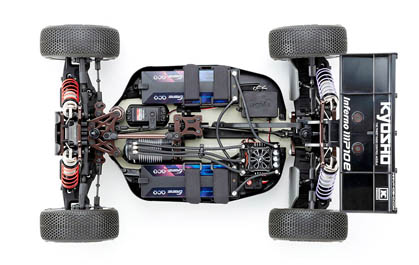

Chassis Layout

New layout design arranges the batteries on both sides of the chassis with the motor mounted on the front midship. Even left-right distribution of battery weight reduces roll speed through corners to improve control. Simultaneously, forward mounting of the motor shifts the center of gravity to the front and combines with the proven undercarriage to maintain control stability, especially over gaps.

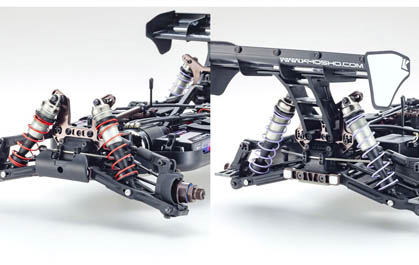

Suspension System

The suspension system shares components with the MP10 GP model. Toughness and reliability combine with suspension geometry optimized to extract the best tire performance from this electric model under hard racing conditions. Superior road holding is achieved, even with the weight of the MP10e. Various optional parts for MP10 such as hard type lower suspension arms are compatible with the MP10e.

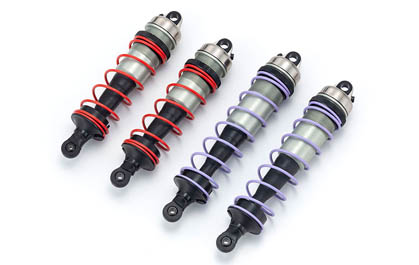

Oil Shocks

Oil shocks with precision aluminum cylinder cases deliver superior heat dissipation and are included as standard. Big bore shocks provide excellent damping capability and stabilize the posture of the machine. Aluminum shock caps are compatible with both diaphragm and aeration type dampers. Diaphragm type dampers are standard in the kit, however optional Shock Cap Seal Set allows installation of aeration type.

Aluminum main chassis

High durability hard anodized aluminum main chassis exhibits optimal degree of flex and mechanical grip required for high-performance by R/C cars.

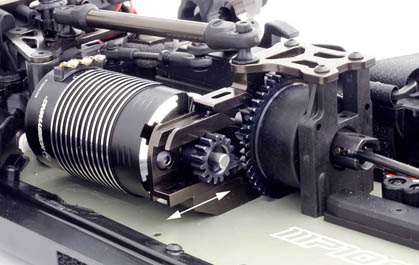

Center bulkhead

Center bulkhead features an integrated orthodox slide motor mount that adapts to different size motors while also allowing easy backlash adjustment and attachment/detachment of the motor. Motor is sold separately.

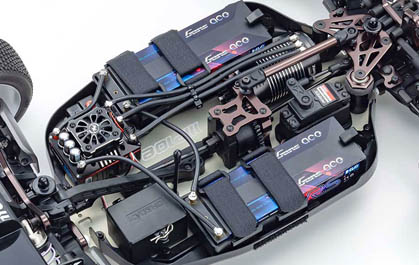

Battery Mount

Batteries mounted on left and right sides are securely fixed with hook & loop band. This allows batteries to be easily attached/detached and provides compatibility with various battery sizes. Batteries are sold separately.

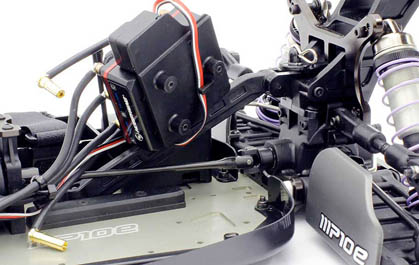

ESC Mount

ESC (speed controller) is attached via a dedicated mount that is fixed to the chassis with screws, making it easier to attach/detach for ease of maintenance while being more secure than conventional double-sided tape mounting. Mount size is compatible with each main brand of ESC.

Radio Box

Special dustproof radio box for receiver and lap time measuring device protects delicate equipment from damage. The hatch is fixed with one hook pin and can be opened and closed easily, contributing to improved maintenance efficiency.

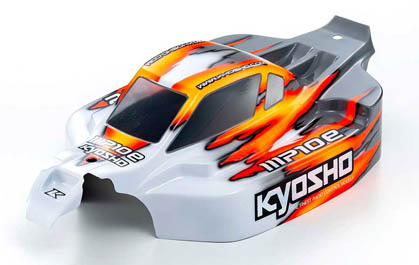

Specially designed aerodynamic body

Body has been specially designed and validated through extensive testing for optimal performance with this electric powered model. Superior aerodynamics achieve both sharp handling control and stability at high speed. The kit is also compatible with the existing MP10 bodies that can be set to suit course and driver preferences.
