In Stock

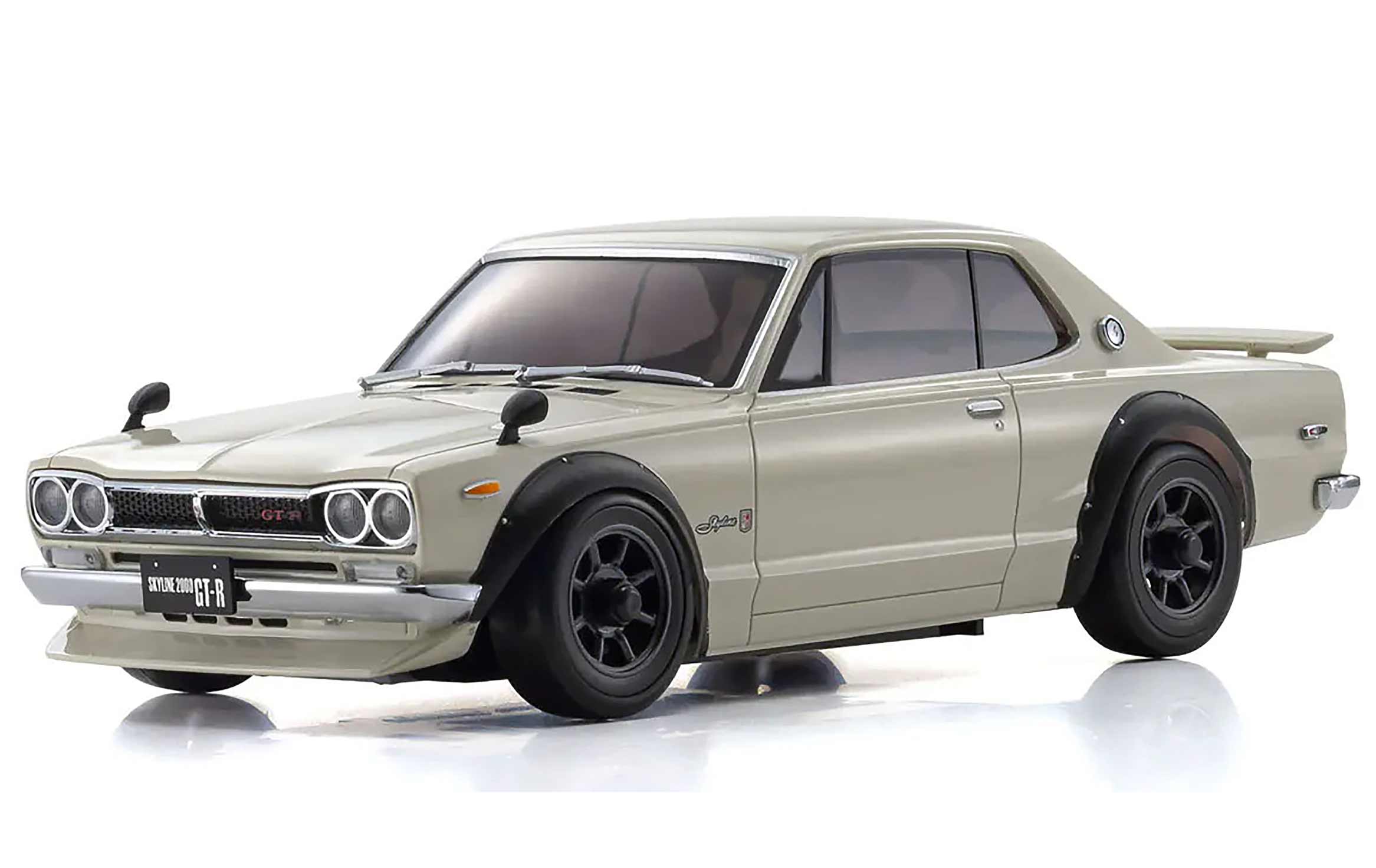

1/28 Skyline 2000GT-R KPGC10 Mini-Z AWD RTR, White

Item No.
Kyosho - KYO32636W
$199.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Batteries

I do not need to purchase this item.

EnviroMAX AAA Alkaline Battery (24)
KYO32636W
EnviroMAX AAA Alkaline Battery (24)
FUG4400BP24
In Stock
$21.99
AAA EnviroMAX Alkaline Battery (4)
KYO32636W
AAA EnviroMAX Alkaline Battery (4)
FUG4400BP4
In Stock
$4.49
0 of 1 Selected
Brushless Upgrade

I do not need to purchase this item.

0 of 1 Selected
Product $199.99
Add Ons
Estimated Total: $199.99
Estimated Total: $199.99
Selected Store

Introduction

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit MZW446 (Sold separately). The gyro can be adjusted by turning a small volume dial on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting; all at a great value price. Simply install the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

  • Based On MA-020 Chassis
  • Updated With Optimized Steering Control
  • Drift Tires Are Installed As Standard
  • Features 2.4GHz Syncro KT-531P Transmitter
  • Body Comes With Display Model Quality Finish

Features

  • MINI-Z AWD Readyset based on MA-020 chassis.
  • Special circuit board updated with optimized steering control program.
  • Chassis features gyro sensitivity adjustment function.
  • Drift tires are installed as standard.
  • Readyset requires only batteries to be ready for action!
  • Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
  • Factory completed body comes with display model quality finish.
  • Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
  • Coil spring on front suspension can be easily replaced without tools.
  • Wide range of optional parts is available to be installed.
FEATURE_TITLE
Scale Details

Body style is all about scale and detail. Injection molded accessory parts such front and rear over fenders combine with chrome bumper and grille, and the replica GT-R emblem puts the finishing touch.

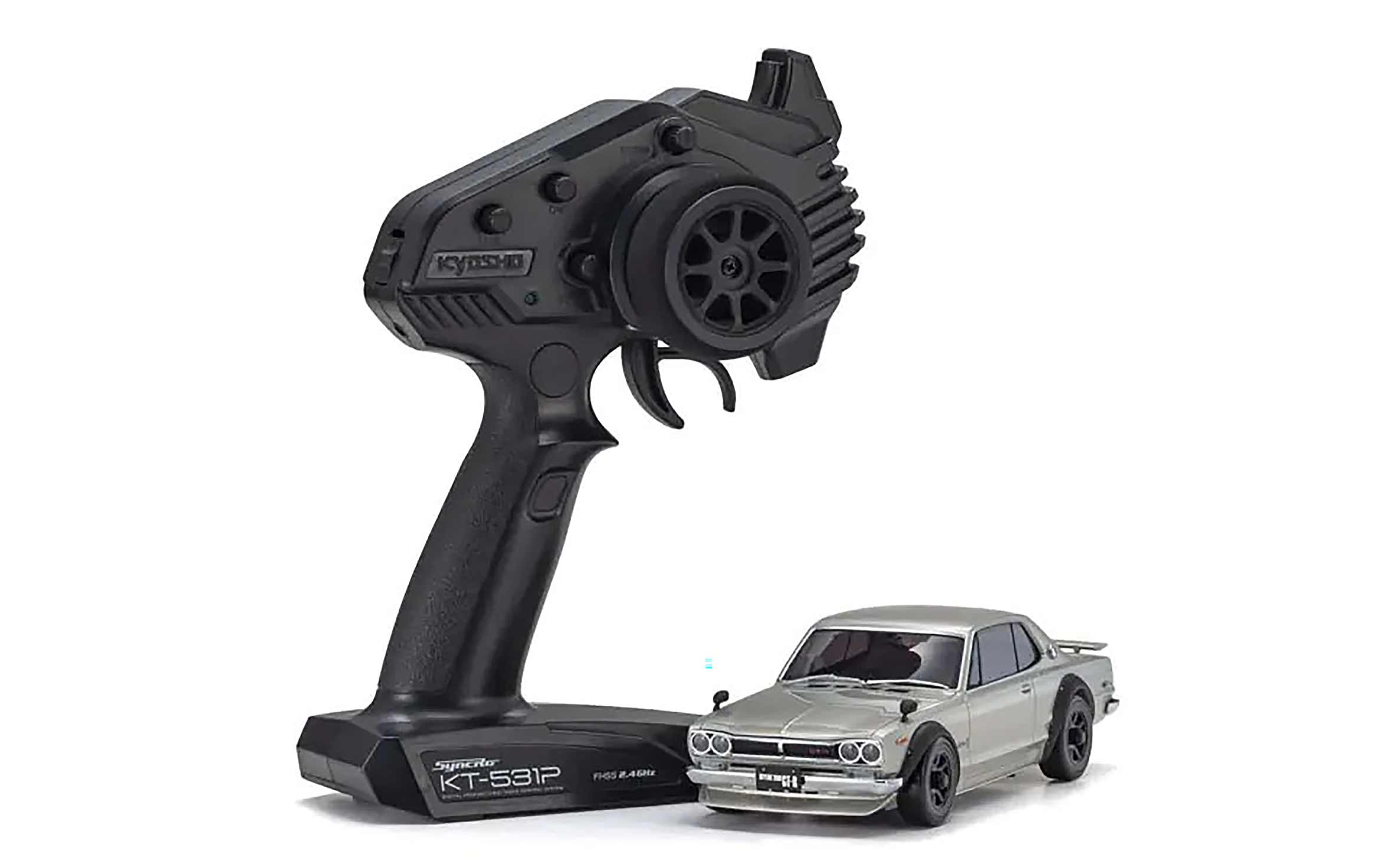

Syncro KT-531P Transmitter
Syncro KT-531P Transmitter

Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).

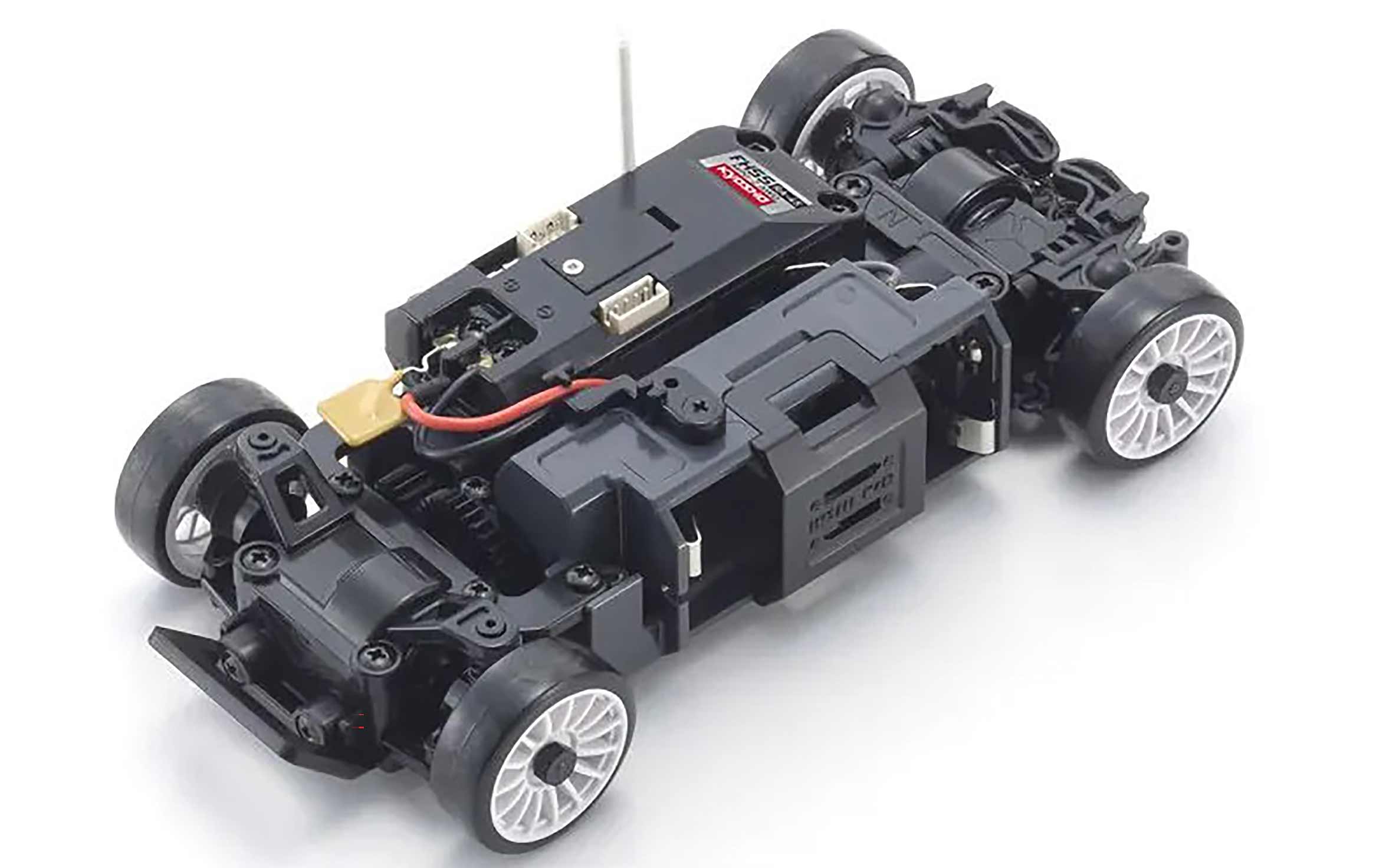

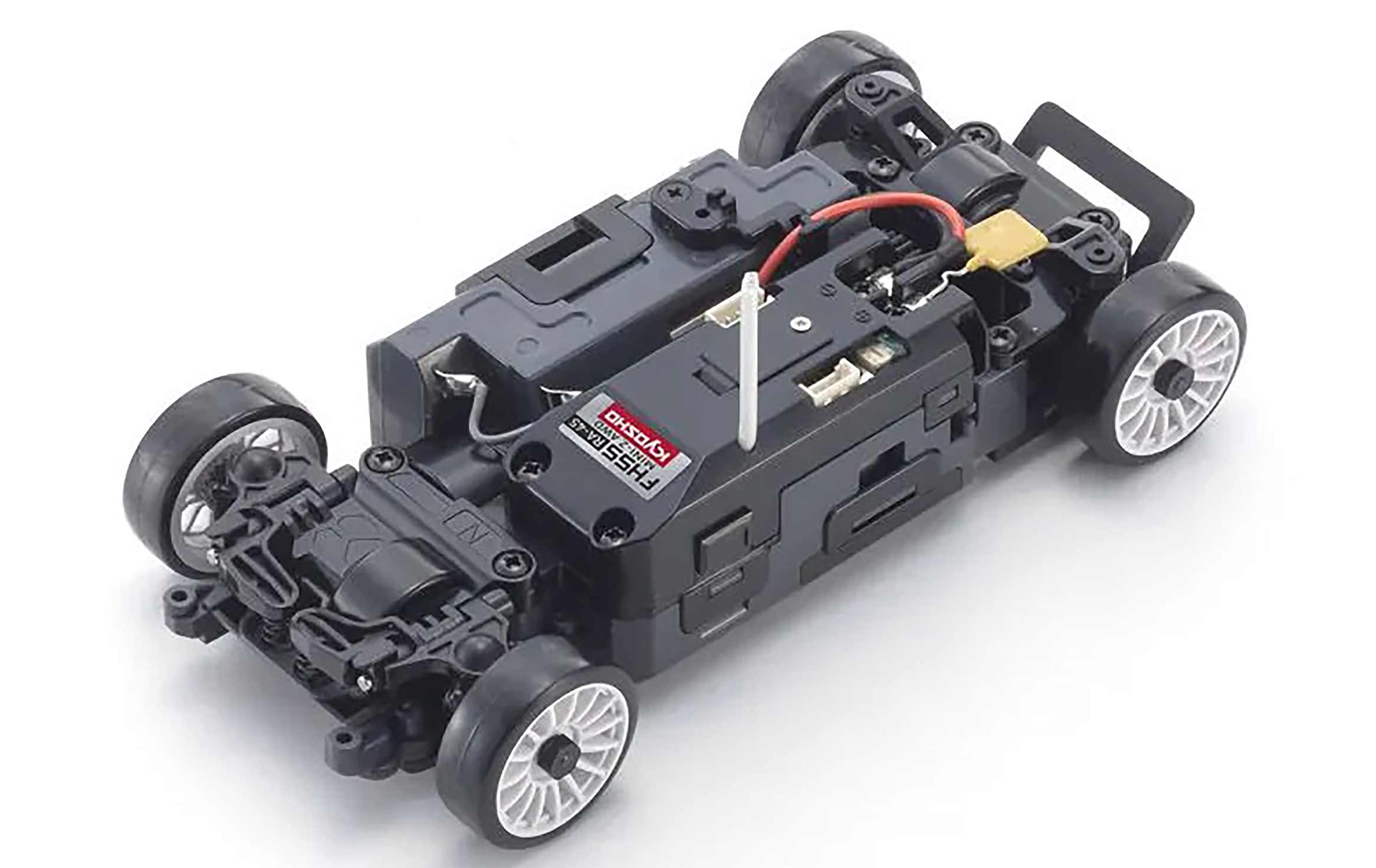

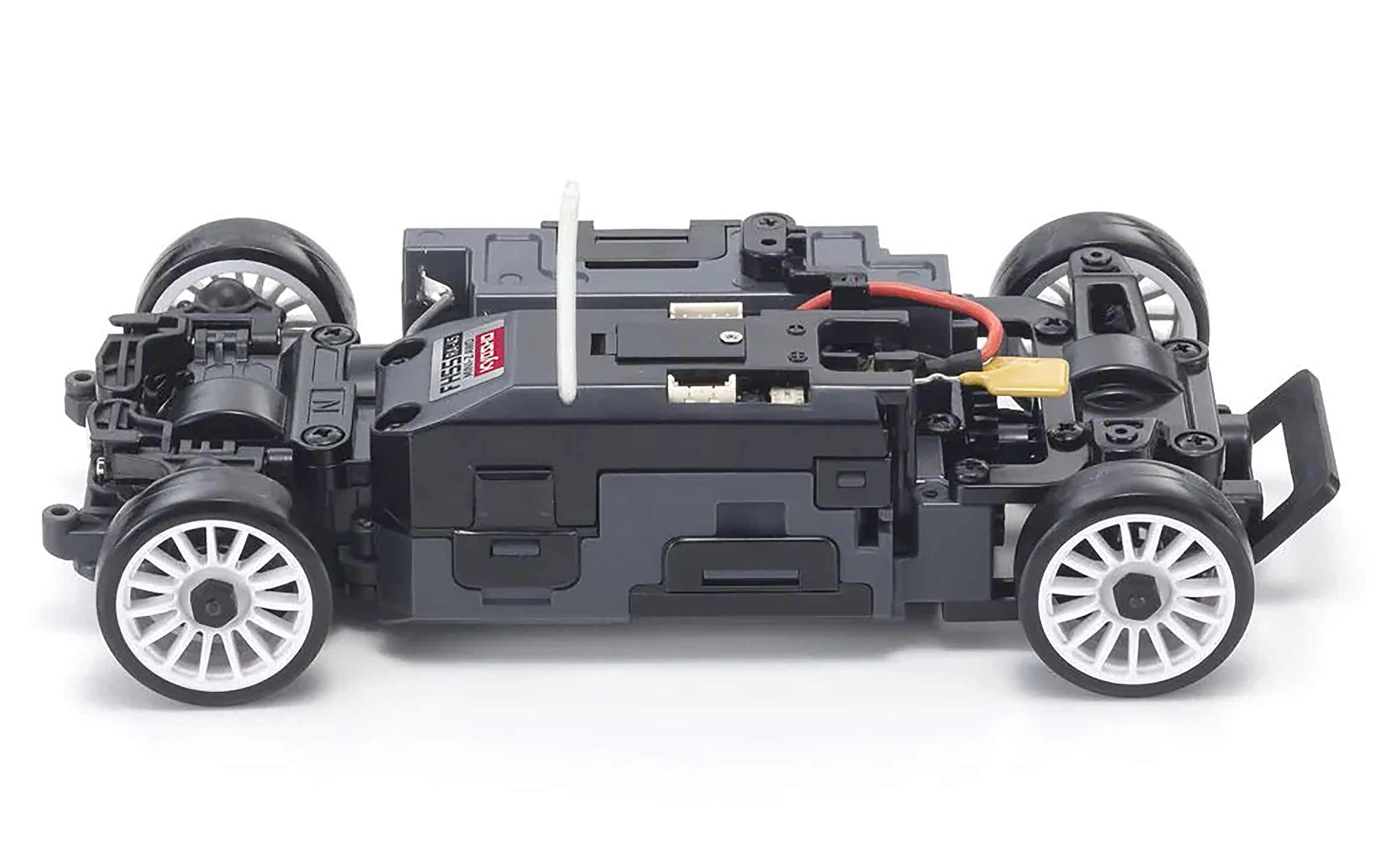

MA-02 Chassis
MA-02 Chassis

Special AWD chassis is based on the MA-02 chassis and features the RA45 unit.



VCS Front Suspension
VCS Front Suspension

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy with no tools required.



Rear Suspension
Rear Suspension

Equipped with strut-type rear suspension.

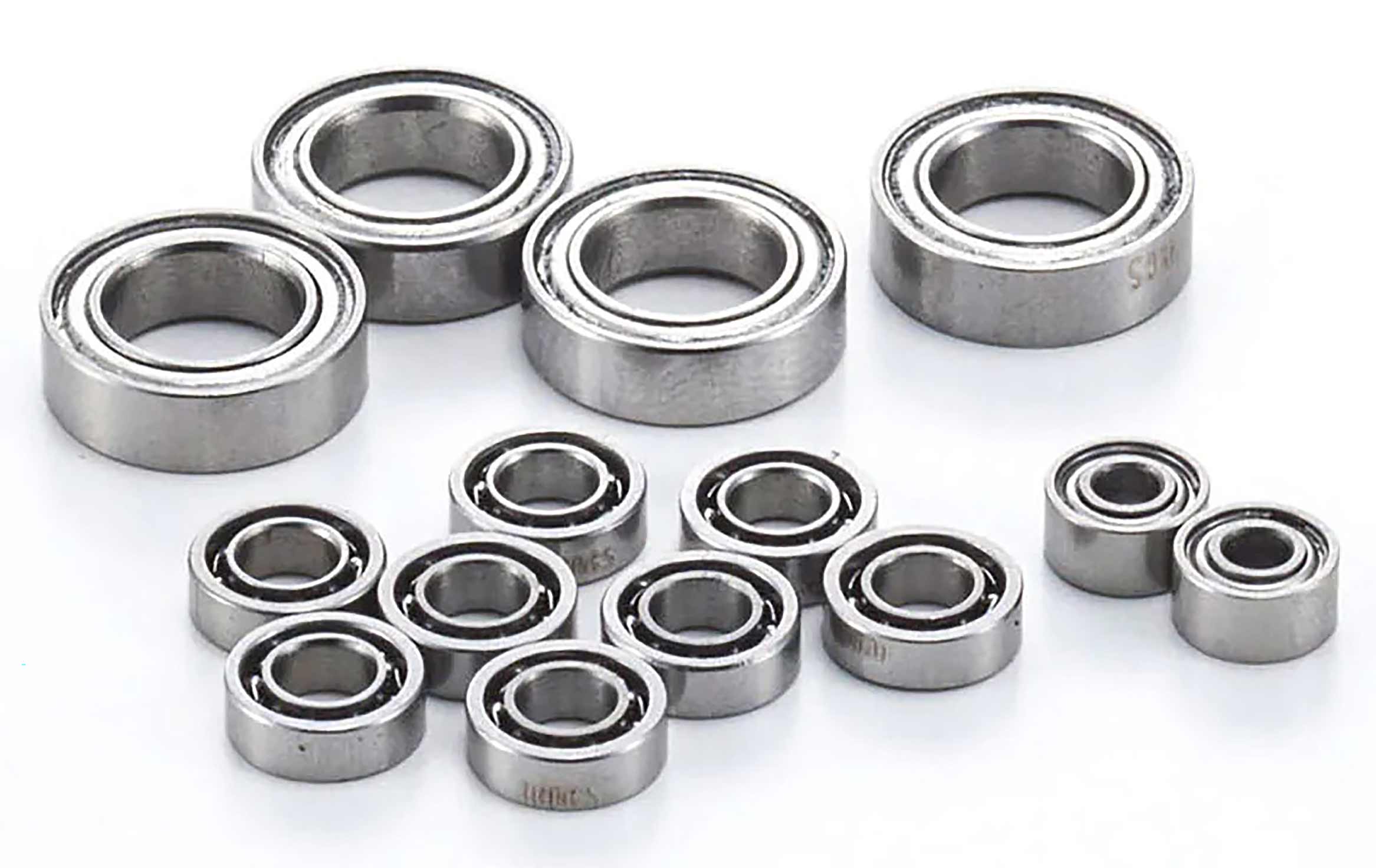

Full Ball Bearings
Full Ball Bearings

Full bearing specifications include 14 ball bearings.

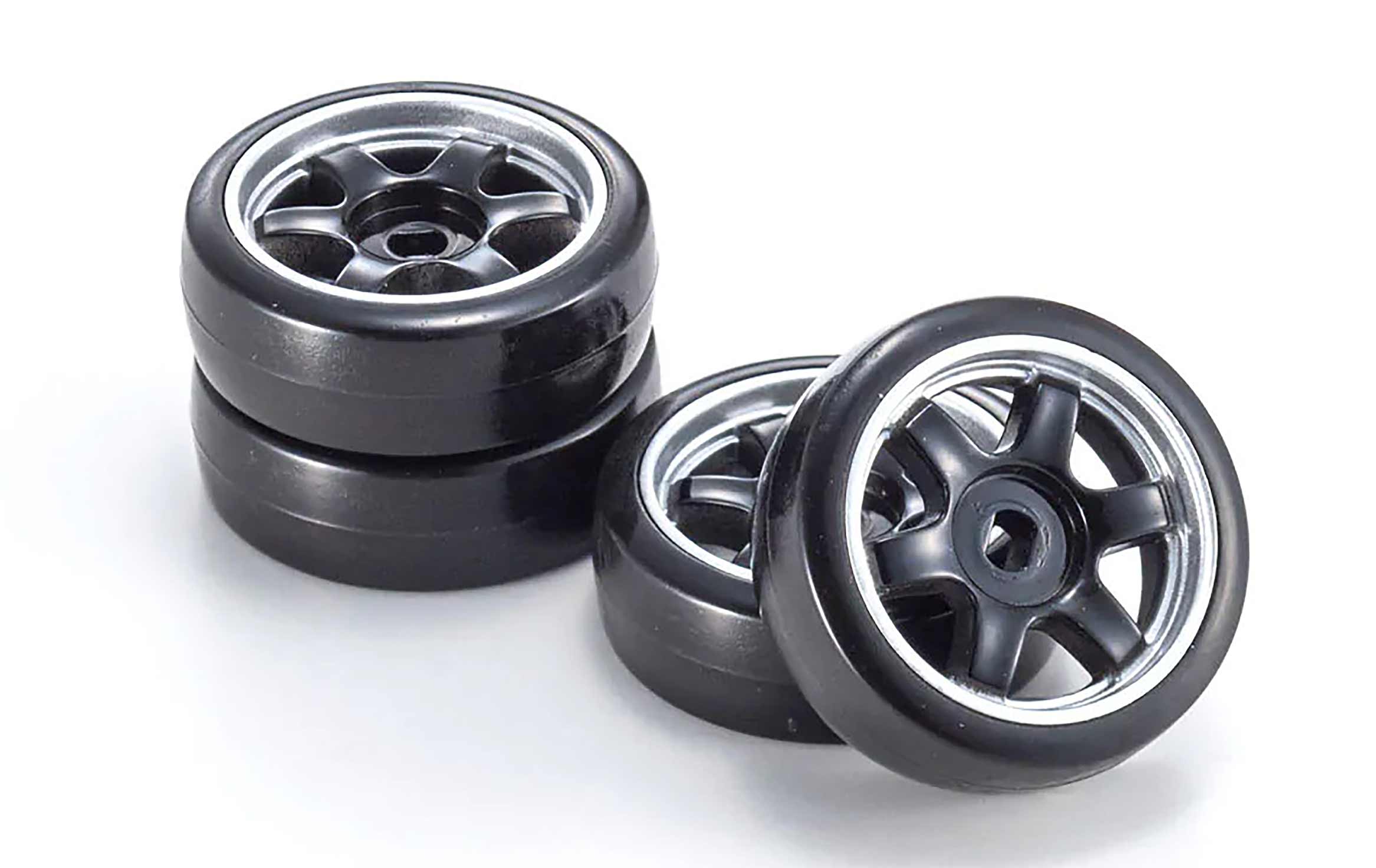

Drift Tires
Drift Tires

Equipped with drift tires as standard.

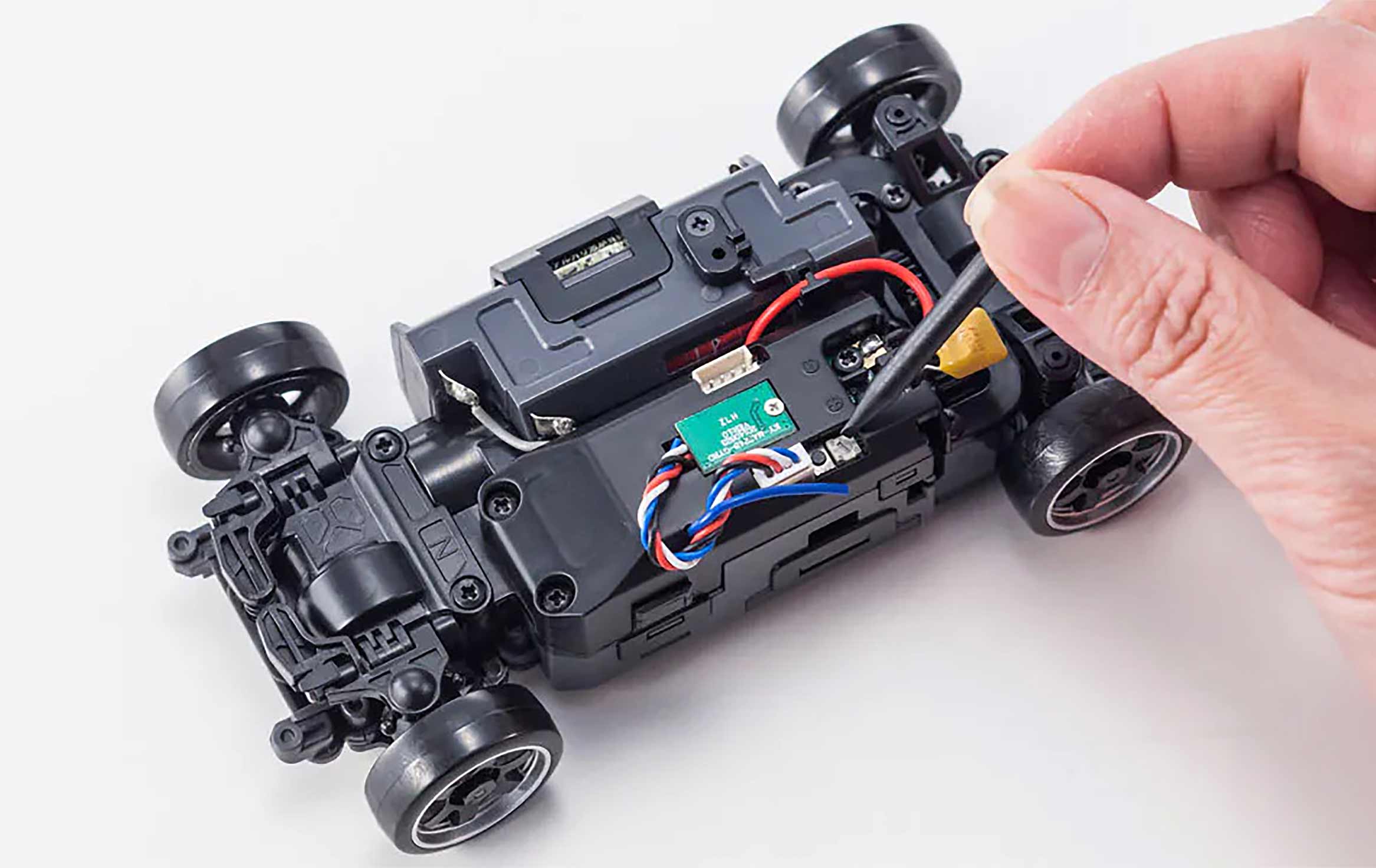

Optional Gyro
Optional Gyro

Equipped with special mount space and gyro adjustment volume dial for the optional gyro unit MZW446 (sold separately).



Product Specs

Manufacturer #
32636W
Charger
Sold Separately
Differential
Gear Diffs
Receiver
Included
Shock Type
Friction Shocks
Power Type
Electric
Servos
Included
Motor Type
Brushed
Rear Track
2.22" (56.5mm)
Speed Control
Included
Front Track
2.22" (56.5mm)
Vehicle Size
Mini
Product Width
2.63" (67 mm)
Radio
Included
Approximate Assembly Time
Fully Assembled
Body
Display Model Quality Finish
Scale
1/28
Ball Bearings
Full Ball Bearings
Chassis
MA-020-N Chassis
Completion Level
Ready-To-Run
Drivetrain
AWD
Drive Type
Forward/Brake/Reverse
Product Height
2" (51 mm)
Battery
Sold Separately
Product Length
6.41" (163 mm)
Suspension
Independent Suspension
Vehicle Type
Drift Car
Wheelbase
3.7" (94 mm)
Tire Type
Drift Tires
The Mini-Z AWD series is a Four Wheel Drive chassis with Drift tires and paired with the Syncro KT-531P Transmitter. Perfect for drifting in small spaces.

Product Details

icon-box
In The Box
  • (1) 1/28 Skyline 2000GT-R KPGC10 Mini-Z AWD RTR
  • (1) Syncro KT-531P Transmitter
  • (4) Pinion Gears (15T, 17T, 19T, 21T)
  • (3) Spur Gears (27T, 29T, 31T)
  • (1) Mini Pylon
icon-how-to
Needed to Complete
  • (4) AAA Batteries for Chassis
  • (4) AAA Batteries for Transmitter
