Overview

Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial® micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 original’s classic styling but also delivers exceptional value in an RC rig — value that’s better than ever in this updated version.

Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colors to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.

The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.

The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tires that tackle on-road and off-road challenges with ease.

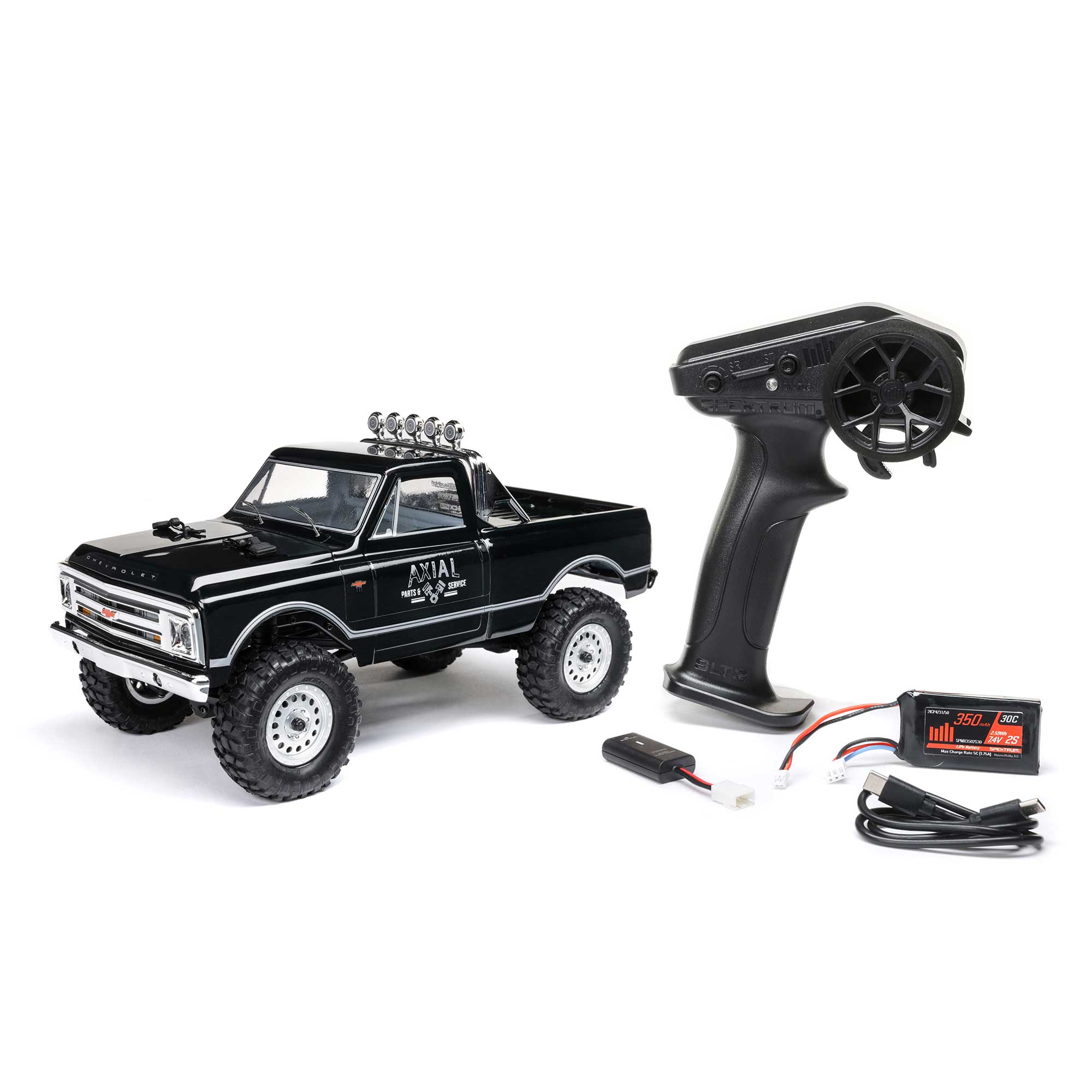

Inside the box, in addition to the assembled and finished rig, you’ll find a Spektrum SLT2 2.4GHz transmitter, 350mAh LiPo battery, and handy USB charger. Four AA batteries are also included for the transmitter. Unleash big crawling adventures with the updated Axial SCX24 1967 Chevrolet C10!

  • Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
  • Plush oil-filled shocks
  • Realistic steel frame rails for added strength
  • Spektrum SLT2 2.4GHz radio system
  • Spektrum 350mAh LiPo battery and USB charger

Features

  • Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
  • Plush oil-filled shocks
  • Realistic steel frame rails for added strength
  • Spektrum SLT2 2.4GHz radio system
  • Spektrum 350mAh LiPo battery and USB charger
  • Two LED lights in the front bumper
  • 080-size brushed motor
  • True, full-time 4-wheel drive
  • Metal worm drive gear on front and rear axles
  • 3-Link front and 4-link rear suspension
  • Fully equipped and ready-to-run
  • Licensed wheels modeled after 1:1 Method Wheels
  • Licensed tires modeled after 1:1 BFGoodrich Tires
1967 CHEVROLET C10 BODY
1967 CHEVROLET C10 BODY

The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove two clips to tilt back the body.

WORM GEARS
WORM GEARS

The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.

STEEL C-CHANNEL CHASSIS FRAME RAILS
STEEL C-CHANNEL CHASSIS FRAME RAILS

Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.

FRONT AND REAR SOLID AXLE HOUSINGS
FRONT AND REAR SOLID AXLE HOUSINGS

The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.

4-LINK REAR SUSPENSION
4-LINK REAR SUSPENSION

The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.

OIL-FILLED SHOCKS
OIL-FILLED SHOCKS

Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.

DURABLE STEEL AXLES
DURABLE STEEL AXLES

Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.

SPLINED DRIVE SHAFTS
SPLINED DRIVE SHAFTS

The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

DYNAMITE BRUSHED MOTOR
DYNAMITE BRUSHED MOTOR

The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.

SPEKTRUM SLT2 2.4GHz RADIO SYSTEM
SPEKTRUM SLT2 2.4GHz RADIO SYSTEM

The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.

FULL BALL BEARINGS
FULL BALL BEARINGS

Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.

METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES
METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES

The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler™ T/A® KX tires have won more rock-crawling championships than all other tires combined. The Axial version captures the same aggressive look in 1/24 scale.

LED LIGHTS INCLUDED
LED LIGHTS INCLUDED

Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.


Ford Official Licensed Product

©2024 Horizon Hobby, LLC. Axial, the Axial logo, SCX10, SCX24, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. General Motors Trademarks are used under license to Horizon Hobby, LLC. BFGoodrich and the BFGoodrich logo are trademarks of Michelin Lifestyle Limited, used under license. Method Race Wheels and associated logos are property of Method Race Wheels, used under license. All other trademarks, service marks and logos are property of their respective owners.

NOTE: Prototype shown. Some imagery may differ from the actual product.

Product Specs

Approximate Assembly Time
None
Body
Axial 1967 Chevrolet C10 Pickup
Brakes
Integrated with ESC
Pinion
10T
Scale
1/24
Charger
Included
Differential
Worm gear 16T/4T
Receiver
Included
Shock Type
Coil-over, Oil-filled, 0.9-1.3 in (24-33.4mm)
Product Weight
8.0 oz (0.22kg)
Tire Tread
Nitto Trail Grappler
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Battery
Included
Connector Type
PH 2.0 (High-Current Ultra Micro)
Ground Clearance
1.06" (27mm)
Motor Size
080 Brushed Electric Motor
Product Length
8.6" (218 mm)
Spur Gear
55T
Steering Type
2WS
Suspension
Solid Axle, Front and Rear
Wheel Width
.48" (12.4mm)
Ball Bearings
Full set
Chassis
Stamped Steel Chassis Rails
Completion Level
Ready-To-Run
Drivetrain
4WD
Drive Type
Forward/Reverse
Make
Chevy
Product Height
3.6" (91 mm)
Front Track
3.9 in (99.5mm)
Outer Diameter
1.88" (48 mm)
Product Width
3.9" (99 mm)
Radio
Included
Motor Type
Brushed
Rear Track
3.9 in (99.5mm)
Speed Control
Included
Wheelbase
5.2" (132 mm)
Power Type
Electric
Servos
Included

Axial SCX24 '67 Chevrolet C10 Product Video

The performance and value of the SCX24™ 1967 Chevrolet C10 are better than ever before! Oil-filled shocks, Spektrum™ electronics, and new body colors have been added for a classic style RC rig that’s completely ready-to-run and sized to run anywhere.

Product Details

icon-box
In The Box
  • (1) Axial SCX24 1967 Chevrolet C10 1/24 Scale 4WD RTR
  • (1) Assembled SCX24 chassis, drivetrain, and suspension
  • (1) Spektrum SLT2 2.4GHz radio system
  • (1) Spektrum 350mAh LiPo battery and USB charger
  • (4) AA transmitter batteries
  • (1) Product manual
icon-how-to
Needed to Complete
  • Absolutely nothing!
