1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

Item No.
Tamiya - TAM56366
$868.00
In Stock
Brand Logo
3.3 out of 5 Customer Rating

1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

Item No.
Tamiya - TAM56366
$868.00
This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck in the 8x4 configuration. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set!
  • Roof Features A Depiction Of Light Pods On The Visor
  • New Battery Case Is Located Over The Second Axle
  • A Brand-New Truck Bed Section Comprised Of Metal Subframe For Superb Durability
  • Tough Ladder Frame With Aluminum Side Channels And Plastic Cross Members
  • Both Front Axles Are Steered Via A Single Servo

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Batteries

I do not need to purchase this item.

Speedpack2 7.2V 1800mAh 6C NiMH, Flat Tamiya
TAM56366
Speedpack2 7.2V 1800mAh 6C NiMH, Flat Tamiya
DYNB2050
In Stock
$16.99
Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
TAM56366
Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
DYNB2060
In Stock
$20.99
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
TAM56366
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
DYNB2070
In Stock
$28.99
Speedpack2 7.2V 5100mAh 6C NiMH, Flat Tamiya
TAM56366
Speedpack2 7.2V 5100mAh 6C NiMH, Flat Tamiya
DYNB2090
In Stock
$45.99
7.2V 2200mAh, NiMH, Tamiya Plug
TAM56366
7.2V 2200mAh, NiMH, Tamiya Plug
GEANM6S2200T
In Stock
$20.59
7.2V 3000mAh, NiMH, Tamiya Plug
TAM56366
7.2V 3000mAh, NiMH, Tamiya Plug
GEANM6S3000T
In Stock
$26.79
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM56366
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
ONXP5311
In Stock
$22.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

Reedy 324-S Compact Balance Charger
TAM56366
Reedy 324-S Compact Balance Charger
ASC27201
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
TAM56366
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC27203
In Stock
$187.99
Prophet Sport Mini 50W Multichemistry Charger
TAM56366
Prophet Sport Mini 50W Multichemistry Charger
DYNC2030
In Stock
$34.99
Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity
TAM56366
Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity
DYNC3016
In Stock
$149.99
Imars III PRO 10A Smart Balance RC Battery Charger
TAM56366
Imars III PRO 10A Smart Balance RC Battery Charger
GEA100WMPRO
Next Shipment March 2024
$59.99
RDX1 Mini AC Charger
TAM56366
RDX1 Mini AC Charger
HRC44295
In Stock
$46.99
RDX2 Mini AC Balance Charger
TAM56366
RDX2 Mini AC Balance Charger
HRC44299
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
TAM56366
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
HRC44301
In Stock
$149.99
KX80 80W AC/DC Charger
TAM56366
KX80 80W AC/DC Charger
ONXC4101
Back Order
$59.99
S155 G2 1x55W AC Smart Charger
TAM56366
S155 G2 1x55W AC Smart Charger
SPMXC2050
In Stock
$59.99
0 of 1 Selected
Electronic Speed Controls

I do not need to purchase this item.

Reedy SC500X Brushed ESC
TAM56366
Reedy SC500X Brushed ESC
ASC27013
Back Order
$27.99
Reedy SC400X Brushed Crawler ESC: Element Enduro
TAM56366
Reedy SC400X Brushed Crawler ESC: Element Enduro
ASC29199
In Stock
$49.99
Firma 40A Brushed Waterproof ESC, 2S-3S: IC3
TAM56366
Firma 40A Brushed Waterproof ESC, 2S-3S: IC3
SPMXSE1040
In Stock
$39.99
BXR Waterproof Brushed Crawler ESC, 20T Limit
TAM56366
BXR Waterproof Brushed Crawler ESC, 20T Limit
TEKTT1094
In Stock
$69.99
0 of 1 Selected
Transmitters and Receivers

I do not need to purchase this item.

DXS Transmitter with AR410 Receiver
TAM56366
DXS Transmitter with AR410 Receiver
SPM1010
In Stock
$149.99
NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver
TAM56366
NX6 6-Channel DSMX Transmitter with AR6610T Telemetry Receiver
SPM6775
In Stock
$419.99
Attack 4YWD 2.4GHz 4-channel Digital Proportional Radio Control System
TAM56366
Attack 4YWD 2.4GHz 4-channel Digital Proportional Radio Control System
TAM7255252
Back Order
$254.40
0 of 1 Selected
Servos

I do not need to purchase this item.

HS-645MG High Torque Metal Gear Premium Sport Servo
TAM56366
HS-645MG High Torque Metal Gear Premium Sport Servo
HRC32645S
In Stock
$34.99
HS-5496MH Standard Digital HV Metal Gear Servo
TAM56366
HS-5496MH Standard Digital HV Metal Gear Servo
HRC35496S
In Stock
$39.99
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
TAM56366
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
HRC35565S
In Stock
$72.99
HS-5645MG Standard Digital High Torque Metal Gear Servo
TAM56366
HS-5645MG Standard Digital High Torque Metal Gear Servo
HRC35645S
Next Shipment March 2024
$45.99
D645MW Standard Digital High Torque Metal Gear Servo
TAM56366
D645MW Standard Digital High Torque Metal Gear Servo
HRC36645
In Stock
$43.99
D954SW Standard Digital High Torque Steel Gear Servo
TAM56366
D954SW Standard Digital High Torque Steel Gear Servo
HRC36954
In Stock
$99.99
0 of 1 Selected
Product $868.00
Add Ons
Estimated Total: $868.00

1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

Item No.
Tamiya - TAM56366
3.3 out of 5 Customer Rating
Product $868.00
Add Ons
Estimated Total: $868.00
RC Club points earned on this item shown at checkout.
Selected Store

Product Details

icon-box
In The Box
  • (1) 1/14 R/C Mercedes-Benz Arocs 4151 8X4WD Tipper Truck
icon-how-to
Needed to Complete
  • (1) 4+ Channel Radio System
  • (1) Brushed Electronic Speed Control
  • (1) 7.2v - 7.4v Battery
  • (1) Battery Charger
  • (2) Standard Steering Servos
1/14 Mercedes-Benz Arocs 4151 8X4 Tipper Truck Kit

MERCEDES BENZ AROCS

The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details. Separate parts recreate side mirrors and visor, etc.

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction shock-dampers.

A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering.

A separately sold 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately).

Features

  • Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles
  • The Tamiya 4-axle chassis has a tough ladder frame with aluminum side channels and plastic cross member
  • Features a brand-new truck bed section comprised of metal subframe for superb durability
  • Install the separately sold Actuator Set for realistic truck bed motion
  • TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed
  • The new battery case is located over the second axle, which allows access even when there are loads in the bed
  • The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish
  • 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter
  • Metal leaf spring dampers with built-in coil springs provide durable suspension

Tamiya Mercedes Benz Arocs 4151 8x4 Tipper Truck

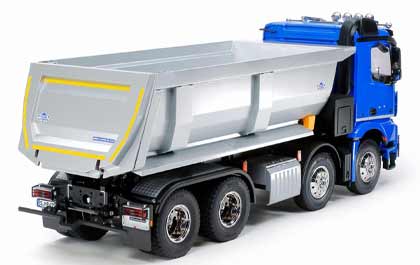

Truck Bed
New Truck Bed Section

Features a brand-new truck bed section comprised of metal subframe for superb durability.

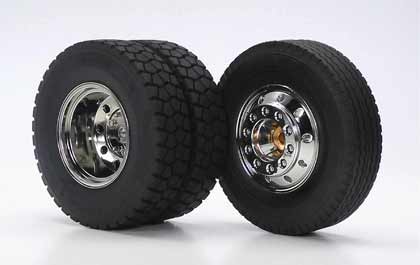

Wheels and Tires
12 Sets of Wheels and Tires

The kit includes 12 sets of wheels and tires. Modeled after real construction equipment tires, these tires function like the real thing, providing maximum traction on the construction site.



Scale Details
Scale Details

The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details.

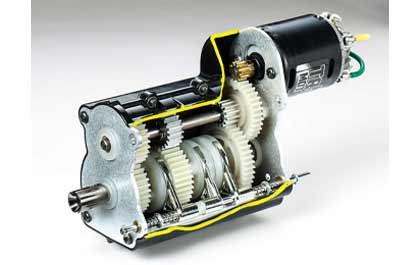

Motor and Transmission
Motor and Transmission

TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed. 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter.

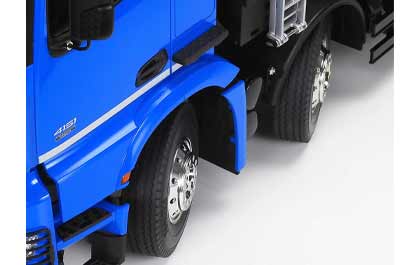

Axles
Front Axles

Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles.



Product Specifications

Receiver Sold Separately
Ball Bearings Metal and Plastic Bushings
Chassis Aluminum and ABS plastic
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 10.5512" (268 mm)
Bushing Material Plastic
Charger Sold Separately
Differential Gear
Vehicle Type Semi Truck
Product Width 7.71654" (196 mm)
Radio Sold Separately
Final Drive Ratio Adjustable
Motor Type Brushed
Speed Control Sold Separately
Battery Sold Separately
Motor Size 540-brushed type
Product Length 26.2598" (667 mm)
Suspension Leaf Spring
Body ABS Plastic
Scale 1/14
Power Type Electric
Servos Sold Separately
