1/10 Wendigo 4WD Brushless Rock Racer, RTR

Item No. RER12890
Brand Logo
4.4 out of 5 Customer Rating

1/10 Wendigo 4WD Brushless Rock Racer, RTR

Item No. RER12890
$399.99
Free financing available through Easy Pay
Earn points on this item

In Stock
Selected Store

Product Details

Key Features
  • Full roll cage, True to scale Rock Racer chassis, Realistic cock pit, Solid front & rear axle, Threaded oil filled aluminum shocks & Ball bearings throughout.
  • 3300KV RC540 Brushless Motor, Waterproof 60A ESC (2s-3s LIPO ready), Waterproof high torque 25KG metal gear steering servo, 2.4GHz radio system.
  • Rear sway bar, Super fast, Great handling, Realistic looking rock racer tires, Unique high performance chassis design.
  • Assembled & Ready to Run
In The Box
  • (1) 1/10 Wendigo Brushless Rock Racer RTR
  • Hobbywing 60A brushless ESC
  • 3300KV 540 size brushless motor
  • 25KG metal gear steering servo
  • 2.4GHz radio system
Needed to Complete
  • 6-cell NiMH battery or recommended 2S or 3S LIPO battery & Charger
  • AA Batteries for Transmitter
1/10 Wendigo 4WD Brushless Rock Racer, RTR

Features

  • Full roll cage, True to scale Rock Racer chassis, Realistic cock pit, Solid front & rear axle, Threaded oil filled aluminum shocks & Ball bearings throughout.
  • Tunable suspension, Adjustable wheelbase, Tunable shocks & Selectable shock positions.
  • Rear sway bar, Super fast, Great handling, Realistic looking rock racer tires,
  • Unique high performance chassis design.
  • 3300KV RC540 Brushless Motor, Waterproof 60A ESC (2s-3s LIPO ready), Waterproof high torque 25KG metal gear steering servo, 2.4GHz radio system.
  • Assembled & Ready to Run - Requires 6-cell NiMH battery or recommended 2S or 3S LIPO battery & Charger - Requires AA Batteries for Transmitter.

Overview

Get ready for high-speed intense action on grueling off-road terrain with the exciting new Redcat Wendigo 1/10 electric Rock Racer! Designed to look and handle like a full-scale rock racer, the Wendigo utilizes solid axles both front and rear, a steel frame chassis and oversized suspension components. Simply put, this is purpose built true-to-scale rig!

Rock racing is similar to rock crawling, but with a wider range of obstacles and the drivers compete for the fastest time. Because rock racing demands so much from a vehicle, these trucks must be both capable and durable. Rock racers are faster than typical rock crawlers, which is why the Wendigo is fitted with a Hobbywing 60A brushless ESC and A 3300KV 540 size brushless motor. The Wendigo is capable of running 2S or 3S LIPO power.

The Wendigo features a front mounted motor, centrally mounted divorced transfer case and strategically placed battery tray. This setup offers excellent weight distribution which causes the Wendigo to behave predictably when climbing over obstacles. Proper balance is also important when putting on your race hat. The Wendigo is able to blast around high speed tracks and obstacles with a finesse not commonly found in solid axle RTR vehicles.

The Wendigo features 1.5mm steel ladder-type frame rails which provide a sturdy backbone for this vehicle. The wheelbase is adjustable from 334.7mm to 358.7mm, with 346.7mm being the stock configuration. The Wendigo’s gear boxes feature Mod1 gears and ball bearings. The heavy duty telescoping driveshafts provide reliable power delivery to the front and rear trussed axle housings. These axle housings feature diamond shaped pumpkins and upper trusses for rigidity. A metal spool ensures equal power transfer to both the left and right heavy duty straight axles, while a one piece pinion gear provides additional strength to the drivetrain.

The Wendigo’s aluminum body oil filled shocks have a threaded collar for quick adjustments to the vehicle's ride height. Each shock tower offers nine upper shock mounting positions for further suspension tuning. Heavy duty 5mm steel suspension links are used in the Wendigo’s front and rear suspension. An adjustable rear sway bar helps to minimize torque twist and adds stability during high speed cornering.

A rock racer wouldn’t be complete without high quality off road tires and wheels. The Wendigo sits on licensed Interco Super Swamper 2.2” tires which are mounted to licensed Raceline Avenger wheels. The Super Swampers scooped tread lugs provide excellent forward grip on dirt, grass, pavement, rocks, mud and snow. The aggressive tread design and lug spacing release dirt and debris, keeping the tire clean for the next obstacle. Side lugs allow the Wendigo to achieve grip while squeezing between two large rocks, through washouts and other canyon-like obstacles.

High performance tires deserve a high performance wheel. The Raceline Avenger wheels are precision made with the right amount of offset and superior durability.

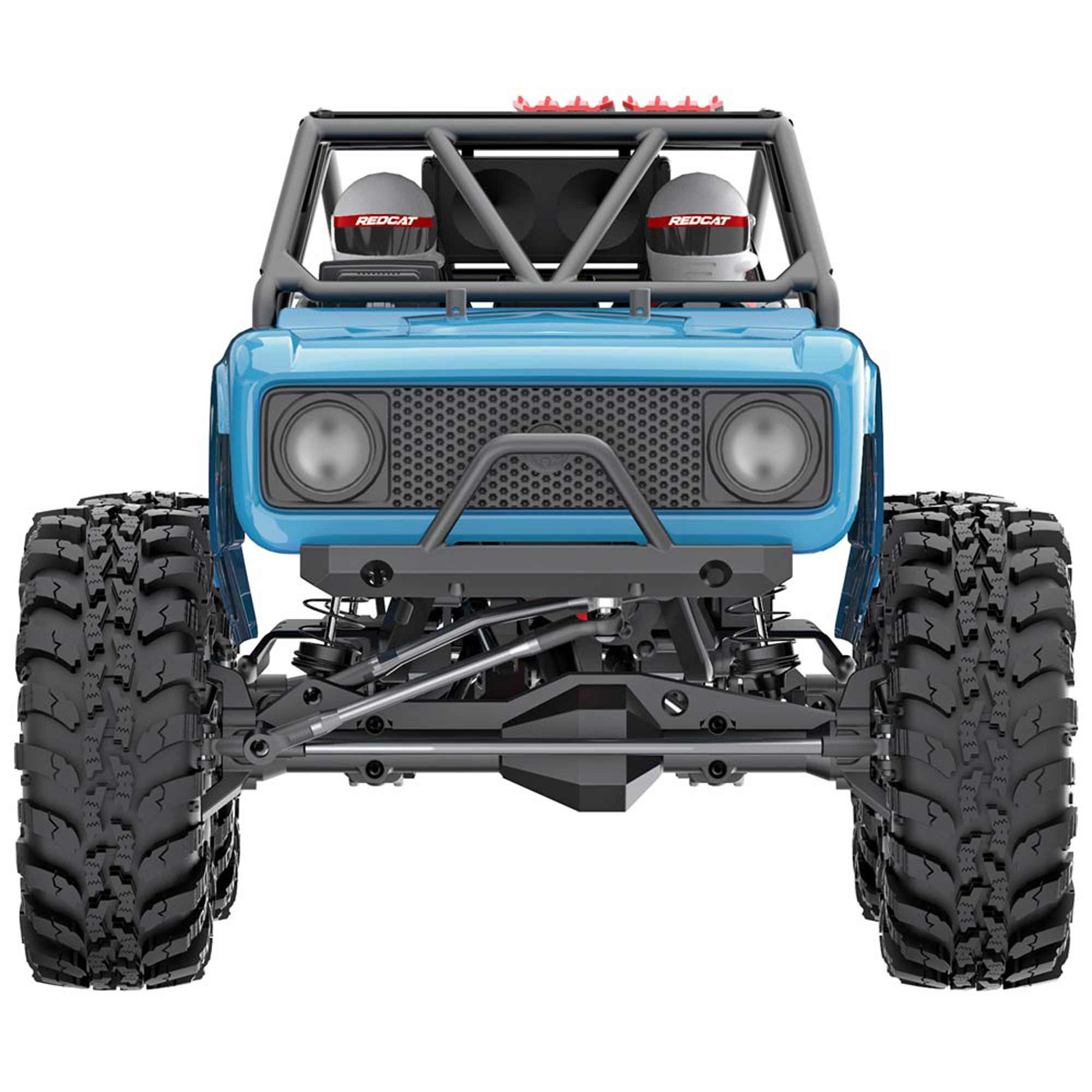

Many scale details and accessories come standard with the Redcat Wendigo to ensure users get the very best visual experience from their vehicle. This Rock Racer features a realistic racing body with narrowed rear quarters and a full roll cage. Additional scale details include a driver and co-pilot with adjustable helmet visors, a realistic navigation screen, rear fuel cell and a radiator with twin cooling fans.

Video Overview

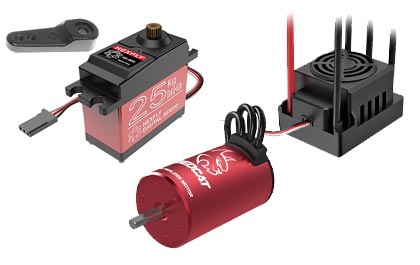

Waterproof Electronics
Waterproof Electronics

Redcat's 1/10 scale rock racer, the Wendigo, features waterproof electronics including a brushless motor and ESC capable of 3S power and a powerful 25KG metal gear servo.

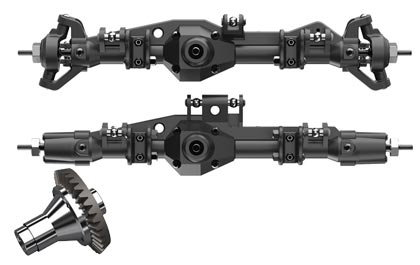

Purpose Built Durable Solid Axles
Purpose Built Durable Solid Axles

Designed in the USA these durable axles are ready to take a beating.

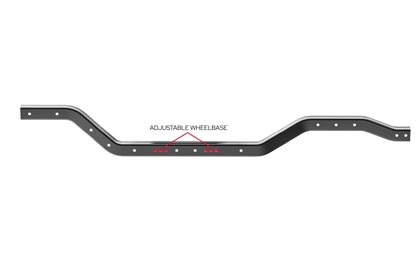

Frame Rails
Frame Rails

The Wendigo features 1.5mm steel ladder-type frame rails which provide a sturdy backbone for this vehicle. The wheelbase is adjustable from 334.7mm to 358.7mm, with 346.7mm being the stock configuration.

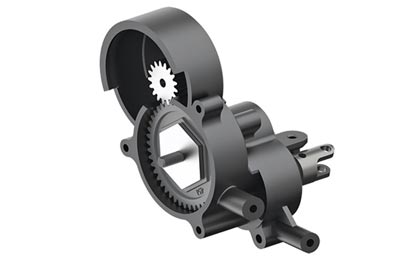

Gear Box
Gear Box

The gear boxes feature Mod 1 gears and sealed ball bearings.

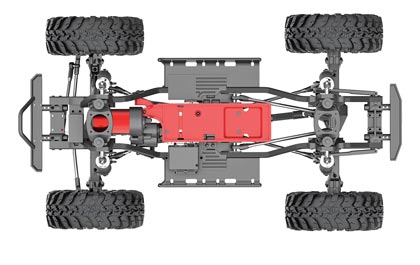

Chassis and Design
Chassis and Design

The Wendigo features a front mounted motor, centrally mounted divorced transfer case and strategically placed battery tray. This setup offers excellent weight distribution which causes the Wendigo to behave predictably when climbing over obstacles.

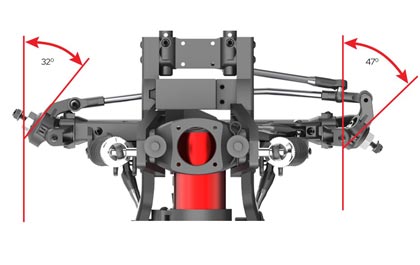

Steering
Steering

Up to 47 degrees of steering

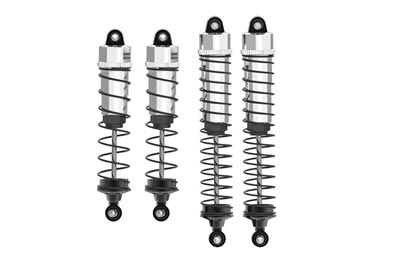

Aluminum Shocks
Aluminum Shocks

The Wendigo’s aluminum body & capped oil filled shocks have a threaded collar for quick adjustments to the vehicle's ride height. Each shock tower offers nine upper shock mounting positions for further suspension tuning.

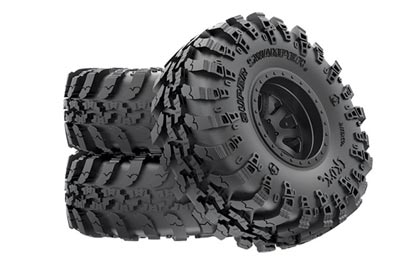

Liscensed Wheels & Tires
Liscensed Wheels & Tires

A rock racer wouldn’t be complete without high quality off road tires and wheels. The Wendigo sits on licensed Interco Super Swamper 2.2” tires which are mounted to licensed Raceline Avenger wheels.



Product Specifications

Wheelbase 13.6 in (346.7mm) stock, adjustable from 13.2" (334.7mm) to 14.1" (358.7mm)
Water-Resistant Yes
Servos Digital, 347.1 oz-in (25kg-cm) torque
Shock Type Oil-filled, aluminum body
Spur Gear 45T
Suspension 5mm steel links front and rear, adjustable rear sway bar
Tire Tread Super Swamper
Vehicle Type Rock Racer
Product Height 10.6 in (270mm)
Product Length 21.5 in (546mm)
Product Width 12.2 in (309mm)
Radio 2.4Ghz pistol grip
Receiver Included
Scale 1/10
Pinion 17T
Ground Clearance At center 4.1 in (105mm), at pumpkin 1.8 in (47mm)
Inner Tire / Outer Wheel Diameter 2.2 in (56mm)
Max Battery Dimensions 5.4 x 1.8 x 1.54" (138 x 46 x 39mm)
Motor Size 540
Motor Type Brushless
Power Type Electric
Differential Front and rear diamond shped axle housings
Drivetrain 4WD
Chassis 1.5mm steel ladder-type frame rails
Completion Level Ready-To-Run
Charger Sold Separately
Body Trimmed and finished with roll cage and cockpit detail
Brakes Integral with ESC
Bushing Material Metal
Approximate Assembly Time No assembly required
Ball Bearings Full set, sealed
Battery Sold Separately
Wheel Type 8 spoke licensed Raceline Avenger
