1/10 VS4-10 Phoenix Rock Crawler RTR, Red

Introduction

The VS4-10 Phoenix RTR Features the VFD Twin transmission and F10 Straight Axles. Included is a full function digital 4 Channel VT-1 Transmitter with multiple model memory and end point adjustment, making the VS4-10 Phoenix RTR ready to be equipped for fully functioning Dig and Selectable OD. Or run it out of the box with 6% OD powered by a 35T VM-1 Motor and VE-1 3S capable ESC. The large diameter Stainless Steel links bring high end Vanquish Products kit quality to the RTR market. The drivetrain is equipped with machined ring and pinion gears, chromoly universal axle shafts, and chromoly 6-bolt spools for the ultimate in durability. Full ball bearings, metal transmission gears and 32P spur / pinion provide smooth and reliable performance when tackling the toughest terrain.

Features

Overview

The VS4-10 Phoenix RTR is equipped with features never before offered in a scale RTR of its kind. The VFD Twin incorporates Selectable Overdrive Shifting and 3-position dig ready (servos not included*) into one compact package. The molded F10 Straight Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes clearance around the C-hub and knuckle. Connecting the VFD Twin to the F10 Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth, quiet and efficient performance. The large 8mm bore S8E shocks included dual X-Ring cartridge and scale threaded caps with a sealed upper bleeder screw. S8E preload adjustment is a breeze with the threaded shock bodies and collars.

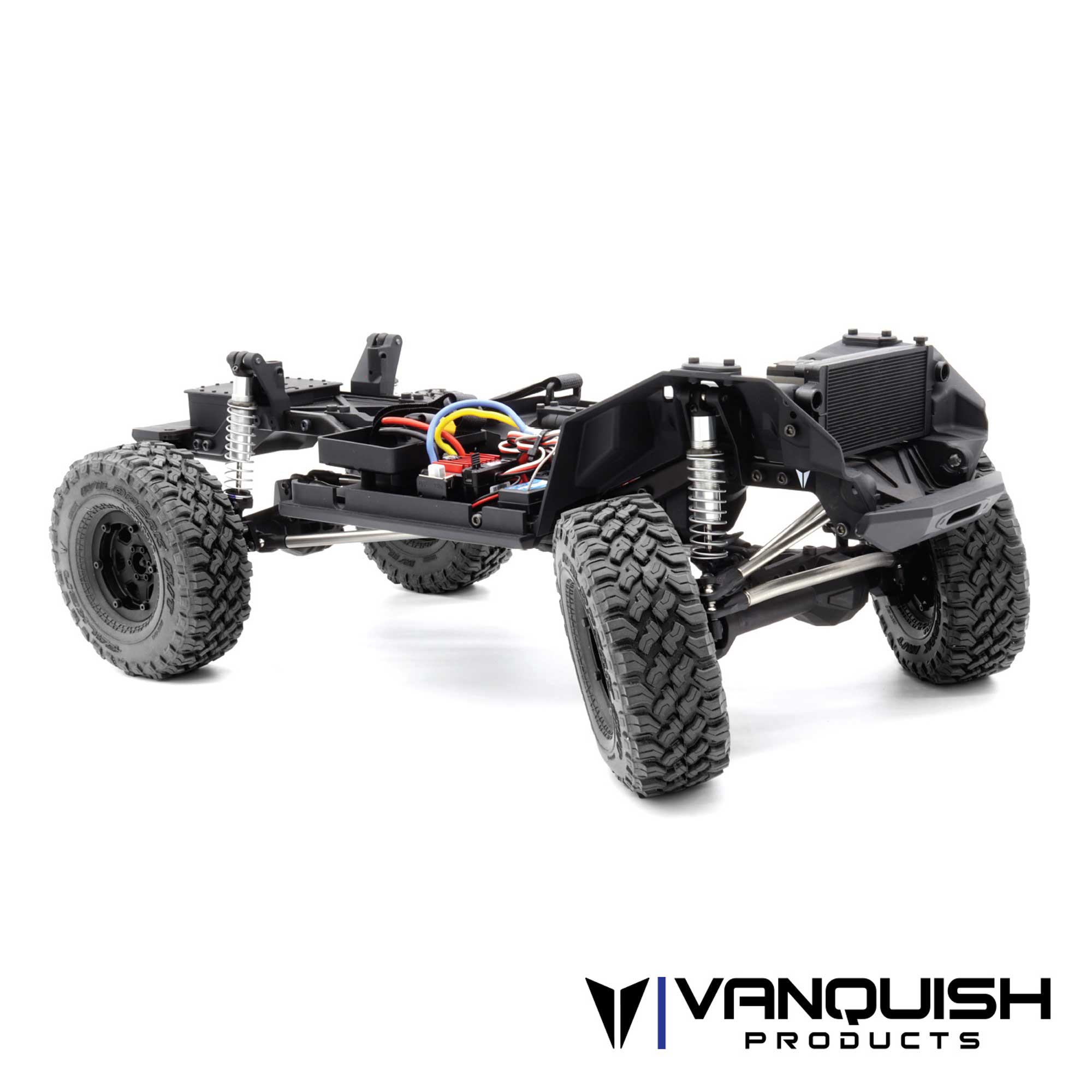

VS4-10 Chassis

The VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders come with a replaceable tapered outer portion that perfectly fits the Phoenix body. The VS4-10 chassis is developed to work with the VFD Twin transmission to keep the overdrive and dig servo low on the platform. The panhard mount on the chassis is made from machined aluminum to withstand the impacts of severe trail conditions. Molded shock towers capture the top of the 90mm Incision S8E Shocks in double shear for maximum support. Narrow molded front and rear bumpers maximize clearances while improving approach and departure angles.

VFD Twin Transmission

The VFD Twin Transmission is an evolution of the original VFD. Taking the same balance of performance, scale appearance, strength, and adding industry first features. The VFD Twin comes equipped with selectable overdrive and rear dig. Twin shifting transfer case utilizes replaceable bearing plates, a brass pivot for the shift arms, and chromoly shift slides. Borrowing from our proven Hurtz dig, the VFD twin shifting is smooth and reliable. On the fly overdrive shifting from 6.5% to 46% makes an immediate change to the driving characteristics and tuning options. The VFD Twin transmission places the motor forward and as low as possible. Compatible with 540 brushed and brushless motors.

F10 Straight Axles

F10 Straight Axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded plastic F10 Straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, and oversized C's with an integrated panhard mount.

Phoenix Body with VRD1 Cage

Wheels and Tires
