1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

Item No.
Vanquish Products - VPS09007
$389.99
Only Available Online, The VS4-10 Phoenix Portal is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles!
  • VFD Twin Transmission - Selectable Overdrive and Dig
  • F10 Portal Axle Housings
  • Brass Inner Reinforcement Tubes
  • Universal-Style Front Axle Shafts
  • Double Shear Shock Mounts

Complete your product

This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.

Transmitters and Receivers

I do not need to purchase this item.

XR4 4-Channel 2.4GHz Transmitter with Receiver
VPS09007
XR4 4-Channel 2.4GHz Transmitter with Receiver
RC4ZR0006
In Stock
$93.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
VPS09007
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
SPM5025
In Stock
$399.99
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
VPS09007
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
SPM5120
In Stock
$199.99
DX5 Rugged 5-Channel DSMR Transmitter with SR515
VPS09007
DX5 Rugged 5-Channel DSMR Transmitter with SR515
SPM5200
Not Available
$279.99
0 of 1 Selected
Motors and ESCs

I do not need to purchase this item.

Mamba X Waterproof ESC/1406-1900Kv Sensored Brushless Motor Combo: 4mm Bullet
VPS09007
Mamba X Waterproof ESC/1406-1900Kv Sensored Brushless Motor Combo: 4mm Bullet
CSE010015508
In Stock
$244.95
Mamba X Waterproof ESC/1406-2280Kv Sensored Brushless Motor Combo: 4mm Bullet
VPS09007
Mamba X Waterproof ESC/1406-2280Kv Sensored Brushless Motor Combo: 4mm Bullet
CSE010015509
In Stock
$244.95
Mamba X Waterproof ESC/1406-2850Kv Sensored Brushless Motor Combo: 4mm Bullet
VPS09007
Mamba X Waterproof ESC/1406-2850Kv Sensored Brushless Motor Combo: 4mm Bullet
CSE010015510
In Stock
$244.95
Mamba X Waterproof ESC/1406-3800Kv Sensored Brushless Motor Combo: 4mm Bullet
VPS09007
Mamba X Waterproof ESC/1406-3800Kv Sensored Brushless Motor Combo: 4mm Bullet
CSE010015511
In Stock
$244.95
Firma 60A Brushless Smart ESC / 2100Kv Sensored Motor Crawler Combo
VPS09007
Firma 60A Brushless Smart ESC / 2100Kv Sensored Motor Crawler Combo
SPMXSEMC08
In Stock
$229.99
0 of 1 Selected
Servos

I do not need to purchase this item.

HS-422 Standard Analog Deluxe Servo
VPS09007
HS-422 Standard Analog Deluxe Servo
HRC31422S
In Stock
$15.99
HS-645MG High Torque Metal Gear Premium Sport Servo
VPS09007
HS-645MG High Torque Metal Gear Premium Sport Servo
HRC32645S
In Stock
$34.99
HS-5585MH Standard Digital HV High Torque Metal Gear Servo
VPS09007
HS-5585MH Standard Digital HV High Torque Metal Gear Servo
HRC35585S
In Stock
$72.99
D645MW Standard Digital High Torque Metal Gear Servo
VPS09007
D645MW Standard Digital High Torque Metal Gear Servo
HRC36645
In Stock
$43.99
D954SW Standard Digital High Torque Steel Gear Servo
VPS09007
D954SW Standard Digital High Torque Steel Gear Servo
HRC36954
In Stock
$99.99
Triple7 14V Servo, Programmable
VPS09007
Triple7 14V Servo, Programmable
SEHREEF777
In Stock
$157.77
Triple5 V2 Standard Digital Metal Gear Waterproof Servo, Black
VPS09007
Triple5 V2 Standard Digital Metal Gear Waterproof Servo, Black
SEHREEFS03
In Stock
$138.99
900 Smart Digital Metal Gear Waterproof Programmable Servo & Winch, Black
VPS09007
900 Smart Digital Metal Gear Waterproof Programmable Servo & Winch, Black
SEHREEFS118
In Stock
$179.00
1100 Smart Digital Metal Gear Waterproof Programmable Servo & Winch, Black
VPS09007
1100 Smart Digital Metal Gear Waterproof Programmable Servo & Winch, Black
SEHREEFS119
In Stock
$189.00
299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Red
VPS09007
299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Red
SEHREEFS130
In Stock
$124.99
299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black
VPS09007
299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Black
SEHREEFS24
Next Shipment April 2024
$120.99
RAW 500HD Standard Digital Metal Gear Waterproof Programmable Servo, Silver
VPS09007
RAW 500HD Standard Digital Metal Gear Waterproof Programmable Servo, Silver
SEHREEFS54
In Stock
$139.99
422HD V2 Digital Metal Gear Waterproof Programmable Servo, Black
VPS09007
422HD V2 Digital Metal Gear Waterproof Programmable Servo, Black
SEHREEFS65
In Stock
$104.99
300 Alacritous Standard Servo, Programmable
VPS09007
300 Alacritous Standard Servo, Programmable
SEHREEFS74
In Stock
$129.99
0 of 3 Selected
Batteries

I do not need to purchase this item.

7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
VPS09007
7.4V 5300mAh 2S 60C Hardcase LiPo Battery: Deans
GEA53002S60D21
In Stock
$45.99
11.1V 5300mAh 3S 60C LiPo Battery: Deans
VPS09007
11.1V 5300mAh 3S 60C LiPo Battery: Deans
GEA53003S60D
Not Available
$69.99
7.4V 5000mAh 2S 30C Smart G2 Hardcase LiPo Battery: IC5
VPS09007
7.4V 5000mAh 2S 30C Smart G2 Hardcase LiPo Battery: IC5
SPMX52S30H5
In Stock
$44.99
7.4V 5000mAh 2S 50C Smart G2 Hardcase LiPo Battery: IC5
VPS09007
7.4V 5000mAh 2S 50C Smart G2 Hardcase LiPo Battery: IC5
SPMX52S50H5
In Stock
$49.99
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC5
VPS09007
11.1V 5000mAh 3S 30C Smart G2 Hardcase LiPo Battery: IC5
SPMX53S30H5
In Stock
$69.99
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC5
VPS09007
11.1V 5000mAh 3S 50C Smart G2 Hardcase LiPo Battery: IC5
SPMX53S50H5
In Stock
$74.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

Reedy 324-S Compact Balance Charger
VPS09007
Reedy 324-S Compact Balance Charger
ASC27201
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
VPS09007
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC27203
In Stock
$187.99
Imars III PRO 10A Smart Balance RC Battery Charger
VPS09007
Imars III PRO 10A Smart Balance RC Battery Charger
GEA100WMPRO
Next Shipment March 2024
$59.99
RDX1 Mini AC Charger
VPS09007
RDX1 Mini AC Charger
HRC44295
In Stock
$46.99
RDX2 Mini AC Balance Charger
VPS09007
RDX2 Mini AC Balance Charger
HRC44299
In Stock
$84.99
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
VPS09007
RDX2 Pro High-Power, 260W, Dual Port AC/DC Charger
HRC44301
In Stock
$149.99
S2200 G2 AC 2x200W Smart Charger
VPS09007
S2200 G2 AC 2x200W Smart Charger
SPMXC2010
In Stock
$279.99
S155 G2 1x55W AC Smart Charger
VPS09007
S155 G2 1x55W AC Smart Charger
SPMXC2050
In Stock
$59.99
0 of 1 Selected
Product $389.99
Add Ons
Estimated Total: $389.99

1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

Item No.
Vanquish Products - VPS09007
4.6 out of 5 Customer Rating
Product $389.99
Add Ons
Estimated Total: $389.99
RC Club points earned on this item shown at checkout.
Selected Store

Product Details

icon-box
In The Box
  • (1) VS4-10 Phoenix Portal Kit
  • (1) Phoenix Polycarbonate Body
  • (4) 1.9 VXT Tires
  • (4) 1.9 Incision KMC KM233 Hex Beadlock Wheels
icon-how-to
Needed to Complete
  • (1) 4-Channel Radio System
  • (1) Standard Steering Servo
  • (2) Standard Servos for DIG and Selectable Outdrive (OPTIONAL)
  • (1) Electronic Speed Control
  • (1) 540 Size Motor
  • (1) 7.4v - 11.1v Battery
  • (1) Charger
1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

VS4-10 Phoenix Portal

The VS4-10 Phoenix Portal is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles. This combination provides performance advantages never before offered in a scale kit of its kind. The VFD Twin incorporates Selectable Overdrive Shifting and a 3-position dig unit into one compact package. The molded F10 Portal Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes clearance around the C-hub and knuckle. Connecting the VFD Twin to the F10 Portal Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth and efficient performance.

Features

  • VFD Twin Transmission - Selectable Overdrive and Dig
  • F10 Portal Axle Housings
  • Offset Pumpkin Front Portal Axle
  • Centered Pumpkin Rear Portal Axle
  • Brass Inner Reinforcement Tubes
  • Machined Portal Gears
  • Universal-style front axle shafts
  • Double Shear Shock Mounts
  • Aluminum 12mm Hexes for 6mm output shafts
  • ISD10 Driveshafts

VS4-10 Phoenix Review

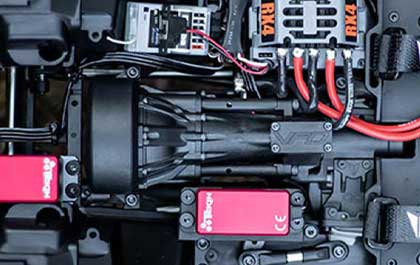

Twin Transmission
VFD Twin Transmission

The VFD Twin Transmission (Patent Pending) kit is an evolution of the original VFD. Taking the same balance of performance, scale appearance and strength.

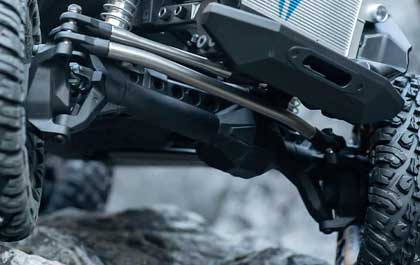

Portal Axles
F10 Portal Axles

The F10 Plastic Molded Portal axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.

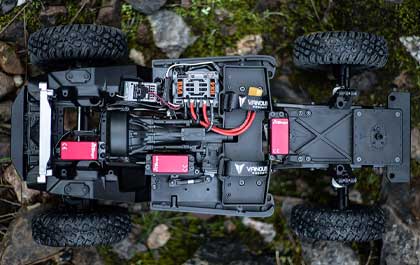

Chassis
Chassis

The VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell.

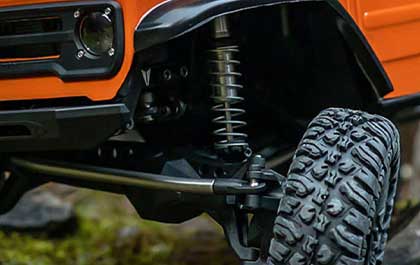

Suspension
Suspension

The VS4-10 features Incision 80mm S8E shocks with larger 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons.

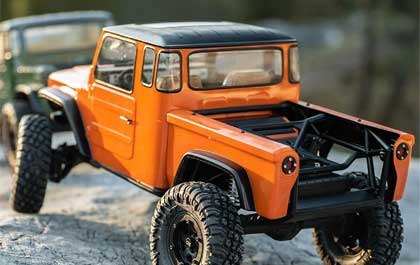

Body
Phoenix Body

Kit includes a clear polycarbonate Phoenix body along with molded plastic detail parts, a full interior headlight and tail-light buckets and hidden body clips.

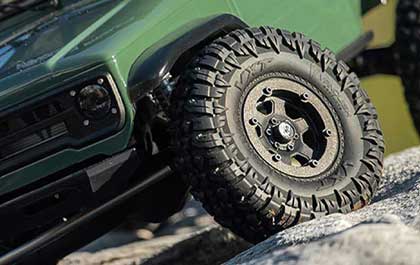

Wheels and Tires
Wheels and Tires

The Vanquish 1.9 VXT Tire offers a mix of scale appearance with high performance off-road capability. Mounted on KMC 1.9 KM233 wheels, these wheels and tires will provide optimal performance on the trails!



Product Specifications

Battery Sold Separately
Gear Ratio 57.2:1
Motor Size 540
Spur Gear 52T
Suspension Solid Axle
Pinion 15T
Scale 1/10
Inner Tire / Outer Wheel Diameter 1.9 in
Product Width 9.84" (250 mm)
Radio Sold Separately
Power Type Electric
Servos Sold Separately
Speed Control Sold Separately
Wheelbase 12.3" (312 mm)
Completion Level Kit
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Product Height 9.84" (250 mm)
Wheel Hex Size 12mm
Body Polycarbonate
Charger Sold Separately
Receiver Sold Separately
Product Weight 6.5lbs (2.9kg)
Tire Tread VXT 4.65” 1.9” Tires
Vehicle Type Rock Crawler
Water-Resistant Yes
