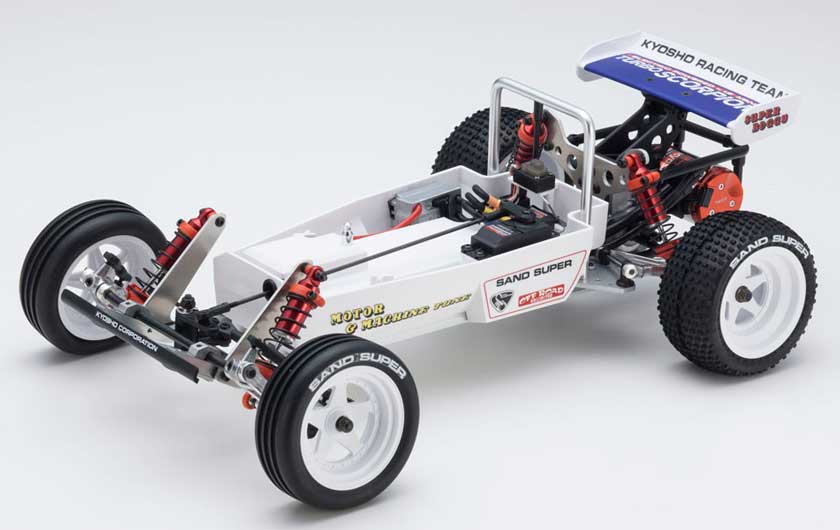

1/10 Turbo Scorpion Kit 2WD Off-Road Racing Electric Buggy Kit

Item No.
Kyosho - KYO30616C
$269.99
RC Club points earned on this item shown at checkout.
Product $269.99
Add Ons
Estimated Total: $269.99
Estimated Total: $269.99
Selected Store

Overview

As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was relaunched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.

  • Kit Includes Pre-Assembled Gearbox
  • Optional LED Lights Can Be Simply Bolted On
  • Screwed Surfaces Are Countersunk For Flat Finish
  • Decals Included In Kit Are Diecut
  • Recreation Of The Original Body Design

Features

  • Turbo Scorpion updated to meet the demands of the modern off-road racing scene.
  • Kit includes pre-assembled gearbox.
  • Features same racy-style mini bumper as the original.
  • Rear section reinforced with Rear Sus Post L, strengthened by added flange.
  • Features accurate recreation of the original loop-mount light buckets.
  • Optional LED lights can be simply bolted on.
  • Screwed surfaces are countersunk for flat finish.
  • Decals included in kit are diecut. Stretch for easy application and beautiful body finish.
Body Recreation
Body Recreation

Recreation of the original body design. Roll bar position moved back 6mm and compatible with the original light buckets from the first Scorpion.

Stylish Wheels
Stylish Design

Stylish design features modern standard 2.2 inch wheels with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion.

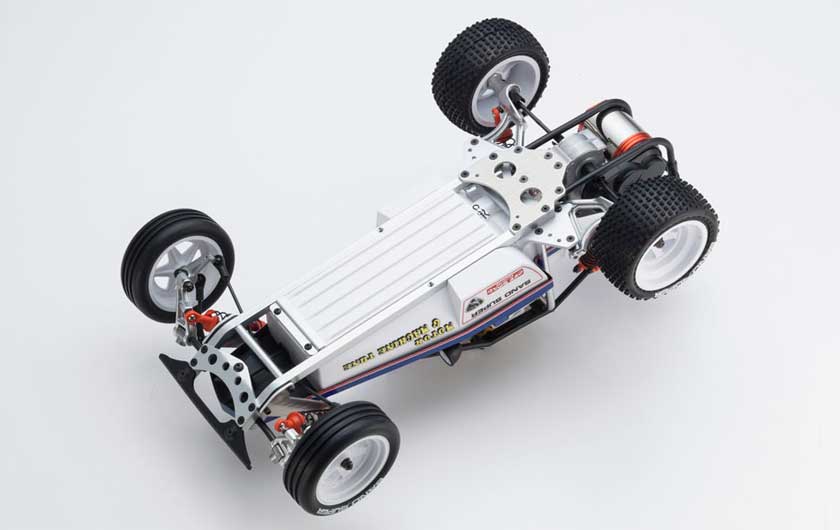

Ladder Frame
Ladder Frame

Ladder frame is made from strong and lightweight A6061T6. The radio box is compatible with various battery types and with the same white color as the original recreates that racy style.

Suspension
Suspension

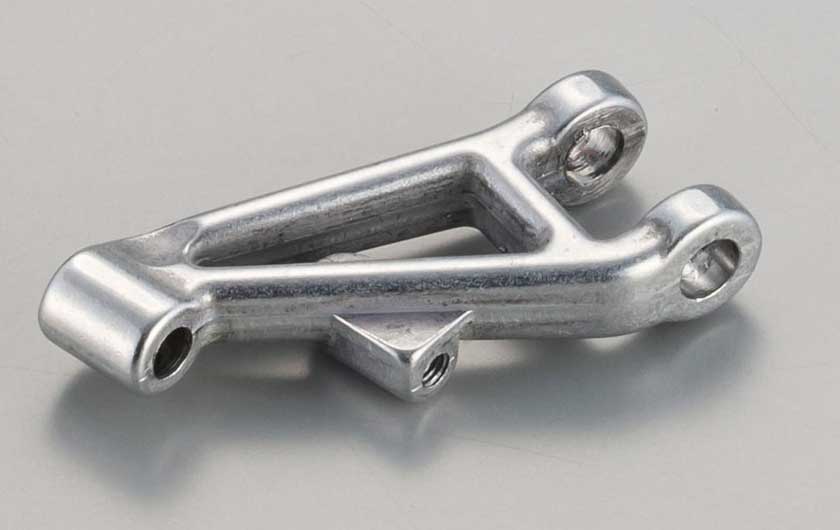

Forged A6061T6 suspension arms deliver superior strength, rigidity and durability and combine with 12mm oil shocks based on the Optima to realize high-level performance.

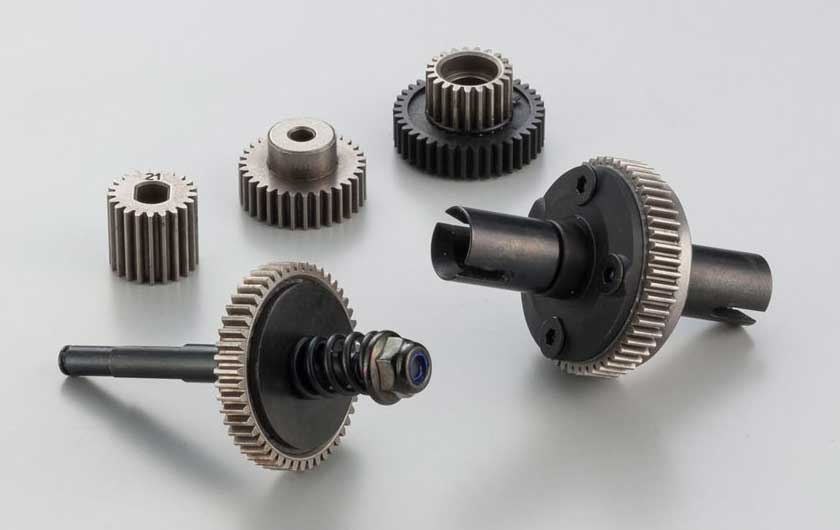

Gearing
Gearing

Optimal use of nylon and sintered alloy in the 48 pitch gears realizes low noise and high efficiency. Optional ball diff for the Ultima RB can be installed.

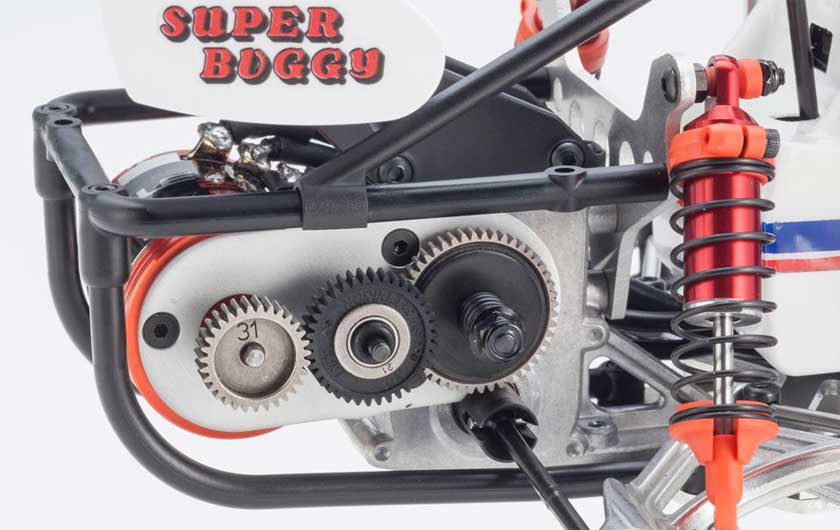

Gear Box
Gear Box

Gear cover enclosing two-piece aluminum diecast gearbox with built-in gear diff features a slipper clutch to protect gears from damage.

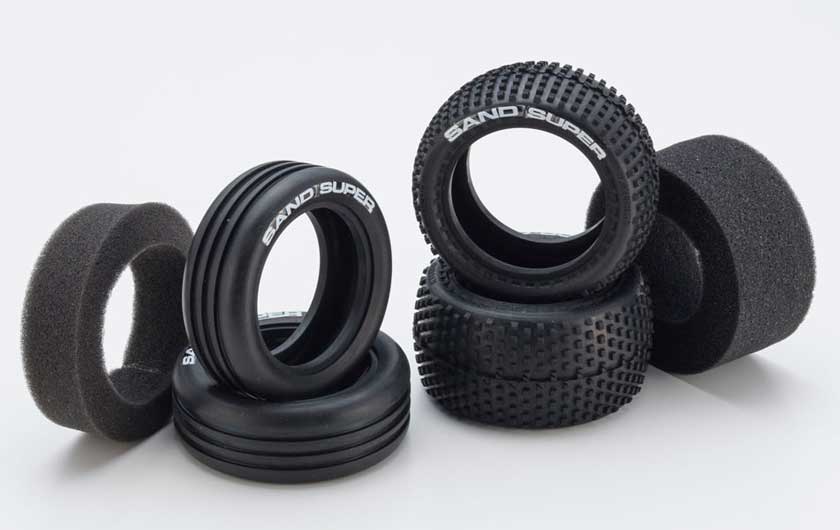

High-Traction Tires
High-Traction Tires

Soft compound removes understeer from ribbed front tires. Block-pattern rear tires maintain sure-footed grip and traction.

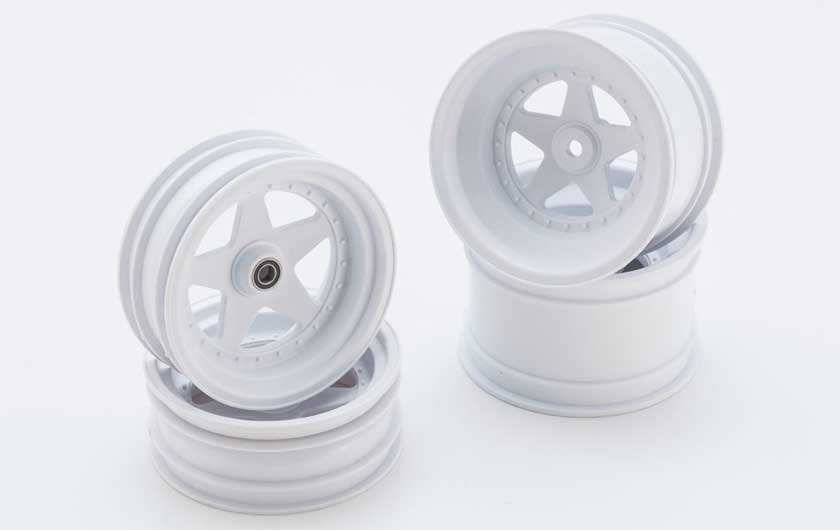

Modern Wheels
Modern Wheels

Equipped with modern standard 2.2 inch wheels in the 5-spoke style of the original Scorpion era that are normally sold as an optional upgrade for the vintage series.

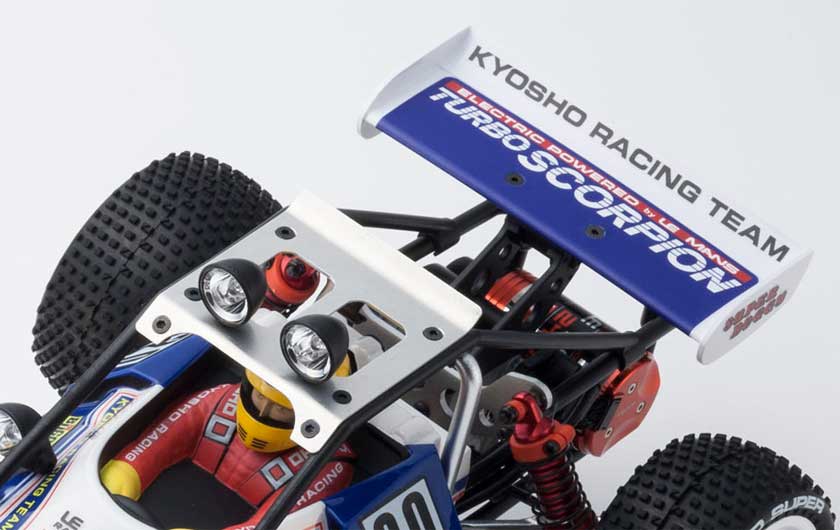

Rear Wing
Rear Wing

White rear wing included matches vintage color scheme with reinforced nylon resin wing stay. Kit also includes resin parts that allow the wing angle to be adjusted.

Product Specs

Battery
Sold Separately
Body
Included
Charger
Sold Separately
Chassis
Ladder Chassis
Completion Level
Kit
Differential
Gear Diffs
Drivetrain
2WD
Front Track
8.58" (218mm)
Gear Ratio
Adjustable
Manufacturer #
30616C
Motor Size
540
Power Type
Electric
Product Height
5.7" (145 mm)
Product Length
16.06" (408 mm)
Product Weight
52.91 oz (1500g)
Product Width
10.07" (256 mm)
Radio
Sold Separately
Rear Track
8.58" (218mm)
Receiver
Sold Separately
Scale
1/10
Servos
Sold Separately
Shock Type
Oil-Shocks
Speed Control
Sold Separately
Suspension
Independent Suspension
Vehicle Size
Standard
Vehicle Type
Buggy
Wheelbase
10.74" (273 mm)
More performance and style with improvements to each key component, this machine is more than just a reproduction!

Product Details

icon-box
In The Box
  • (1) 1/10 Turbo Scorpion Kit 2WD Racing Buggy
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
