Introduction
The TT-02BR chassis is an upgraded version of the TT-02B chassis kit with a wealth of upgraded parts, plus new aluminum propeller joints and carbon fiber damper stays to ensure a wide range of setup adjustments.
Included Hop-up Option Parts
- NEW-Aluminum propeller joints
- NEW-Carbon fiber damper stays
- Item 22049: XV-02/TT-02 Oil Gear Differential Unit
- Item 54501: TT-02 Aluminum Propeller Shaft
- Item 54768: 06 Module Hard Coated Aluminum Pinion Gear (17T)
- Item 54993: TT-02B/DF-03 Aluminum Damper Set
- Item 53793: DF-02 Two-Way Aluminum Rear Uprights
- Item 54539: TT-02B Full Turnbuckle Set
- Item 53791: DF-02 Assembly Universal Shaft
- Item 53880: Large Dish Wheels (4WD/Front, 62/25)
- Item 53881: Large Dish Wheels (Rear, 62/35)
- Item 54211: TRF201 Rear Wing Set
- Item 54815: TT-02B Reinforced Gear Covers and Lower Suspension Arms (2pcs.)
- Item 54926: TT-02 Lower Deck (Hard/Black)
![Differential](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/TAM58717_PP_03.jpg)

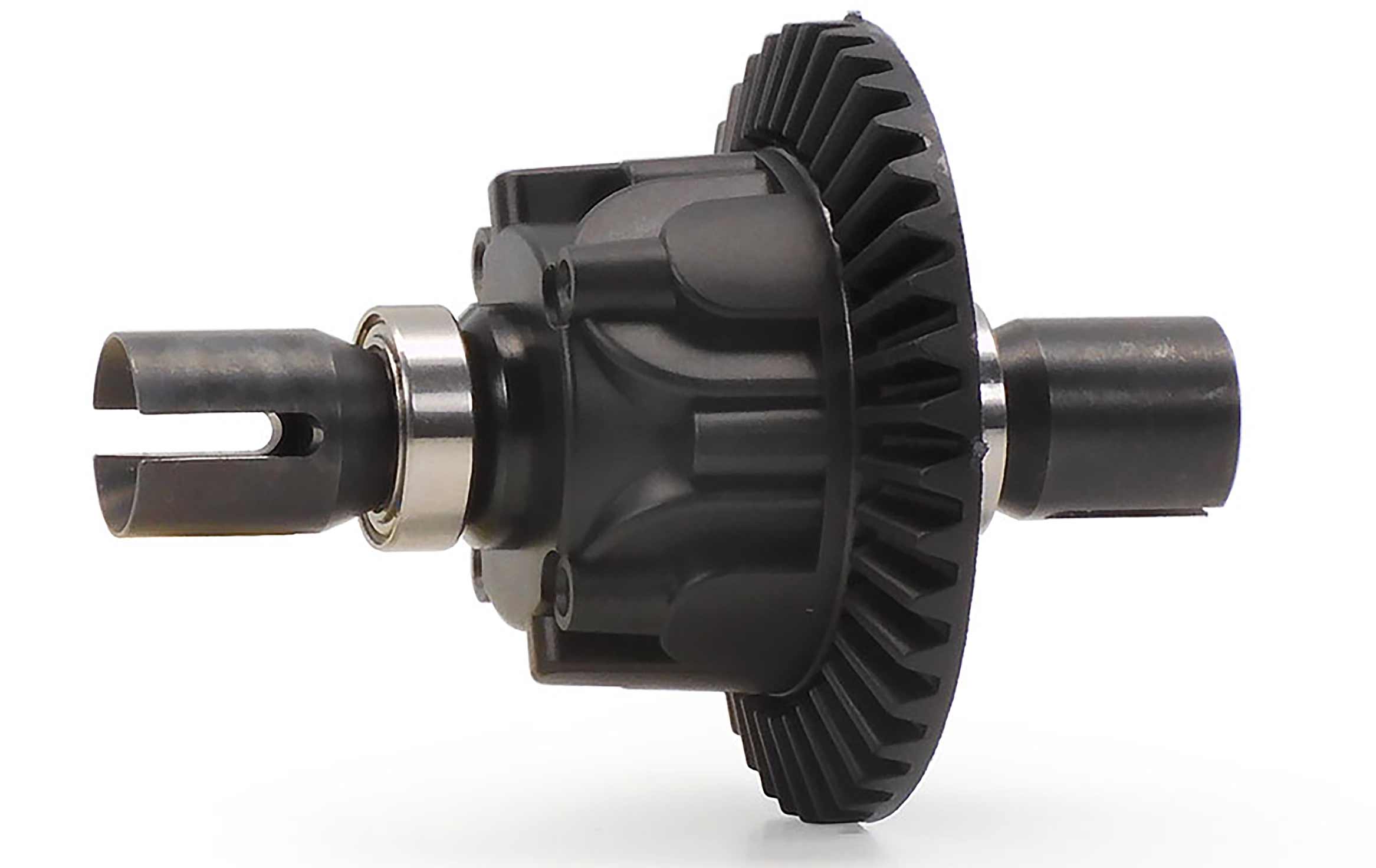

Differential
Drivetrain uses Item 22049-oil filled gear to adjust the effectiveness of gear differential by using different oil viscosities.
![Rear Wings](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/TAM58717_PP_02.jpg)

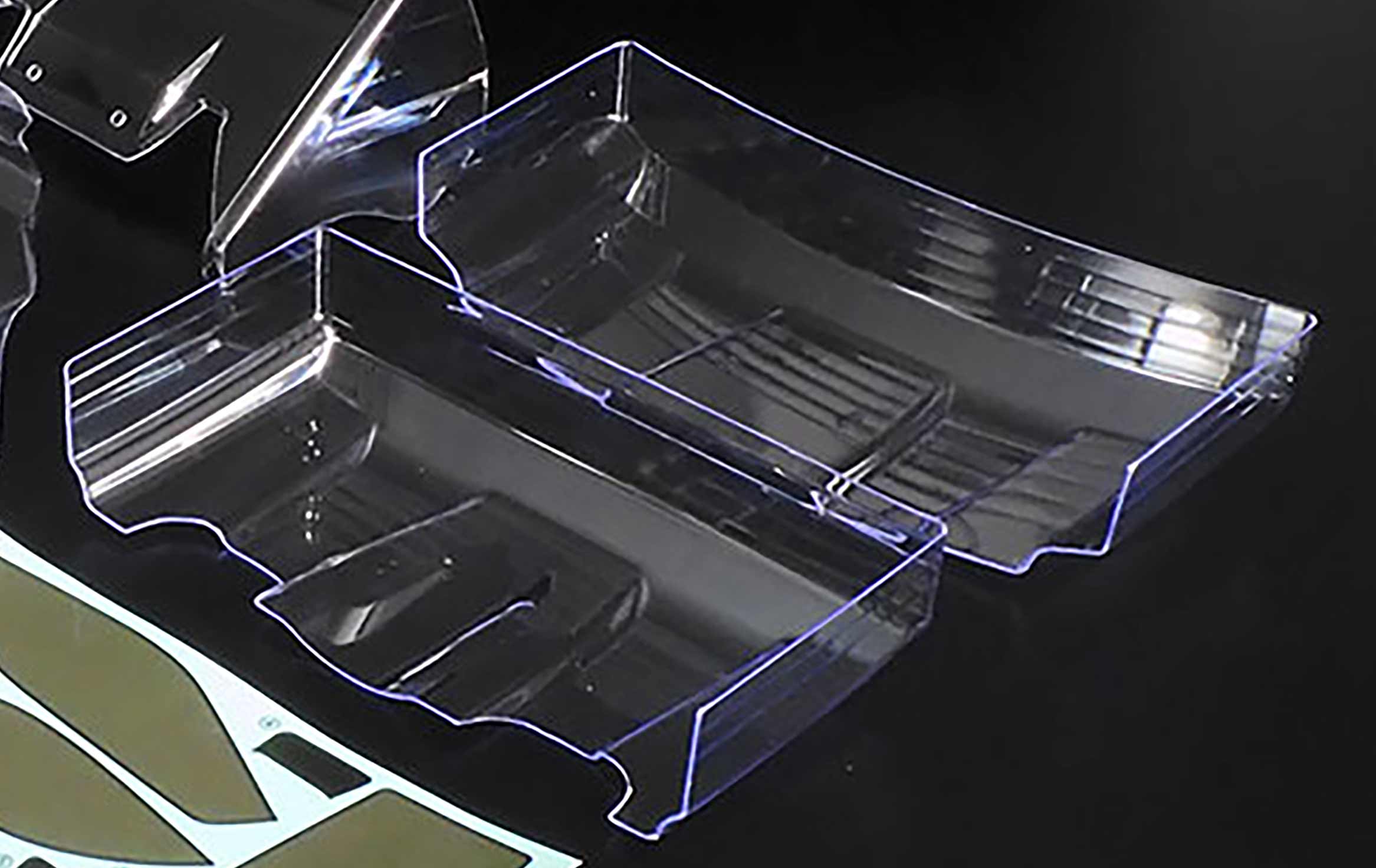

Rear Wings
Includes two rear wings - Neo Scorcher kit-standard one (transparent) and Item 54211 (TRF201 Rear Wing Set). Change wing stay when using Item 54211 TRF201 Rear Wing Set.
![Turnbuckles](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/TAM58717_PP_04.jpg)

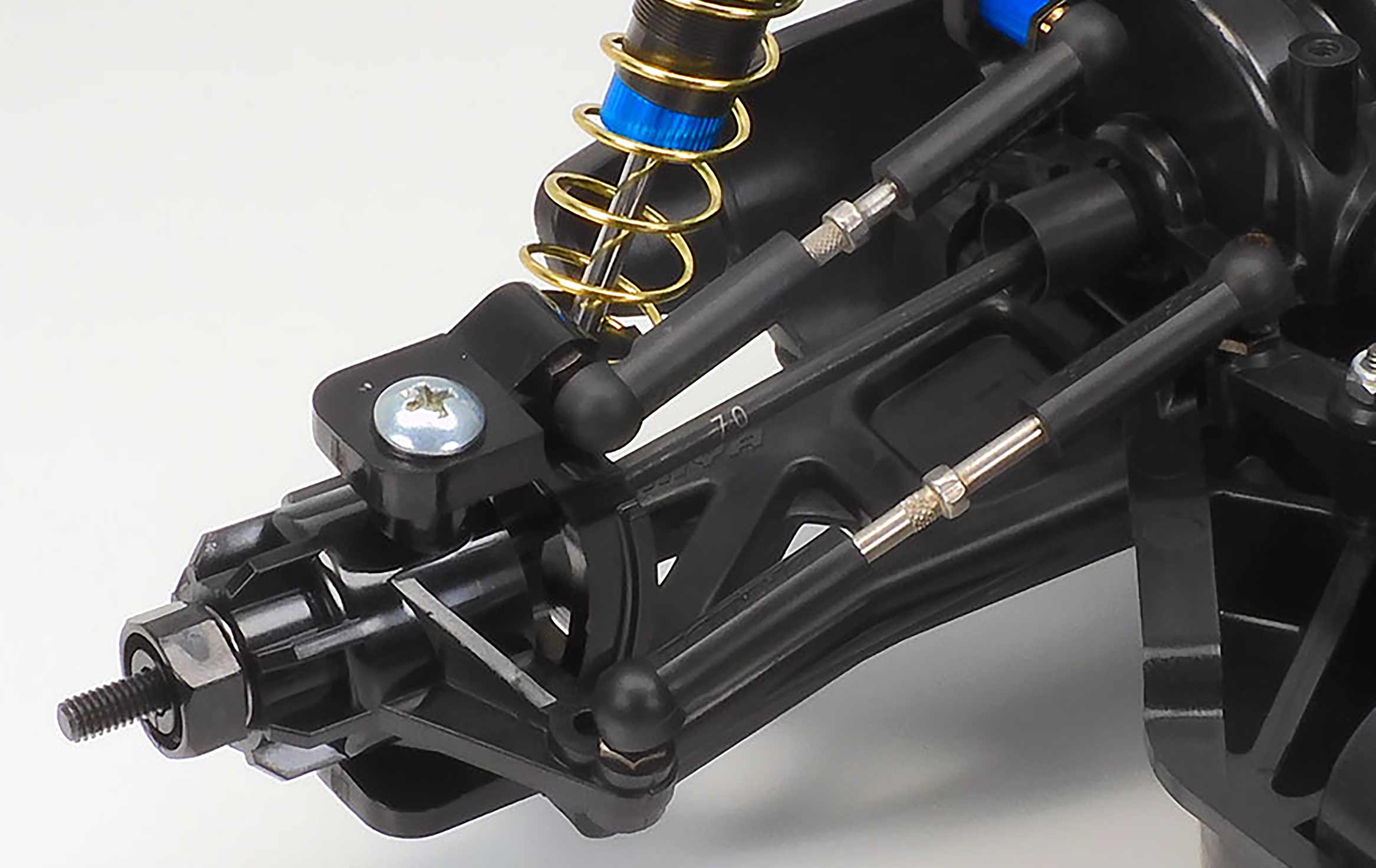

Turnbuckles
4~6mm longer turnbuckle shafts help prevent plastic adjuster sections from deforming to ensure improved suspension movement.
![Oil Shocks](/on/demandware.static/-/Sites-horizon-master/default/PDPImages/TAM58717_PP_01.jpg)

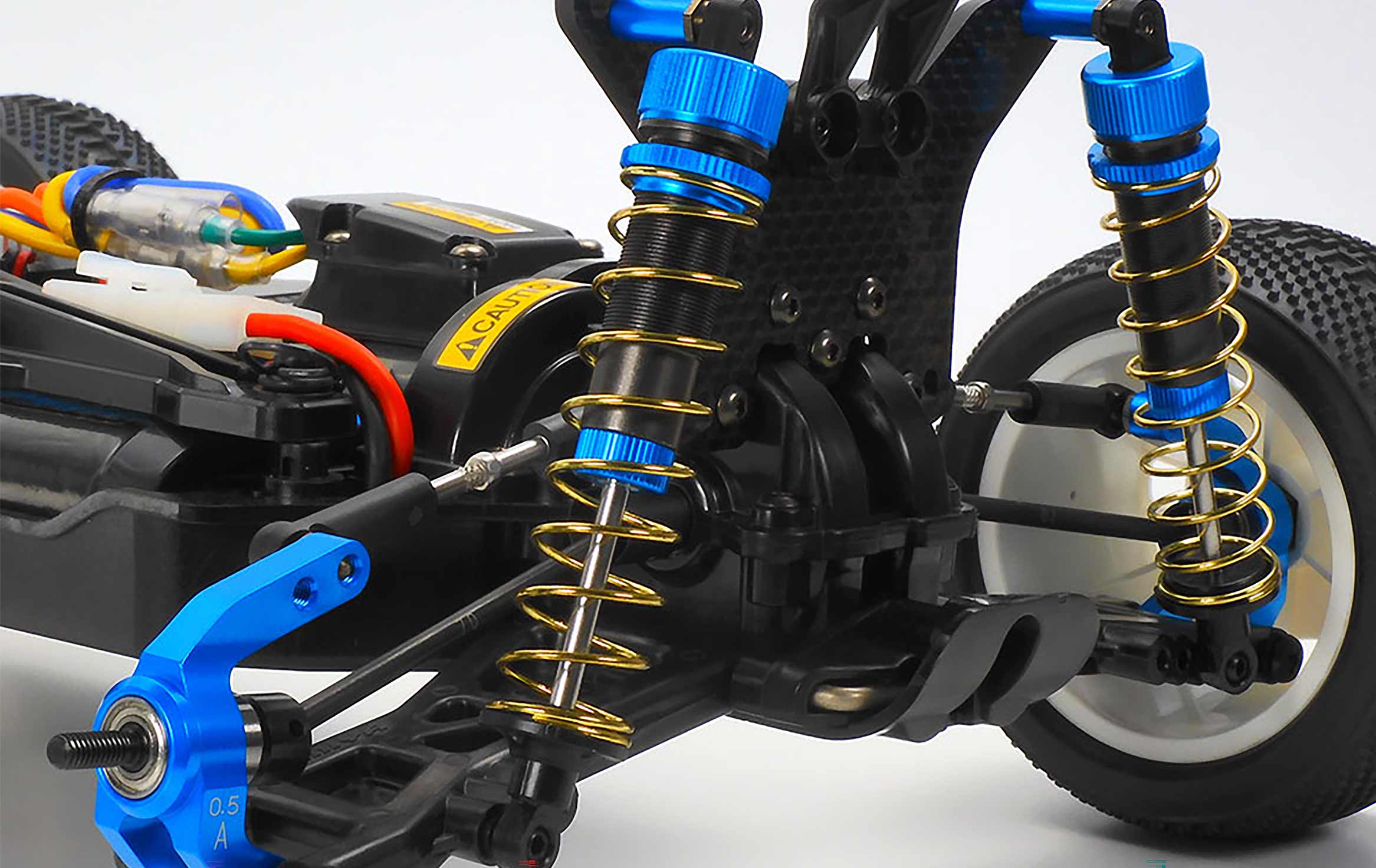

Oil Shocks
New front and rear damper stays give more set up options of oil dampers and upper arms.
- New Front And Rear Damper Stays
- Front And Rear Universal Drive Shafts Ensures Stable Drivetrain
- Includes Two Rear Wings
- 4~6mm Longer Turnbuckle Shafts
- Steering Linkage With Flange Pipes Features Improved Durability
Features
- Drivetrain uses Item 22049-oil filled gear to adjust the effectiveness of gear differential by using different oil viscosities.
- Diff joint cups designed for this chassis kit for improved durability.
- New front and rear damper stays give more set up options of oil dampers and upper arms.
- Using front and rear universal drive shafts ensures stable drivetrain regardless of suspension stroke.
- Propeller shafts have plastic parts at joint sections of aluminum joint cups and shafts to limit wear of joint cups.
- Includes two rear wings - Neo Scorcher kit-standard one (transparent) and Item 54211 (TRF201 Rear Wing Set). Change wing stay when using Item 54211 TRF201 Rear Wing Set.
- Item 54211 includes two wide design wings to adjust downforce depending on running surface condition, and wing stay spacers also included to adjust rear wing angle.
- 4~6mm longer turnbuckle shafts help prevent plastic adjuster sections from deforming to ensure improved suspension movement.
- Steering linkage with flange pipes features improved durability by attachment using hex head screws and lock nuts compared to attachment using 3x18 step screws.
- Features full ball bearings.
- Comes with a carrying case dedicated for the TT-02BR chassis.
- Includes Neo Scorcher body (transparent). Original Neo Scorcher body stickers not included.
Product Specs
Product Details
In The Box
- (1) RC TT-02BR Chassis Kit
- (1) Instruction Manual
Needed to Complete
- (1) 2+ Channel Radio System
- (1) Standard-Size Steering Servo
- (1) 540-Size Motor
- (1) Electronic Speed Control
- (4) Off-Road Tires
- (1) 7.2V - 7.4V Battery
- (1) Compatible Battery Charger
- Polycarbonate Body Paint
