In Stock

1/10 Saint Dragon 4x4 Off-Road Buggy Kit(2021)

Item No.
Tamiya - TAM47459A
$175.00
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Radio Systems

I do not need to purchase this item.

DX3 Smart 3-Channel Transmitter with SR315 Receiver
TAM47459A
DX3 Smart 3-Channel Transmitter with SR315 Receiver
SPM2340
In Stock
$99.99
SLT3 3-Channel Transmitter with SR315 Receiver
TAM47459A
SLT3 3-Channel Transmitter with SR315 Receiver
SPMSLT300
In Stock
$49.99
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
TAM47459A
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
TACJ0300
Not Available
$39.99
0 of 1 Selected
Batteries

I do not need to purchase this item.

Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
TAM47459A
Speedpack2 7.2V 2400mAh 6C NiMH, Flat Tamiya
DYNB2060
In Stock
$20.99
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
TAM47459A
Speedpack2 7.2V 3300mAh 6C NiMH, Flat Tamiya
DYNB2070
In Stock
$28.99
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
TAM47459A
7.2V 3000mAh 6-Cell Sub-C Stick NiMH Battery: Tamiya Connector
ONXP5311
In Stock
$22.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

Charge Adapter: Banana / Tamiya Male
TAM47459A
Charge Adapter: Banana / Tamiya Male
DYNC0071
Back Order
$5.99
Prophet Sport Mini 50W Multichemistry Charger
TAM47459A
Prophet Sport Mini 50W Multichemistry Charger
DYNC2030
In Stock
$34.99
Adapter: Tamiya Male / EC3 Female
TAM47459A
Adapter: Tamiya Male / EC3 Female
INTC24402
In Stock
$3.99
0 of 1 Selected
Steering Servos

I do not need to purchase this item.

HS-646WP Standard Digital Waterproof Metal Gear Servo
TAM47459A
HS-646WP Standard Digital Waterproof Metal Gear Servo
HRC32646W
In Stock
$49.99
HS-5496MH Standard Digital HV Metal Gear Servo
TAM47459A
HS-5496MH Standard Digital HV Metal Gear Servo
HRC35496S
In Stock
$39.99
D954SW Standard Digital High Torque Steel Gear Servo
TAM47459A
D954SW Standard Digital High Torque Steel Gear Servo
HRC36954
In Stock
$99.99
S6020 Standard Digital High Torque Metal Gear Surface Servo
TAM47459A
S6020 Standard Digital High Torque Metal Gear Surface Servo
SPMSS6020
In Stock
$37.99
0 of 1 Selected
Product $175.00
Add Ons
Estimated Total: $175.00
Estimated Total: $175.00
Selected Store

Overview

This R/C kit recreates a Tamiya popular 1980’s R/C comic car famously known as the Saint Dragon. The limited-edition recreation is mounted on the same chassis as the Fire Dragon, which is a capable 4WD off-road machine!

Efficient Shaft-Driven 4WD! The Saint Dragon (2021) chassis features a shaft-driven 4WD drivetrain married to a lightweight and tough bathtub frame that employs front and rear gearboxes with the suspension attached to them; that suspension utilizes upper "I" and lower "H" arms, and offers a ground-hugging fun drive experience. Both gearboxes house a gear differential, and are compact to ensure plentiful ground clearance. The kit also features an aluminum motor mount for superior heat dissipation.

  • Saint Dragon body is pre-assembled and pre-painted in white, all that is required to finish the body is the application of stickers.
  • Features an aluminum motor mount.
  • Includes 540-type brushed motor.

Features

  • Saint Dragon body is pre-assembled and pre-painted in white, all that is required to finish the body is the application of stickers.
  • Based on the same 4WD buggy chassis as Item 47457, which uses a tough bathtub frame plus front/rear gearboxes with suspension attached.
  • 4-wheel double wishbone suspension uses CVA oil shock/dampers, and a front stabilizer for a firm setup.
  • Front and rear sealed differentials use die-cast, 3-bevel type gears for superior handling feel.
  • Features an aluminum motor mount.
  • Includes 540-type brushed motor.

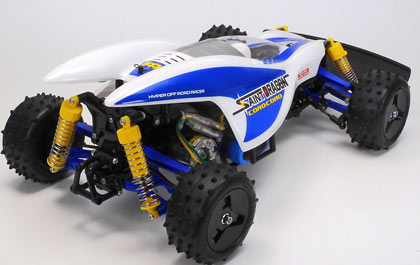

Pre-cut Body
Pre-cut Body

The flowing, dynamic body lines are a real treat; it is pre-painted in white, and pre-cut, just requiring application of stickers.

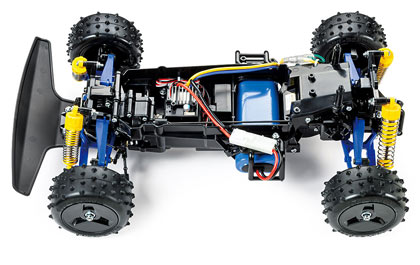

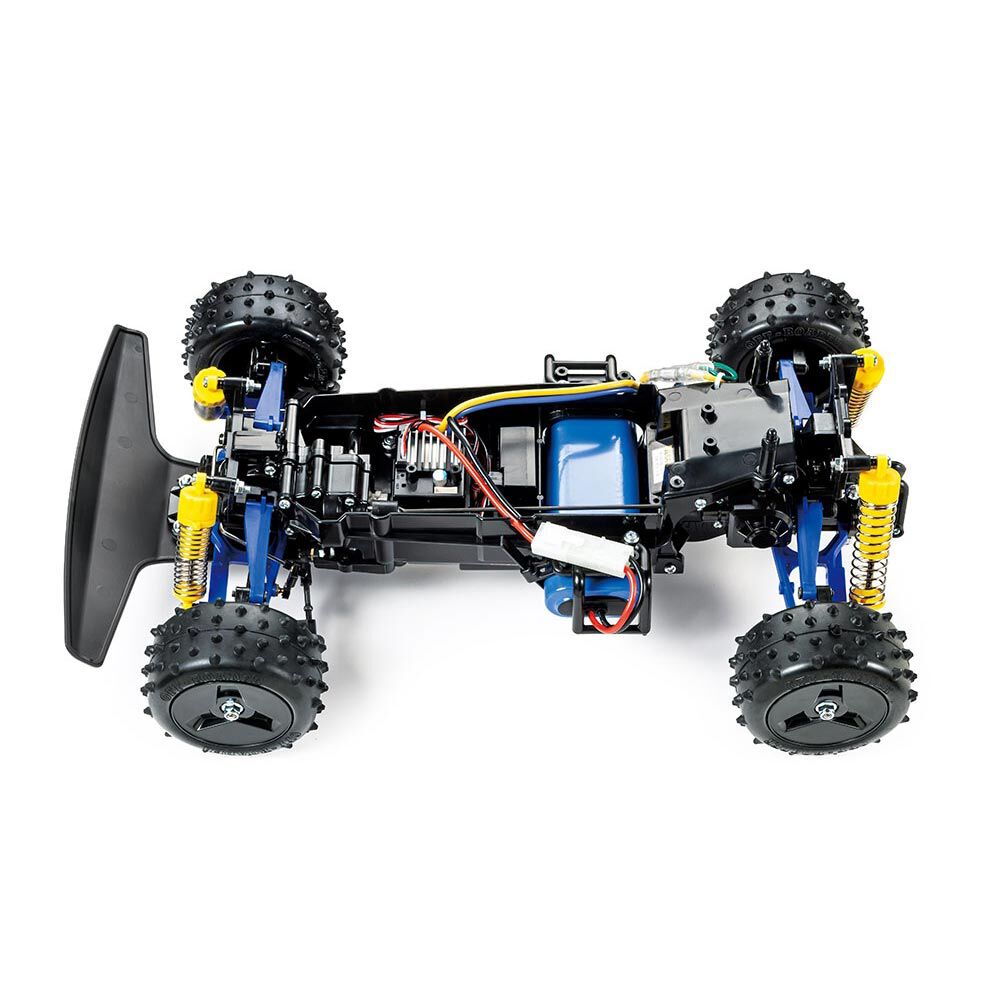

Bathtub Frame
Bathtub Frame

A durable, easy-maintenance layout employs a bathtub frame with front and rear gearboxes screw-attached to it.

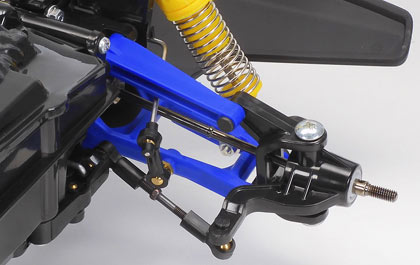

Front Suspension
Front Suspension

Double-wishbone suspension features upper "I" and lower "H" arms, and employs a front stabilizer to minimize roll when cornering.

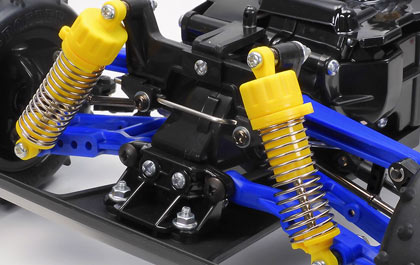

CVA Oil Shocks
CVA Oil Shocks

CVA oil dampers give exemplary shock absorption that translates into a highly controllable drive.

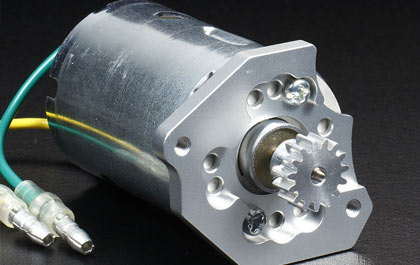

Motor Mount
Motor Mount

An aluminum motor mount not only boosts the model's rigidity, it also helps with motor heat dissipation.

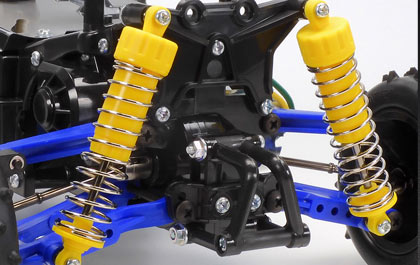

Rear Suspension
Rear Suspension

CVA oil damper-fitted rear double wishbone suspension.

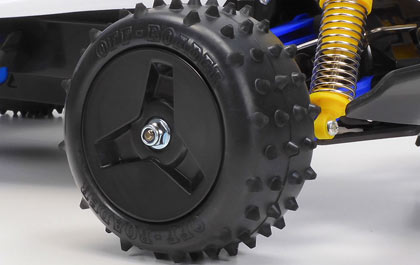

Tires & Wheels
Tires & Wheels

Dish wheels attract less mud when driving; they are paired with grippy spike tires.

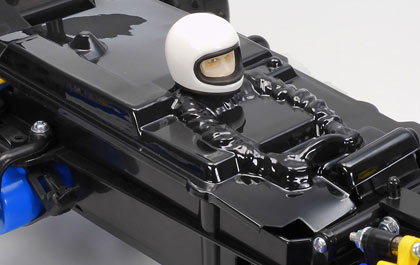

Driver Figure
Driver Figure

The polycarbonate chassis cover includes a depiction of driver arms. The helmet is a separate part.



Product Specs

Ball Bearings
Plastic bushing
Chassis
ABS Plastic
Completion Level
Kit
Drivetrain
4WD
Product Height
5.31" (135 mm)
Bushing Material
Plastic
Charger
Sold Separately
Receiver
Sold Separately
Shock Type
CVA Oil Filled
Body
Polycarbonate
Scale
1/10
Power Type
Electric
Motor Type
Brushed
Vehicle Type
Buggy
Product Width
9.44" (240 mm)
Radio
Sold Separately
Battery
Sold Separately
Motor Size
540
Product Length
15.35" (390 mm)
Suspension
Fully Independent Double Wishbone

Product Details

icon-box
In The Box
  • (1) 1/10 Saint Dragon 4WD (2021) Kit
  • (1) HobbyWing THW 1060 Brushed ESC (2-3S)
  • (1) 540-brushed type motor
  • (1) Body stickers
  • (1) Product manual
icon-how-to
Needed to Complete
  • 2-channel radio
  • Steering servo
  • 7.2volt battery & battery charger
