- Realistic Rock Racer chassis design
- 3.5mm hard-anodized aluminum chassis plate
- Integrated chassis roll cage
- Dynamite 2800Kv brushless power system
- Spektrum™ AVC® technology
- Long-travel suspension
- 4-link live rear axle
- Waterproof electronics
- Sealed, metal-gear transmission and diffs
- Coil-over, oil-filled shocks
- Easy-access battery compartment
- DSMR compatible, 2+ channel, surface transmitter
- One 2 or 3 cell, 5000+ mAh 30C LiPo battery with EC3 connector
- Appropriate LiPo charger
- (1) Losi® Rock Rey® BND 1/10 4WD Rock Racer
- (1) Spektrum™ 4-Channel DSMR® AVC Surface Receiver
- (1) Spektrum™ 9KG 23T Waterproof Servo
- (1) Dynamite® Fuze™ 130A Sensorless Brushless Waterproof ESC
- (1) Dynamite® Fuze™ 550 Brushless Motor 3800Kv
- (1) Product Manual
Based on the Losi® Baja Rey™ platform, the 1/10th 2.2 Rock Rey™ rock racer takes no prisoners. It embodies everything drivers love about desert and rock racing culture and features a new cage and bodywork that looks just like the full-scale vehicles. This rock racer’s new front-end geometry adds the needed handling for racing while taking advantage of the Baja Rey rear-loading battery, bottom-loading motor, brushless power and AVC® system. From rocks to water to mud, you’ll experience next-level awesomeness, drive after drive.

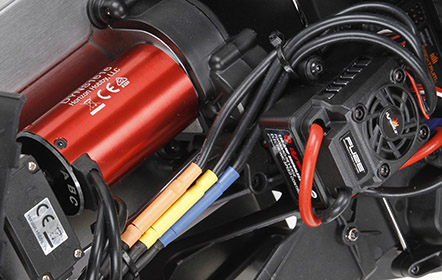

Dynamite® 2800Kv Brushless Power System
The vehicle comes equipped with a Dynamite Fuze™ 2800Kv brushless motor and a waterproof 130A ESC. This potent combination can handle 2S or 3S LiPo batteries (sold separately) and will allow you to hurtle across the landscape at speeds of up to 40+ mph.
Realistic 4WD Chassis with Long-Travel Suspension

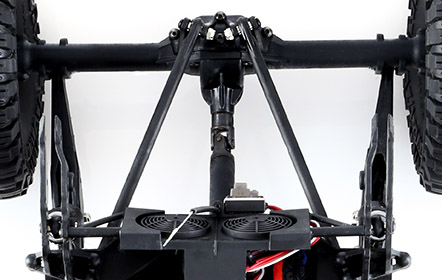

The Rock Rey chassis is a brilliant blend of scale realism with functional 4WD capabilities. The foundation consists of a 3.5mm, hard-anodized aluminum chassis plate that is integrated with a realistic roll cage made of super-tough composite material. To this it adds a long-travel, independent front suspension and 4-link live rear axle that look and function exactly like their full-scale counterparts.
Bind-N-Drive™ (BND) is a transmitter-less option for RC enthusiasts who already own a surface transmitter featuring Spektrum 2.4GHz DSM Technology. This money-saving innovation allows you to add a Bind-N-Drive vehicle to your collection without the extra cost or clutter of an extra transmitter.

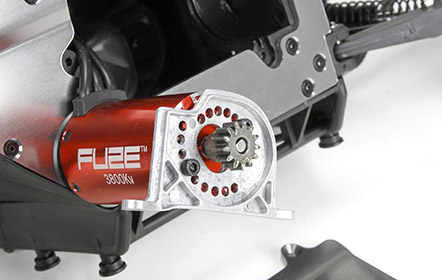

The unique design of the chassis allows the Dynamite Fuze™3800Kv brushless motor to be accessed without difficulty. Drivers simply remove three screws in the bottom of the chassis and they can then effortlessly make gear changes and service the motor.

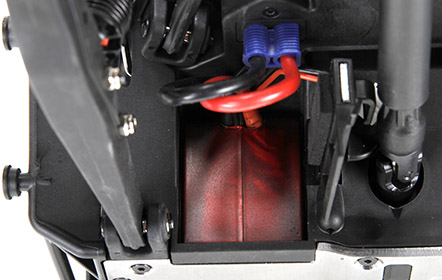

Easy-Access Battery Compartment
To help withstand the trials and tribulations of off-road driving, the Baja Rey™ desert truck was built on a durable reinforced composite chassis with a bottom load battery compartment. Quickly and easily make battery changes without removing the body or wrestling with battery straps.

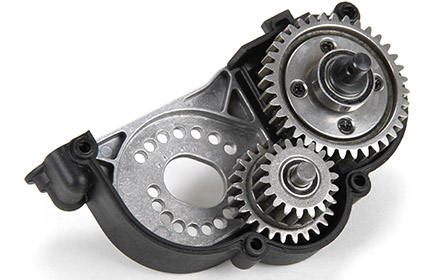

Sealed Metal-Gear Transmission and Diffs
The single-speed transmission, as well as the front and center diffs, are sealed against the elements and engineered to handle the abuse of a high-output brushless motor and punishing terrain. MOD 1 gears further increase the durability of this desert beast.

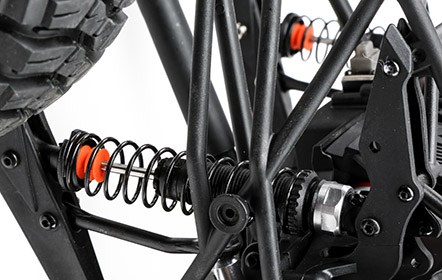

Coil-over Oil-Filled Shocks
The long-travel shocks do a fantastic job of soaking up the energy from big bumps and jumps. They also feature threaded shock bodies with adjustment collars so you can fine tune the pre-load settings of the coil-over springs. External bump stops provide plush landings on the hardest surfaces.

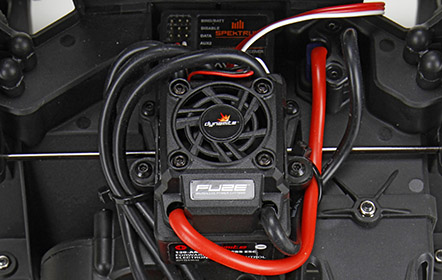

The Rock Rey™ desert truck is loaded with waterproof electronics including the receiver, servo and ESC. Everything is sealed against the elements allowing you to splash in the rain, spin in the mud and make tracks in the snow. It’s full-throttle freedom to run anytime, rain or shine.

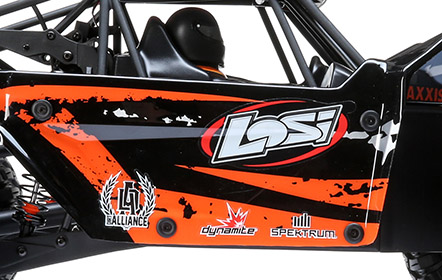

Bolt-On Body Panels and Detailed Interior
The four piece bolt-on body panels give the truck an authentic factory look. Eliminating the need for body posts that spoil the scale look, these panels are polycarbonate for incredible durability and rugged good looks. You also get a molded interior that includes a driver and rider figure, both of which sport racing helmet and harness details.

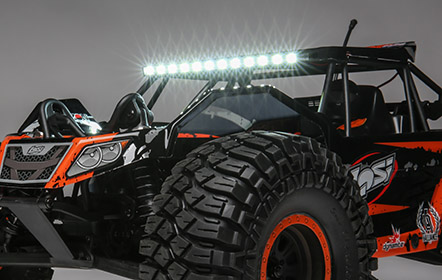

LED Light Bar
The fun doesn’t stop even when the sun goes down with the Rock Rey™. Twelve brilliant LEDs on the integrated light bar cast more than enough illumination for running at night. Plus, the body-mounted LEDs place only a small demand on the battery allowing you to stay out all night!
|Differential||Locked Rear, Gear Diff Front and Rear - Sealed|
|Final Drive Ratio||32.30:1|
|Front Track||12.75 in (323.8mm)|
|Gear Pitch||1.0 Module|
|Ground Clearance||2.2 in (55 mm)|
|Inner Tire / Outer Wheel Diameter||2.2 in (55.9mm)|
|Outer Diameter||4.45 in (113 mm)|
|Product Height||8.75 in (222.3mm)|
|Product Length||20.75 in (527mm)|
|Product Weight||6.55 lb (3.0kg)|
|Product Width||12.75 in (323.8mm)|
|Rear Track||12.75 in (323.8mm)|
|Shock Type||Oil-Filled/Coil-Over Spring|
|Suspension||Independent front / 4-Link Rear|
|Wheelbase||15.0 in (381mm)|
|Wheel Type||2.2 in 955.9mm) Glue-Type|
|Wheel Width||1.6 in (40.75mm)|
|Tire Tread||Desert Claws|
|Track||12.75 in (323.8mm)|
|Vehicle Type||Rock Racer|
|Approximate Assembly Time||Less than 1 Hour|
|Ball Bearings||Full ball bearings|
|Body||4 Piece Screened body|
