Backorder | Back Order

1/10 RC10B6.4D Electric 2wd Buggy Team Kit

Item No.
Team Associated - ASC90035
$389.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Radio Systems

I do not need to purchase this item.

XR4 4-Channel 2.4GHz Transmitter with Receiver
ASC90035
XR4 4-Channel 2.4GHz Transmitter with Receiver
RC4ZR0006
Not Available
$49.99 Price reduced from $93.99 to
DX3 Smart 3-Channel Transmitter with SR315 Receiver
ASC90035
DX3 Smart 3-Channel Transmitter with SR315 Receiver
SPM2340
In Stock
$99.99
SLT3 3-Channel Transmitter with SR315 Receiver
ASC90035
SLT3 3-Channel Transmitter with SR315 Receiver
SPMSLT300
In Stock
$49.99
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
ASC90035
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
SPMSLT350
In Stock
$64.99
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
ASC90035
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
TACJ0300
Not Available
$39.99
0 of 1 Selected
Batteries

I do not need to purchase this item.

7.6V 6400mAh 2S 90C Zappers SG5 Shorty LiHV
ASC90035
7.6V 6400mAh 2S 90C Zappers SG5 Shorty LiHV
ASC27382
Back Order
$90.99
7.6V 4800mAh 2S 130C Zappers SG5 Shorty LiHV
ASC90035
7.6V 4800mAh 2S 130C Zappers SG5 Shorty LiHV
ASC27383
In Stock
$80.99
7.6V 4800mAh 2S 90C Zappers SG5 LP Shorty LiHV
ASC90035
7.6V 4800mAh 2S 90C Zappers SG5 LP Shorty LiHV
ASC27384
Not Available
$78.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

Reedy 324-S Compact Balance Charger
ASC90035
Reedy 324-S Compact Balance Charger
ASC27201
In Stock
$35.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC90035
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC27203
In Stock
$187.99
0 of 1 Selected
Servos

I do not need to purchase this item.

Reedy 0712MG Digital HV Hi-Speed Metal Gear Servo 7kg
ASC90035
Reedy 0712MG Digital HV Hi-Speed Metal Gear Servo 7kg
ASC27110
In Stock
$31.99
Reedy 1514MG Digital HV Hi-Torque Metal Gear Servo 15kg
ASC90035
Reedy 1514MG Digital HV Hi-Torque Metal Gear Servo 15kg
ASC27111
In Stock
$32.99
RT1705A Digital HV Aluminum Brushless Low-Profile Servo
ASC90035
RT1705A Digital HV Aluminum Brushless Low-Profile Servo
ASC27119
In Stock
$247.99
Reedy 2513MG Digital Metal Gear Servo
ASC90035
Reedy 2513MG Digital Metal Gear Servo
ASC27152
Back Order
$31.99
0 of 1 Selected
Product $389.99
Add Ons
Estimated Total: $389.99
Estimated Total: $389.99
Selected Store

Introduction

The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested, yet we never rest on our laurels. As tires, motors, batteries, and tracks evolve, Team Associated adapts and improves with every iteration of the RC10. With the RC10B6.4 project, engineers had the goals of improving jumping and landing, updating the steering feel to be "easy to drive fast," and making the buggy corner faster on high-grip carpet and clay.

Overview

The RC10B6.4 platform continues the trend of offering two kit configurations. Both kits include the next generation 13mm diameter big-bore shocks and springs to provide the ultimate in damping and stability. The larger diameter shocks reduce pressure inside the shock and minimize the effects of the shaft displacement. This allows the buggy to feel like it’s riding on an invisible cloud when you hit harsh jumps and landings. The chassis, front end, and steering system is optimized for running reduced caster and kickup, which excels on high speed, high grip surfaces. An updated steering system with adjustable height bellcranks helps racers minimize bumpsteer. In addition, the front suspension is equipped with new - 1mm kingpin offset steering and caster blocks for smooth and predictable front end feel through the entire throw. The - 1mm design pushes the steering pivot closer the center of the front tire, keeping the front end flat through the entire steering throw.

Both buggies are equipped with a new chassis layout and ESC weights that allow forward mounted electronics closer to the servo, as well as additional forward battery placement over the previous model. All of the new weight tuning options allow for more high-speed stability and on-power steering on high grip carpet. The #90034 RC10B6.4 Team Kit will be the buggy of choice for high grip carpet or turf track surfaces with the new +3mm chassis layout, 11mm Octalock LCF slipper clutch setup, steel ESC and servo weights, and included anti-roll bars front and rear. The #90035 RC10B6.4D Team Kit includes a new dirt-length chassis, 19mm Octalock LCF slipper clutch setup, aluminum ESC weight, layback gearbox, and an optimized dirt kit setup

Both cars share many great features, such as an easy-access rear differential, new wide pivot rear aluminum arm mounts for use with 73mm arms and 69mm CVA bones, and updated carbon fiber shock towers with molded protective covers. The setups and tuning parts remain interchangeable between the two configurations. Both versions come with the speed, durability and lineage expected of a true champion. Choose the configuration that suits your track and conquer the competition!

  • New 13mm Big-Bore Threaded Aluminum Shocks
  • New Dirt Length Aluminum Chassis
  • New Adjustable Height Steering Bellcrank
  • New Aluminum RC10B6.4 ESC Mounting Tray
  • New Caged Thrust Bearing For Ball Differential

Features

  • New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
  • New dirt length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
  • 20°/22.5° and 25° molded bulkheads included for a complete range of caster and kickup options
  • New adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
  • New -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
  • New aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a further forward weight bias
  • New front ballstud mount, top plate, and front wing mount to account for the kickup angle change
  • New chassis side rails with three fan mount locations to choose from depending on chassis length and transmission used
  • New caged thrust bearing for ball differential
  • New cab-forward design RC10B6.4 bodyshell offered in standard (kit) and lightweight (optional) thickness

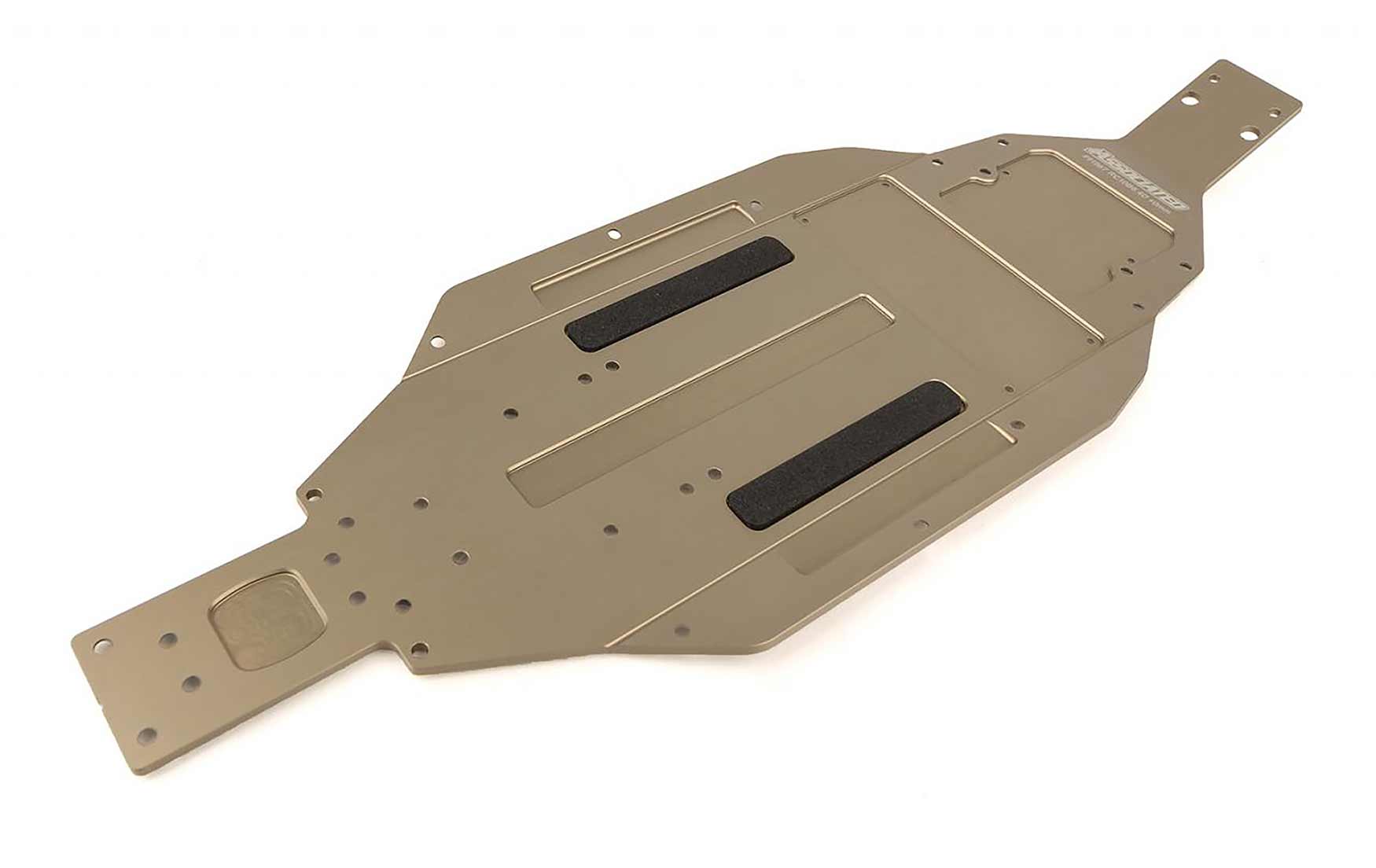

Aluminum Chassis
Aluminum Chassis

New dirt length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface.

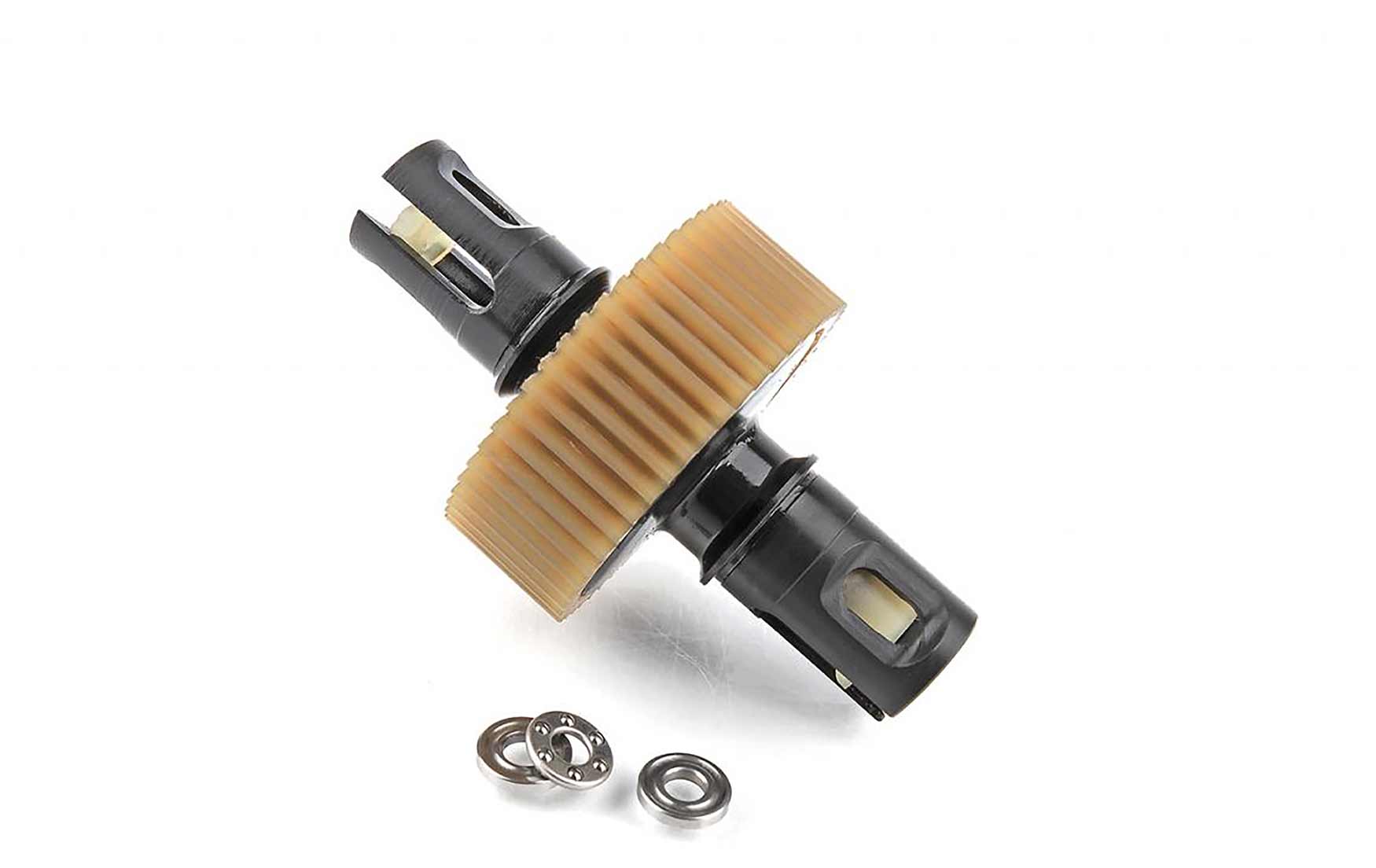

Ball Differential
Ball Differential

New caged thrust bearing for ball differential.

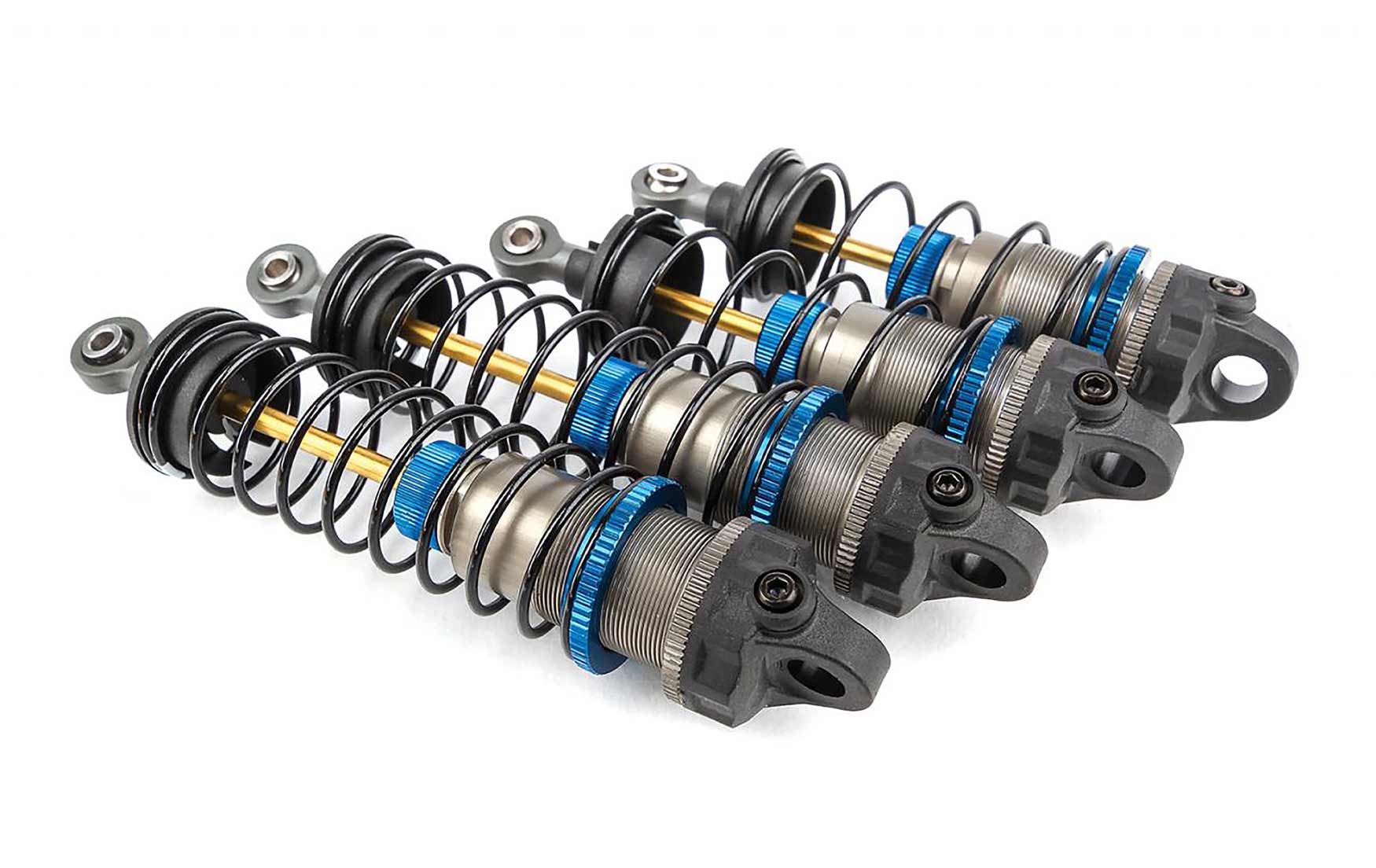

Big-Bore Shocks
Big-Bore Shocks

New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.

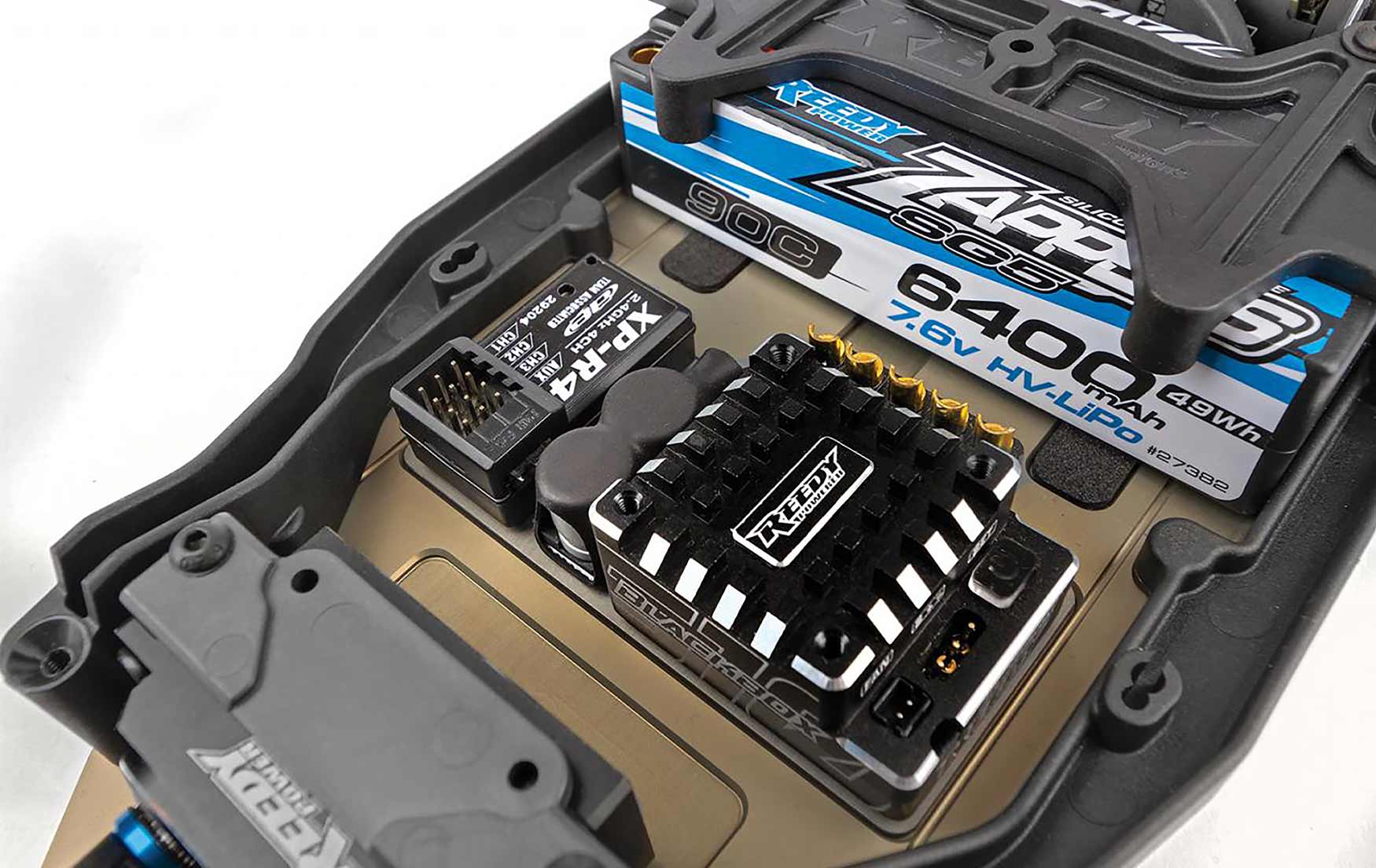

ESC Mounting Tray
ESC Mounting Tray

New aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a further forward weight bias.

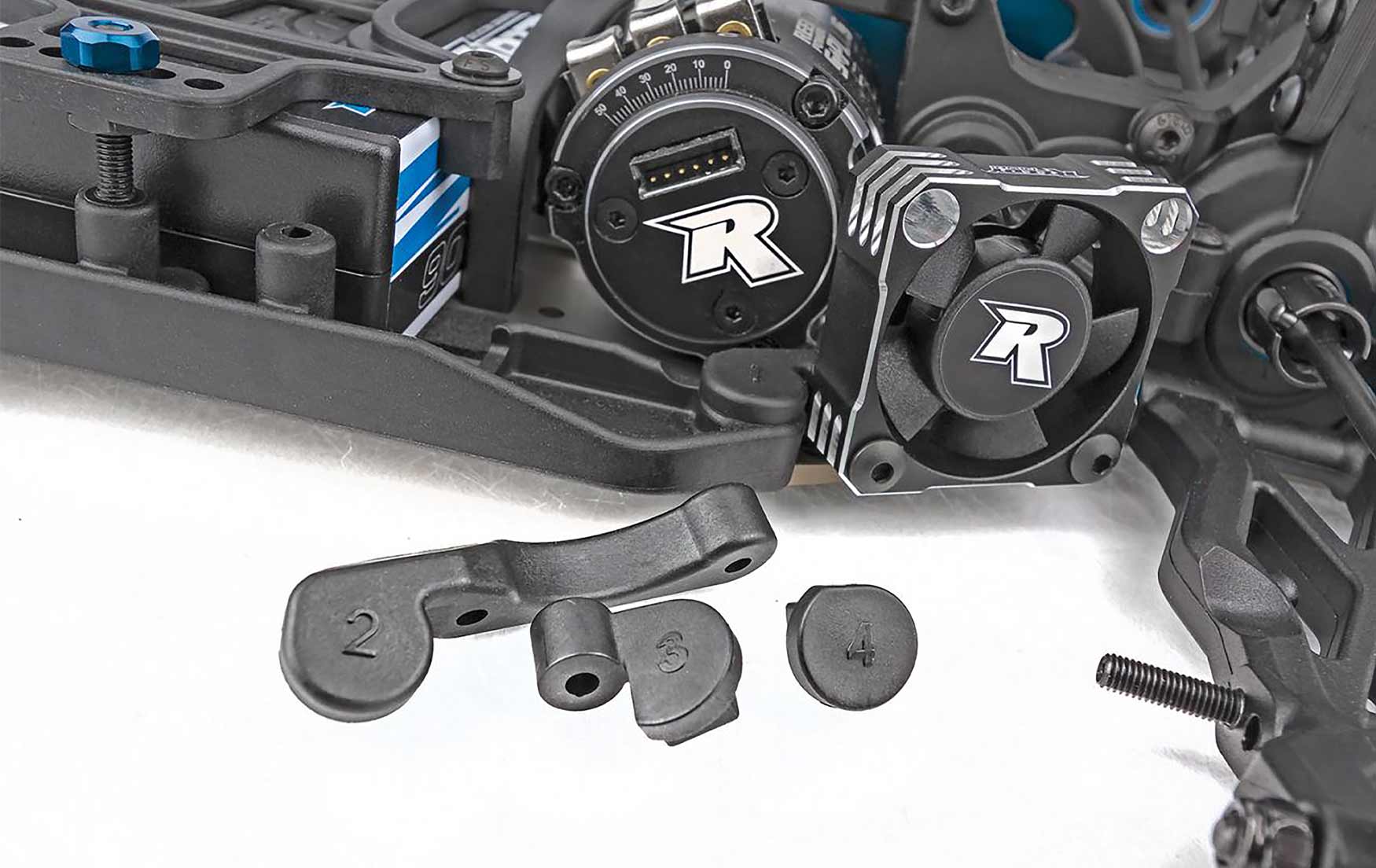

Chassis Side Rails
Chassis Side Rails

New chassis side rails with three fan mount locations to choose from depending on chassis length and transmission used.

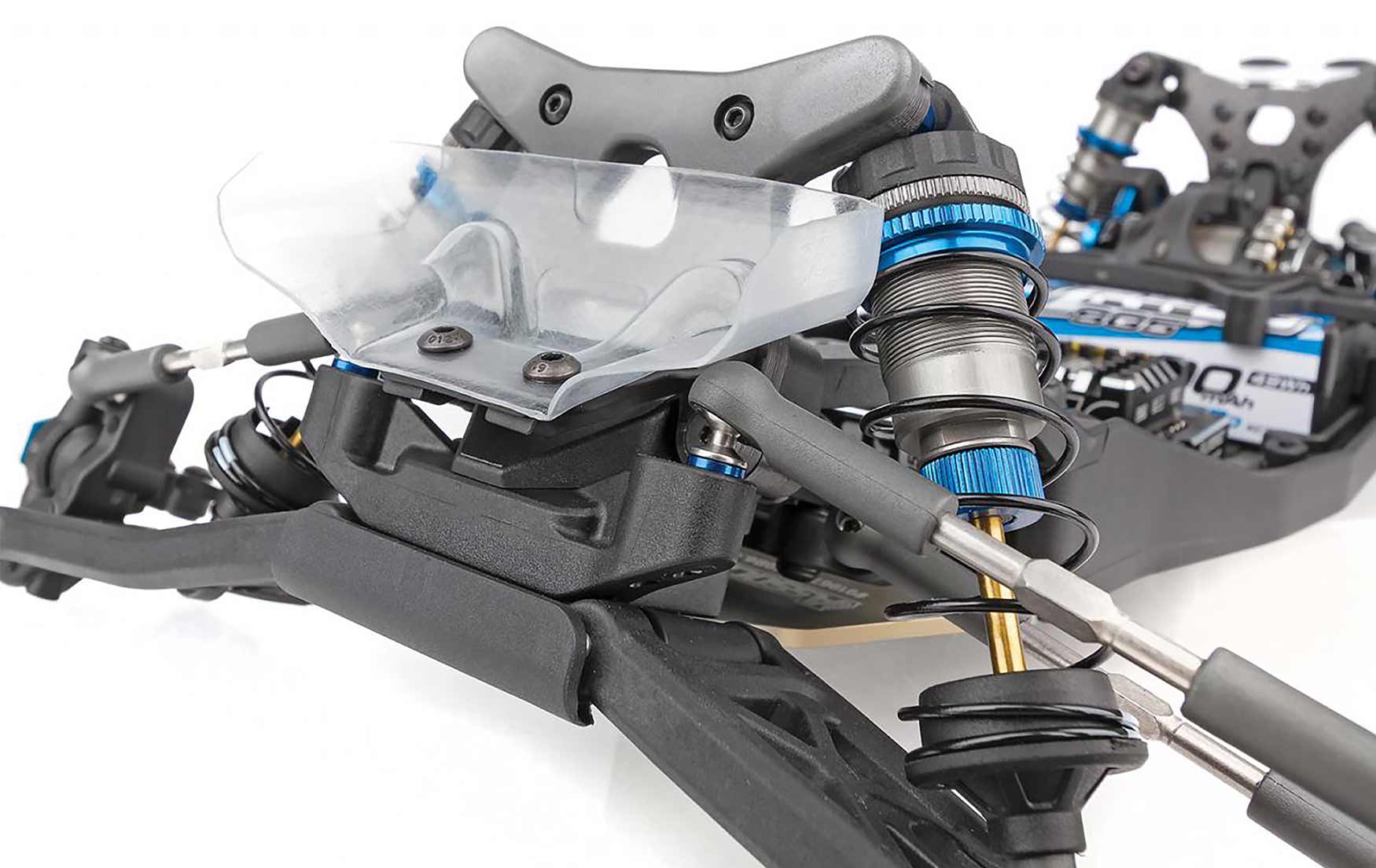

Offset Steering
Offset Steering

New -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw.

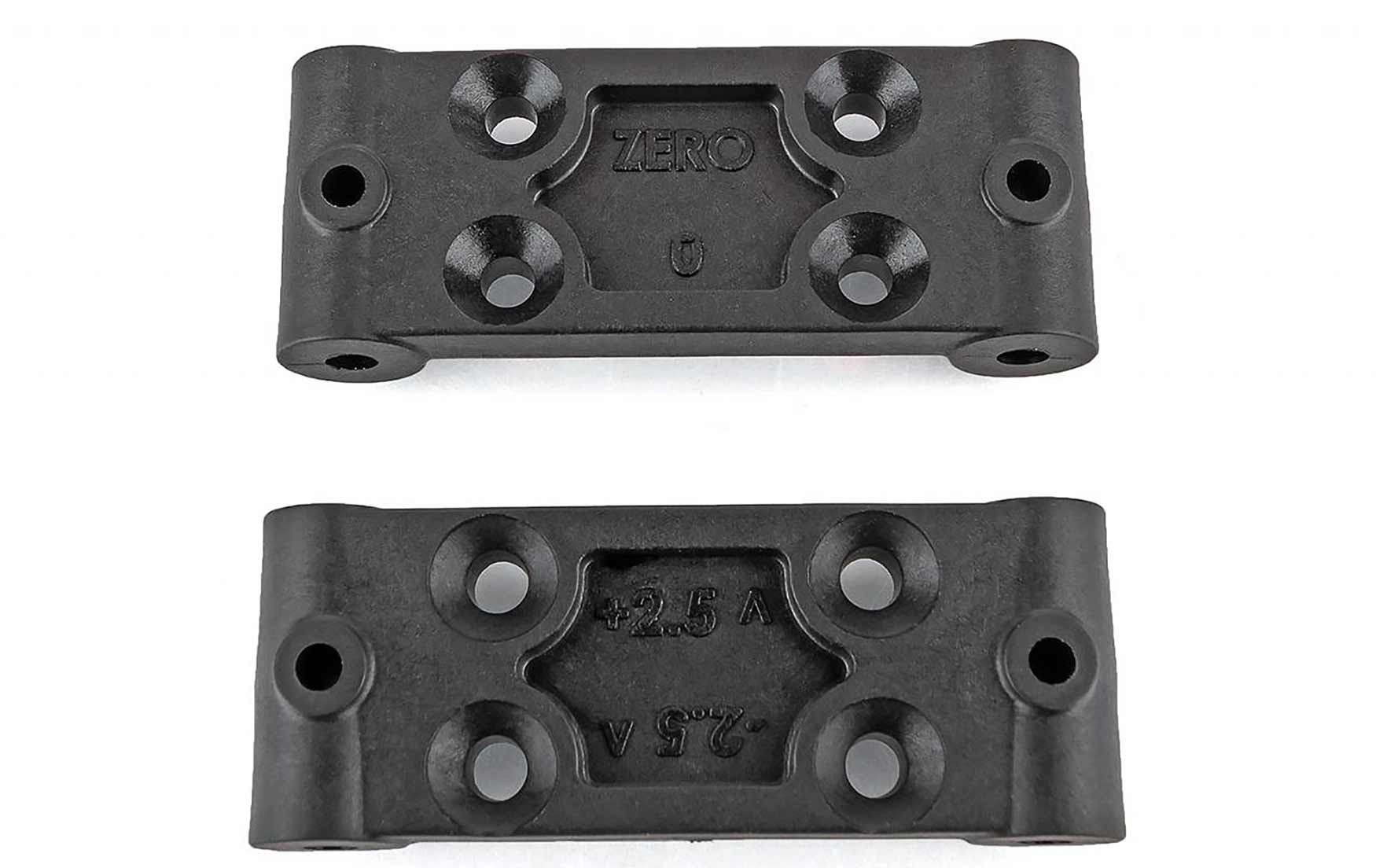

Molded Bulkheads
Molded Bulkheads

20°/22.5° and 25° molded bulkheads included for a complete range of caster and kickup options.



Kickup Angle
Kickup Angle

New front ballstud mount, top plate, and front wing mount to account for the kickup angle change.

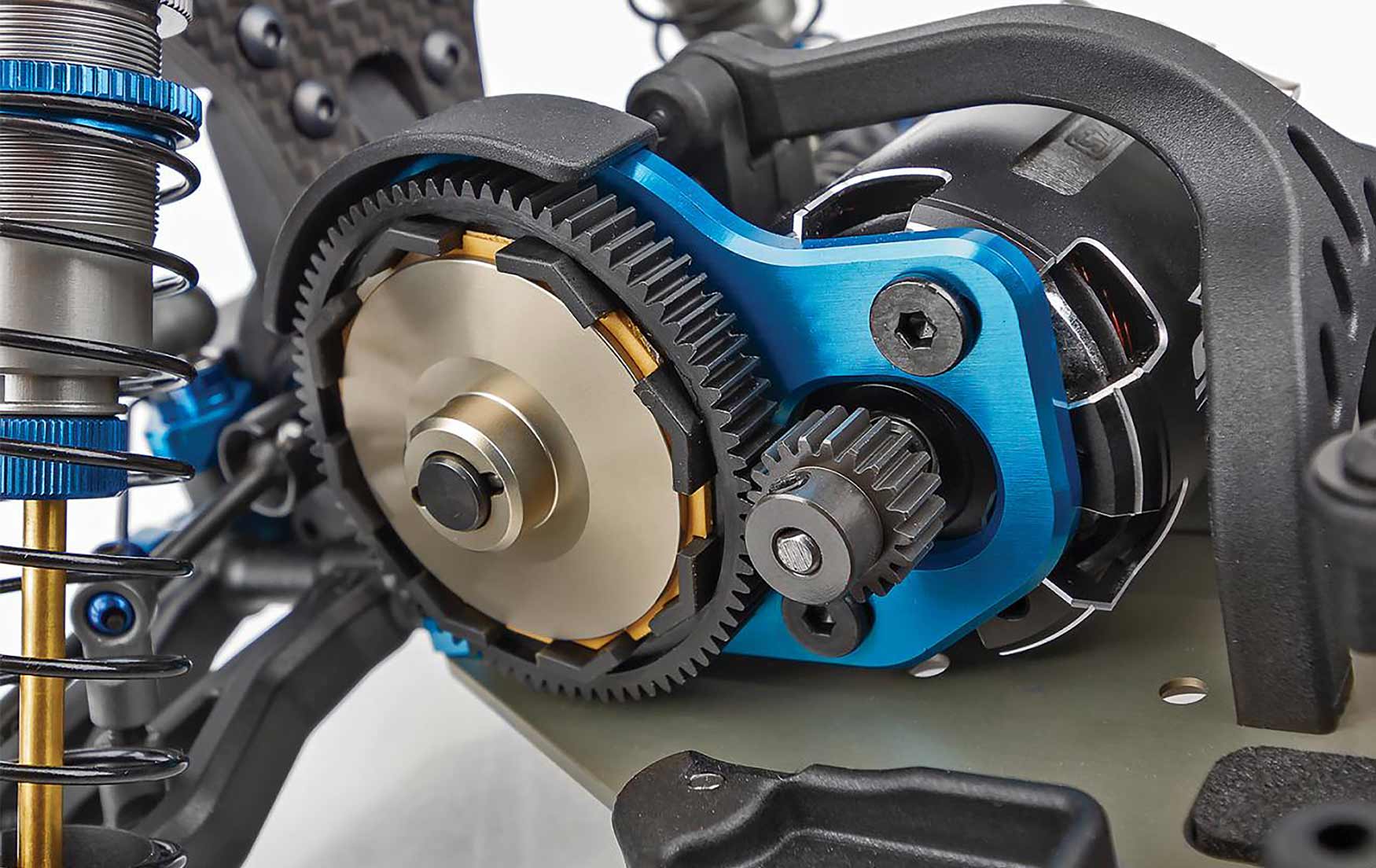

Octalock
Octalock

Octalock Spur Gear and 19mm Octalock LCF pads.



Product Specs

Chassis
Aluminum Chassis
Completion Level
Kit
Drivetrain
2WD
Drive Type
Forward/Brake/Reverse
Radio
Sold Separately
Battery
Sold Separately
Gear Ratio
2.60:1
Product Length
15.35" (390 mm)
Suspension
Independent
Scale
1/10
Vehicle Type
Buggy
Power Type
Electric
Servos
Sold Separately
Charger
Sold Separately
Differential
Gear Diffs
Receiver
Sold Separately
Shock Type
Oil-filled coil-over
Speed Control
Sold Separately
1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984.

Product Details

icon-box
In The Box
  • (1) 1/10 RC10B6.4D Electric 2wd Buggy Team Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) 7.2V - 7.4V Shorty Battery
  • (1) Battery Charger
  • (1) 1/10 Electronic Speed Control and Motor
  • (1) 1/10 Scale Off-Road Buggy Wheels And Tires
