Capable Off-Road Chassis

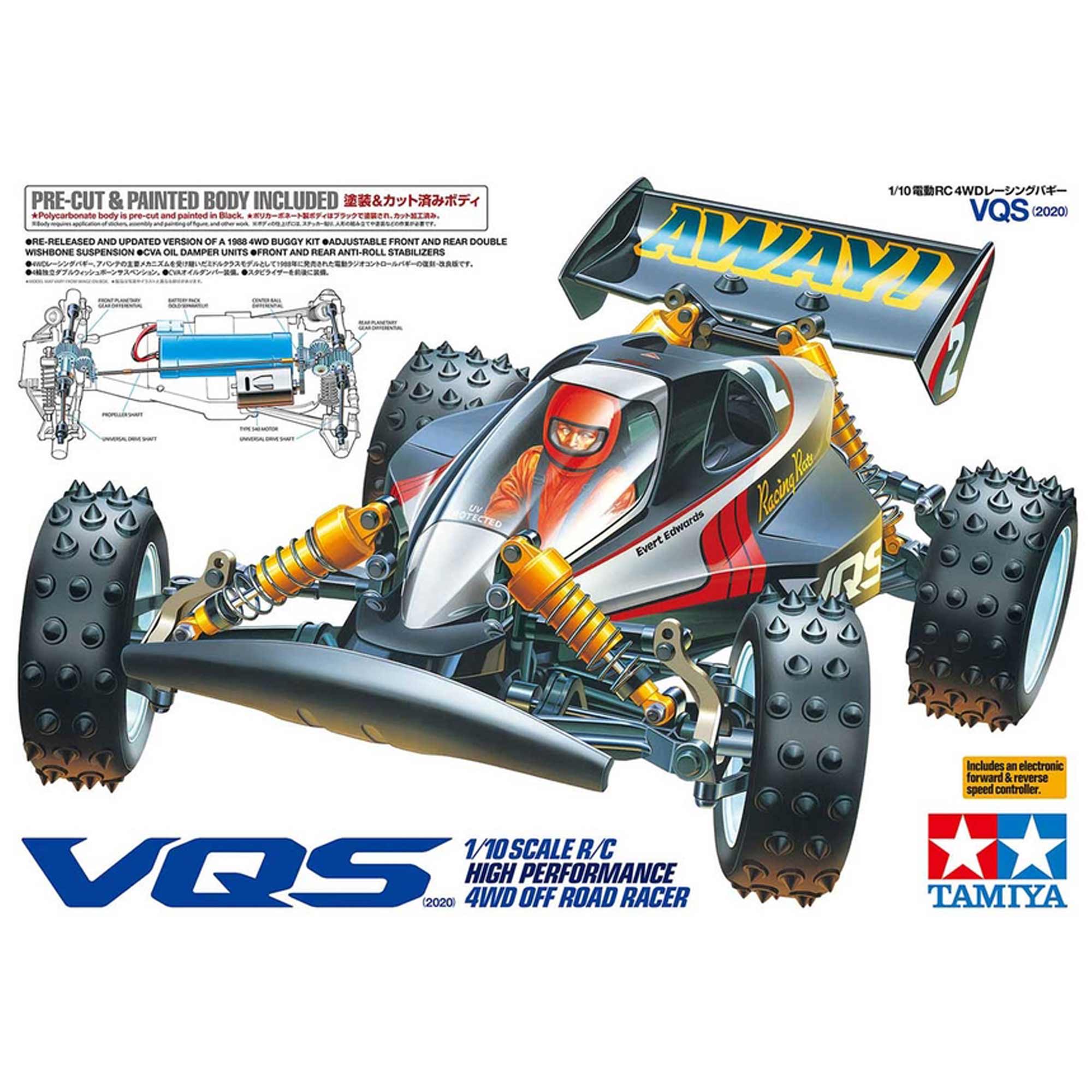

This R/C model assembly kit is an updated re-release version of a 1988 buggy from the Tamiya back catalog, which inherited its make-up from the legendary race-oriented Avante. The forward cockpit body design - and the rear wing - are molded in lightweight polycarbonate and pre-painted black, pre-cut with body mount holes pre-made to save on some preparation work. An ABS plastic monocoque frame is employed, with responsive shaft-driven 4WD plus a triple differential setup, four-wheel double wishbone suspension and plenty more - superb off-road driving awaits!

This model's durable ABS plastic monocoque frame protects vital R/C equipment and boosts suspension performance with its excellent rigidity. A total of three differentials are employed: small front and rear planetary gear differentials, and a center differential with ball thrust bearing; front and rear gearboxes also have maintenance hatches. Universal shafts front and rear ensure smooth, efficient drive and minimal worry about parts coming loose due to bumps and shocks, while the Avante-based 4-wheel double wishbone suspension employs plastic lower arms with threaded shaft upper arms that allow swift adjustment of camber. Front uprights are aluminum, and stabilizers are included for the front and rear.

  • Lightweight And Durable Polycarbonate, Pre-Painted Body
  • Body Stickers Are Based Upon Those In The Original Release
  • ABS Plastic Monocoque Bathtub Chassis
  • Aluminum Front Uprights And Efficient Universal Shafts
  • Planetary Gear Differential Units From The Original Avante

Features

  • Lightweight and durable polycarbonate, pre-painted and cut, with body mount holes already pre-drilled.
  • Body stickers are based upon those in the original release, and just require application to complete the body.
  • ABS plastic monocoque bathtub chassis.
  • Aluminum front uprights and efficient universal shafts are designs inherited from the 2011 re-issue of the Avante.
  • Planetary gear differential units from the original Avante.
  • Includes 540-Size brushed motor and Tamiya TBLE-02S ESC, capable of running sensored brushless motors and brushed motors alike.
Front Suspension
Front Suspension

The front double wishbone suspension employs aluminum uprights, while universal drive shafts are used front and rear.



Tie Rod Setup
Tie Rod Setup

Three-piece steering tie rod setup. The center plate is crafted in 2mm carbon fiber.



Shaft-driven 4WD
Shaft-driven 4WD

Reponsive shaft-driven 4WD is powered by a longitudinally-placed motor, with a ball differential in the drive gear.



Gear Box
Gear Box

Sealed gearboxes front and rear house compact planetary gear differentials which utilize the Avante design.



Rear Suspension
Rear Suspension

The rear suspension setup features long, ball-mounted lower arms. Threaded upper arms (front and rear) allow adjustment of camber.



Bathtub Frame
Bathtub Frame

The monocoque bathtub frame is a lightweight, durable design that protects and allows easy access to R/C equipment.



Battery Compartment
Battery Compartment

Battery changes are made from the underside. The model is compatible with Tamiya 7.2V Racing Pack and LF2200-6.6V battery packs.



Tires and Wheels
Tires and Wheels

Lightweight 6-spoke wheels are paired with pin spike tires. Front wheels are narrow, and rear wheels are wide designs.



Product Specs

Charger
Sold Separately
Product Width
9.25" (235 mm)
Radio
Sold Separately
Motor Type
Brushed
Speed Control
Included
Wheelbase
10.82" (275 mm)
Ball Bearings
Includes full ball bearings
Chassis
ABS Plastic
Completion Level
Kit
Drivetrain
4WD
Product Height
5.9" (150 mm)
Battery
Sold Separately
Motor Size
540
Product Length
17.12" (435 mm)
Suspension
Fully Independent Double Wishbone
Body
Polycarbonate
Scale
1/10
Power Type
Electric
Vehicle Type
Buggy

Video Overview

Video Overview

The Vanquish is a legendary buggy from our R/C back catalog. It’s now available again in the form of a re-issue assembly kit renamed the VQS. The kit receives tweaks to the original to bring it into the modern age of R/C fun! We have also saved builders some work too, with a pre-cut and pre-painted body!

Product Details

icon-box
In The Box
  • (1) 1/10 R/C VQS Kit
  • (1) TBLE-02S ESC
  • (1) 540-Size Brushed Motor
  • (1) Instruction Manual
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
