1/10 M-08R 2WD Rally Chassis Kit (LIMITED EDITION)

1/10 M-08R 2WD Rally Chassis Kit (LIMITED EDITION)
- The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability
- Includes carbon fiber components such as battery holders and body mount base
- M-08 Concept reinforced gearbox parts give sturdier gearbox and steering setups, for more efficient drive and improved steering feel
- Comes with the dedicated chassis weight (20g)
- M-07 Concept reinforced suspension parts featuring carbon fiber-reinforced resin allow superior cornering ability
1/10 M-08R 2WD Rally Chassis Kit (LIMITED EDITION)
Selected Store
Product Details
In The Box
- (1) 1/10 RC M-08R Chassis Kit
Needed to Complete
- (1) 2-Channel Radio System
- (1) Motor
- (1) Electronic Speed Control
- (1) Standard Steering Servo
- (1) Battery
- (1) Charger
- (1) Polycarbonate Body
- (1) Set of Wheels and Tires

Quick Links
Manuals & SupportM-08R Chassis

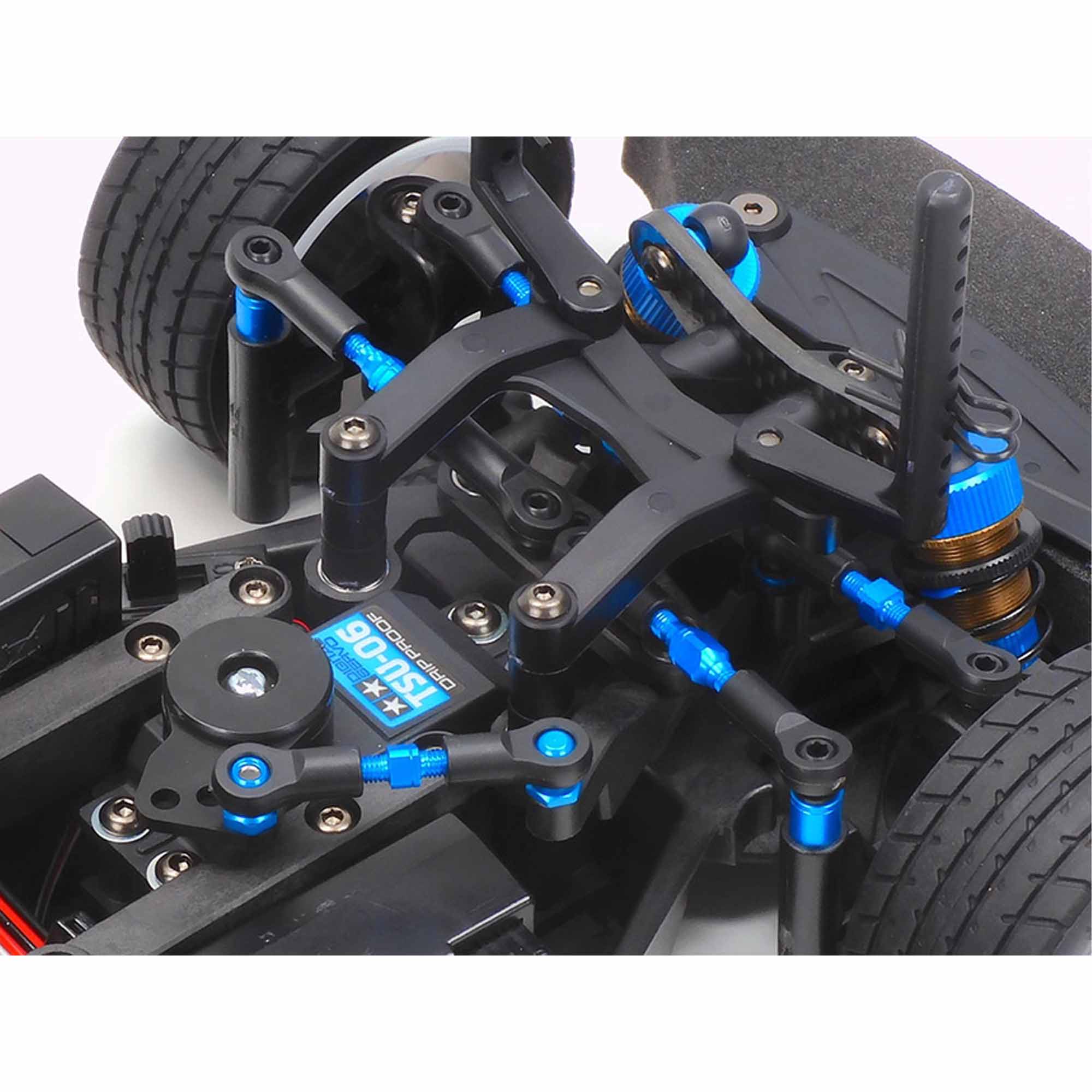

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
Features
- The TA06 Rear Ball Differential Set utilizes twelve 3/32-inch balls to give superb stability.
- Includes carbon fiber components such as battery holders and body mount base.
- M-08 Concept Reinforced Gearbox parts give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
- Comes with the dedicated chassis weight (20g).
- Features hex head screws.
- M-07 Concept Reinforced Suspension Arms featuring carbon fiber-reinforced resin allow superior cornering ability.
- Durable, lightweight aluminum turnbuckle shafts allow adjustment of length without removing adjusters.
- Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers.
- The 1.3mm diameter damper pistons give smooth oil flow and facilitate more flexible suspension.
TAMIYA M-08 CONCEPT
TAMIYA M08 BUILD

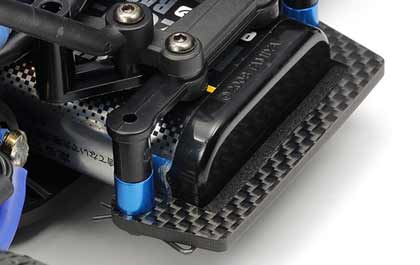

Carbon Fiber Parts
Includes carbon fiber components such as battery holders and body mount base.

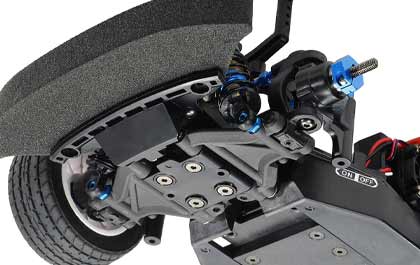

Carbon Reinforced Suspension
M-07 Concept Reinforced Suspension Arms featuring carbon fiber-reinforced resin allow superior cornering ability.

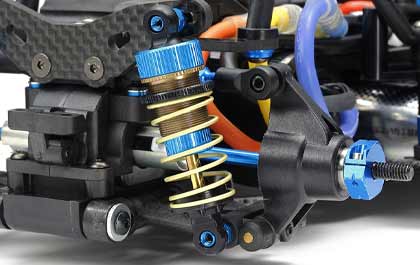

Big Bore Shocks
Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers.

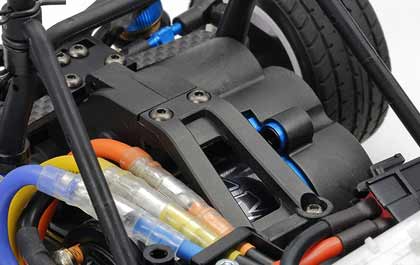

Rear Ball Differential
The TA06 Rear Ball Differential Set utilizes twelve 3/32-inch balls to give superb stability.

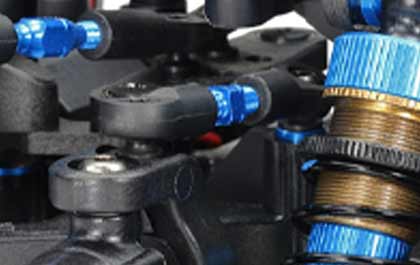

Turnbuckles
Durable, lightweight aluminum turnbuckle shafts allow adjustment of length without removing adjusters.
Product Specifications
Bushing Material | Metal |
Charger | Sold Separately |
Differential | Ball Pressure Plate |
Receiver | Sold Separately |
Shock Type | Aluminum Oil Filled |
Radio | Sold Separately |
Battery | Sold Separately |
Gear Ratio | Adjustable |
Motor Size | 540 |
Suspension | Fully Independent Double Wishbone |
Scale | 1/10 |
Ball Bearings | Full Ball Bearings |
Chassis | FRP Fiberglass Reinforced Plastic |
Completion Level | Kit |
Drivetrain | 2WD |
Drive Type | Forward/Brake/Reverse |
Vehicle Type | On-Road |
Speed Control | Sold Separately |
Power Type | Electric |
Servos | Sold Separately |
