1/10 1st Ultima 2WD Off-Road Buggy Kit
Item No.
Kyosho -
KYO30625
$279.99
Need To Complete
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
I do not need to purchase this item.
KYO30625
DX3 Smart 3-Channel Transmitter with SR315 Receiver
SPM2340
In Stock
$99.99
KYO30625
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
SPM5025
In Stock
$399.99
KYO30625
DX5C Smart 5-Channel DSMR Transmitter with SR6100AT Receiver
SPM5120
In Stock
$199.99
KYO30625
DX5 Rugged 5-Channel DSMR Transmitter with SR515
SPM5200
Not Available
$279.99
KYO30625
SLT3 3-Channel Transmitter with SR315 Receiver
SPMSLT300
In Stock
$79.99
KYO30625
SLT3 3-Channel SLT Transmitter with SLR300 Receiver
SPMSLT350
In Stock
$64.99
KYO30625
TTX300 3-Channel SLT Transmitter with TR325 Micro Receiver
TACJ0300
Not Available
$39.99
I do not need to purchase this item.
KYO30625
SW4 12.6V 2A BEC WP SL ESC and 1410-3800Kv Sensored Motor Combo
CSE010016405
In Stock
$154.95
KYO30625
Sidewinder 4 Brushless ESC / 1410-3800Kv Motor Combo
CSE010016406
In Stock
$159.95
KYO30625
1/10 Copperhead 1410-3800Kv Sensored Brushless ESC/Motor Combo
CSE10016610
In Stock
$209.95
KYO30625
Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv
SPMXSEM0501
In Stock
$82.99
KYO30625
Firma 85A Brushless Smart ESC / 3300Kv Sensorless Motor Combo
SPMXSEMC01
In Stock
$104.99
KYO30625
Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
SPMXSEMC02
In Stock
$104.99
KYO30625
Firma 130A Brushless Smart ESC / 1900Kv Sensorless Motor Combo
SPMXSEMC04
In Stock
$189.99
0
of 1 Selected
I do not need to purchase this item.
KYO30625
7.4V 3300mAh 2S 30C Reedy WolfPack LiPo Battery: T-Plug
ASC751
Next Shipment April 2024
$30.99
KYO30625
7.4V 4000mAh 2S 35C Reedy WolfPack LiPo Battery: T-Plug
ASC752
In Stock
$42.99
KYO30625
7.4V 5200 Capacity 2S Voltage 35C LiPo, EC3
GEA52002S35E3
Not Available
$40.19
KYO30625
7.4V 4000mAh 2S 50C Smart LiPo Battery, IC3
SPMX40002S50H3
In Stock
$44.99
KYO30625
7.4V 5000mAh 2S 30C Smart LiPo Hardcase Battery: IC3
SPMX50002S30H3
In Stock
$44.99
KYO30625
7.4V 5000mAh 2S 50C Smart Hardcase LiPo Battery: IC3
SPMX50002S50H3
In Stock
$49.99
KYO30625
7.4V 5000mAh 2S 30C Smart LiPo G2 Hard Case: IC3
SPMX52S30H3
In Stock
$44.99
KYO30625
7.4V 5000mAh 2S 50C Smart LiPo G2 Hard Case: IC3
SPMX52S50H3
In Stock
$49.99
0
of 1 Selected
I do not need to purchase this item.
KYO30625
Reedy 324-S Compact Balance Charger
ASC27201
Next Shipment April 2024
$35.99
KYO30625
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
ASC27203
In Stock
$187.99
KYO30625
Imars III PRO 10A Smart Balance RC Battery Charger
GEA100WMPRO
In Stock
$59.99
KYO30625
RDX1 Mini AC Charger
HRC44295
In Stock
$46.99
KYO30625
RDX2 Mini AC Balance Charger
HRC44299
In Stock
$84.99
KYO30625
S2100 G2 2x100W AC Smart Charger
SPMXC2000
In Stock
$179.99
KYO30625
S1200 G2 AC 1x200W Smart Charger
SPMXC2020
Next Shipment May 2024
$149.99
KYO30625
S155 G2 1x55W AC Smart Charger
SPMXC2050
Next Shipment April 2024
$59.99
KYO30625
S1100 G2 1x100W AC Smart Charger
SPMXC2080
In Stock
$99.99
0
of 1 Selected
I do not need to purchase this item.
KYO30625
HS-311 Standard Analog Sport Servo
HRC31311S
In Stock
$13.49
KYO30625
HS-646WP Standard Digital Waterproof Metal Gear Servo
HRC32646W
In Stock
$49.99
KYO30625
HS-5496MH Standard Digital HV Metal Gear Servo
HRC35496S
In Stock
$39.99
KYO30625
HS-5565MH Standard Digital HV High Speed Metal Gear Servo
HRC35565S
In Stock
$72.99
KYO30625
HS-5625MG Standard Digital High Speed Metal Gear Servo
HRC35625S
In Stock
$45.99
KYO30625
D625MW Standard Digital High Speed Metal Gear Servo
HRC36625
In Stock
$39.99
KYO30625
S602 Standard Digital Surface Servo
SPMS602
In Stock
$40.99
KYO30625
S605 Standard Analog Waterproof 9KG 23T Surface Servo
SPMS605
In Stock
$24.99
KYO30625
S614 Waterproof Metal Gear Surface Servo, 23T
SPMS614
In Stock
$26.99
KYO30625
S6170 Standard Digital Surface Servo
SPMSS6170
In Stock
$31.99
KYO30625
S6240 Standard Digital High Speed Waterproof Metal Gear Surface Servo
SPMSS6240
In Stock
$89.99
KYO30625
S6260 Standard Digital HV High Speed Metal Gear Surface Servo
SPMSS6260
In Stock
$119.99
KYO30625
S6290 Standard Digital HV Ultra Speed Metal Gear Surface Servo
SPMSS6290
Not Available
$144.99
KYO30625
T130 Standard Digital HV High Torque High Speed Metal Gear Servo
TEKTT1502
In Stock
$169.99
KYO30625
T360 Standard Digital HV High Speed Metal Gear Servo
TEKTT1506
In Stock
$169.99
0
of 1 Selected
Estimated Total:
$279.99
Selected Store
Overview
The impact of the ULTIMA’s dominantTQ & 1-2-3 finish in the 2WD class at the 2nd Electric Off Road World Championship in England in 1987 was felt across the RC car scene. Now Kyosho’s famous ULTIMA turns back the clock with its return as the 8th model in the Kyosho Vintage Series!
First released in 1986, the 2WD ULTIMA channeled racing tech from the OPTIMA into an electric racing buggy whirlwind that swept across the world. Consistent with the Vintage Series, the 2019 ULTIMA version has evolved in design and build to satisfy performance standards for modern R/C racing circuits and power sources. For example, the monocoque frame is made from aircraft grade A60601T6 aluminum alloy and multi-pin block pattern rear tires deliver optimal performance on modern off-road tracks. Full ball bearing specs minimize drive loss and combine with high-durability sintered alloy metal gears, slipper clutch and motor guard to protect the drive system while crash-resistant resin rear wing is also included.
Relive the nostalgia of the ULTIMA’s glory with the 2019 version that has evolved into a modern-day racing machine that lets you drive like a world champion.
- Chassis: Monocoque configuration, A6061 T6 aluminum alloy construction, glass reinforced upper deck, battery stay compatible with all battery types & uses a hook and loop fastener
- Drive: Rear wheel
- Gearbox: Sintered metal gears except for 1st gear which is nylon, adjustable slipper clutch can be upgraded to optional slipper pad when higher power motor is used
- Body: Molded polycarbonate with driver cockpit
- Rear Wing: Resin construction with two height settings and adjustable angle between 3° and 6° with shims
- Suspension: Double wishbone
- Ball Bearings: Full set, 14 total
Features
- ULTIMA has been faithfully recreated, with component upgrades for compatibility with modern power sources.
- Polycarbonate body with driver cockpit recreates the style and atmosphere of the original ULTIMA.
- Full ball bearing specifications (14)
- Equipped with battery guard that prevents battery short circuit during a crash.
Chassis Frame
A monocoque frame made from tempered A6061T6 pressed clear anodized aluminum alloy used for aircraft manufacture combines with a glass reinforced resin upper deck to deliver light weight and durability for hard driving. The battery stay is compatible with all battery types and uses a hook & loop fastener (includes battery strap printed with KYOSHO logo) for easy battery mounting.
Double Wishbone Suspension
Front and rear double wishbone suspension adopts the proven OPTIMA design. Similar front-rear geometry ensures handling stability at all speed ranges. Impact-resistant nylon lower arm combines with metal rod upper arm to enable camber adjustment. Upgrade with optional titanium adjust rod 38mm (No.92413) for both front and rear.
Oil Shocks
The same large capacity 12mm diameter oil shocks as the OPTIMA deliver superior running stability over uneven surfaces. Long type nylon resin molded shock tower enables tuning for modern RC racing circuits. Upgrade with optional gold shocks OTW128 (F) and OTW129 (R).
Optimized Geometry
Optimized geometry with aluminum steering link and metal bushings in combination with the servo saver incorporating aluminum pipe and metal spring design used in current racing buggies, delivers stable and precise steering feel. Upgrade with optional ball bearings and titanium adjust rod 50mm (No.92416).
Rear Hubs
Toe angle settings on the rear hub carriers can be set to 1.0°, 2.0°, 2.5°by replacing resin bushings. Detailed settings can be adjusted according to the specific racing conditions.
Gear Module
Gear module has been changed to 48-pitch from the original model’s 8-pitch to deliver reduced drive loss. In addition to the newly designed 46 nylon 57T 1st gear, all other gears are upgraded to the sintered metal gears from the OPTIMA. Upgrade with optional diff OTW101 to improve driving feel.
Gear Box
Gearbox is equipped with slipper clutch to protect the gearbox and drive system from sudden load changes such as jump landings. Easy to adjust and adaptable to various racing conditions. Upgrade with optional slipper pad (SCW021 HD) for compatibility with higher power and hard driving.
Motor Guard
Included motor guard (was only available as optional upgrade on the original ULTIMA) is made from A6061T6 material and delivers increased durability. Resin wing mount provides choice of 2 height settings and angle can be set between 3 ° - 6 ° with shims. Previously made from polycarbonate, the resin wing delivers improved crash resistance. In addition to white, there are 5 color options to add extra style to your machine.

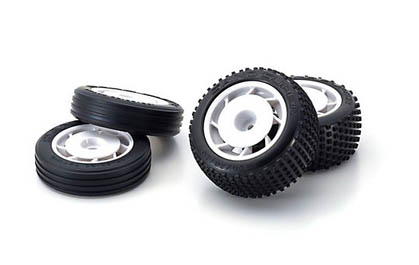

Rear Tires
Rear tires feature optimized multi-pin pattern to produce stable grip on a wide variety of surfaces and have been recreated in the image of the original hard block tires. Upgrade with optional OTT244S (Soft) and OTT244H (hard) tires. High rigidity one-piece wheels replace the 50mm three-piece wheels of the original Ultima. In addition to white, there are 3 color options to choose from.
Product Specs
Body
Brakes
Pinion
Scale
Speed Control
Wheelbase
Battery
Gear Ratio
Motor Size
Product Length
Spur Gear
Steering Type
Suspension
Ball Bearings
Chassis
Completion Level
Battery Tray Dimensions
Vehicle Size
Product Width
Radio
Power Type
Gear Pitch
Servos
Bushing Material
Charger
Differential
Receiver
Shock Type
Wheel Type
Drivetrain
Drive Type
Product Height
Product Weight
Tire Tread
Vehicle Type
Water-Resistant
Video Overview
Get Info From Communities
Product Details
In The Box
- Kyosho Ultima Electric Powered Off-Road Racer Kit
- Clear Body with Decals
- Shock Wrench, Cross Wrench and Grease
- Product Manual
Needed to Complete
- Radio: 2-channel with steering servo
- Electronic Speed Control: Compatible with selected motor
- Battery: 6-cell 7.2V NiMH recommended
- Battery Charger: Compatible with selected battery
- Paint: Polycarbonate safe spray or brush on
- Transmitter batteries, tools and track equipment
