Needed to Complete
  • 2-Cell or 3-Cell LiPo Battery with EC3 Connector
  • Appropriate LiPo Charger
What's in the Box?

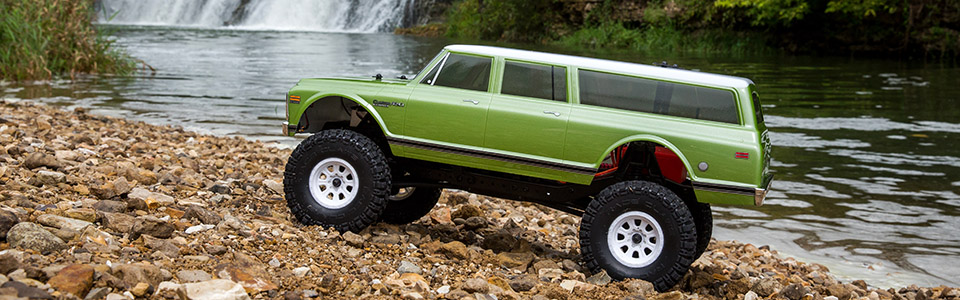

  • (1) Vaterra 1/10 1972 Chevy Suburban Ascender 4WD RTR
  • (1) 2.4GHz 2-Channel Radio System (AA Batteries)
  • (1) Spektrum 9KG 23T Waterproof Servo
  • (1) Dynamite 60A Brushed Waterproof ESC
  • (1) Dynamite 540 Brushed Motor 35T
  • (1) Product Manual

Overview

The longest continuous use model name still in production, the Suburban created the recreational vehicle category. It has a long-held reputation of being brash, commanding, and powerful. This ready-to-run, 1/10-scale version of the ’72 Chevrolet® Suburban delivers all that and more. At the core of its scale off-road performance is the Vaterra® Ascender™ chassis. This innovative platform takes scaler technology to new heights with features like stamped-steel ladder frames, an adjustable wheelbase, locked differentials, and one of the most capable off-road suspensions available.

Key Features

  • Ascender™ Stamped-Steel Ladder-Frame Chassis
  • Licensed 1972 Chevy Suburban Body with Injection Molded Grille and Bumpers
  • Revised Rear Link Geometry
  • LED Headlights and Amber Running Lights
  • New Battery Tray That Accepts "Full Size" Bttery Packs
  • Dynamite Brushed 35T 540 Motor
  • 60 Amp LiPo Compatible Waterproof ESC
  • 9KG Waterproof Metal Gear Servo
  • Oil-Filled, Threaded Shocks
  • 2.4GHz 2-Channel Radio System

Product Specs

Product Height
8.25" (210mm)
Tire Compound
Blue
Chassis
Steel Ladder Frame
Completion Level
Ready-To-Run
Drivetrain
4WD
Ball Bearings
Complete Vehicle
Gear Pitch
48-Pitch
Servos
9KG Waterproof Metal Gear
Approximate Assembly Time
No assembly required
Body
1972 Chevy Suburban Polycarbonate Painted
Pinion
14T
Wheel Width
1.1" (27mm)
Ground Clearance
1.06" (37mm) at Differentials
Internal Gear Ratio
4.05:1
Motor Size
540
Product Length
19.50" (495mm)
Spur Gear
86T
Suspension
Multi-link Solid Axle
Battery
Sold Separately
Product Weight
4 lbs
Tire Tread
Race Claws
Water-Resistant
Yes
Power Type
Electric
Final Drive Ratio
7.86:1
Rear Track
8.66" (220mm)
Speed Control
Included
Wheelbase
12.36" (314mm) / 11.9" (302mm) / 11.4" (290mm) / 10.95" (278mm)
Scale
1/10
Charger
Sold Separately
Differential
Locked
Receiver
Included
Shock Type
Oil Filled Threaded injection molded
Wheel Type
8 Spoke White
Front Track
8.66" (220mm)
Outer Diameter
4.19 in (106mm)
Product Width
8" (203mm)
Radio
Included
