The Spektrum Team has been investigating sporadic reports from DSMX transmitter owners using their products in DSM2 mode. We have discovered that in some rare instances, DSMX equipped transmitters with the Product ID (PID) within this bulletin, may have a backwards compatibility issue that could cause a "hold" with the following superseded DSM2 receivers: AR500, AR6100, AR6100E, AR6110, AR6110E, AR6200 and AR6300. Note: This bulletin does not apply to DSM2 only transmitters.If you have a DSMX transmitter with one of the following PIDs, please complete the Transmitter Service Request Form to receive a prepaid shipping label to send your transmitter to Horizon Hobby for a free firmware update.

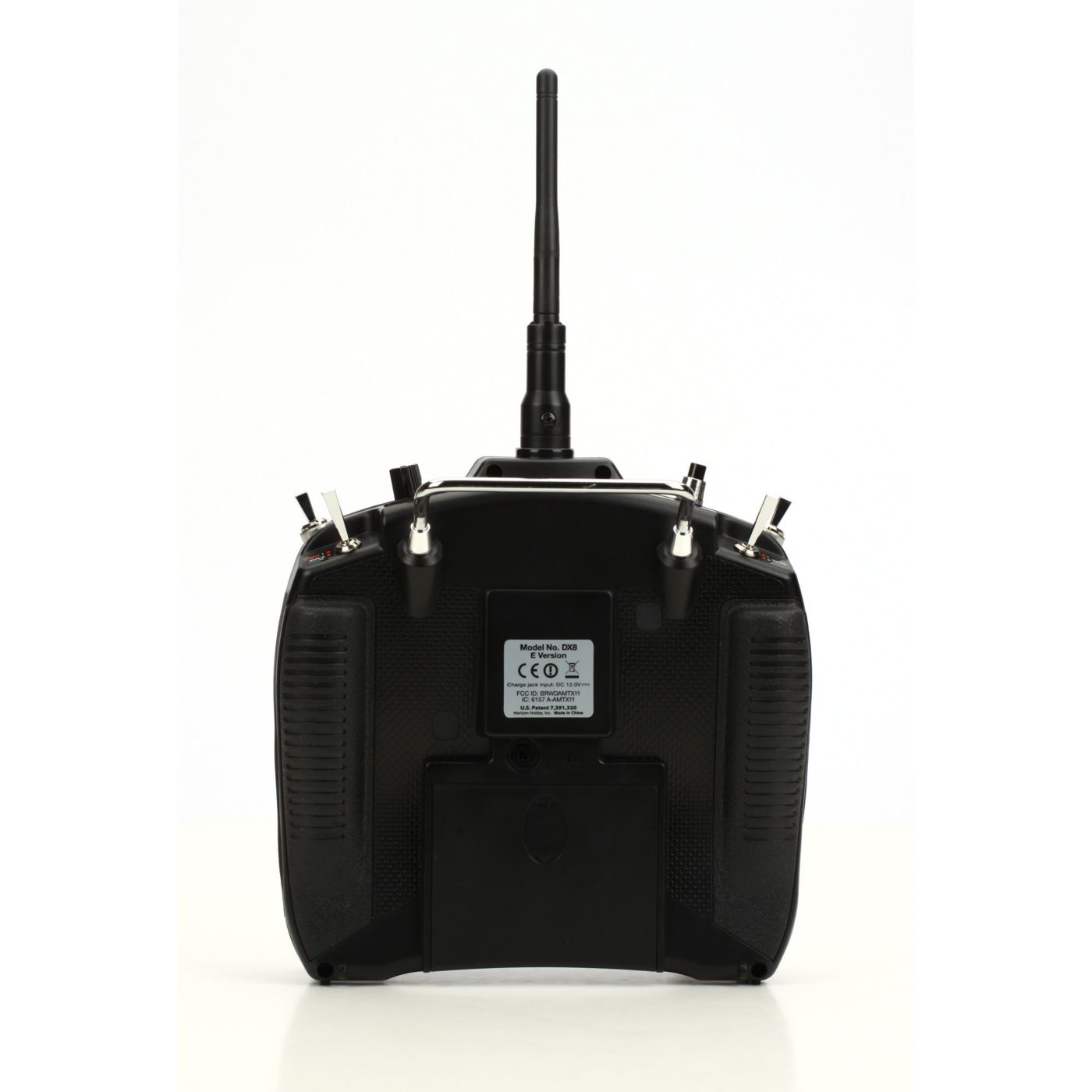

The PID is located in the battery compartment of your transmitter.
Transmitters with affected PIDs may be found in the following products: Blade mCP X RTF (BLH3500), E-flite Apprentice 15e RTF (EFL2725), Hangar 9 Alpha 40 DSM2 RTF (HAN4400) ,Hangar 9 P-51 Mustang MkII PTS RTF (HAN4425), Hobbyzone Super Cub DSM RTF (HBZ7400), ParkZone Radian RTF (PKZ4700), ParkZone P-51D BL DSM RTF (PKZ2200), ParkZone F4U Corsair RTF (PKZ4600), Phoenix R/C Pro Simulator 3.0 with DX5e (RTM30R5510/RTM30R55101). DX6i/DX5e/DX4e:PID's beginning with one of the following prefixes: HS, HH, HT, HE, HA
DX8:PID's beginning with one of the following prefixes: HS, HH, HT, HE, HA, HO, HM, HR DX7:PID's beginning with the following prefix: HA JRP9503/JPR9309:PID's beginning with the following prefix: TM
We apologize for this inconvenience. Horizon disclaims all liability and warranties for any consumer failing to act upon this product bulletin. Always check your transmitter and equipment prior to each flight.
Spektrum Product Development has been investigating reports from DX8 transmitter customers experiencing servo movements inconsistent with corresponding transmitter stick input.
As a precautionary measure, Horizon Hobby would like DX8 customers to perform the Monitor Test to examine Gimbal controls over the entire range of each axis of input. Expected results for the Monitor Test should show smooth tracking with corresponding stick input. If the Monitor "jumps", hesitates, or is seen in a channel other than what is being tested, please follow the Monitor Test instructions below to test DX8 Gimbal movement:
Monitor Test:Step 1: Turn on power switch. Ensure left stick position (throttle) is low and Flap/Gyro switch is in position 0 or all the way up.Step 2: Press the roller to enter the Function List menu.
Step 3: Using the roller, scroll to the bottom of the Function List menu and depress roller to select Monitor function.
Step 4: Note the position of the Aileron (AIL) and Rudder (RUD) positions. Ensure all trims are centered and sub-trims are zero before continuing to Step 5.
Step 5: Move the Throttle (Left side) and Elevator (Right side) gimbals up and down being very careful not to touch the control sticks. While moving the gimbals up and down, note the AIL and RUD positions on the Monitor.
ONLY touch the Gimbal on the outer frame where shown, being very careful not to move the stick as this will falsify the test.
Step 6: If the percentage for the Aileron or Rudder changes by more than 3%, follow the instructions for sending your DX8 transmitter in for inspection. DX8 Transmitter Service Request:
While adjusting a servo's Travel Adjust value in the Servo Setup screen, if the clear button is depressed, both the value and the channel's reversing will reset to their default values of 100% and normal.
This reset could cause an unsafe condition if unnoticed, particularly if the channel has been reversed on the throttle.
Click Here to register your DX8 and download the latest updates.
Recently, the Horizon Hobby Service Center has received a small number of reports from customers claiming un-commanded servo movements and loss of RF link during the activation of the vibrator motor in some DX8's from the initial shipment.
Horizon requests that all DX8 customers with the Product ID (PID) HS008X or HS009X found in the battery compartment carefully check their radios to determine if their transmitter has this issue prior to flying.
Transmitters with a PID other than HS008X or HS009X are not affected by this bulletin.
If you have a DX8 with the affected PID, please perform the following test.
Should you find that your transmitter is affected by this issue, please contact your nearest Spektrum authorized service center to arrange for a free upgrade to your DX8 performed by a Horizon Hobby authorized Technician.

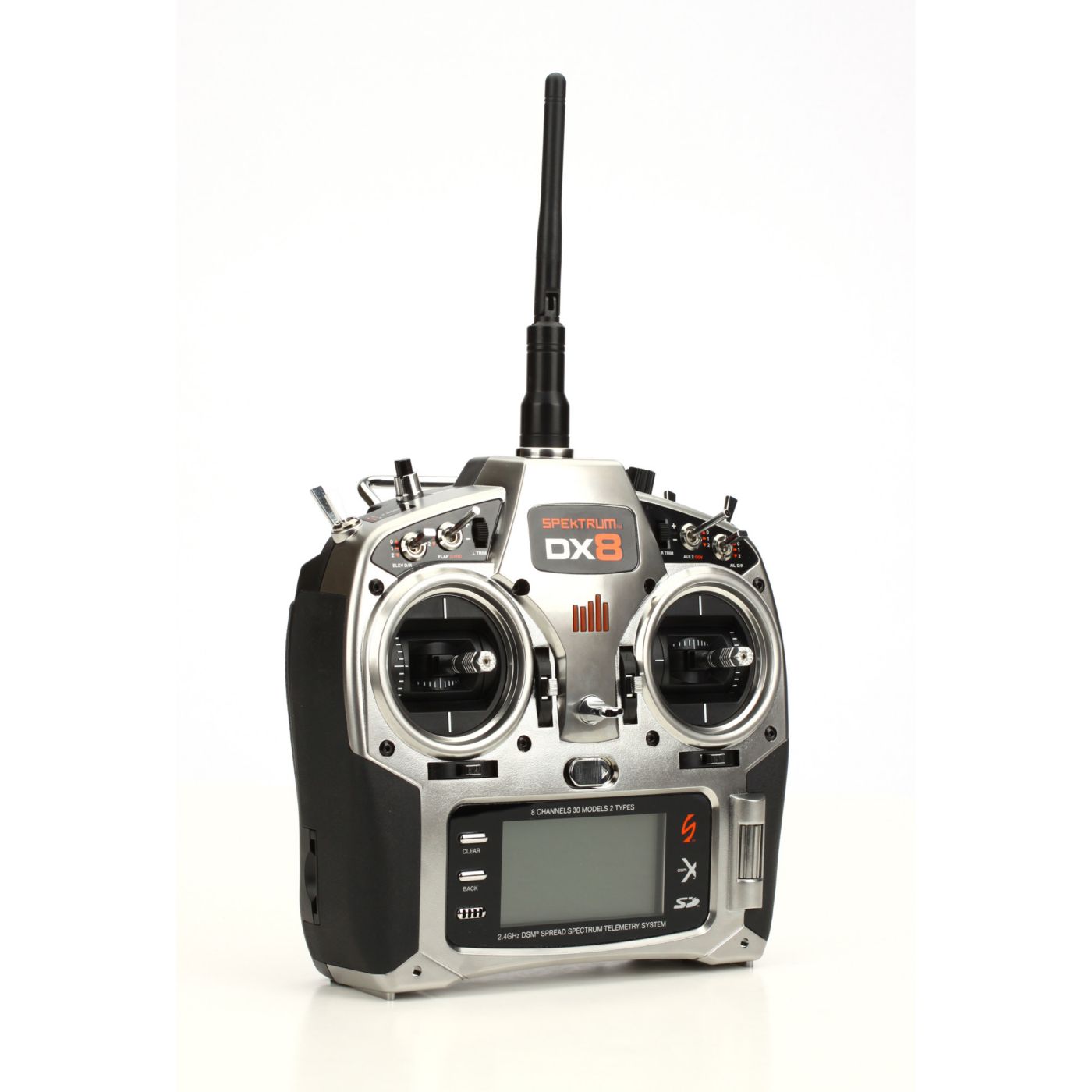

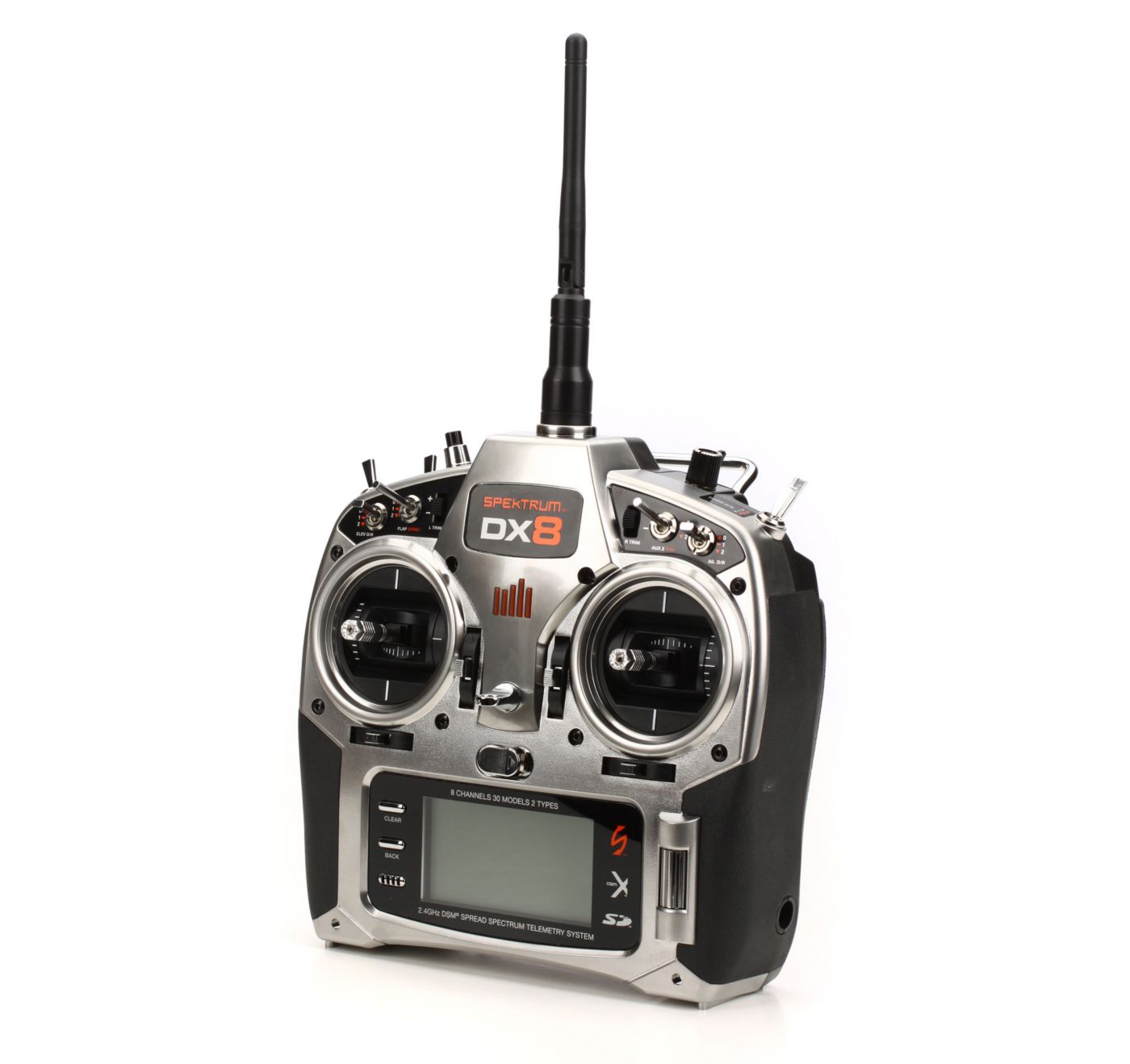

The DX8's powerful Spektrum AirWare software was developed exclusively by Spektrum from the ground up. This
software includes all the programming functions an expert pilot could want, but you don't have to be an expert to
use them. The DX8's intuitive Simple Scroll™ interface lets you "roll and click" your way between menus with ease.
And all the information is presented in crisp, clear detail on a big, backlit LCD screen.
When programming the cyclic and pitch mixing for a helicopter, it is possible for the sum of the two mixing
values to exceed the mechanical travel limits of the servos. This can cause them to be overdriven into a locked
position. Spektrum AirWare's Electronic E-Ring prevents this by automatically limiting servo travel if the sum
of the cyclic and pitch values exceeds servo limits.
Fine tune rotor speed and gyro gain while in flight using trim switches you assign.
When selecting a wing type for an airplane, Spektrum AirWare graphically depicts the type you've chosen and
will automatically configure the necessary mixes for the pilot. This saves time and reduces the chances for
error when programming complex control surface configurations.
The DX8's built-in telemetry feature gives you vital, real-time information about what's happening with your
model in flight; information that can prevent crashes and maximize performance. The telemetry data appears in an
easy-to-read format on the large backlit LCD screen so you can reference it at a glance. You can also have the DX8
alert you with an audio or vibe alarm whenever any telemetry values exceed limits you define. The DX8 will
initially be able to track four key safety and performance factors:
Never again will you have to wonder whether or not you have enough voltage to keep flying. Being able to
monitor voltage will also help you detect a worn out battery pack before it prematurely ends your flight. The
telemetry module is plugged into the receiver and will automatically relay receiver voltage. A separate sensor
for tracking main battery voltage in electric aircraft will be included.
Is there enough airflow reaching an electric motor? Is my battery getting too hot? With the DX8, you will get
real-time answers and be able to take action well before damage occurs. One temperature sensor is included.
The telemetry module will keep tabs on the quality of the signal coming to the receiver and send this
information back to the DX8 where it is represented on the LCD screen using a familiar "signal bar" scale.
Pilots can use the RPM telemetry data to check the effectiveness of new mixture settings, new battery packs, or
perhaps a new propeller/motor combination. The RPM sensor is sold separately.
*full-range telemetry module included with DX8 system
Beyond new software and telemetry, the DX8 is also the first Spektrum radio to introduce the Spektrum Data
Interface™. The SDI is designed for use with standard SD memory cards and adds a whole new level of flexibility
and ease-of-use. With the SDI, you will be able to:
Share setups with other DX8 owners at the field or transfer them from your SD card to your PC and attach them
an e-mail. This makes it easy to gain from the experience of others or help others succeed.
The DX8 has enough on-board memory for up to 30 models before you even need to think about using the SDI. But
with the SDI, memory for thousands of models could be stored on the SD card or transferred to a PC hard drive
With the Spektrum Data Interface, you won't have to send your DX8 into a service center to get the latest
Spektrum AirWare enhancements. You can download them onto your SD card and upload them to the DX8 yourself.
The DX8's weight distribution and ergonomics have been optimized to fit the way you
fly. The result is a sense of balance and comfort that perfectly complements the speed and precision of DSM2
technology. Some of the more notable features include:
Register for software updates and get the latest enhancements here.
The DX8 transmitter is not compatible with the Spektrum AR6000/BR6000 receiver.
Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2, DSMX or Spektrum.
Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.
This product is not intended for use by children under 14 years of age without direct adult supervision.
Understanding Spektrum Telemetry Tutorials
Please follow the instructions in this tutoral to find your serial number - https://youtu.be/p8BcdsZd1eA
Please follow the instructions in this tutoral to learn how to register your Spektrum RC products- https://youtu.be/Bu7ObvRU-yo
Please follow the instructions in this tutoral to learn how to downloadn and install firmware updates for your Spektrum Radio- https://youtu.be/5VBGEbgS9pQ
Visit the product page on HorizonHobby.com for your transmitter and click on the "Manuals and Support" tab for downloadable setups.
Spektrum receivers are compatible with most popular speed controls and servos on the market.
DSM or Digital Spectrum Modulation is Spektrum's proprietary method of implementing 2.4GHz spread spectrum technology for the R/C industry. DSM divides the 2.4GHz band into 80 individual channels (frequencies) and incorporates direct sequence spread spectrum with an embedded GUID (Globally Unique Identifier) code. DSM has been painstakingly optimized by our engineers for RC surface and aircraft use, offering the most robust RF link in the industry.
DSM2 is the 2nd generation of Spektrum DSM technology and remains a premier 2.4GHz choice even today. Using the same superior wideband DSSS foundation that all Spektrum technology is based on, DSM2 consistently provides faster response and more precision than most non-DSM 2.4GHz protocols.
DSMX is a natural evolution of DSM2 technology that is the result of several years of development, optimized for pilots and combining Wideband DSSS and Frequency Agility. It builds on what has come before and takes DSM to the next level of robustness, reliability and efficiency without leaving current DSM2 users behind. DSMX represents the world's first wideband, frequency-agile 2.4GHz signal protocol and the most advanced spread spectrum RC technology to date.
These systems usually transmit a narrow band signal and rapidly jump through a fixed set of frequencies, spending a few milliseconds on each frequency.
The foundation DSMX is built on is the same foundation as DSM2™ - the superior on-channel interference resistance and coding gain of wideband DSSS. Compared to the wideband signal of a DSM2 or DSMX™ system, the narrow-band signal of other 2.4 transmitters is more likely to suffer crucial data loss in the event of on-channel interference. Think of wideband 2.4 as a river and narrow-band 2.4 as a stream. It takes much more interference to stop a river than it does to stop a stream.
The big reason wideband is so robust is coding gain. Essentially what this means is that the unique coding in a DSM2 or DSMX wideband signal allows it to be heard well above the noise of surrounding 2.4GHz signals without requiring any more power. In fact, a Spektrum wideband signal can achieve as much as 3X the range of its narrow-band competition using the same amount of power.
For the most part, yes. DSM2 transmitters are forward compatible with DSMX receivers and DSMX transmitters are backward compatible with DSM2 receivers. And because DSM2 and DSMX share the same wideband DSSS foundation, all Spektrum users will enjoy superior range, speed and precision whether they're using DSM2 equipment, DSMX equipment or a combination of both. The only exception is the DXe which is DSMX-only and not compatible with DSM2 receivers.
Yes, but DSM2 users who rarely, if ever, fly in big events or other "noisy" 2.4GHz environments may find the DSM2 equipment they have now is all they will ever need. The difference DSMX makes is only apparent when hundreds of 2.4GHz systems are in use at once. To see if your transmitter is eligible for the DSMX add-on, please visit horizonhobby.com, click on the “radios” tab, and select “DSMX addons” for more details.
A safety feature that prevents a pilot from flying a model when the model selected in the radio is not correct.
A resequencing of the data a Spektrum transmitter transmits based on the type of mixing you select. This feature helps to sync control services that are connected (such as a swash plate on a helicopter) and is used in radios that have many channels.
The Spektrum™ X-Plus™ 8 module lets you add 8 fully proportional channels to specially equipped Spektrum transmitters and receivers with 10 or more proportional channels. Just plug it into the X-Plus port of a compatible receiver. It is ideal for scale modelers who like to push realism to the extreme with working accessories and lights in addition to the regular control functions. The DX10t and DX18 offer X-Plus.
You should have no problem maintaining control as long as you maintain direct line-of-sight with your model. If you try to fly behind a group of trees or otherwise obstruct your direct line-of-sight, you could be susceptible to losing your control link.
You can download Spektrum Apps from the Google Play Store at https://play.google.com/store/apps/developer?id=Horizon+Hobby,+Inc. or from the iTunes store at https://itunes.apple.com/us/developer/horizon-hobby-inc/id415542050
The length of the antenna is on a Spektrum receiver is set and tuned to optimize the range and performance of the receiver. We do not recommend altering the length of the antenna on any Spektrum Receiver.
