This item is no longer available. Updated or related products shown below:
E-flite Blade CX2 (EFLH1250) models shipped from Horizon Hobby after August 30th, 2007 include the following Important Product Update notice:
Inner Shaft With Aluminum Head/Hub (EFLH1240)
The aluminum upper rotor head and stabilizer flybar hub/holder installed on your model offers superior durability. In the unfortunate event that the inner shaft is bent in a crash, replacement shafts are available separately (EFLH1241).
Additional aluminum option parts are also available separately, including an Aluminum Bearing Holder with Bearing (EFLH1244), Aluminum Lower Rotor Head Set (EFLH1245) and Aluminum Swashplate (EFLH1246). These parts also offer improved precision and durability, along with a matching blue-anodized finish.
Your model is also equipped with over-current protection devices that are installed in-line with the positive wire lead of each main motor. These PTC (Positive Temperature Coefficient) resettable fuses offer protection for the main motor electronic speed controls (ESCs) in over-current conditions.
In the unfortunate event of a crash or rotor blade strike in which power to the main motors is not reduced entirely and immediately upon impact, the polymer material within the PTC resettable fuse will begin to heat and expand. This expansion will reduce current flow through the fuse, helping to limit and prevent potentially damaging over-current situations for the ESCs contained in the 3-in-1 Control Unit (EFLH1031). When any potentially damaging over-current situations are no longer present in the circuit, the fuse will reset itself, allowing the usual (typical flight) current loads to flow through the circuit again.
Although the PTC resettable fuses offer over-current protection never before available in micro-class coaxial helicopter models, it is still important to properly care for your Blade CX2 model while also learning the skills and good habits that will allow you to properly care for your future helicopter models:
In the unfortunate event of a crash or rotor blade strike, no matter how minor or major, you MUST lower both the throttle (left-hand) stick and throttle trim to their lowest possible positions as quickly as possible to prevent damage to the ESCs of the 3-in-1 unit AND the main motors.
Failure to lower both the throttle stick and throttle trim to their lowest possible positions in the event of a crash could result in damage to the main motor ESCs contained in the 3-in-1 unit or the main motors themselves, which may require replacement of the 3-in-1 unit and/or motors. Note: Crash damage is NOT covered under warranty.
3-in-1 Control Unit Mixer/Speed Control/Gyro System (EFLH1023)
The 3-in-1 Control Unit installed on your model is a lightweight combination of main motor mixer, main motor electronic speed controls and a rate-mode piezo gyro. This 3-in-1 Control Unit functions just like the 4-in-1 Control Unit (EFLH1024) previously included with Blade CX2 models, but it does not include a receiver.
After disconnecting both main motor plugs from the 3-in-1 Control Unit to perform the “Control Test” outlined on pages 16–19 in the instruction manual, it will be necessary to reconnect the plugs before continuing through the remaining steps outlined in the manual and before flight testing. The right-hand motor (when viewing the helicopter from behind) plug must be connected to the to the pins in the upper output slot on the 3-in-1, with the positive (red) wire lead oriented toward the top of the unit/helicopter. The left-hand motor plug must then be connected to the pins in the lower output slot, with the positive wire lead oriented toward the bottom of the 3-in-1 unit/helicopter.
All other functions (including arming and adjustments) of the 3-in-1 unit will be the same as those outlined for the 4-in-1 unit throughout the manual. However, the 3-in-1 unit also features unique software that allows the main motor mixer and rate-mode piezo gyro to be disabled. This, along with the separate Spektrum AR6100e receiver (SPMAR6100E), allows an optional heading lock-type gyro (sold separately) to be used for yaw control.
Spektrum AR6100e 2.4GHz DSM2 Microlite Receiver (SPMAR6100E)
The Spektrum AR6100e receiver installed on your model weighs just 4.4-grams and is compatible with the included E-flite LP5DSM transmitter and other Spektrum DSM2 equipped transmitters and modules. Please visit the AR6100e (SPMAR6100E) product page on www.SpektrumRC.com or www.HorizonHobby.com for more information regarding this receiver’s features and functions.
If you have any questions or concerns regarding these product updates, please feel free to contact Product Support directly at firstname.lastname@example.org or (877) 504-0233.
Nothing more than time to fly!

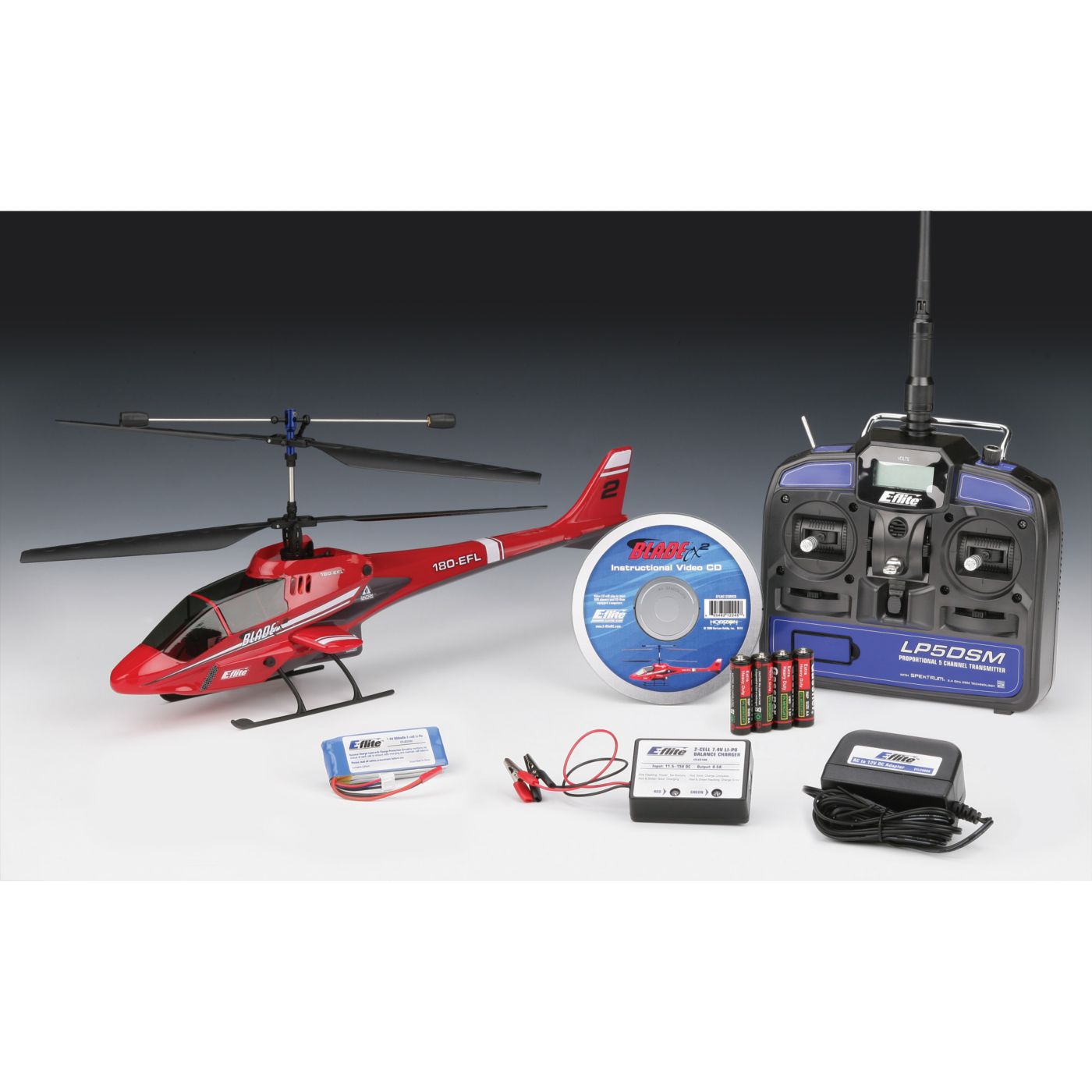

The Blade® CX2 takes the excitement and beginner-friendly flight stability of the original Blade CX and adds Spektrum™ 2.4GHz DSM® radio control that lets you fly anywhere, anytime without ever having to worry about interference. It’s the first ready-to-fly RC aircraft of any kind to come with this extraordinary technology built in. In addition, the 4-in-1 control unit has been updated with improved gyro and tail control that gives the Blade CX2 even better tail response while minimizing drift. Two featherlight S60 super sub-micro servos provide powerful, precise cyclic control. Topping it all off is an aggressive new body design that looks fantastic in flight and is unlike anything else out there.
When it comes to micro heli fun everyone can enjoy, you simply can’t beat the value and performance of the Blade CX2.
