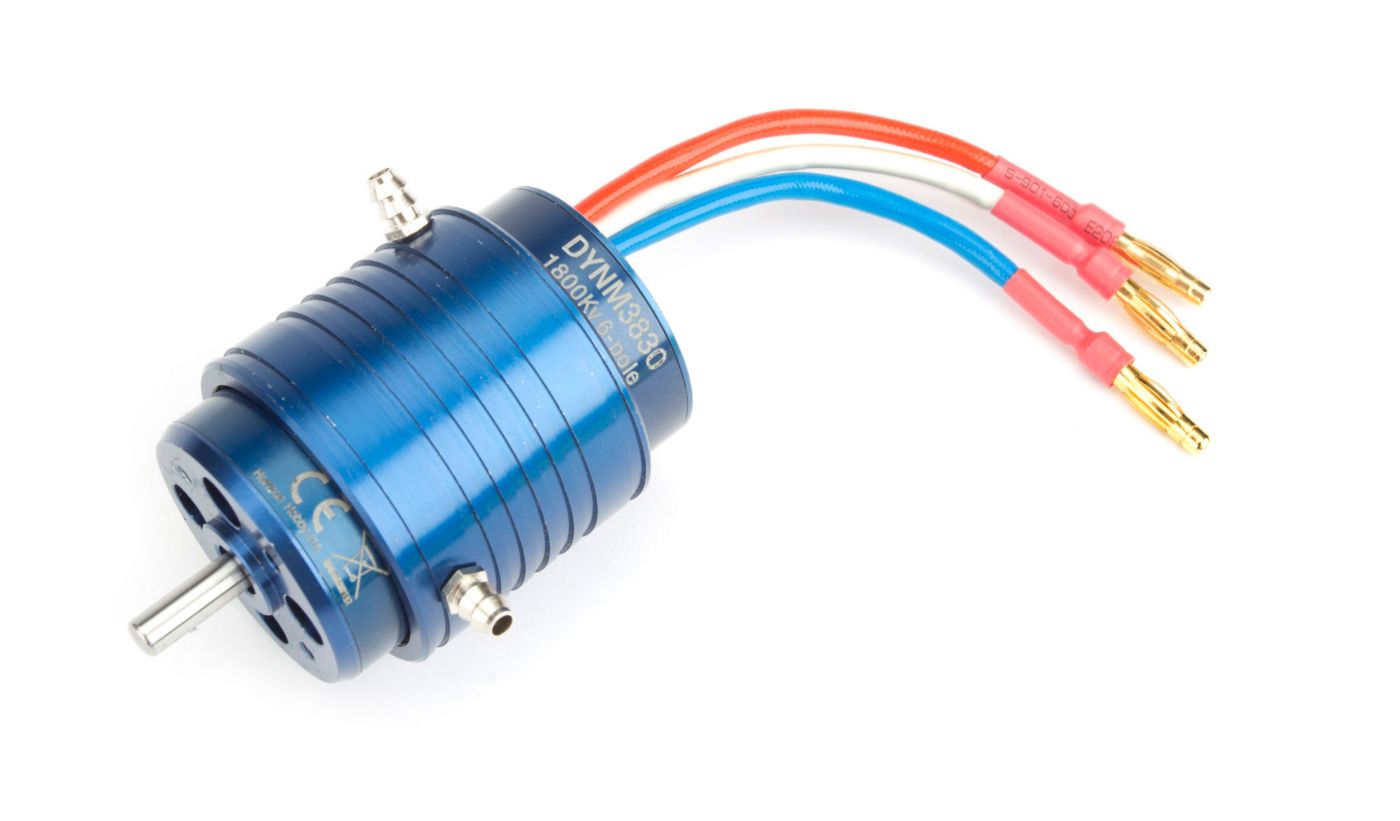

Image for A3630-1800Kv, 6-Pole, Water-Cooled, Marine Motor from HorizonHobby
+ / - Hover over image to Zoom
A3630-1800Kv, 6-Pole, Water-Cooled, Marine Motor

Compatible Products

Dynamite A3630-1800Kv, 6-Pole, Water-Cooled, Marine Motor DYNM3830 is compatible with PRB4000BD, PRB4075, PRB4075S, PRB4150, PRB4250, PRB4250B
Adjustable Timing: No
Bearings or Bushings: Two 5×12×5mm bearings
Cells: 7.4–22.2V (2–6S LiPo)
Connector Type: 4mm bullet
Efficiency: 85.5%
Input Voltage: 22.2V max
Maximum Burst Current: 65A
Motor Type: Brushless Sensorless Inrunner
Number of Poles: 6
Output: 800W
Overall Diameter: 1.43 in (36.2mm)
Overall Length: 2.20 in (55.8mm)
RPM/Volt (Kv): 1800Kv
Resistance: 0.024Ω
Sensored: No
Shaft Diameter: 0.20 in (5mm)
Shaft Length: 0.51 in (13mm)
Size: 3650
Turns: 2T
Weight: 7.65 oz (217g)
Wire Gauge: 12 AWG
