Brand Logo
4.4 out of 5 Customer Rating

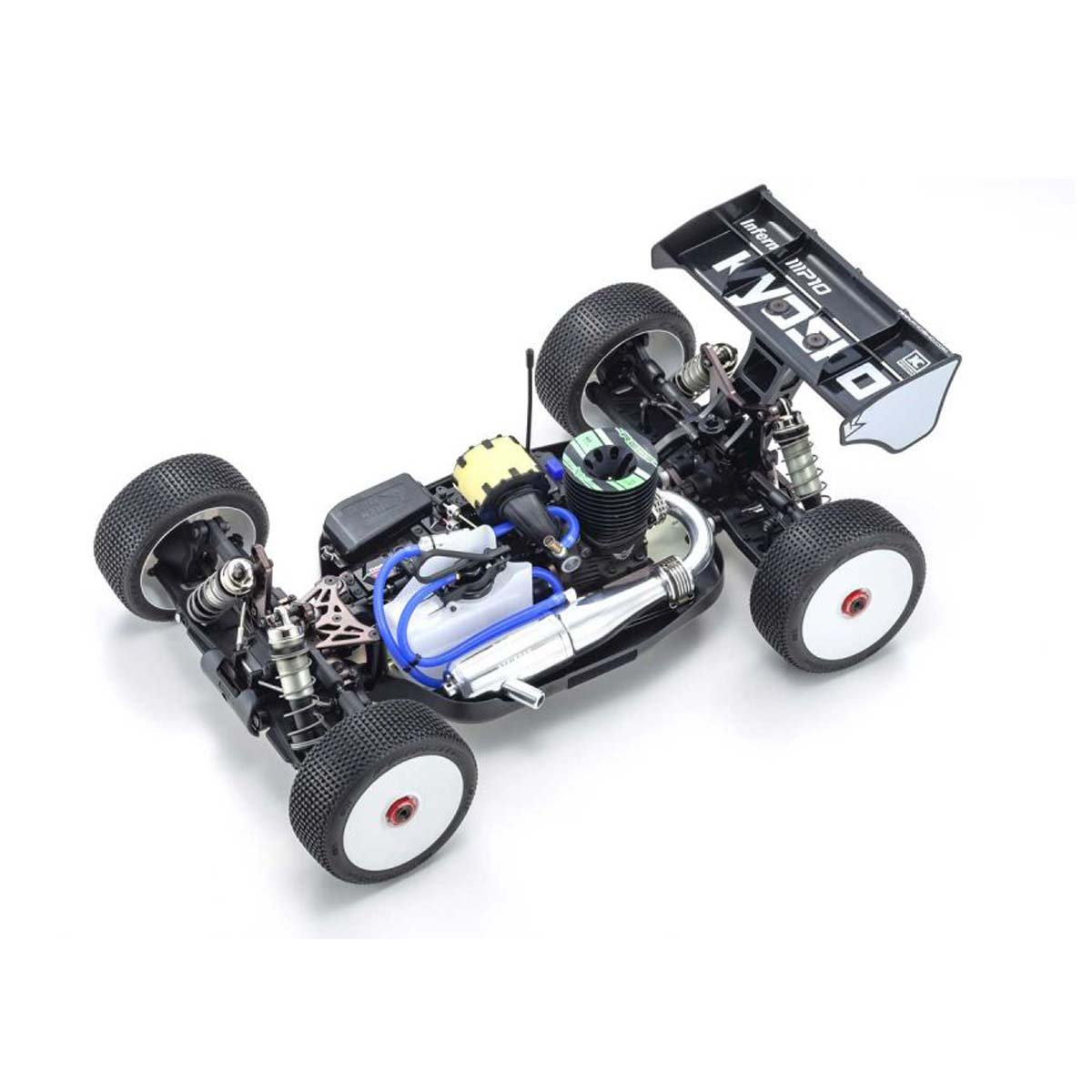

INFERNO MP10 TKI2 Race Kit

Item No. KYO33022
Brand Logo
4.4 out of 5 Customer Rating

INFERNO MP10 TKI2 Race Kit

Item No. KYO33022
$699.99
Free financing available through Easy Pay
Earn points on this item
In Stock
Selected Store

Product Details

In The Box
  • Unassembled chassis kit
  • Wheels
  • Wing
  • Clear body with window mask
  • Logo decals
  • Fuel tube
  • Linkage parts
  • Clutch parts
  • Air cleaner
  • Ring gear grease
  • 1.5, 2.0, 2.5mm Hex wrenches
  • Cross wrench and wheel wrench
Needed to Complete
  • 2-channel 2 servo R/C system for cars
  • Compatible batteries for R/C system
  • .21 engine
  • Muffler
  • Tires w/foam inserts for 1/8 buggy
  • Starter box and glow igniter
  • Fuel and fuel botlle
  • Oil for air cleaner
  • Shock Oil
  • Diff oil
  • Paint for car body
  • Tools
INFERNO MP10 TKI2 Race Kit

Features

  • This model represents the continuous evolution of the Inferno MP10 built on its racing achievements around the world
  • Revised reduction ratio delivers improved maneuverability from the proven speed and reliability of the inherited shaft-driven 4WD system
  • Broad ranging modifications have greatly improve handling characteristics
  • Competition-level model features a combination of newly designed components and race-proven optional parts included as standard
  • Lengthened diaphragm-type front and rear oil shocks provide excellent stability
  • Addition of collar between the steering rod and knuckle arm optimize bump steer characteristics
  • Uniquely designed body incorporates the latest aerodynamic technology

Overview

For many years the MP9 was at the pinnacle of 1/8 engine racing buggies. Having inherited that DNA, the MP10 embodies a new generation, re-engineering across the machine with the TKI2 model representing this continued evolution to write another chapter in the storied history of the Inferno series. About 1 year has passed since the release of the Inferno MP10. Based on rigorous test data from actual racing, the TKI2 has been modified to fine-tune it for a performance improvement. Front and rear shock stays have been lengthened together with the actual shocks to improve the suspension, especially from jumps to landings. In addition to reinforced shock caps and pistons equipped with 5 x 1.5 holes as standard (previously optional), improvements to various other parts have enhanced the performance across the chassis. A completely new body design improves aerodynamics for sharper handling characteristics. Of course body selection is a setting option, so the previous body design can also deliver optimal performance depending on course conditions. With a combination of newly designed components and race-proven optional parts included as standard, the new TKI2 promises world-class performance that will exceed expectations.

Video Overview



Video Overview



MP10 body
MP10 body

Body takes the high-level aerodynamic characteristics of the MP10 body in a more aggressive direction. The feeling of lightness through the corners is enhanced, which greatly contributes to faster lap times, especially on more technical circuits.



Pinion gears
Pinion gears

Revised gearing results in changes to the teeth of the ring and pinion gears to reduce the secondary reduction ratio from the MP10’s 3.31:1 to the TKI2’s 3.5:1. This delivers improved acceleration characteristics and response to the driver's throttle inputs for superior maneuverability.



Reduction Ratio
Reduction Ratio

With changes to the reduction ratio, the standard 46T spur gear in the MP10 kit has been changed to 45T. The final reduction ratio is 12.1:1, which places a greater emphasis on acceleration and achieves improved pickup. Different gear settings are also available with optional parts.



Shocks
Shocks

The front and rear shocks are 3mm longer than the standard MP10 with 4mm longer front shafts and 3mm longer rear shafts. Springs have been lengthened accordingly. Front length of 78 mm and the rear length of 95 mm provide superior shock absorption through the full suspension stroke.



Shock Caps
Shock Caps

Increased wall thickness reinforces shock caps and ball housing dramatically improves strength. The shock cap is specific for a diaphragm shock set up and guarantees stable damping force even through endurance races.



Shock Towers
Shock Towers

In combination with the longer shocks, the preiously optional shock towers are now equipped as standard and provide optimimal mounting positions. Suspension stroke can be increased for improved stability and running performance over bumpy tracks and large jumps.



Rear Arm
Rear ARM

Rear arm shape has been modified for the longer shocks to prevent interference with the spring retainer when the suspension is at full droop. This provides optimal suspension stroke.



Optimal Droop
Optimal Droop

With the longer rear shocks, towers, and revised rear arms, optimal droop is acheived, providing a smoother feel on rough tracks and large jumps.



Product Specifications

Completion Level Kit
Drivetrain 4WD
Power Type Glow
Scale 1/8
Vehicle Type Buggy
