Fusion 480 Smart Super Combo Kit

Item No.
Blade - BLH4925SC2
5 out of 5 Customer Rating
Product $999.99
Add Ons
Estimated Total: $999.99
Earn points on this item
Selected Store

Product Details

icon-box
In The Box
  • (1) Fusion 480 Helicopter Kit
  • (1) 4320-1300Kv Brushless Motor
  • (1) Avian 100 amp Smart ESC
  • (3) H6050 High-Torque Mid-Speed Heli Cyclic Servo
  • (1) H6060 Mid-Torque Ultra-Speed Heli Tail Servo
  • (1) FC6250HX Flight Controller
  • (1) 4651T SRXL2 Serial Receiver
  • (1) User Manual
icon-how-to
Needed to Complete
  • (1) Full-range 6+ channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter
  • (1) 6S 22.2V 4000mAh 50C+ LiPo Battery with EC5™ or IC5™ connector
  • (1) Compatible LiPo Charger
Fusion 480 Smart Super Combo Kit
Fusion 480 Helicopter Kit

Key Features

  • All metal and carbon fiber construction
  • 2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
  • Efficient helical main gear paired with a steel pinion to reduce noise
  • Oversized 25mm tail boom eliminating the need for boom supports
  • 6mm wide belt-driven tail with adjustable belt tension
  • 5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
  • Full carbon fiber and aluminum tail box with large aluminum pulley
  • 5mm carbon fiber tail pushrod for precise tail control
  • High-strength steel 10mm main shaft and 8mm spindle
  • Standard size servos for cyclic and tail
  • Hidden tail servo for a sleek look
  • Capable of 3000 RPM head speed for aggressive flight performance
  • Save money and get everything needed to complete your Fusion 480 with this Super Combo!
  • Practice flying this aircraft in the RealFlight® simulator!

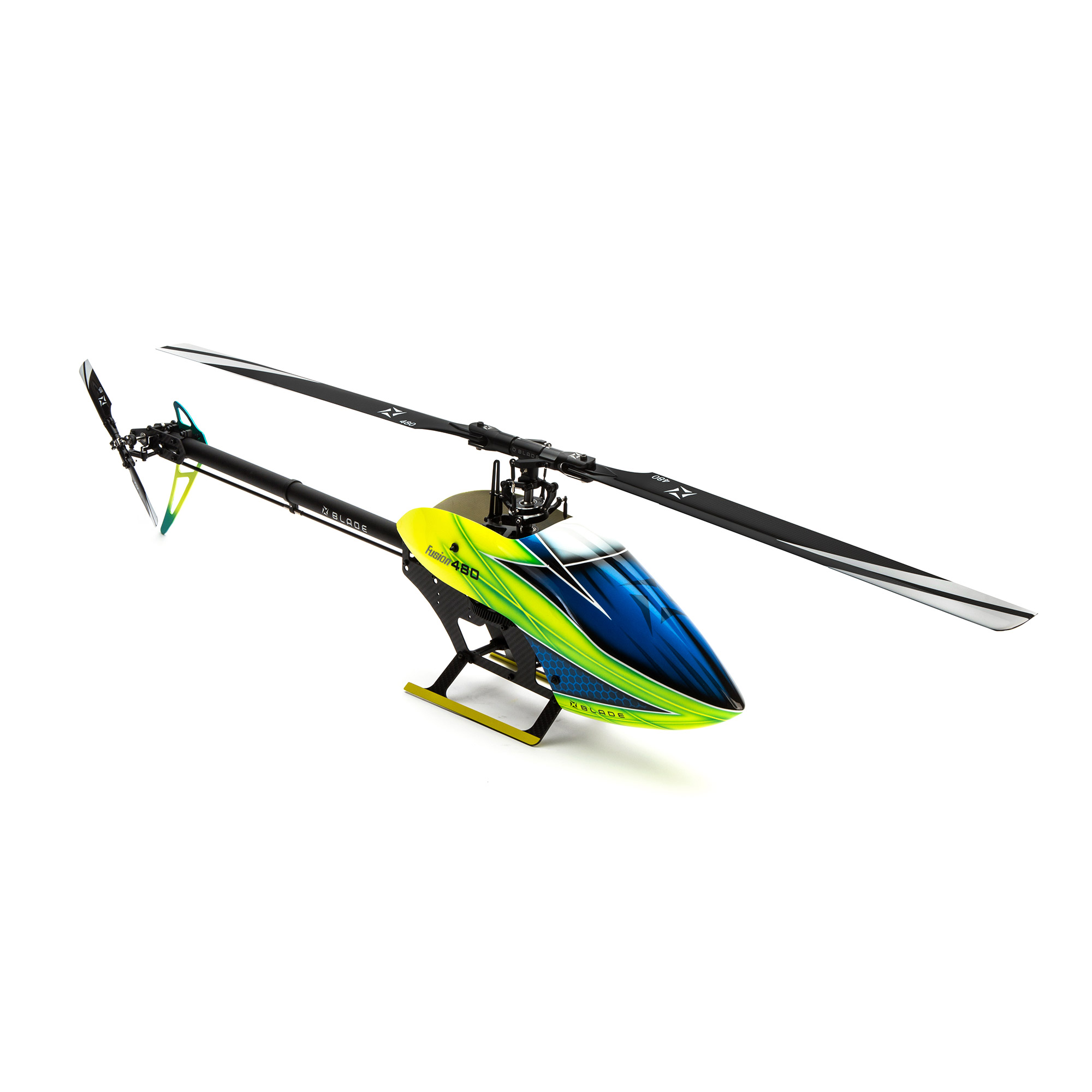

Overview

Built on years of engineering and development knowledge, the Blade® Fusion™ 480 helicopter packs all the high-end features into a rugged and durable airframe ready to rip up the skies. This powerhouse features lightweight carbon fiber and anodized aluminum construction presenting exceptional rigidity and durability. The optimized control system geometry offers the most efficient and responsive control. The quiet helical main gear is ready to be driven by a 40-43mm brushless motor bringing high power and torque. A belt-driven tail assembly is housed in construction utilizing both carbon fiber and aluminum to ensure precision performance every flight. For advanced-level 3D pilots, the Fusion 480 delivers an aggressive heli leaving the others in its dust cloud.

Video Overview

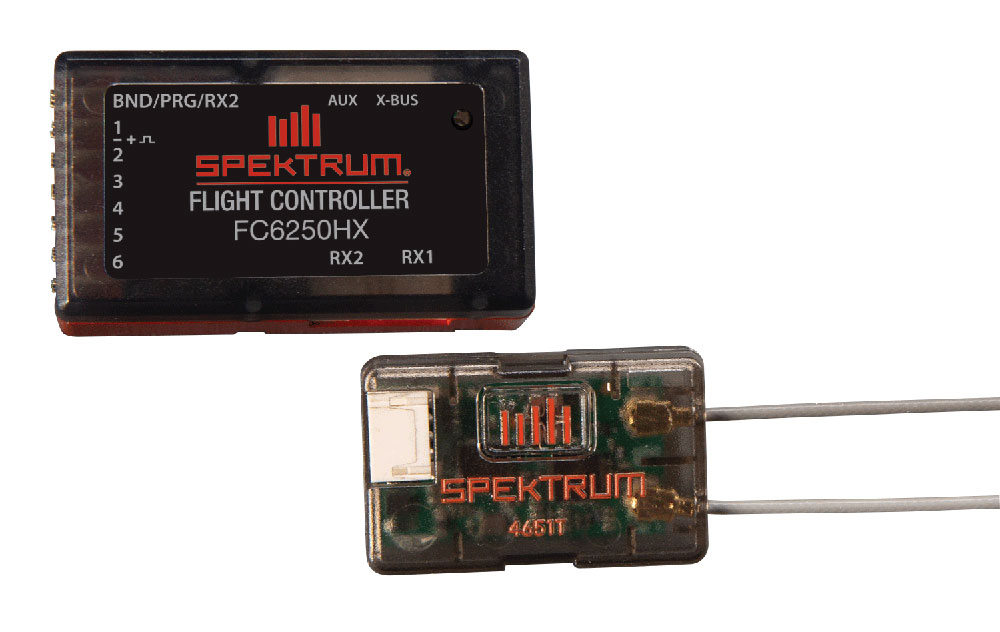

Next Generation Spektrum Flight Controller included

This Fusion 480 Super Combo kit includes the latest Flight Stabilization Technology from Spektrum, the FC6250HX. The FC6250HX is a powerful flybarless helicopter stabilization system that features the latest AS3X and SAFE Stabilization technology to deliver an extremely user friendly and precise Helicopter flying experience. Featuring a leading edge 6-axis M.E.M.S. inertial gyro, powerful and fast 32 bit ARM M4 Cortex processor and proprietary Advanced Adaptive Flight Control Algorithms, pilots will enjoy predictable and precise flight characteristics, excellent tail holding and rock-solid piro-compensation with the added security of assignable SAFE technology. Included with the FC6250HX is the latest SRXL2 Serial Receiver, the 4651T. This receiver is engineered to give Heli and Multirotor pilot’s extraordinary performance with both control range and telemetry range.

Flight Controller
Spektrum Avian Smart 100 Amp ESC included

This Combo includes a Spektrum Avian Smart 100 amp ESC that is ready to transmit Smart Battery and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature and RPM. The Avian ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response. It also offers the ability to setup a fixed RPM governor when programmed with the Spektrum Smart ESC Programmer Box.

ESC
Frame
  • All metal and carbon fiber construction
  • 2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
  • Painted carbon fiber skids and tail for easy visibility
  • Painted fiberglass canopy
  • Aluminum battery tray with (2) oversized battery straps
  • Aluminum bearing and servo block with Optimized Servo Geometry
Frame
Tail
  • Oversized 25mm tail boom eliminating the need for boom supports
  • 6mm wide belt-driven tail with adjustable belt tension
  • 5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
  • Full carbon fiber and aluminum tail box with large aluminum pulley
  • 5mm carbon fiber tail pushrod for precise tail control
  • Hidden tail servo for a sleek look
Tail
Mechanics
  • 480mm (main) and 85mm (tail) carbon fiber blades
  • Black anodized aluminum swashplate
  • Aluminum blade grips with CNC zero pitch indicator
  • High-strength steel 10mm main shaft and 8mm spindle
  • Efficient helical main gear paired with a steel pinion to reduce noise
Mechanics
Electronics/Power System
  • Accepts 6s 3700-5000 mAh LiPos
  • Accepts 40-43mm brushless outrunner motor (1300Kv – 1400Kv)
  • Accepts 90 Amp ESC
  • Accepts Standard sized servos for cyclic and tail
  • Aluminum battery tray with (2) oversized battery straps
  • Accepts popular flybarless control systems and receivers
Electronics/Power System
Product Alt Text Here

Product Specifications

Main Rotor Head Type Collective Pitch Flybarless
Product Width 136mm [5.4in]
Main Motor Type Brushless
Tail Rotor Diameter 232mm [9.1in]
Technology Smart
Main Rotor Blade Length 480mm [18.9in]
Speed Control Included
Completion Level Kit
Product Length 980mm [38.6in]
Power Type Electric
Skill Level Level 3
Swashplate Type 120 Degree CCPM
Approximate Flight Time ~5 mins
Tail Drive Belt Drive
Main Frame Material Carbon Fiber
Receiver Included
Approximate Assembly Time 4+ Hours
Battery Sold Separately
Main Blade Material Carbon Fiber
Main Rotor Diameter 1095mm [43.1in]
Product Height 302mm [11.9in]
Tail Blade Material Carbon Fiber
Tail Rotor Blade Length 85mm [3.3in]
Canopy/Body Material Fiberglass
